BLUM AVENTOS HS LIFT MECHANISM A 0350-0525

BLUM AVENTOS HS LIFT MECHANISM A 0350-0525

Stock Code: HI20S2A00

£48.67 GBP
Sale
View full details
Previous
BLUM AVENTOS HK-XS LIFT MECHANISM 0200-1000 LD
Next
BLUM AVENTOS HK-XS LIFT MECHANISM 0200-1000 LD TIP-ON

PRODUCT DESCRIPTION

The Blum AVENTOS HS lift mechanism A 20S2A00 is a stay-lift system for single-piece overhead cabinet fronts with a height of 350-525mm. The front rises upward and stays open horizontally, giving full, unobstructed access to the cabinet interior. Mechanism A is the lightest-duty variant in the HS range for this height class.

AVENTOS HS is Blum's up-and-over lift system. Unlike parallel-lift systems, the front swings upward and over the cabinet, making it well suited to wall units where the front needs to clear the worktop or appliances below.

Key features

  • Genuine Blum AVENTOS HS lift mechanism set
  • Blum article number 20S2A00
  • Stock code HI20S2A00
  • For cabinet front heights 350-525mm
  • Up-and-over stay-lift movement
  • Front holds securely in the open position
  • One pair of mechanisms supplied as a set

Front weight selection
Select the correct mechanism using the total front weight including the handle. For 350-525mm cabinet height, the AVENTOS HS mechanism options are:

Mechanism Total front weight
20S2A00 (this product) Lightest range - confirm with Blum configurator
20S2B00 Mid range
20S2C00 Heaviest range for this height


Where weight ranges overlap, Blum recommends the more powerful mechanism. Always confirm front weight and cabinet height using the Blum Product Configurator before ordering.

Required separately

Product details

  • Manufacturer: Blum
  • Range: AVENTOS HS
  • Blum article number: 20S2A00
  • Stock code: HI20S2A00
  • Front height range: 350-525mm
  • Movement: Up-and-over stay lift
  • Barcode: 9002617778298

Technical attributes

Type
 Lift mechanism
minimum internal cabinet depth 276 mm
Material Steel
Colour / finish zinc plated
Fixing onto cabinet screw-on
Symmetrical Yes
additions 664.350 chipboard screws magazine packed, enclosed

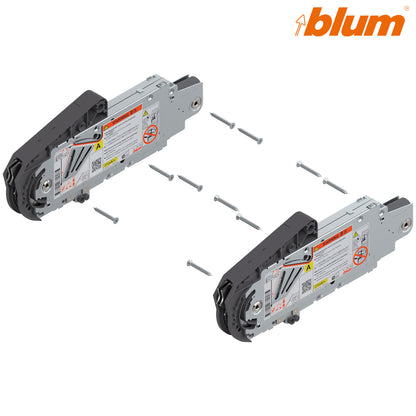

Item package 2 per set (2 lift mechanisms, 10 screws)
Cabinet height/Door weight from 350 mm (2-5 kg) up to 525 mm (2,5-4 kg)


Browse the full Blum AVENTOS HS range or use the Blum Product Configurator to verify your complete specification.

Frequently asked questions

What is the Blum AVENTOS HS Lift Mechanism A used for?
It is a stay-lift system for single-piece overhead cabinet fronts with a height of 350-525mm. The front rises upward and stays open horizontally.

What is the difference between Mechanism A, B and C?
All three cover the 350-525mm height range but are rated for different front weights. Mechanism A is the lightest-duty option. Use the Blum Product Configurator to select the correct variant for your front weight.

Are the front fixing brackets included?
No. Front fixing brackets, cross-stabiliser rod, connecting piece and cover caps must be ordered separately.

How many mechanisms are supplied?
One pair (left and right) is supplied as a set.

TECHNICAL DETAILS

  • Length: 350mm
  • Colour: Zinc
