Blum 171A5010 +5° Angled Mounting-Plate Spacer

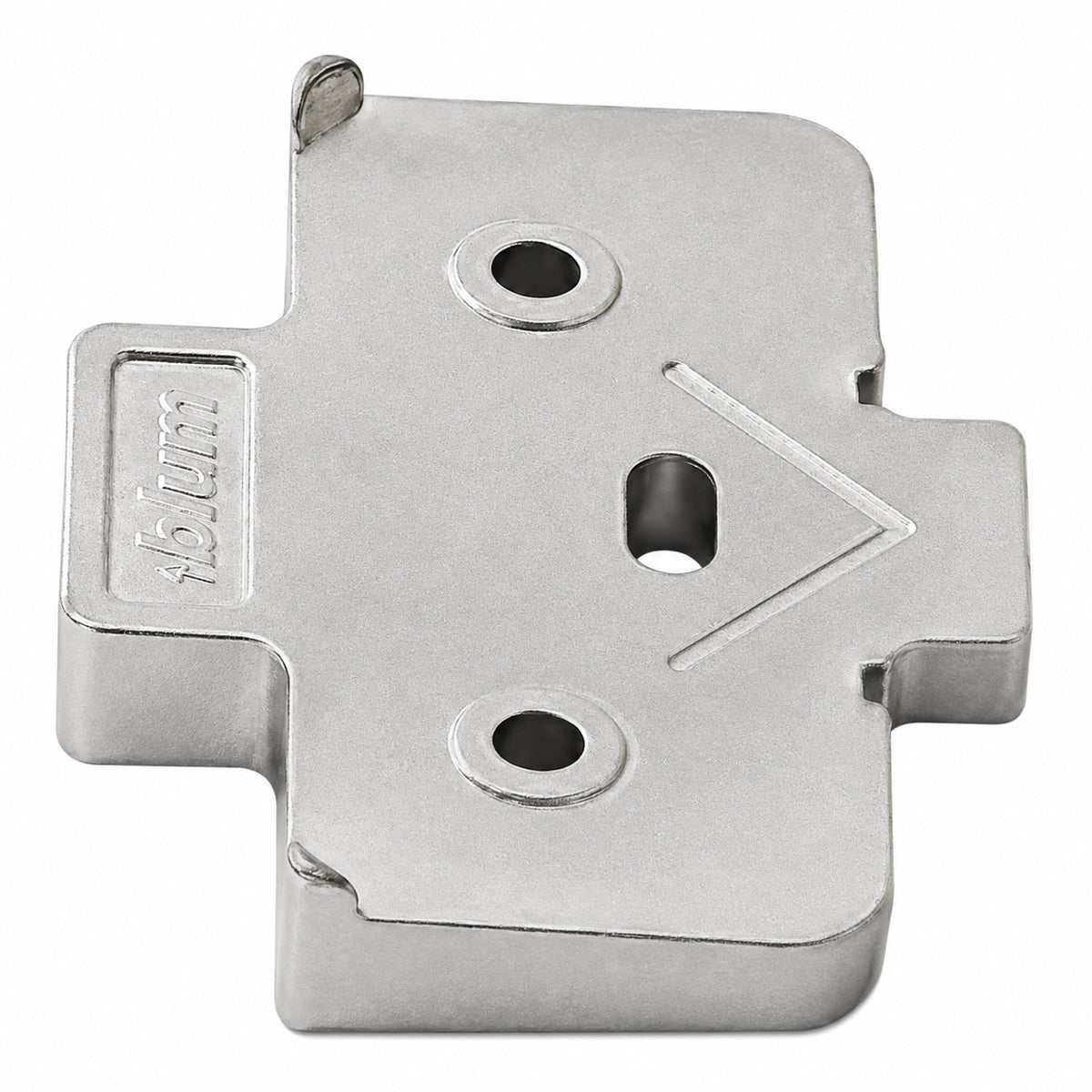

The Blum 171A5010 is a cruciform angled spacer used beneath selected Blum CLIP mounting plates. Its wedge-shaped construction changes the mounting-plate angle by +5° while providing a nominal spacing of 0.8mm.

This specialist planning component helps create specific angled cabinet-door applications that cannot be achieved using the hinge and mounting plate alone. It is made from zinc with a nickel-plated finish.

Key features

• +5° obtuse angled spacer
• 0.8mm nominal spacing
• Cruciform 37/32 format
• Fits beneath selected Blum CLIP cruciform mounting plates
• Fixes using suitable 3.5mm or 4mm chipboard screws
• Zinc construction
• Nickel-plated finish
• Used for selected angled hinge applications
• Supplied individually as one spacer

Please note: This product is an angled spacer only. It does not replace the mounting plate, and a hinge cannot connect directly to it.

Technical specifications

Compatible mounting plates

Blum specifies the 171A5010 for selected mounting plates in the following families:

• 173H71X0
• 175H71X0
• 175H91X0

The “X” represents the spacing variant within each compatible plate family. Compatibility with a plate family does not mean every hinge, plate height and spacer combination produces the same door angle or overlay.

Planning and installation

The angled spacer is installed between the cabinet and a compatible mounting plate. The complete hinge, plate and spacer combination must be selected from Blum’s planning information for the required cabinet angle, overlay and door position.

Orientation is application-specific. Some Blum planning combinations require the wedge to be rotated through 180°, so do not rely on a universal installation direction. Follow the relevant Blum planning diagram and the directional marking on the spacer.

Use fixing screws of sufficient length to pass safely through the mounting plate and spacer into the cabinet material. Screws, mounting plate and hinge are not included unless explicitly listed as part of the product package.

Browse Blum CLIP top mounting plates, Blum CLIP top hinges and the complete Blum range.

Frequently asked questions

What does the Blum 171A5010 do?

It changes the installation angle of a compatible Blum mounting plate by +5°, helping create selected angled cabinet-door applications.

Is this a mounting plate?

No. It is a spacer fitted underneath a separate compatible mounting plate.

Can a hinge attach directly to the spacer?

No. The hinge attaches to the compatible CLIP mounting plate installed above the spacer.

What does 0.8mm mean?

It is Blum’s nominal spacing classification for this +5° wedge. It should not be confused with the overall length or width of the spacer.

Which mounting plates are compatible?

Blum lists the spacer for the 173H71X0, 175H71X0 and 175H91X0 mounting-plate families.

Does it work with every Blum hinge?

No. The complete hinge, mounting plate and spacer combination must be selected from Blum planning information for the required angled application.

Which way should the spacer face?

Orientation depends on the application. Some combinations require it to be rotated by 180°, so follow the relevant Blum planning diagram and directional marking.

Are the hinge and mounting plate included?

No. This listing contains one angled spacer only. The hinge, mounting plate and fixing screws are separate components.

Which screws are suitable?

Blum specifies 3.5mm or 4mm chipboard screws. Select sufficient screw length for the mounting plate, spacer and cabinet material.
