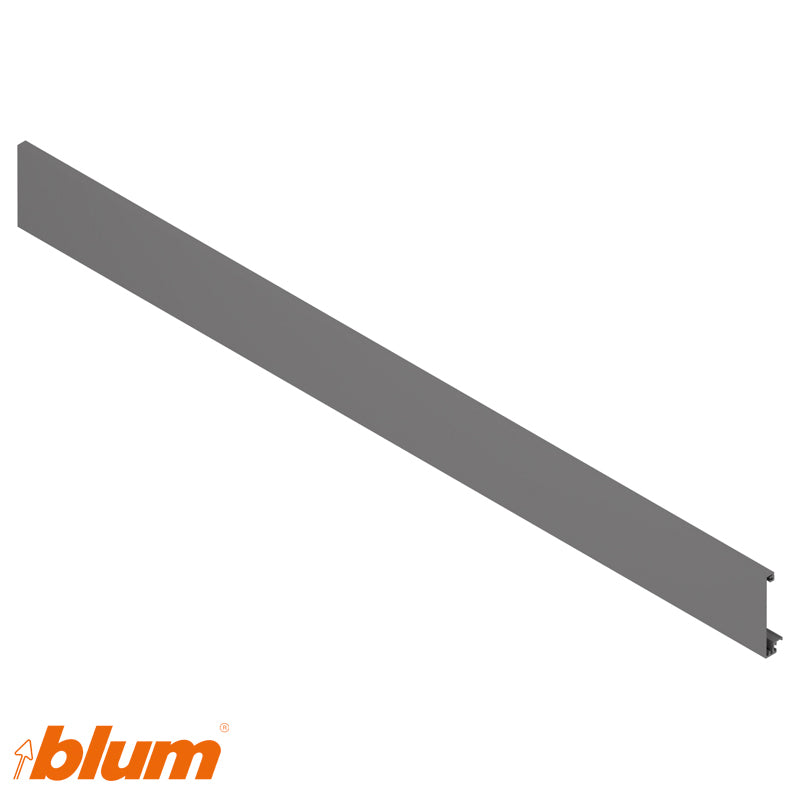

Blum MERIVOBOX Inner Front Profile ZV4.1042M

Blum ZV4.1042M is an ungrooved front profile for the MERIVOBOX inner drawer system. This Orion grey matt version is supplied in a 1042mm stock length for cutting to the required installation size.

Product specifications

• Blum reference: ZV4.1042M
• Stock code: ZV41042M
• Supplied profile length: 1042mm
• Colour: OG-M, Orion grey matt
• Version: front piece without groove
• Sale unit: one profile

What does the 1200mm reference mean?

Blum lists this stock profile for a 1200mm cabinet application. That figure describes the cabinet, not the length of the supplied profile. Calculate the finished front length from the actual internal cabinet width, LW, minus 126mm, as shown in Blum’s inner-drawer planning information.

Which fittings are used with it?

The ZI4.0MS1 M-height front fixing set is listed for the solid-front inner drawer. Blum also lists this profile with the ZI4.2ES1 E-height inner pull-out set in its BOXCAP-and-gallery application. Select all fittings for the same configuration; the profile is sold separately.
