PRODUCT DESCRIPTION

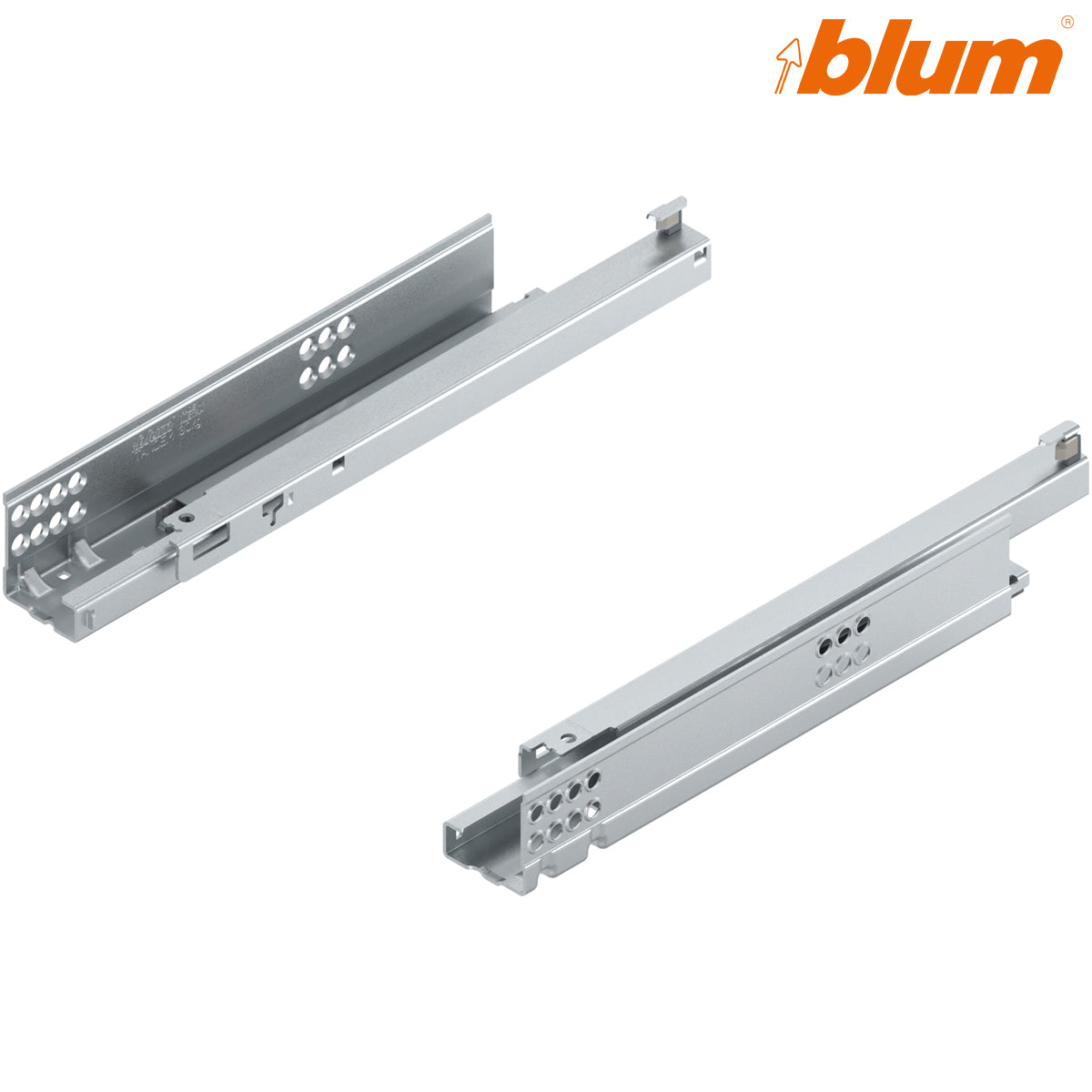

Blum TANDEM TIP-ON 300mm Single Extension Drawer Runners for 17–19mm Drawer Sides

These Blum TANDEM TIP-ON 300mm single extension concealed/undermount drawer runners accept 17–19mm thick drawer sides, making them ideal for drawer boxes built from correctly prepared standard 18mm chipboard or MDF. Use the same board material as the cabinet carcase for more cost-effective drawer construction.

With a 30kg load capacity and integrated TIP-ON push-to-open operation, these runners suit handle-free drawers in kitchens, bedroom furniture and other cabinetry. Press the drawer front to release and open the drawer. Drawer-front height adjustment is via the compatible locking device to help achieve a neat, aligned finish.

Choose the 300mm runner length to suit your drawer design and available internal cabinet depth. This model is single extension.

Supplied as a pair. Locking devices and the synchronisation linkage are sold separately. Blum recommends the synchronisation linkage for reliable triggering; it is not universally mandatory.

Explore the Blum TANDEM F runners for 17–19mm drawer sides and Blum Drawer Runner Accessories. Browse our Blum collection or Blum Drawer Runners guide for related hardware.

For the same nominal length with soft closing instead, see the 300mm single extension BLUMOTION runners. For full drawer access with push-to-open operation, see the 300mm full extension TIP-ON runners.

Specifications

Frequently Asked Questions

Can I use 18mm chipboard or MDF for the drawer sides?

Yes. These runners accept drawer sides between 17mm and 19mm thick, so standard 18mm chipboard or MDF can be used. Making the drawer box from the same board material as the cabinet carcase can help keep construction costs down.

Does 17–19mm refer to drawer-front thickness?

No. It refers solely to drawer-side thickness, not the drawer front or its adjustment range.

Are these runners single or full extension?

This DR550FT3000 model is single extension. SE means single extension; FE means full extension.

How does TIP-ON work?

Press the drawer front to release and open the drawer, allowing handle-free furniture designs. This model uses TIP-ON push-to-open operation, not BLUMOTION soft close or TIP-ON BLUMOTION.

Can the drawer front be adjusted?

Yes. Drawer-front height adjustment is via the compatible locking device to help align the finished drawer front.

Are they suitable for bedroom furniture?

Yes. They can be used for drawers in bedroom furniture, kitchens and other cabinetry where the drawer construction, runner length and load requirements are suitable.

All Blum products are backed by a Lifetime Guarantee, ensuring lasting performance in every installation.

Open Blum product configurator

TECHNICAL DETAILS

  • Application: Cabinet Locks, Catches & Bolts
  • Length: 300mm
  • Capacity: 30
  • Colour: Zinc
  • Load capacity: 30kg
