4.5kg Mortice Magnetic Cabinet Catch – White

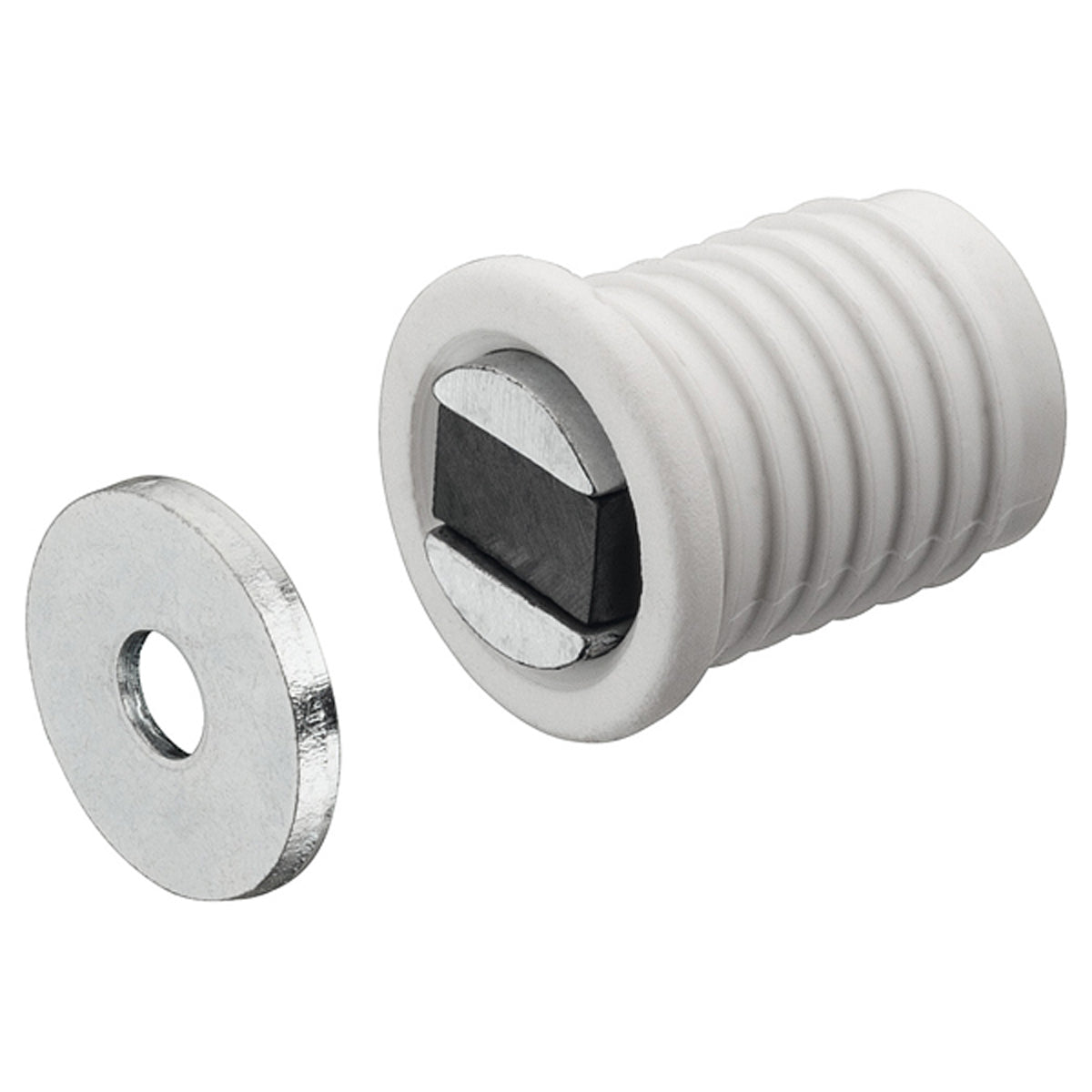

A white press-fit magnetic cabinet catch with a fixed plastic housing and a separate screw-fixed steel counterplate. Its recessed mounting keeps the catch body within the cabinet panel.
Technical specifications
| Part number | 24619701 |
|---|---|
| Approximate magnetic pull | 4.5 kg |
| Housing material | Plastic |
| Counterplate material | Steel |
| Catch and counterplate | Fixed |
| Housing mounting | Press fit |
| Counterplate mounting | Screw fixing |
| Drill hole diameter | 14 mm |
| Housing face diameter | 17 mm |
| Housing length shown | 20 mm |
| Insertion length shown | 17 mm |
| Counterplate size | Ø15 × 2 mm |
| Colour | White |
Fitting and use
Use the exact-code drawing for the Ø14 mm recess and check the fitting against the stock before machining. Press the catch into the panel and screw the counterplate to the opposing surface. Align the two faces for full contact.
Dimension drawing
Dimensions are in millimetres. Check the drawing and actual fitting before machining.
Frequently asked questions
Is the catch surface mounted?
No. The housing is press fitted into a drilled recess and the counterplate is screw fixed.
Is the kg figure a door weight rating?
No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.
Related products
TECHNICAL DETAILS
- Application: Security
- Size: Ø14 mm bore; Ø17 mm face; 20 mm housing length
- Length: 20mm
- Diameter: 17mm
- Finish: White
- Capacity: 5
- Colour: White
- Material: Plastic catch; steel counterplate
