Blum MOVENTO 580mm BLUMOTION Soft-Close Drawer Runners, 70kg Pair

Blum MOVENTO 580mm BLUMOTION Soft-Close Drawer Runners, 70kg Pair

Stock Code: DR766H5800S

£38.41 GBP
Sale
View full details
>
Previous
BLUM AVENTOS HK-XS LIFT MECHANISM 0500-1500 MD SET
Next
Blum MOVENTO 450mm BLUMOTION Soft-Close Drawer Runners, 70kg Pair

PRODUCT DESCRIPTION

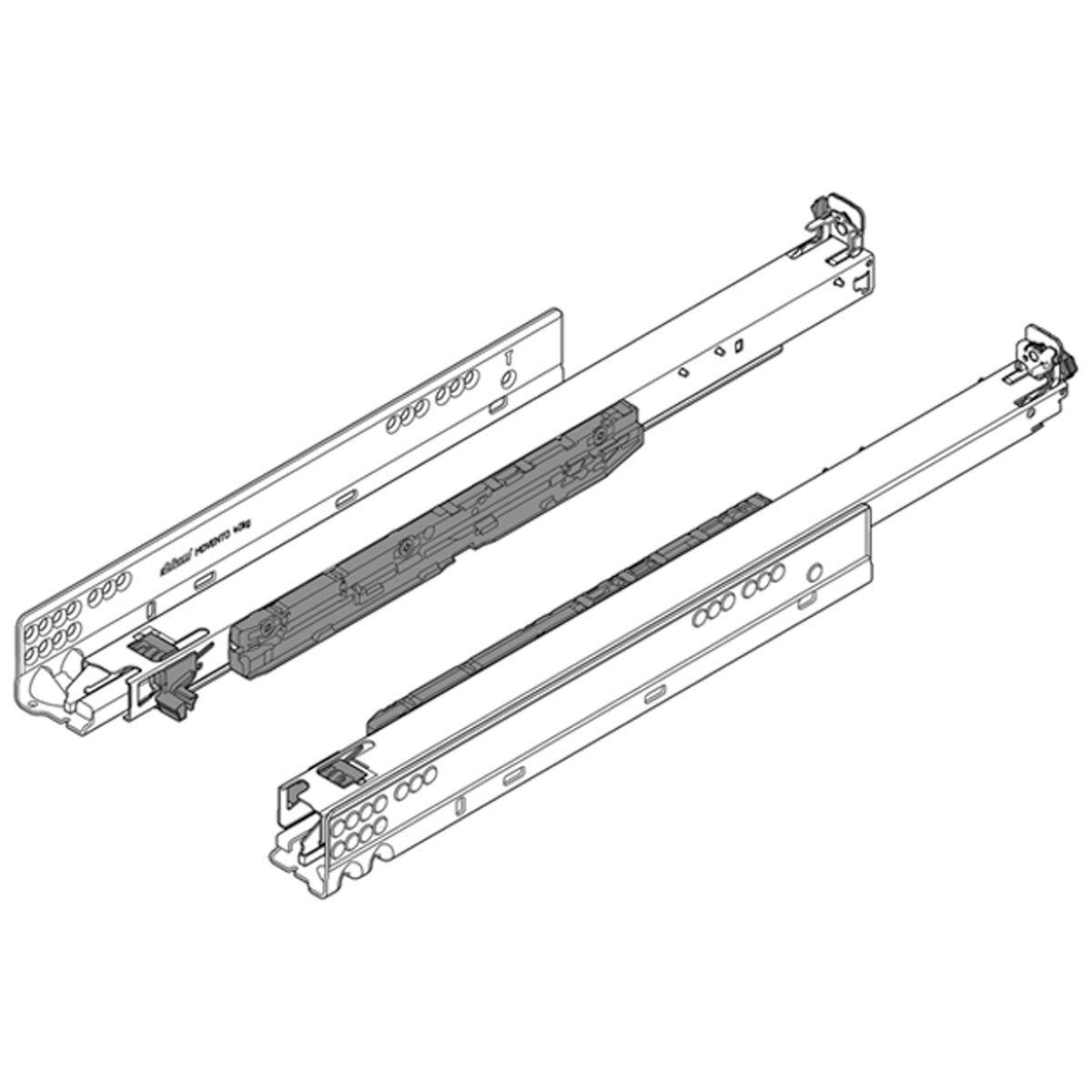

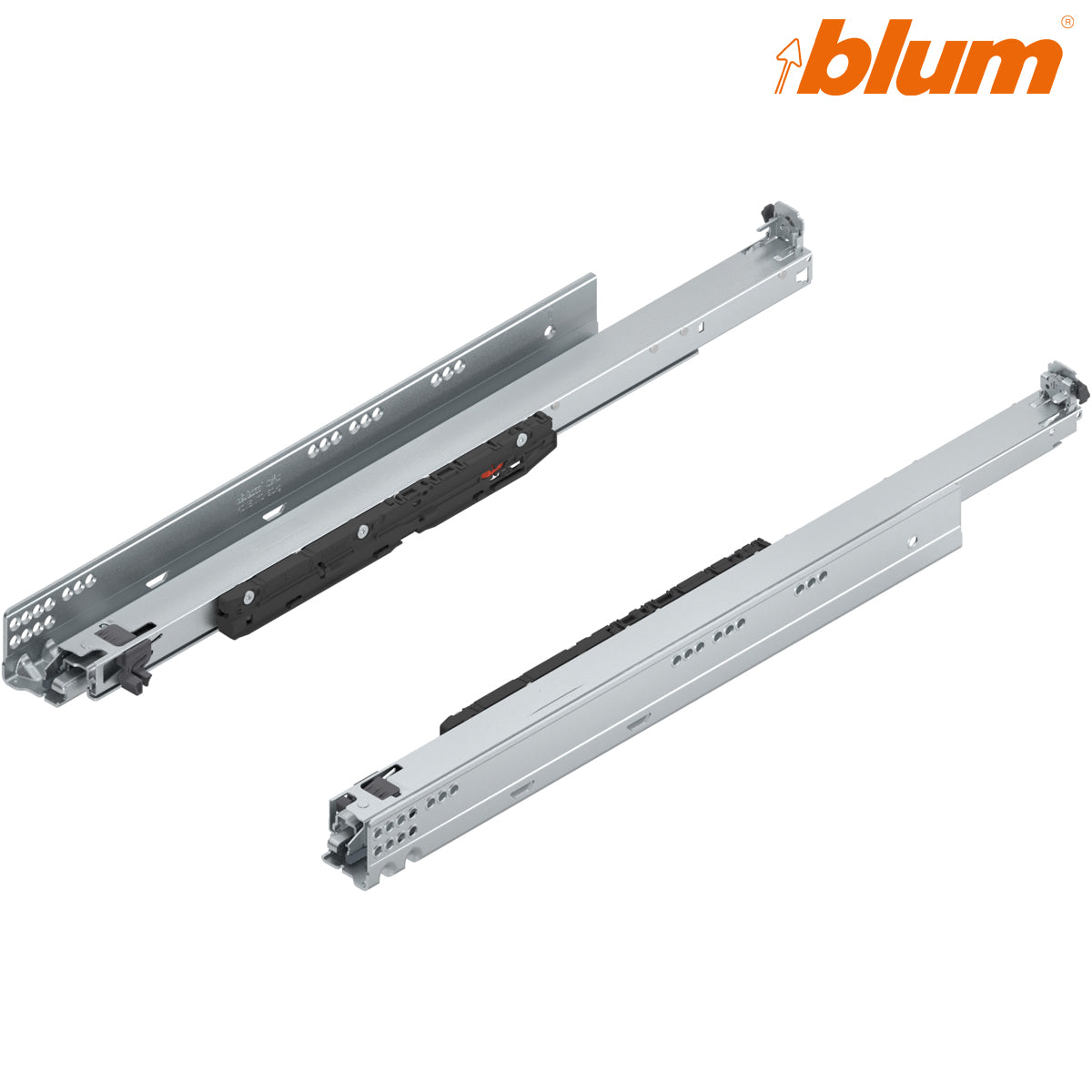

Blum MOVENTO BLUMOTION 70kg Drawer Runners – 580mm Pair

The Blum MOVENTO 766H5800S is a heavy-duty 580mm concealed drawer runner pair for wooden drawers carrying loads of up to 70kg, backed by the Blum Lifetime Guarantee. This intermediate length provides an option for substantial fitted-storage drawers where a standard 550mm or 600mm runner does not suit the planned drawer dimensions.

Full-extension movement provides convenient access throughout the deeper drawer, including items positioned near the back. Integrated BLUMOTION cushions the closing action and brings the loaded drawer to a smooth, quiet stop. The runners install beneath the drawer, keeping the mechanism concealed from view.

Heavy-duty features and benefits

  • Genuine Blum MOVENTO runners with the Blum Lifetime Guarantee
  • Heavy-duty 70kg dynamic load capacity
  • Integrated BLUMOTION soft-close technology
  • 580mm nominal runner length
  • Full extension for access throughout deeper drawers
  • Suitable for wooden drawer sides up to 16mm thick
  • Concealed undermount installation
  • Zinc finish
  • One matched left-and-right runner pair
  • Compatible front fixing clips or locking devices sold separately

Technical specifications

Manufacturer Blum
Product range MOVENTO
Blum part number 766H5800S
Hart Wholesale SKU DR766H5800S
Runner type Heavy-duty concealed undermount drawer runner
Closing system Integrated BLUMOTION soft close
Extension type Full extension
Nominal runner length 580mm
Load capacity 70kg
Maximum drawer-side thickness 16mm
Finish Zinc
Pack quantity One pair: left and right runners
Guarantee Blum Lifetime Guarantee

Compatibility and ordering information

This runner pair is intended for compatible wooden drawers with side panels no thicker than 16mm. Suitable MOVENTO front fixing clips or locking devices are required to connect and adjust the drawer. These components are not supplied and must be ordered separately.

The cabinet, drawer base, sides and fixing arrangement must be suitable for the intended load. Confirm the 580mm runner length and all fitting dimensions before ordering. Compare the Blum MOVENTO runner collection, find parts in the MOVENTO accessories collection, or browse the Blum product range.

Frequently asked questions

What is the load capacity?

This MOVENTO model has a 70kg dynamic load rating when the runner pair is used in a correctly constructed and installed drawer system.

Is BLUMOTION included?

Yes. BLUMOTION soft-close technology is integrated into the runners and provides smooth, controlled closing.

Are the fixing clips included?

No. Compatible MOVENTO front fixing clips or locking devices are required for installation and must be purchased separately.

How do I confirm whether the 580mm model is suitable?

Check the cabinet depth, finished drawer measurements, intended load, maximum 16mm drawer-side thickness and relevant Blum fitting dimensions before machining or assembly.

Does this runner have a lifetime guarantee?

Yes. These genuine Blum MOVENTO runners supplied by Hart Wholesale are backed by the Blum Lifetime Guarantee.

Blum Product Configurator – straightforward selection of fittings

TECHNICAL DETAILS

  • Application: Drawer Runner
  • Size: 580mm
  • Length: 580mm
  • Finish: Zinc
  • Capacity: 70
  • Colour: Zinc
  • Load capacity: 70kg
  • Material: Steel
