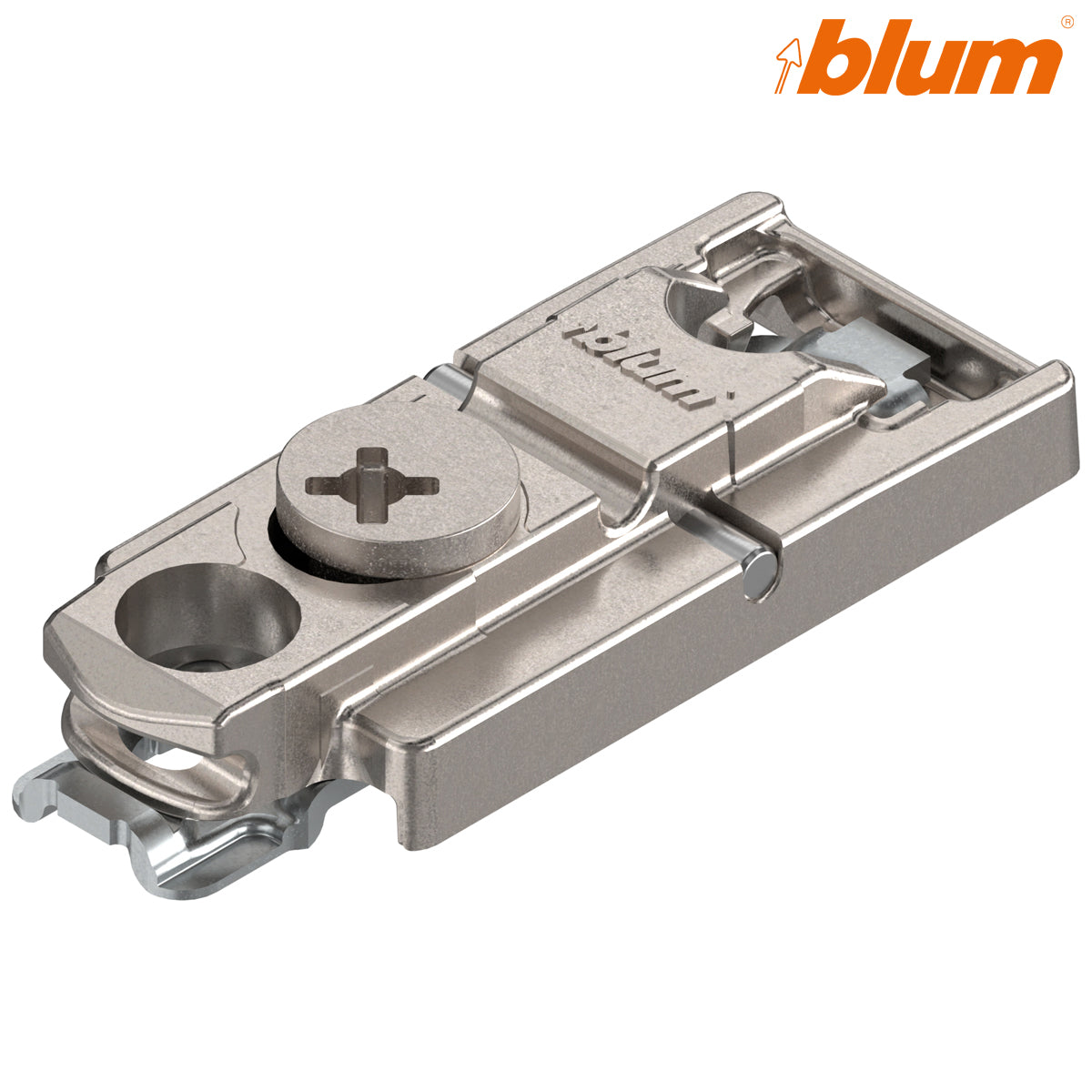

Blum 175H5400 CLIP Horizontal Cam Mounting Plate

The Blum 175H5400 is a straight horizontal cam mounting plate for selected Blum CLIP hinge applications. Its inline 22/32 format and 0mm spacing distinguish it from the steel 20/32 narrow mounting plates elsewhere in the range.

This screw-on plate has a nickel-plated zinc construction, an 8.5mm height and ±2mm cam height adjustment. It is fixed with Ø3.5mm chipboard screws selected for the relevant material and drilling arrangement.

Key features

• Blum manufacturer part number: 175H5400
• CLIP horizontal cam mounting plate
• Inline 22/32 format
• 0mm mounting-plate spacing
• 8.5mm physical height
• Cam height adjustment: ±2mm
• Fixing with Ø3.5mm chipboard screws
• Zinc construction with a nickel-plated finish

Compatibility and selection

Blum’s current catalogue includes the 175H5400 in its AVENTOS HF top hinge set for narrow aluminium frames, together with the specified CLIP top hinges and adapter plates. This catalogue example does not make the plate universally interchangeable with other inline or cruciform mounting plates.

Confirm the complete hinge, adapter, plate, fixing and drilling arrangement against the relevant Blum planning information. The hinge and any required adapter plates are sold separately.

Technical specification

Frequently asked questions

What does 0mm mean?

It is the mounting-plate spacing used in Blum planning. It is not the plate’s physical height.

What is the physical height?

The product specification gives a physical height of 8.5mm.

How is the plate fixed?

It is fixed with Ø3.5mm chipboard screws. The appropriate screw length and drilling must suit the application material.

Does it provide height adjustment?

Yes. Its cam provides ±2mm height adjustment.

Is it the same as the 175H3100?

No. The 175H5400 is a zinc 22/32 horizontal mounting plate, while the 175H3100 is a steel 20/32 horizontal mounting plate. Check the relevant Blum planning and drilling information before selecting a plate.

Is the hinge included?

No. This product is one mounting plate. Compatible hinges and any required adapter plates are ordered separately.

Explore related Blum CLIP mounting plates, Blum CLIP top hinges and the wider Blum range.
