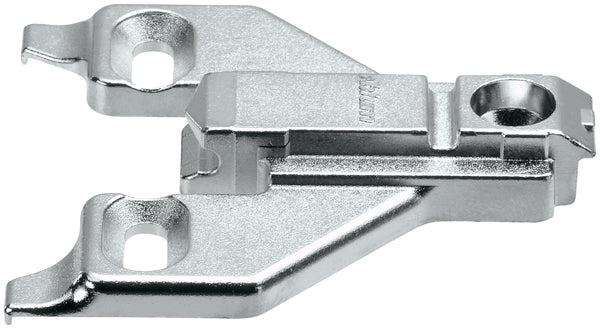

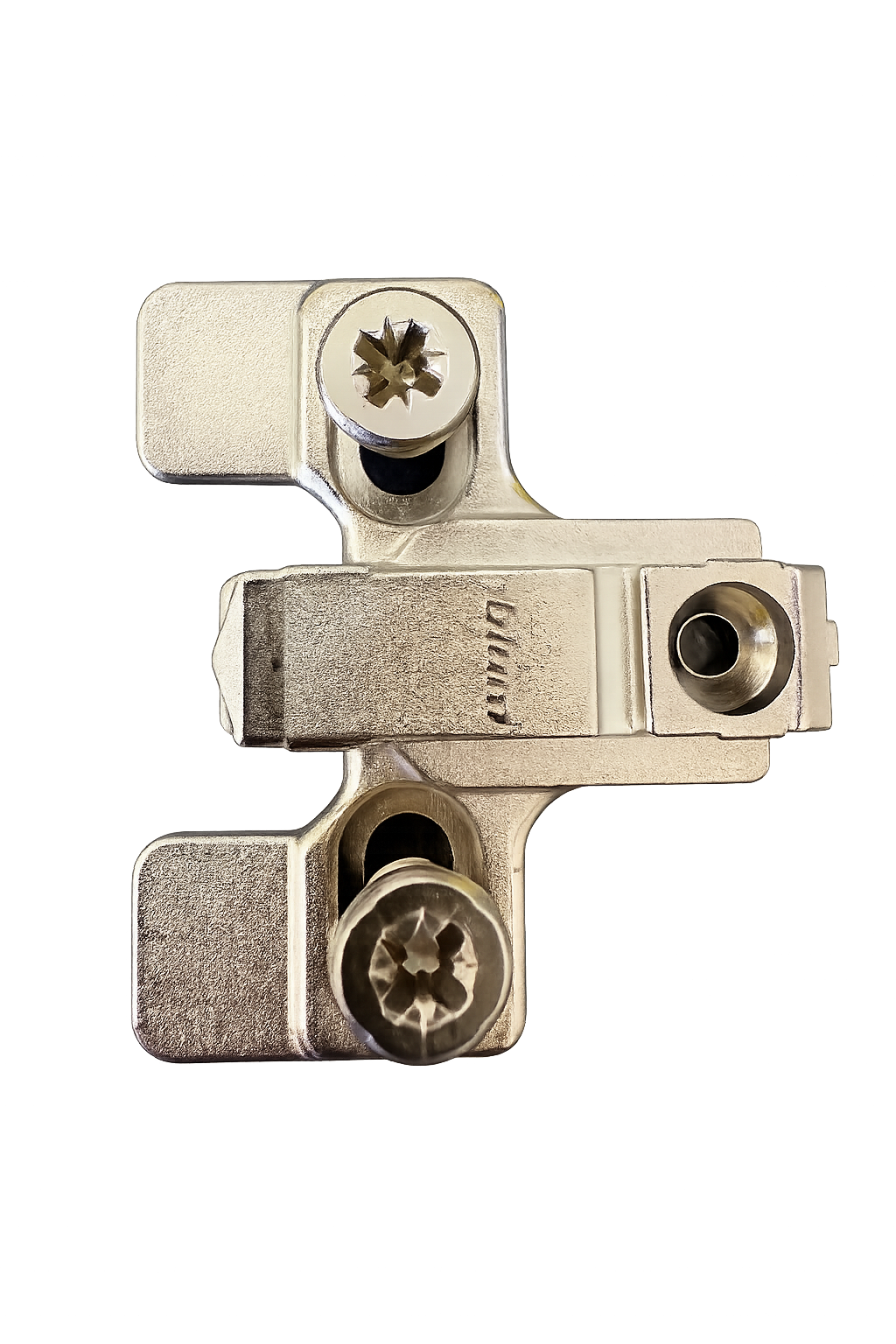

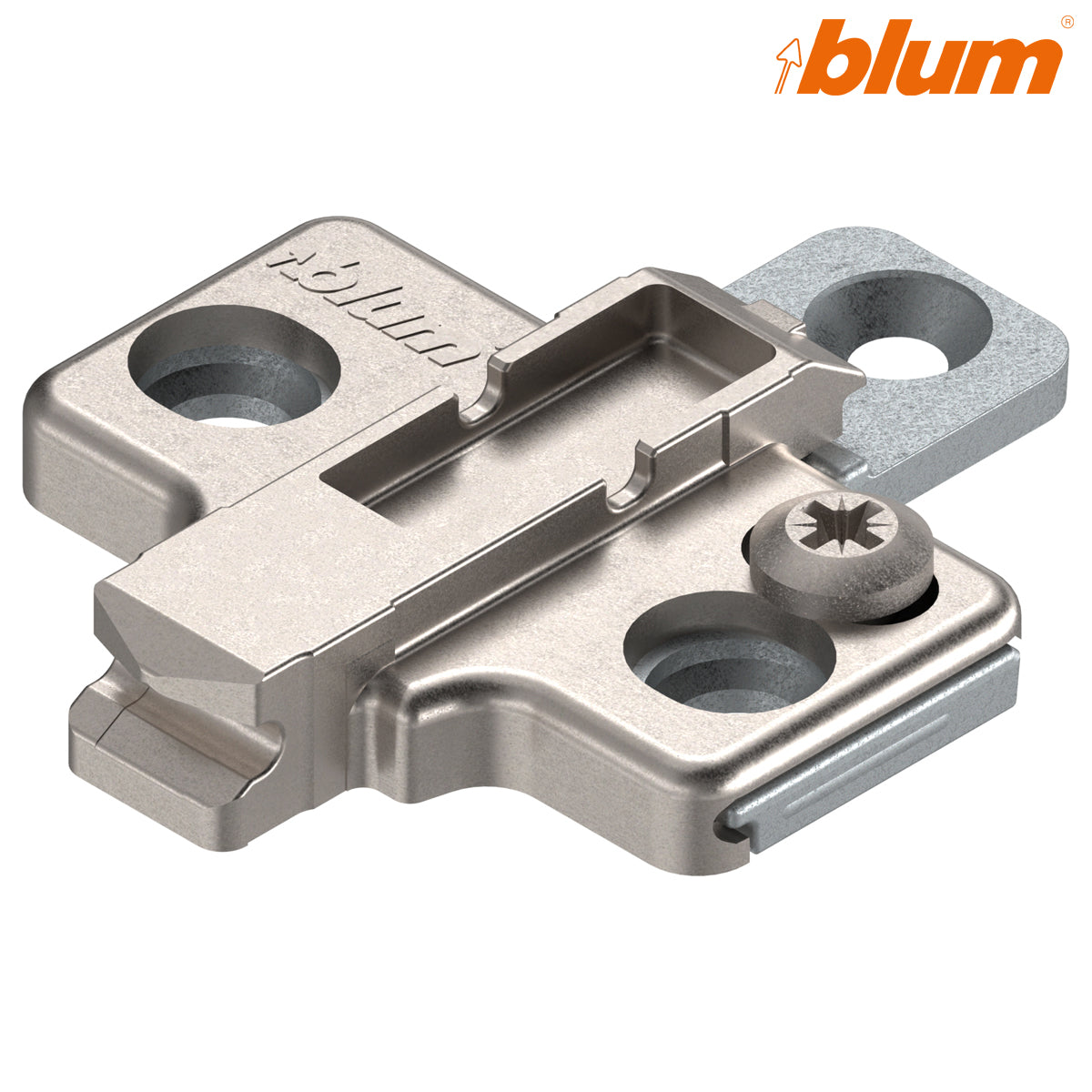

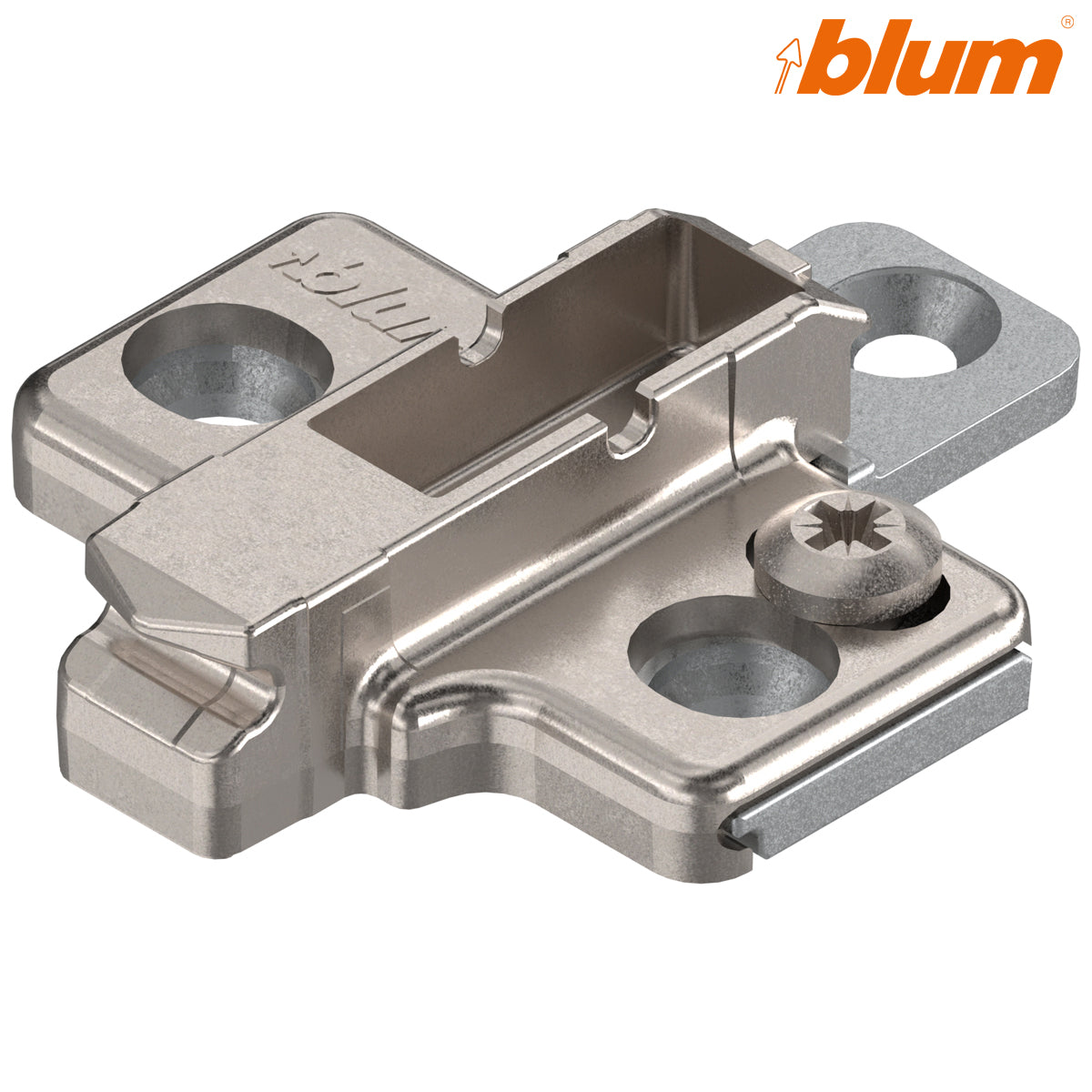

Blum CLIP top mounting plates and angled spacers

Choose a mounting plate by its shape, nominal spacing, cabinet fixing method, adjustment range and finish. The range includes cruciform and narrow designs with fixing options such as screw-on, cam, system screw, chipboard screw, EXPANDO, INSERTA and knock-in, subject to the individual listing.

A 0 mm or 3 mm nominal plate spacing is a planning dimension used with the hinge and cabinet construction. It is not the physical height of the plate. Use the complete Blum planning dimensions to confirm the required overlay, gap and adjustment.

Angled spacers are distinct from mounting plates. They are used for specific angled or clearance requirements and should be selected only when the hinge application and planning dimensions call for one.

Match the plate to the hinge

Not every mounting plate works with every CLIP top hinge. Check the hinge type, application, fixing method, nominal spacing and adjustment before ordering, then confirm the individual product listing for the exact specification.

Start with the Blum CLIP top hinge range if you are selecting the hinge and plate together.
