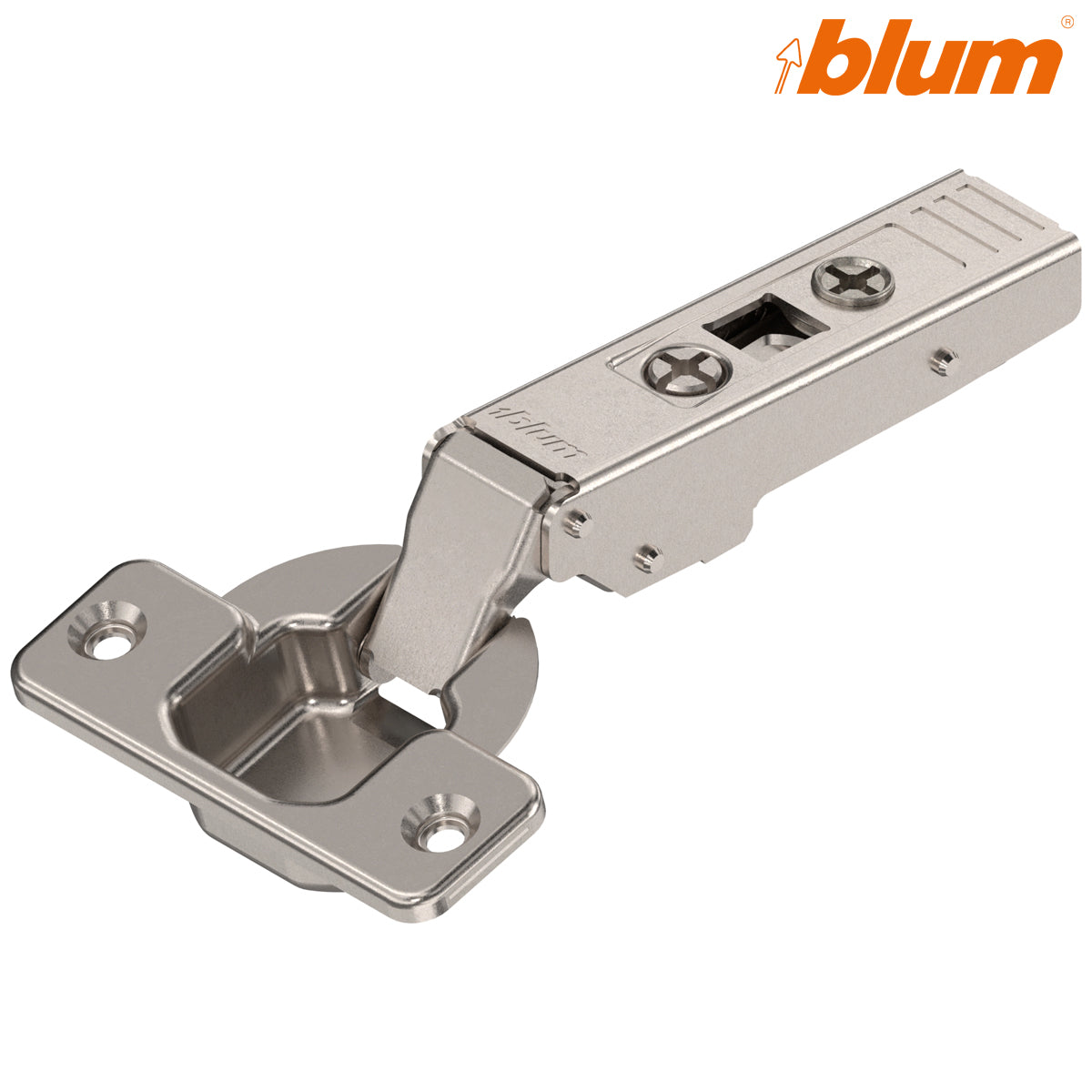

  • BLUM CLIP HINGE 107deg OVERLAY SCREW-ON by JULIUS BLUM UK LTD
1 1

BLUM CLIP HINGE 107deg OVERLAY SCREW-ON

BLUM CLIP HINGE 107deg OVERLAY SCREW-ON

Stock Code: HI75T155

£1.06 GBP
Sale
View full details
>
Previous
BLUM CLIP BLUMOTION HINGE 107deg OVERLAY SCREW-ON
Next
BLUM CLIP HINGE 107deg OVERLAY KNOCK-IN

PRODUCT DESCRIPTION

Blum Clip Top Thin Door Hinge - 107°, Overlay, Sprung, Screw-On, Nickel - HI75T155

The Blum Clip Top Thin Door Hinge opening to 107° for overlay applications in a sprung configuration with screw-on boss plate fixing is engineered for thin cabinet doors typically 15-24mm thick. The integrated spring mechanism provides controlled closing action, while the screw-on boss plate delivers secure, adjustable fixing with tool-free clip release for fast door removal and rehanging.

Part of the Blum Clip Top Hinges range. Pair with a Blum Clip Top Mounting Plate and Blum Blumotion Device for a complete hinge solution. For the full Blum range visit our Blum collection.

  • Part number: HI75T155
  • Opening angle: 107°
  • Application: Overlay
  • Door thickness: 15-24mm thin door
  • Soft-close: Sprung - integrated spring mechanism
  • Fixing: Screw-on boss plate
  • Finish: Nickel
  • Supplied as: 1 piece

Technical attributes

application standard hinge
Cranking Overlay application
Opening angle 107
Closing mechanism with spring
Cover cap type 90M2503
Cover cap type 70.1503
Boss material Steel boss
boss finish Nickel plated
Boss assembly screw-on
Flange width 57 mm
Flange length 20 mm
Flange height 3.2 mm
diameter hinge boss drilling 35 mm
distance between drillings 45 mm
eccentric position of fixing holes to hinge boss hole 9.5 mm
boss drilling depth 11.5 mm
Minimum drilling distance 3 mm
Maximum drilling distance 6 mm
arm material Steel
arm finish Nickel plated
collision measurement (hinge arm height) 21 mm
Fixed dimension / factory setting 11 mm
Type of side adjustment With screw
Side adjustment +/-2 mm
Type of depth adjustment convenient with spiral screw
Depth adjustment +3/-2 mm
Gap 1.5 mm
Item package 1 piece
packaging industrial packing
product combination No


TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
