BLUM CLIP OVERLAY HINGE +45deg ll INSERTA

BLUM CLIP OVERLAY HINGE +45deg ll INSERTA

Stock Code: HI79T5590B

£3.05 GBP
Sale
View full details
Previous
BLUM CLIP BLIND CORNER HINGE 95deg INSET INSERTA
Next
BLUM CLIP BLUMOTION ANGLED HINGE +45deg l 1/2OVERLAY INSERTA

PRODUCT DESCRIPTION

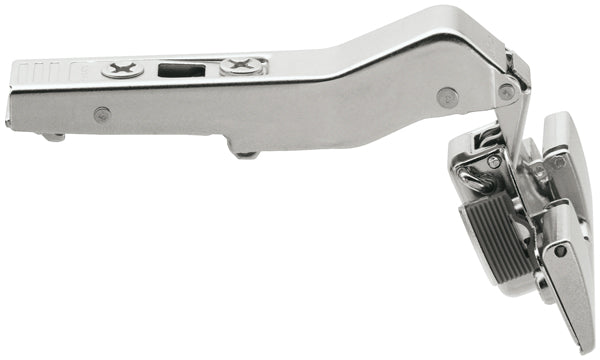

Blum Clip Top Angled Hinge – +45°, Type II, Overlay, Unsprung, INSERTA, Nickel – HI79T5590B

The Blum Clip Top Angled Hinge +45° Type II with INSERTA boss plate fixing is a specialist hinge engineered for angled cabinet constructions where the door and carcass meet at a +45° positive angle. Type II (ll) indicates the specific angular geometry for overlay applications, ideal for diagonal corner units and angled furniture builds. The INSERTA boss plate clicks directly into the 35mm cup hole with no screws required – the fastest possible installation method even in complex angled builds. Pair with a separate Blumotion device for silent soft-close operation.

Part of the Blum Clip Top Hinges range. Pair with a Blum Clip Top Mounting Plate and Blum Blumotion Device for a complete hinge solution. For the full Blum range visit our Blum collection.

  • Part number: HI79T5590B
  • Angle: +45°
  • Type: II (ll)
  • Application: Overlay
  • Soft-close: Unsprung – use with separate Blumotion device
  • Fixing: INSERTA – tool-free press-in boss plate, no screws required
  • Boss hole: 35mm standard cup
  • Finish: Nickel
  • Supplied as: 1 piece
  • Tool-free door removal and rehanging
  • 3-dimensional adjustment for precise door alignment

All Blum products are backed by a Lifetime Guarantee, ensuring lasting quality in every professional installation.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
