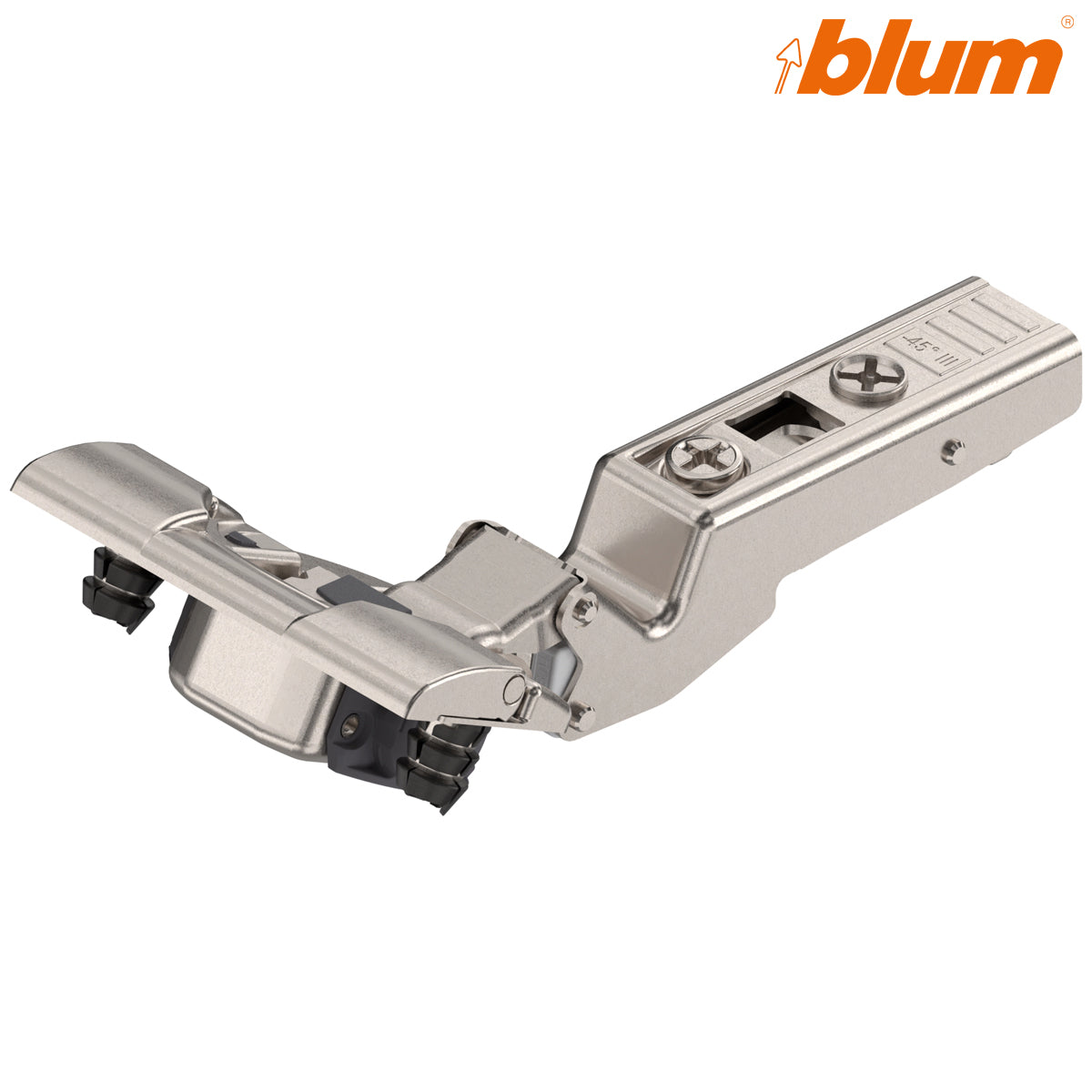

Blum Clip Top BLUMOTION Angled Hinge -45° (Type III) MAX Overlay — Sprung, INSERTA, Nickel

A Blum Clip Top BLUMOTION angled hinge with a -45° face frame angle for maximum overlay cabinet doors on angled or diagonal cabinet faces where the face angles inward. MAX overlay provides the greatest possible door coverage on the cabinet face. Requires only a 13.5mm deep hinge cup hole. Integrated BLUMOTION soft-close mechanism — switchable on or off per hinge. INSERTA boss for tool-free, press-in hinge cup installation.

• SKU: HI79B3490
• Blum part number: 79B3490
• Face frame angle: -45° (Type III)
• Application: MAX overlay
• Soft-close: BLUMOTION — switchable on/off
• Fixing: INSERTA (tool-free press-in boss)
• Hinge cup depth: 13.5mm
• 3-dimensional front adjustment
• Tool-free door-to-cabinet assembly and removal
• Finish: Nickel
• Blum Lifetime Guarantee
• Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.
