Blum AVENTOS HK-S 20K2E01 Lift Mechanism – Power Factor 960–2215, Screw-On

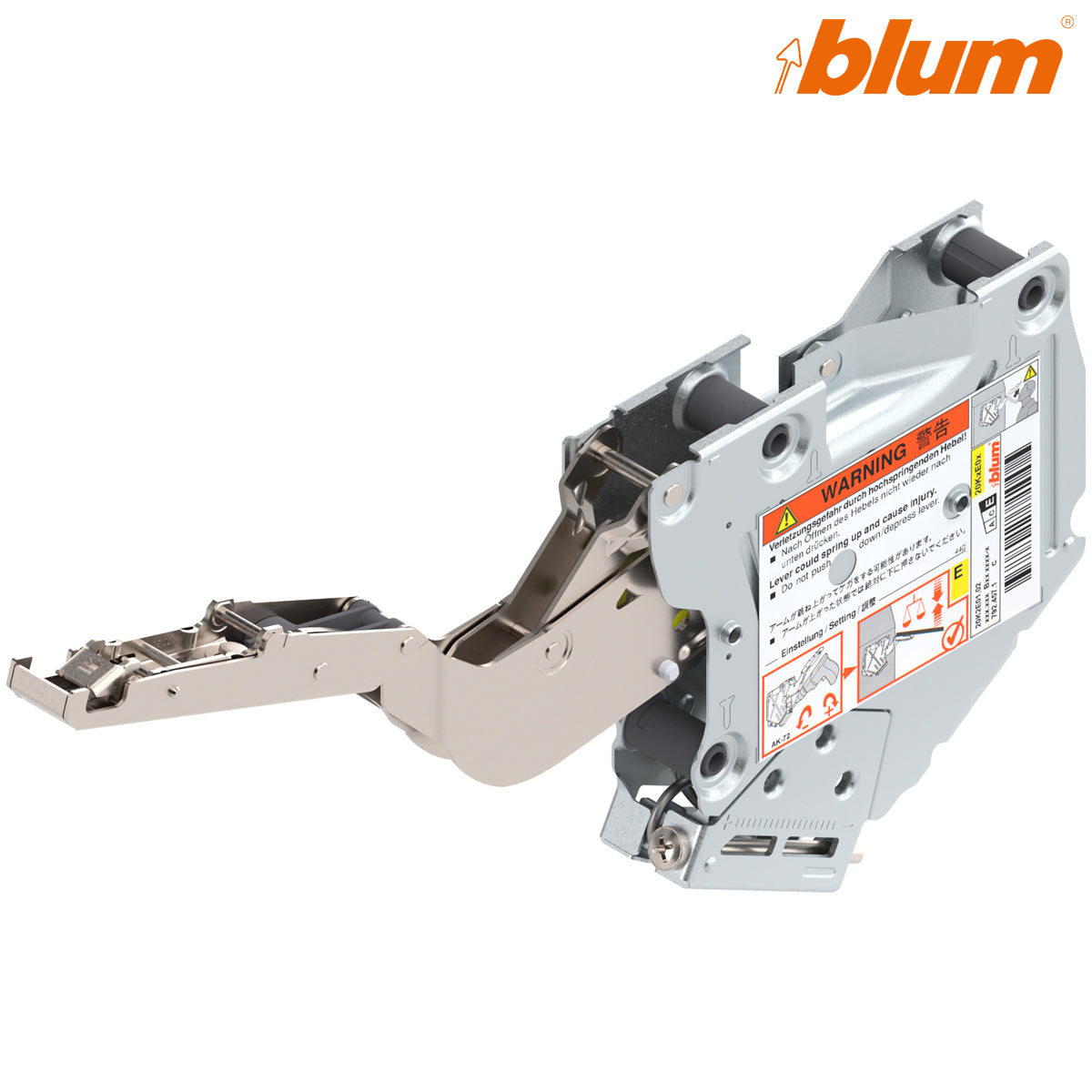

The Blum AVENTOS HK-S 20K2E01 is a screw-on lift mechanism designed for small wall cabinets with up-and-over doors. It holds the door open at any angle, making overhead storage more accessible and practical in kitchen and living spaces.

The 20K2E01 covers a power factor range of 960–2215, making it suitable for a wide range of cabinet widths and door weights within that bracket. Select the correct power factor using Blum's online cabinet planning tool or by consulting the AVENTOS HK-S selection table.

Key Features

• Blum article number: 20K2E01.02
• Hart SKU: HI20K2E01
• Power factor range: 960–2215
• Fixing method: screw-on
• Compatible with AVENTOS HK-S up-and-over lift system
• Supplied as 1 piece (one mechanism)
• Compatible with SERVO-DRIVE for AVENTOS (electric opening)

Compatibility and Selection

This mechanism is designed exclusively for the AVENTOS HK-S system. Use Blum’s power factor calculation to match the mechanism to your cabinet. The power factor is determined by the door weight and the cabinet height — always verify before ordering. Cover caps, mounting brackets and SERVO-DRIVE components are ordered separately. Browse the full range of AVENTOS components or the complete Blum range.

Technical Details

What Is Included

• 1 × AVENTOS HK-S lift mechanism (20K2E01.02)
• Fixing screws

Cover caps, mounting plates and SERVO-DRIVE components are not included and must be ordered separately.

Frequently Asked Questions

What is the AVENTOS HK-S 20K2E01 used for?

It is the mechanical lift mechanism for Blum’s AVENTOS HK-S up-and-over cabinet lift system. It mounts inside the cabinet and holds the door open at any position above the cabinet opening.

How do I know which power factor I need?

The power factor is calculated from door weight and cabinet height. Use Blum’s cabinet planning tool or the AVENTOS HK-S selection table to determine whether the 960–2215 range is correct for your application.

Is this compatible with SERVO-DRIVE?

Yes. The HK-S system is compatible with SERVO-DRIVE for AVENTOS, which allows the cabinet door to open electrically at a touch. The SERVO-DRIVE gearbox is ordered separately.

Is this one mechanism or a pair?

This product is supplied as 1 piece — a single lift mechanism. Two are required per door (one left, one right). Order two units for a complete installation.

What cover caps are compatible?

Cover caps for the HK-S mechanism are available separately in light grey (20K8A21), dark grey (20K8A21DG) and silk white (20K8A01) in both left-hand and right-hand versions.
