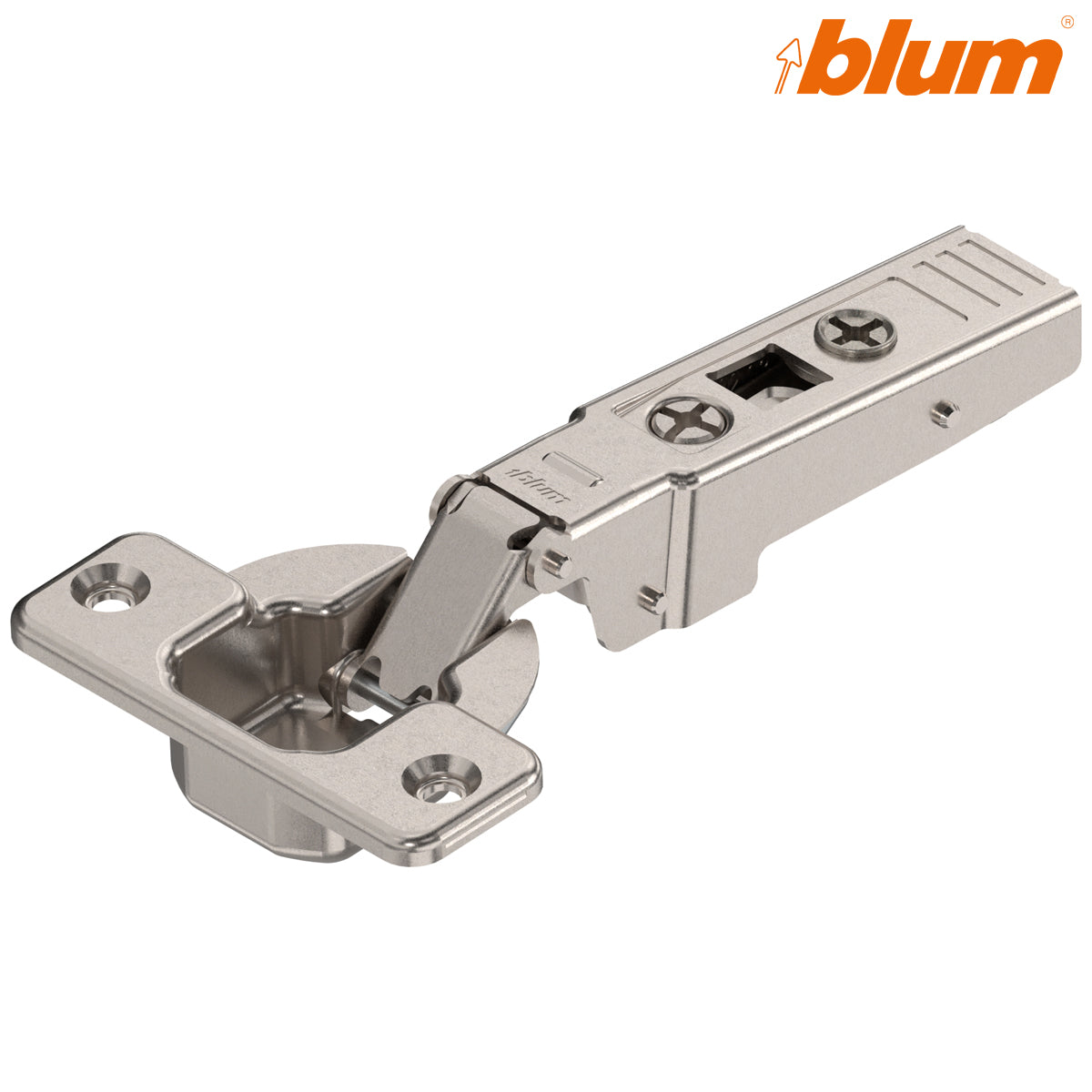

Blum 70T9550.TL CLIP top 95° full-overlay profile door hinge

The Blum 70T9550.TL is an unsprung concealed hinge for full-overlay cabinet doors with thick fronts, shaped edges or decorative profiles. Its specialised hinge geometry provides additional clearance where a conventional hinge could cause a thick or moulded door edge to contact the cabinet during opening.

The controlled 95° opening angle provides practical access while helping protect the door edge and adjacent furniture. This is an unsprung hinge, so it does not pull the door into the closed position. Its free-moving action is suitable for handleless cabinets using a compatible Blum TIP-ON for doors push-to-open unit.

Screw-on fixing with CLIP assembly

The hinge cup is secured to the back of the cabinet door using screws. Once fitted, the hinge arm connects to a compatible Blum CLIP mounting plate without tools. The door can be installed, removed and refitted while the mounting plate remains attached to the cabinet.

Key features

• Blum CLIP top concealed cabinet hinge
• Blum part number: 70T9550.TL
• Hart Wholesale stock code: HI70T95
• Full-overlay application for thick and profiled cabinet doors
• 95° opening angle
• Unsprung, free-moving hinge action
• Suitable for handleless TIP-ON applications
• Screw-on hinge-cup fixing
• Nickel-plated finish
• Tool-free CLIP connection to the mounting plate
• Three-dimensional front adjustment
• Suitable for front thicknesses up to 32 mm, subject to installation geometry
• Supplied as one hinge

Adjustment

• Height: up to ±3 mm, depending on the mounting plate
• Side: up to ±2 mm
• Depth: +3 mm to −2 mm using the spiral adjustment screw

Important ordering information

This listing is for one hinge only. A compatible Blum CLIP mounting plate and a suitable Blum TIP-ON unit are ordered separately. The required door gap depends on the front thickness, edge radius, drilling distance and mounting plate position, so trial fitting is recommended for unusually thick or heavily moulded fronts.

Browse the complete Blum CLIP top hinge range and Blum cabinet fittings.

Frequently Asked Questions

What type of door is the Blum 70T9550.TL designed for?

It is designed for full-overlay thick doors and cabinet fronts with profiled, moulded or shaped edges.

Is this an aluminium-frame hinge?

No. The 70T9550.TL is a profile and thick-door hinge. Blum uses different hinge references for narrow aluminium-frame doors.

Why is this hinge unsprung?

The unsprung mechanism allows the cabinet door to move freely without being pulled closed. This makes it suitable for a compatible TIP-ON push-to-open system.

Does this hinge include BLUMOTION soft-close?

No. The 70T9550.TL is unsprung and does not contain integrated BLUMOTION. Select the 71B9550 version when integrated soft-close is required.

Can it be used with Blum TIP-ON?

Yes. Its unsprung action is intended for handleless applications using a correctly selected Blum TIP-ON for doors unit.

What is the maximum door thickness?

Blum planning information covers front thicknesses up to 32 mm. Suitability depends on the drilling distance, door-edge radius and required cabinet gap.

Does the hinge use screw-on fixing?

Yes. The hinge cup is secured to the back of the cabinet door with screws. The hinge arm then clips onto the separate cabinet mounting plate without tools.

Is the mounting plate included?

No. This product is supplied as one hinge only. A compatible Blum CLIP mounting plate must be ordered separately.

What is the difference between 70T9550.TL, 71T9550 and 71B9550?

The 70T9550.TL is unsprung for push-to-open applications. The 71T9550 is sprung without integrated soft-close, while the 71B9550 includes integrated BLUMOTION.
