PRODUCT DESCRIPTION

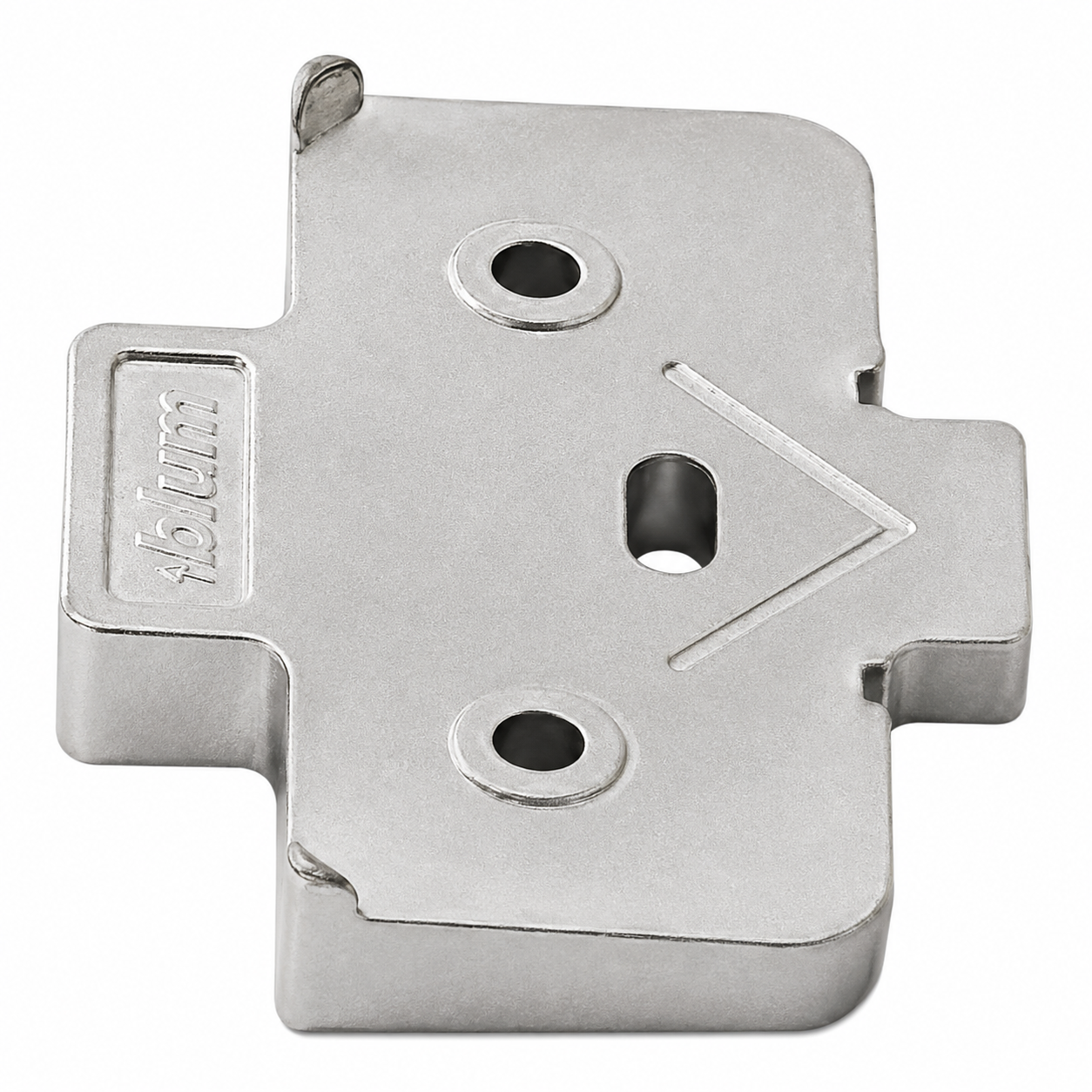

Blum 171A5040 +5° Angled Mounting-Plate Spacer
The Blum 171A5040 is a +5° obtuse angled spacer installed beneath selected Blum CLIP cruciform mounting plates. Its wedge-shaped construction changes the mounting-plate angle while providing 3mm nominal spacing for specific angled cabinet-door applications.
This is a specialist planning component, not a hinge or mounting plate. A hinge cannot connect directly to the spacer. Select the complete hinge, mounting plate and spacer combination from the relevant Blum planning information for the required cabinet angle, overlay and door position.
Key features
- Blum part number: 171A5040
- Wedge angle: +5° obtuse
- Nominal spacing: 3mm
- Format: Cruciform 37/32
- Material: Zinc
- Finish: Nickel plated
- Fixing: Suitable 3.5mm or 4mm chipboard screws
- Application: Selected angled hinge installations
- Hinge and mounting plate: Sold separately
Compatibility and installation
Blum specifies the 171A5040 for selected mounting plates in the 173H71X0, 175H71X0 and 175H91X0 families. The “X” represents the spacing variant within each family. This family-level compatibility does not mean that every hinge, plate height and spacer combination produces the same door angle or overlay.
Install the spacer between the cabinet and the compatible mounting plate. Orientation is application-specific, so follow the relevant Blum planning diagram and the directional marking on the spacer. Use fixing screws of sufficient length to pass safely through the mounting plate and spacer into the cabinet material.
| Brand | Blum |
|---|---|
| Manufacturer part number | 171A5040 |
| Hart SKU | HI1715040 |
| Product type | Angled mounting-plate spacer |
| Spacer format | Cruciform 37/32 |
| Wedge angle | +5° obtuse |
| Nominal spacing | 3mm |
| Suitable mounting-plate families | 173H71X0, 175H71X0 and 175H91X0 |
| Fixing | 3.5mm or 4mm chipboard screws |
| Material | Zinc |
| Finish | Nickel plated |
| Mounting plate included | No |
| Hinge included | No |
Questions and answers
What does the Blum 171A5040 do?
It changes the installation angle of a compatible Blum mounting plate by +5° while providing 3mm nominal spacing for selected angled applications.
Is this a mounting plate?
No. It is a spacer installed underneath a separate compatible mounting plate.
Can a hinge attach directly to it?
No. The hinge connects to the compatible CLIP mounting plate fitted above the spacer.
What does 3mm mean?
It is Blum’s nominal spacing classification for this wedge. It must not be described as the product’s overall length.
Does it work with every Blum hinge?
No. The complete hinge, mounting plate and spacer combination must be selected from Blum’s planning information for the required angled application.
Browse the Blum CLIP mounting plates, Blum CLIP top hinges and the complete Blum range.
