Blum 175H7190.22 CLIP top Cruciform Mounting Plate

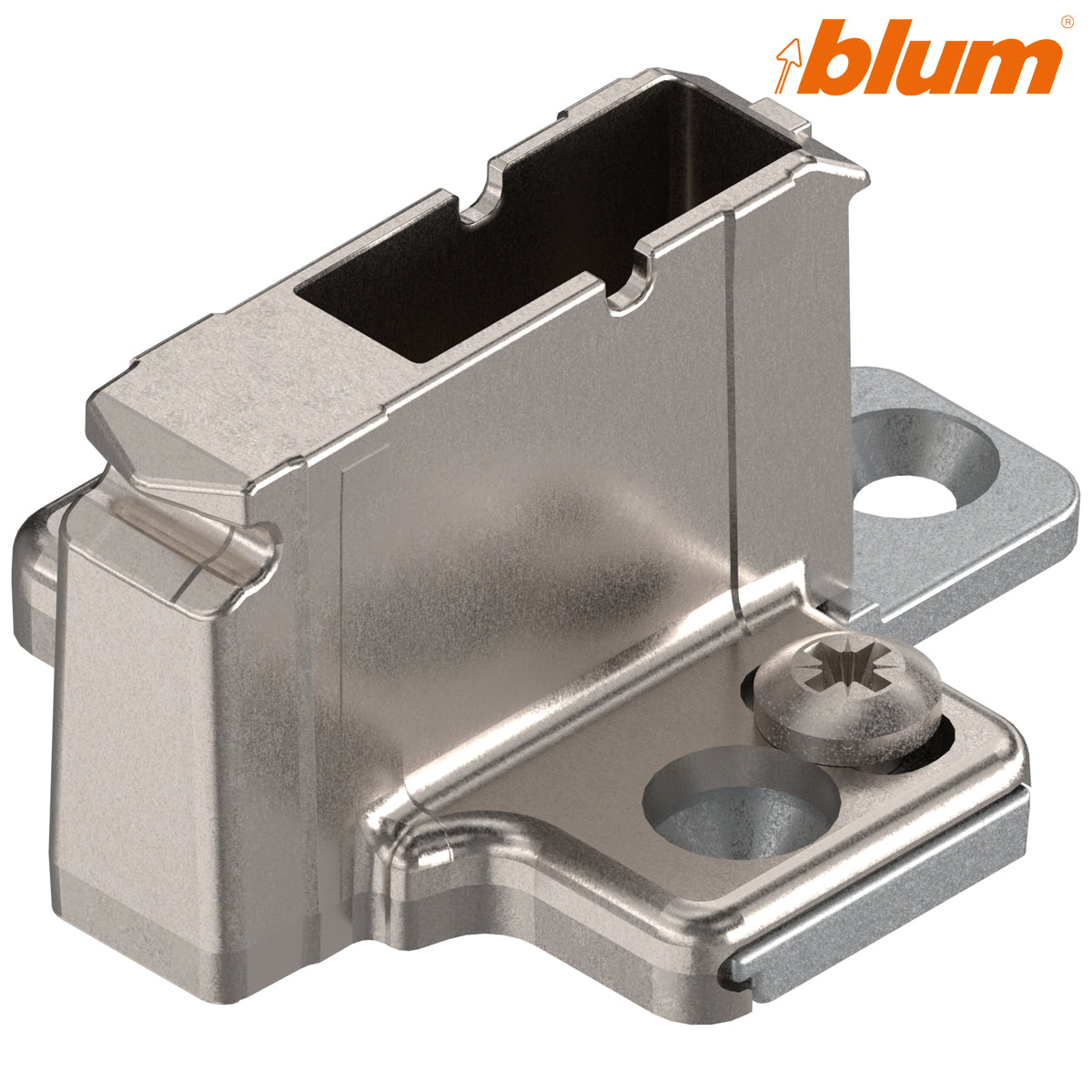

The Blum 175H7190.22 is a high-spacing cruciform mounting plate for selected Blum CLIP top and CLIP top BLUMOTION hinge applications. It has 18mm mounting-plate spacing, a 26.5mm physical height and ±2mm height adjustment.

This 37/32 screw-on plate is made from zinc with a nickel-plated finish. It is fixed with Ø3.5mm or Ø4mm chipboard screws; Blum recommends a 17mm screw length. Select screws and drilling to suit the cabinet material and the relevant Blum planning information.

Key features

• Blum manufacturer part number: 175H7190.22
• CLIP top cruciform mounting plate
• 37/32 drilling pattern
• 18mm mounting-plate spacing
• 26.5mm physical height
• Height adjustment: ±2mm
• Fixing with Ø3.5mm or Ø4mm chipboard screws
• Recommended screw length: 17mm
• Zinc construction with a nickel-plated finish

Compatibility and selection

Use the 18mm spacing only where it is specified by the relevant Blum hinge application or planning result. The increased spacing changes the hinge geometry and must not be substituted solely because another plate clips onto the hinge arm.

Blum specifies an additional fixing screw when this mounting-plate family is used with wide-angle or zero-protrusion hinges. Confirm the complete hinge, plate, fixing and drilling arrangement against current Blum planning information. The hinge is sold separately.

Technical specification

Frequently asked questions

What does 18mm mean?

It is the mounting-plate spacing used in Blum planning. It is not the plate’s complete physical height.

What is the physical height?

The physical height is 26.5mm.

How is the plate fixed?

It is fixed with Ø3.5mm or Ø4mm chipboard screws. Blum recommends a 17mm screw length, subject to the cabinet material and planned drilling arrangement.

Does it provide height adjustment?

Yes. The plate provides ±2mm height adjustment. Follow the relevant Blum installation and planning information when setting the final door position.

Is it the same as the 175H9190.22?

No. Both have 18mm spacing and 26.5mm height, but the 175H7190.22 uses chipboard screws while the 175H9190.22 is the system-screw version.

Is the hinge included?

No. This product is one mounting plate. The compatible hinge is ordered separately.

Explore related Blum CLIP mounting plates, Blum CLIP top hinges and the wider Blum range.
