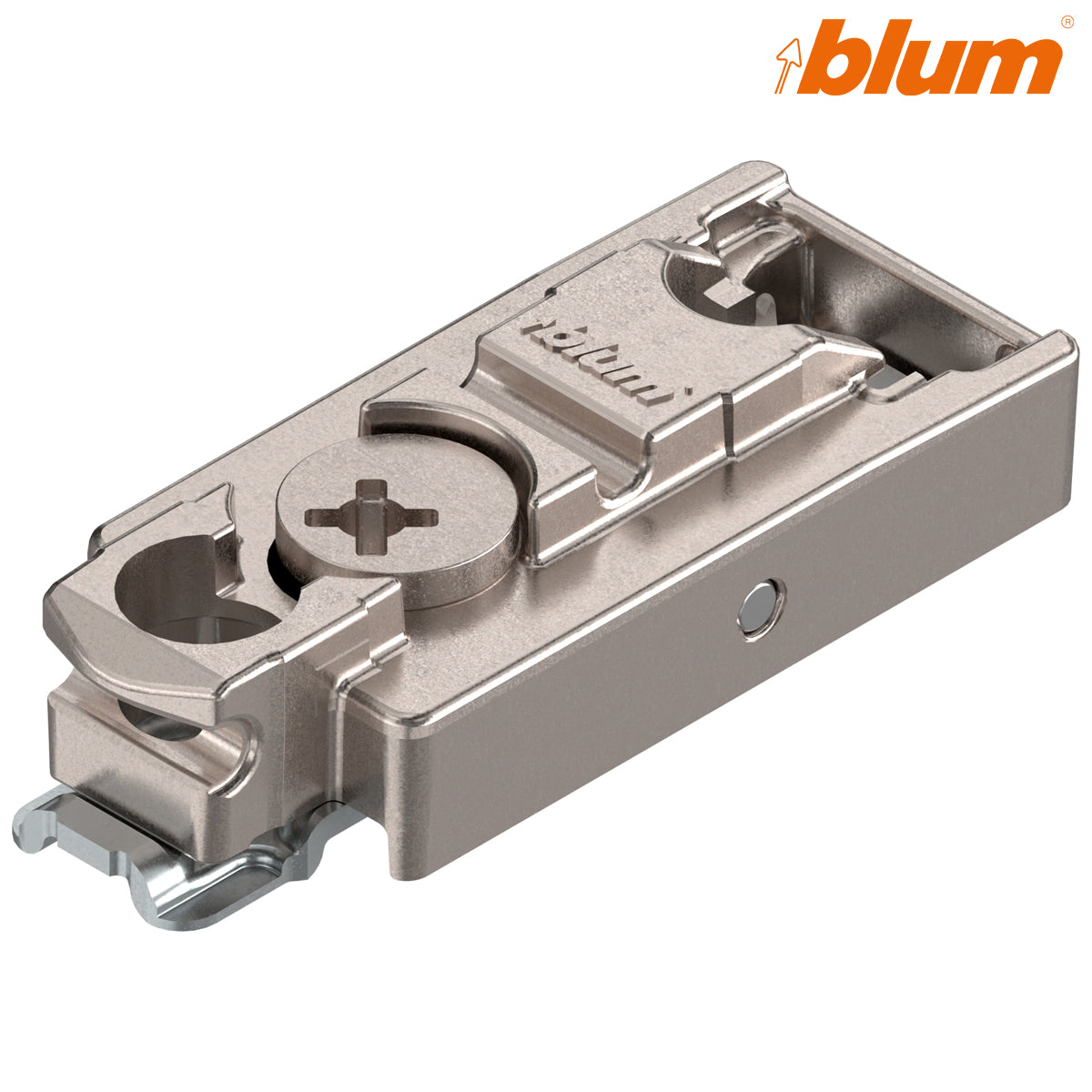

Blum 175H5430 CLIP top narrow covered mounting plate

The Blum 175H5430 is a narrow covered cabinet-side mounting plate for CLIP top hinges where a restricted-width design is useful. Its covered form conceals the chipboard-screw fixing for a cleaner finished appearance.

Technical details

• Blum part number: 175H5430
• Type: narrow covered CLIP top mounting plate
• Nominal plate spacing: 3 mm
• Physical plate height: 11.5 mm
• Fixing: countersunk chipboard screw
• Material: steel
• Finish: nickel plated
• Quantity: one mounting plate

Choosing and fitting the plate

The 3 mm figure is the nominal planning spacing used with the hinge and cabinet construction. It is not the physical height of the plate, which is 11.5 mm. Confirm the required overlay, gap, adjustment and cabinet fixing method using the complete Blum planning dimensions.

This plate uses a countersunk chipboard screw and differs from knock-in, cam, system-screw, EXPANDO and INSERTA fixing methods. The hinge is purchased separately.

Compare the Blum CLIP top hinge range and the Blum CLIP top mounting plate range when planning the installation.

Frequently Asked Questions

Is this a 3 mm or an 11.5 mm plate?

Both measurements describe different things. The nominal plate spacing is 3 mm, while the physical plate height is 11.5 mm.

How is the plate fitted?

It is fixed with a countersunk chipboard screw. Prepare the cabinet and follow the appropriate Blum drilling and installation instructions.

Is the fixing concealed?

Yes. The covered design conceals the fixing for a cleaner appearance, subject to the finished installation.

Is the hinge included?

No. One mounting plate is supplied; select a compatible Blum CLIP top hinge separately.
