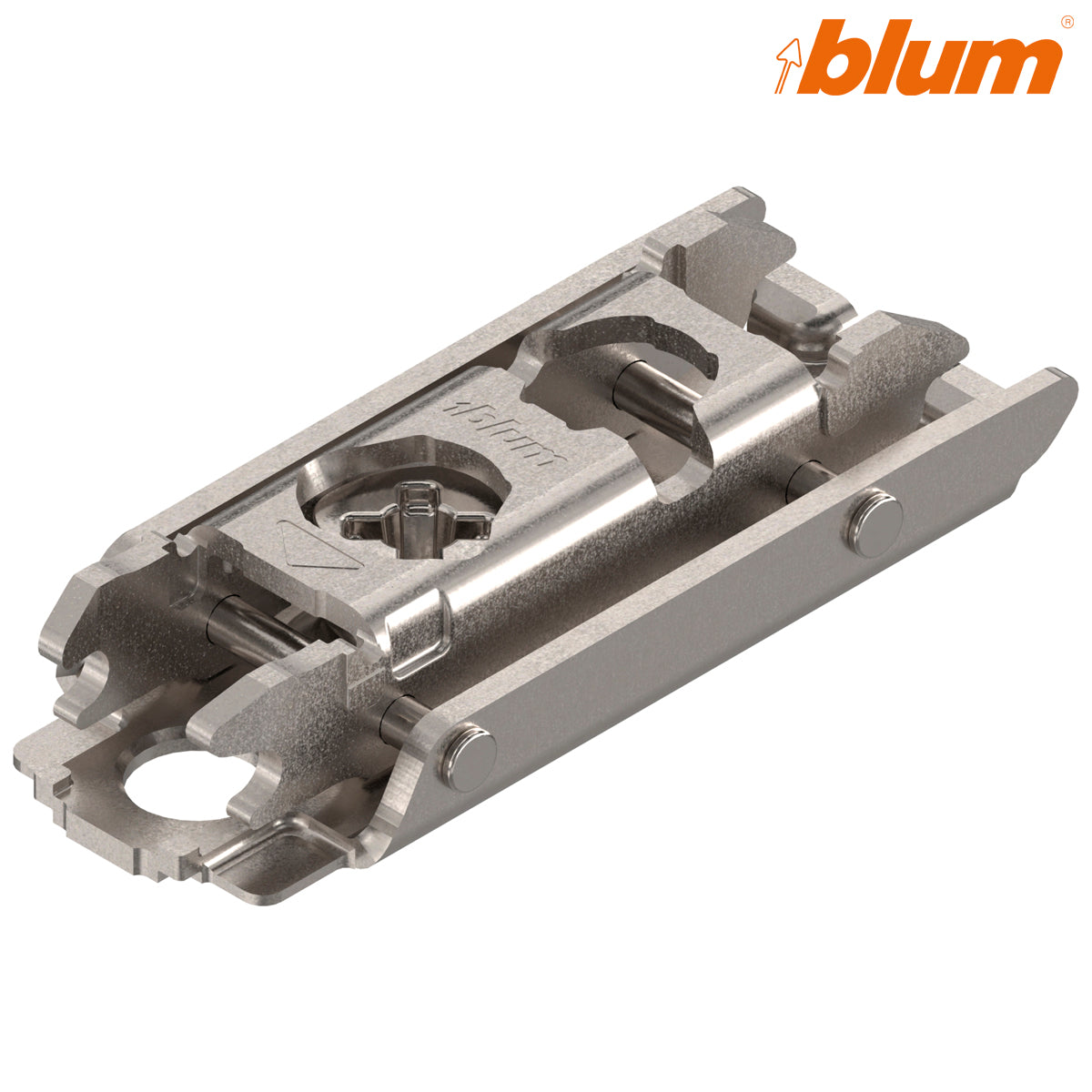

Blum 175H3100 CLIP top Narrow Mounting Plate

The Blum 175H3100 is a narrow horizontal cam mounting plate for compatible Blum CLIP hinge applications. Its inline 20/32 format provides a compact alternative to a wider cruciform plate where the cabinet design and drilling pattern call for this mounting-plate style.

This nickel-plated steel version has 0mm spacing, an 8.5mm plate height and ±2mm cam height adjustment. It fixes with Ø3.5mm chipboard screws; Blum recommends a 17mm screw length.

Key features

• Blum manufacturer part number: 175H3100
• Narrow horizontal cam mounting plate
• Inline 20/32 format
• 0mm mounting-plate spacing
• 8.5mm height
• Cam height adjustment: ±2mm
• Fixing with Ø3.5mm chipboard screws
• Recommended screw length: 17mm
• Steel construction with a nickel-plated finish

Compatibility and selection

Use this plate only where the selected Blum hinge application and cabinet drilling specify a horizontal 20/32 mounting plate with 0mm spacing and chipboard-screw fixing. A compatible Blum CLIP hinge attaches tool-free to the mounting plate; the hinge is sold separately.

Blum specifies an additional fixing screw when this plate is used with wide-angle or zero-protrusion hinges. Confirm the complete hinge, plate, fixing and drilling arrangement against the relevant Blum planning information before installation.

Technical specification

Frequently asked questions

What does 0mm mean on the Blum 175H3100?

It is the mounting-plate spacing used in Blum’s hinge planning calculations. It does not mean that the plate has no physical height.

What is the physical height of this mounting plate?

Blum lists the plate height as 8.5mm.

Which screws are specified for the 175H3100?

Blum specifies Ø3.5mm chipboard screws and recommends a 17mm screw length. Check the cabinet material, drilling and pack contents before installation.

Does it provide height adjustment?

Yes. Its cam provides ±2mm height adjustment.

Is it the same as the 175H4100 system-screw plate?

No. Both are narrow 0mm plates, but the 175H3100 uses chipboard screws while the 175H4100 has pre-mounted system screws. Select the version that matches the cabinet drilling.

Is the hinge included?

No. This product is one mounting plate; the compatible hinge is ordered separately.
