PRODUCT DESCRIPTION

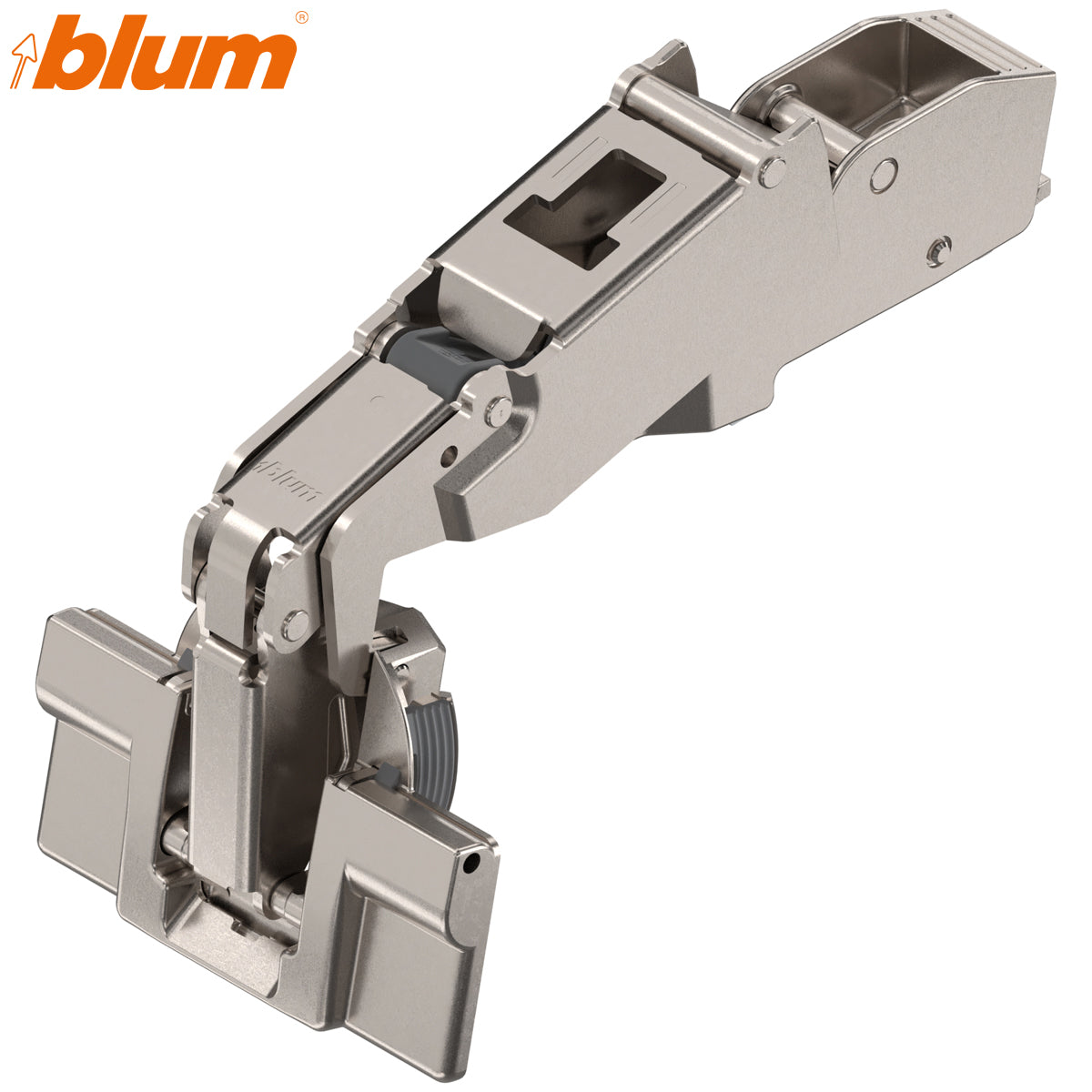

Blum 71T6640B CLIP Top 170°
Half-Overlay INSERTA Hinge
The Blum 71T6640B is a wide-angle, sprung cabinet hinge designed for dual or half-overlay applications where two doors share the same central cabinet partition.
Its 170° opening provides excellent access to wide cabinets, larder units and furniture where the door needs to open substantially farther than a standard 110° hinge.
The sprung closing mechanism draws the door closed. Soft close is not integrated, but the compatible Blum 973A6000 clip-on BLUMOTION unit can be added separately.
Tool-free INSERTA fixing
The INSERTA system secures the hinge cup to the door without conventional fixing screws. The expanding fixings are pressed into the prepared holes and locked into position, providing quick and repeatable installation.
Please note that INSERTA refers to the hinge-to-door fixing. A compatible Blum CLIP top mounting plate is required to attach the hinge to the cabinet.
Key features
- Wide 170° opening angle
- Dual or half-overlay application
- Sprung, self-closing mechanism
- Tool-free INSERTA hinge-cup fixing
- 35mm hinge cup
- 11mm cup drilling depth
- 45mm fixing-hole centres
- Half-cranked hinge arm
- Suitable for cabinet doors up to 24mm thick
- Three-dimensional front adjustment
- Side adjustment of approximately +/-2mm
- Spiral-screw depth adjustment of +3/-2mm
- Tool-free CLIP door attachment and removal
- Nickel-plated finish
- Optional clip-on BLUMOTION available
- Mounting plate ordered separately
Technical attributes
Browse the complete Blum hinge range for alternative opening angles, fixing methods and applications.
Frequently asked questions
What does dual or half-overlay mean?
It means two cabinet doors share the same central partition, with each door covering approximately half of the panel edge.
Is the 71T6640B self-closing?
Yes. This is the sprung version, so it incorporates Blum's mechanical closing action.
Does this hinge include soft close?
No. BLUMOTION is not integrated, but the compatible Blum 973A6000 clip-on damper can be ordered separately.
What does INSERTA mean?
INSERTA is Blum's tool-free method of securing the hinge cup into the prepared door holes without conventional fixing screws.
Is a mounting plate included?
No. One hinge is supplied, and the appropriate CLIP top cabinet mounting plate must be ordered separately.

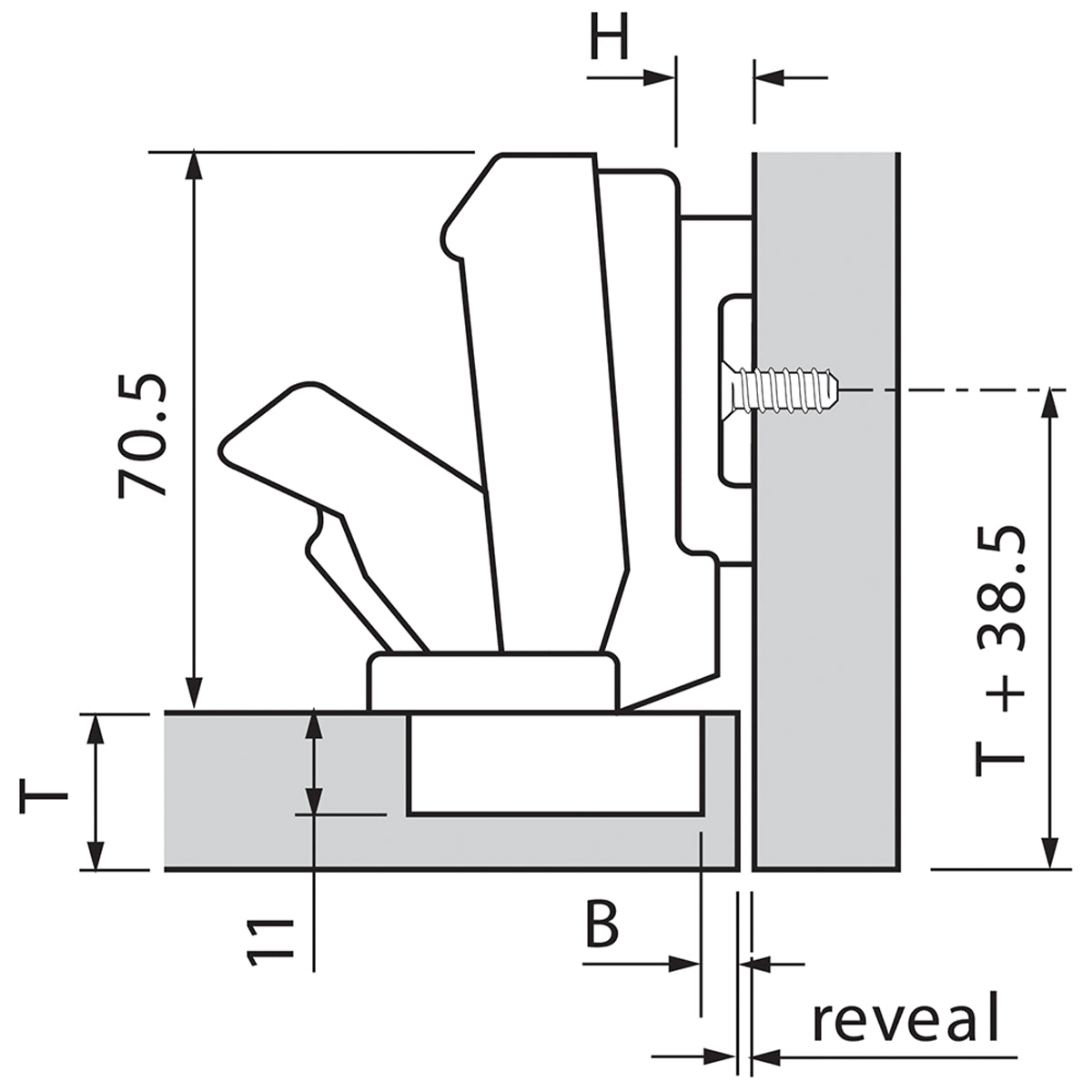

What drilling is required?
The hinge uses a 35mm cup drilled approximately 11mm deep, with 45mm centres between the INSERTA fixing holes.
Can this hinge be used for an inset door?
It can be planned for an inset application when combined with the appropriate 9mm-spaced mounting plate. Check the cabinet dimensions before ordering.
Can I restrict the opening angle?
Yes. Blum lists the 70.6103 opening-angle stop, which reduces the opening to approximately 130°.
Is this suitable where young children can access the cabinet?
Blum recommends using a 155° zero-protrusion hinge instead where young children have access to furniture fitted with wide-angle hinges.
TECHNICAL DETAILS
- Application: Dual
- Finish: Nickel
- Colour: Nickel
- Material: Zinc
