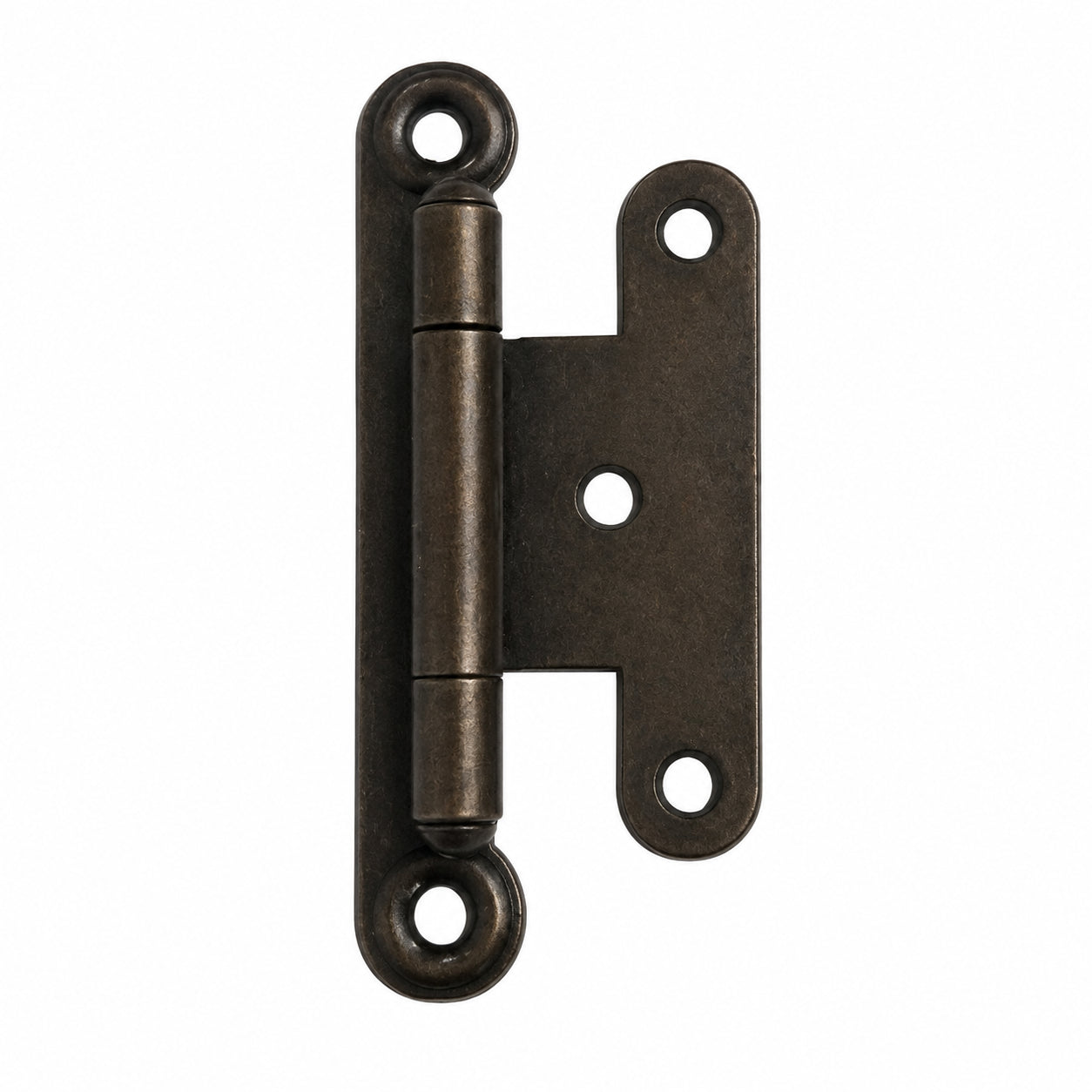

63 × 39mm Bronze-Plated Flat Tee Cabinet Hinge

This compact flat tee cabinet hinge combines a conventional fixing leaf with a narrow tee-style leaf, making it suitable for furniture and cabinet installations where the available mounting area differs on each side of the joint.

The hinge measures 63 × 39mm overall and has unequal 18mm and 4mm leaves. Its bronze-plated finish provides a warm appearance that works well with many cabinet fittings and furniture components.

Key Features

• Flat tee-style cabinet hinge
• 63 × 39mm overall dimensions
• Unequal 18mm and 4mm hinge leaves
• 6mm knuckle diameter
• Three fixing holes
• Bronze-plated finish
• Compact surface-mounted design
• Suitable for furniture and cabinet applications

Technical Specifications

Typical Applications

• Cabinet doors
• Cupboard doors
• Small furniture doors and flaps
• Storage boxes and cases
• Furniture repairs and restoration

Installation Guidance

Position the hinge so that the knuckle is correctly aligned with the edge of the moving panel. Mark the three fixing positions before drilling suitable pilot holes. Confirm that the door or flap moves freely and that the two leaves sit correctly before fully tightening the fixings.

Please compare the 63 × 39mm overall size, unequal leaf dimensions, fixing-hole arrangement and 6mm knuckle with the existing hinge before ordering.

Frequently Asked Questions

What type of hinge is HI1210?

HI1210 is a flat tee cabinet hinge with unequal fixing leaves for compact furniture and cabinet applications.

What are its overall dimensions?

The hinge measures 63 × 39mm overall.

What size are the hinge leaves?

The two unequal leaves measure 18mm and 4mm.

What is the knuckle diameter?

The hinge has a 6mm knuckle diameter.

What finish does the hinge have?

It has a bronze-plated finish.

Are screws supplied?

Screws are not confirmed as included. Choose fixings appropriate for the installation material.
