K Push Tech Short Magnetic Push-to-Open Catch – Anthracite

K Push Tech Short Magnetic Push-to-Open Catch – Anthracite

Stock Code: 35612300

Regular price £4.33 GBP
Regular price Sale price
Sale
Excluding Tax
View full details
>

PRODUCT DESCRIPTION

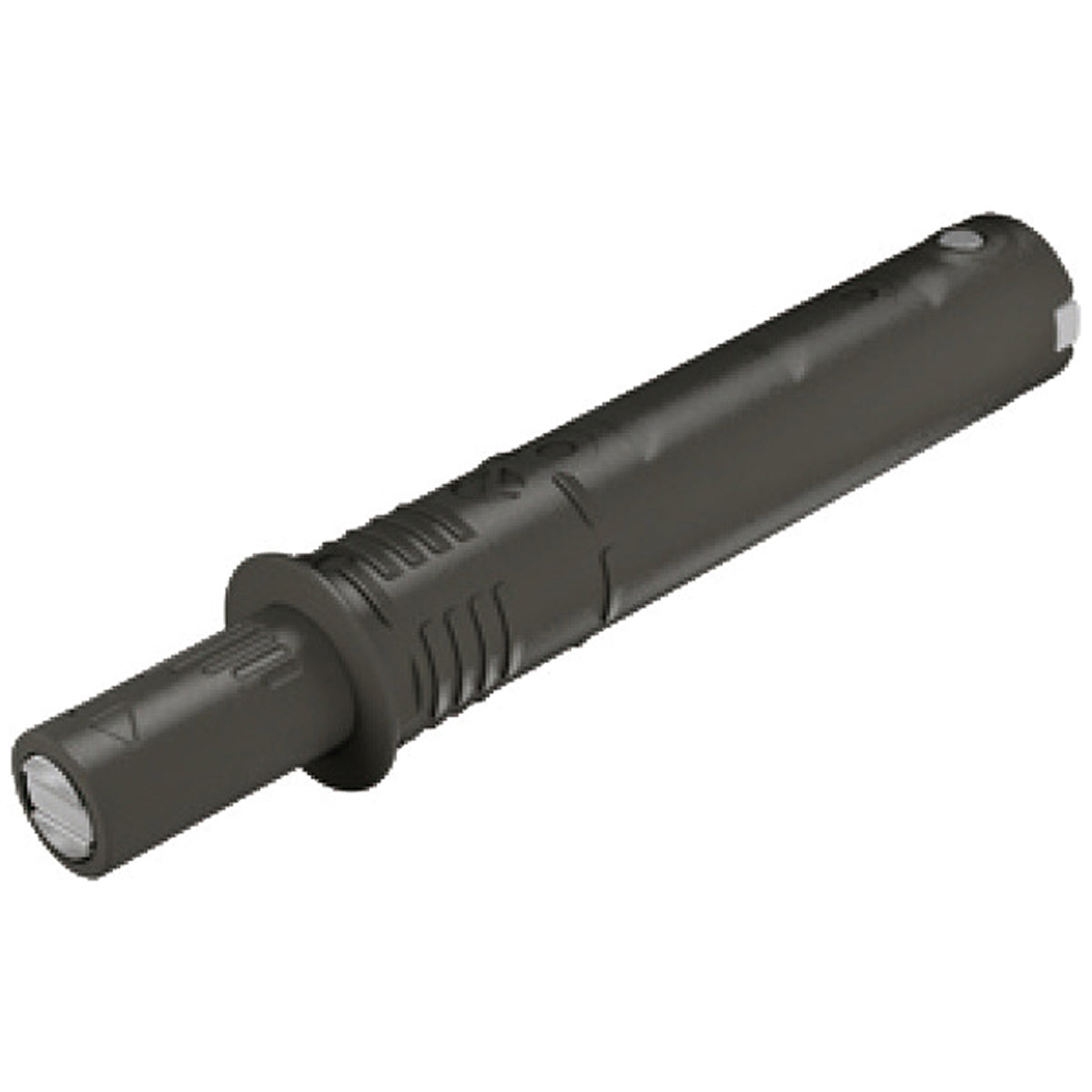

K Push Tech Short Magnetic Push-to-Open Catch – Anthracite

An anthracite K Push Tech short magnetic catch for opening cabinet doors without handles. The magnet version is designed for cabinets using unsprung or negative hinges. It can be recessed into a drilled hole or fitted with a separate surface mounting housing.

Technical specifications

Part number 35612300
Version Short; with magnet
Material Engineering plastic
Colour Anthracite
Application Handleless doors using unsprung or negative hinges
Body diameter 10 mm
Body length shown 49.5 mm
Recess drilling Ø10 × 50 mm deep
Opening travel shown 14 mm
Surface mounting Matching housing ordered separately
Magnetic counterplate Order separately

Fitting and use

For concealed mounting, prepare a Ø10 mm hole 50 mm deep. For surface mounting, order the matching short housing separately. Select the magnetic counterplate separately and align it with the catch. Do not press or release the spring until the K Push is fully installed.

Dimension drawing

Dimensions are in millimetres. Check the drawing and actual fitting before machining.

35612300 – K Push Tech Short Magnetic Push-to-Open Catch – Anthracite dimensional drawing in millimetres

Frequently asked questions

Which hinges should be used with this magnet version?

The supplier specifies unsprung or negative hinges. The buffer versions are intended for sprung hinges.

Are the mounting housing and counterplate included?

No. The surface mounting housing, if required, and the magnetic counterplate are ordered separately.

Related products

TECHNICAL DETAILS

  • Application: Security
  • Size: Ø10 × 49.5 mm body; Ø10 × 50 mm recess
  • Length: 49.5mm
  • Diameter: 10mm
  • Finish: Anthracite
  • Colour: Anthracite
  • Material: Engineering plastic
