5kg Slim Floating Magnetic Cabinet Catch – White

5kg Slim Floating Magnetic Cabinet Catch – White

Stock Code: 24650708

Regular price £4.07 GBP
Regular price Sale price
Sale
Excluding Tax
View full details
>

PRODUCT DESCRIPTION

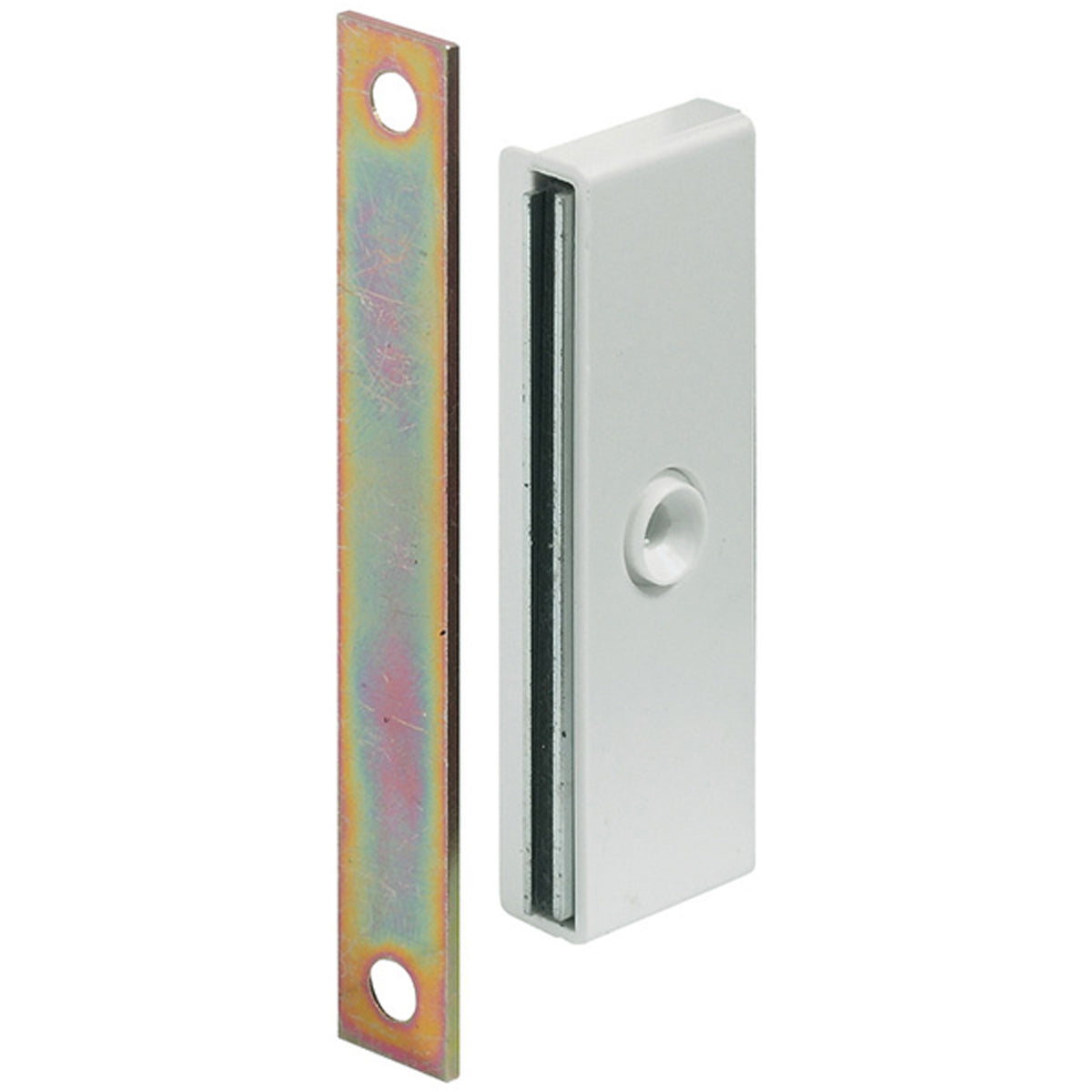

5kg Slim Floating Magnetic Cabinet Catch – White

A slim white magnetic catch using plate magnets for cabinet closures where a low projection is useful. The floating plastic body pairs with a fixed steel counterplate and both parts are screw fixed.

Technical specifications

Part number 24650708
Approximate magnetic pull 5 kg
Catch Plastic; floating
Counterplate Steel; fixed
Magnet version Plate magnets
Installation Screw fixing
Catch dimensions 54 × 17 × 8.5 mm
Counterplate dimensions 72 × 10 × 1.5 mm
Counterplate fixing centres 62 mm

Fitting and use

Align the slim catch with the steel counterplate on the opposing door surface. Check the clearances and fixing positions in the drawing; the counterplate is longer than the catch body.

Dimension drawing

Dimensions are in millimetres. Check the drawing and actual fitting before machining.

24650708 – 5kg Slim Floating Magnetic Cabinet Catch – White dimensional drawing in millimetres

Frequently asked questions

Are the catch and counterplate the same length?

No. The catch is 54 mm long and the counterplate is 72 mm long.

Is the kg figure a door weight rating?

No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.

Related products

TECHNICAL DETAILS

  • Application: Security
  • Size: Catch 54 × 17 × 8.5 mm; counterplate 72 × 10 × 1.5 mm
  • Width: 17mm
  • Height: 8.5mm
  • Length: 54mm
  • Finish: White
  • Capacity: 5
  • Colour: White
  • Material: Plastic catch; steel counterplate
