3kg Surface Magnetic Cabinet Catch – White

3kg Surface Magnetic Cabinet Catch – White

Stock Code: 24622700

Regular price £0.41 GBP
Regular price Sale price
Sale
Excluding Tax
View full details
>

PRODUCT DESCRIPTION

3kg Surface Magnetic Cabinet Catch – White

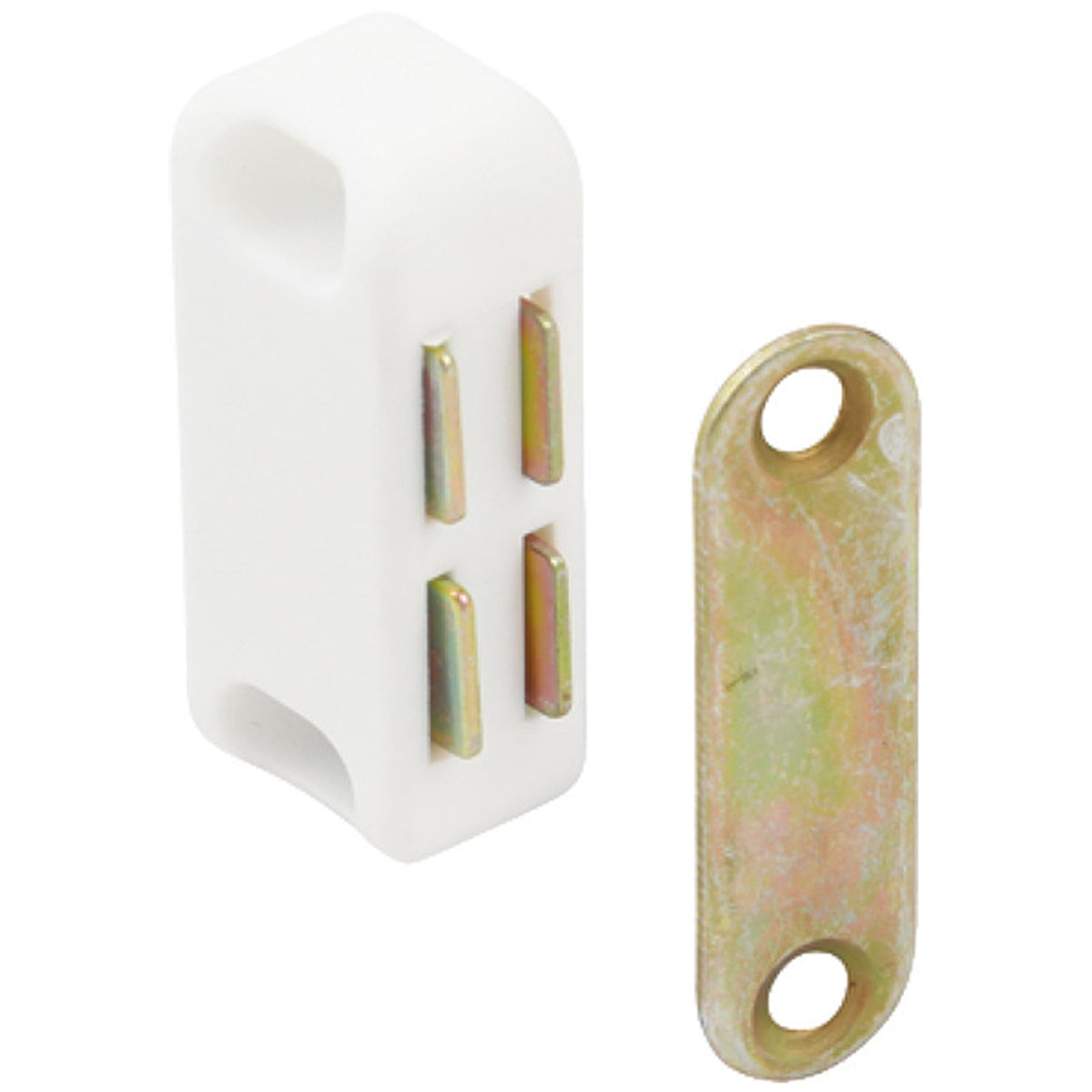

A white surface-mounted cabinet catch with a floating plastic housing and a fixed steel counterplate. Both parts screw to the furniture to provide a straightforward magnetic closure.

Technical specifications

Part number 24622700
Approximate magnetic pull 3 kg
Catch Plastic; floating, screw fixing
Counterplate Steel; fixed, screw fixing
Catch dimensions 42 × 19 × 12 mm
Counterplate dimensions 42 × 12 × 1 mm
Colour White

Fitting and use

Screw the catch to the cabinet and the counterplate to the door. Set their positions so the magnetic faces meet when closed. Check the catch movement and door clearance before fully tightening.

Dimension drawing

Dimensions are in millimetres. Check the drawing and actual fitting before machining.

24622700 – 3kg Surface Magnetic Cabinet Catch – White dimensional drawing in millimetres

Frequently asked questions

What is the catch body length?

The supplier drawing shows 42 mm for the catch body. The counterplate is also 42 mm long.

Is the kg figure a door weight rating?

No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.

Related products

TECHNICAL DETAILS

  • Application: Security
  • Size: Catch 42 × 19 × 12 mm; counterplate 42 × 12 × 1 mm
  • Width: 19mm
  • Height: 12mm
  • Length: 42mm
  • Finish: White
  • Capacity: 3
  • Colour: White
  • Material: Plastic catch; steel counterplate
