10kg All-Metal Magnetic Catch – M22 × 1

10kg All-Metal Magnetic Catch – M22 × 1

Stock Code: 24695020

Regular price £10.11 GBP
Regular price Sale price
Sale
Excluding Tax
View full details
>

PRODUCT DESCRIPTION

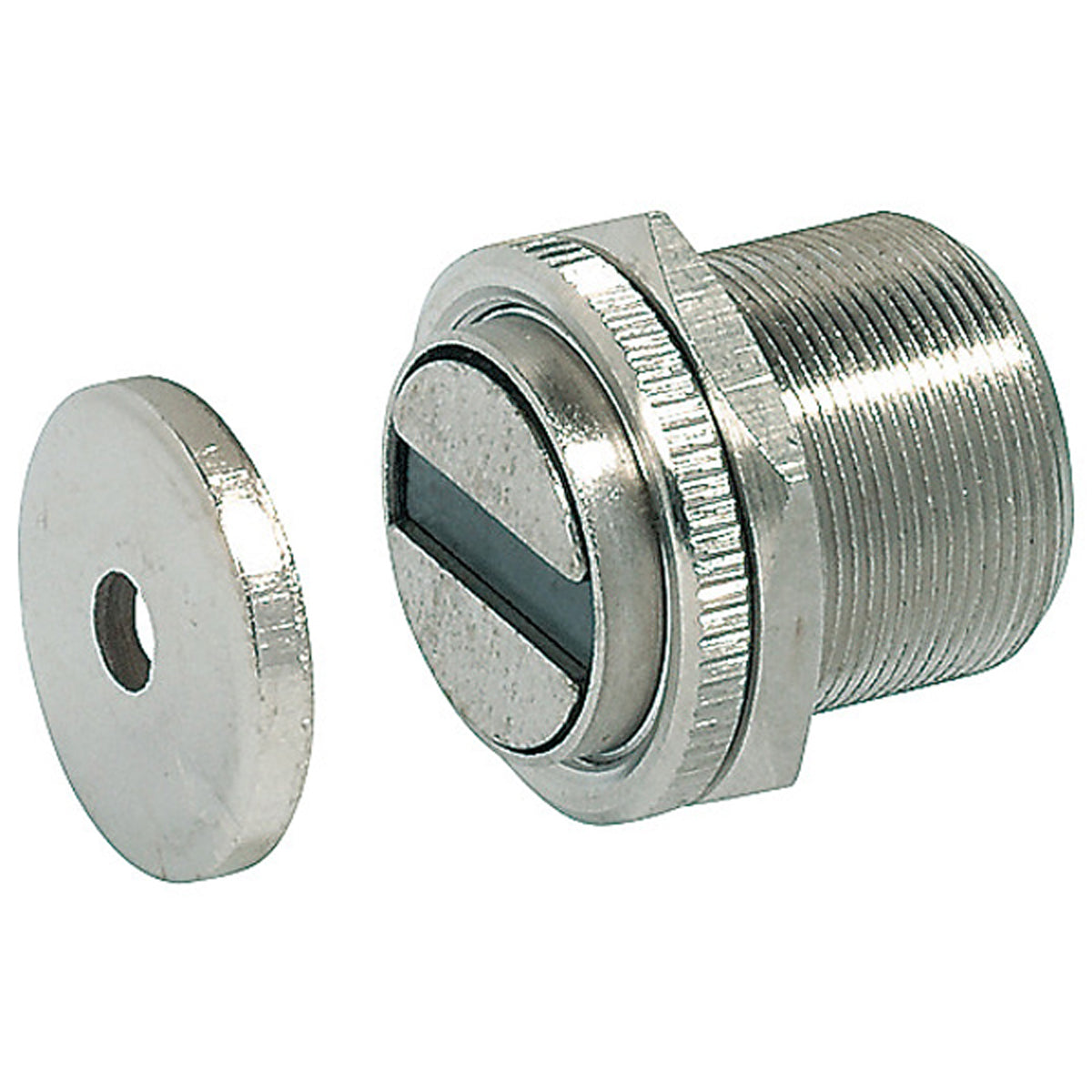

10kg All-Metal Magnetic Catch – M22 × 1

An all-metal magnetic catch for box-frame metal cabinets, retained through a wall or panel with a tightening nut. This 10 kg version has a fixed catch and fixed steel counterplate.

Technical specifications

Part number 24695020
Approximate magnetic pull 10 kg
Catch construction All metal; fixed
Counterplate Steel; fixed
Mounting Through panel; tightening nut
Body thread M22 × 1
Body axial length shown 30.7 mm
Spanner size 26 mm across flats
Counterplate size Ø23 × 3.5 mm

Fitting and use

Install the threaded body through a suitable wall or panel and secure it using the tightening nut. Align the steel counterplate on the closing surface. Use the dimensions for this exact pull version: the 7 kg and 10 kg fittings have different threads and sizes.

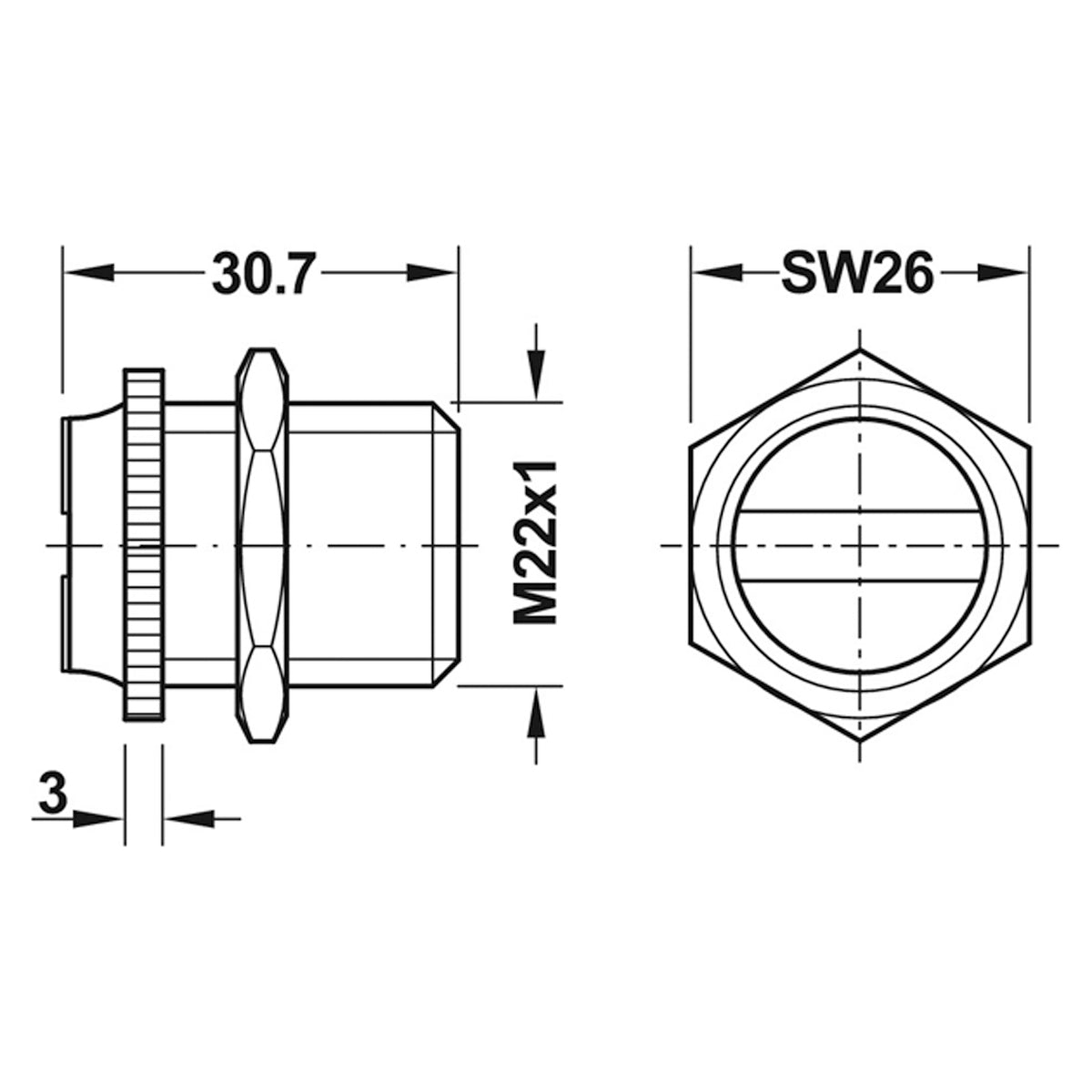

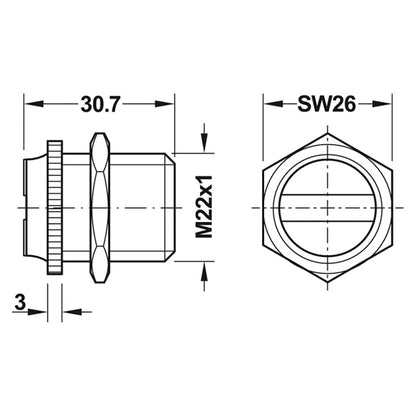

Dimension drawing

Dimensions are in millimetres. Check the drawing and actual fitting before machining.

24695020 – 10kg All-Metal Magnetic Catch – M22 × 1 dimensional drawing in millimetres

Frequently asked questions

Is it the same size as the other pull version?

No. This version uses a M22 × 1 thread, a 30.7 mm body length and 26 mm spanner flats.

Is the kg figure a door weight rating?

No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.

Related products

TECHNICAL DETAILS

  • Application: Security
  • Size: M22 × 1 thread; 30.7 mm body length; SW26 flats
  • Width: 26mm
  • Height: 26mm
  • Length: 30.7mm
  • Capacity: 10
  • Colour: Metal
  • Material: All-metal catch; steel counterplate
