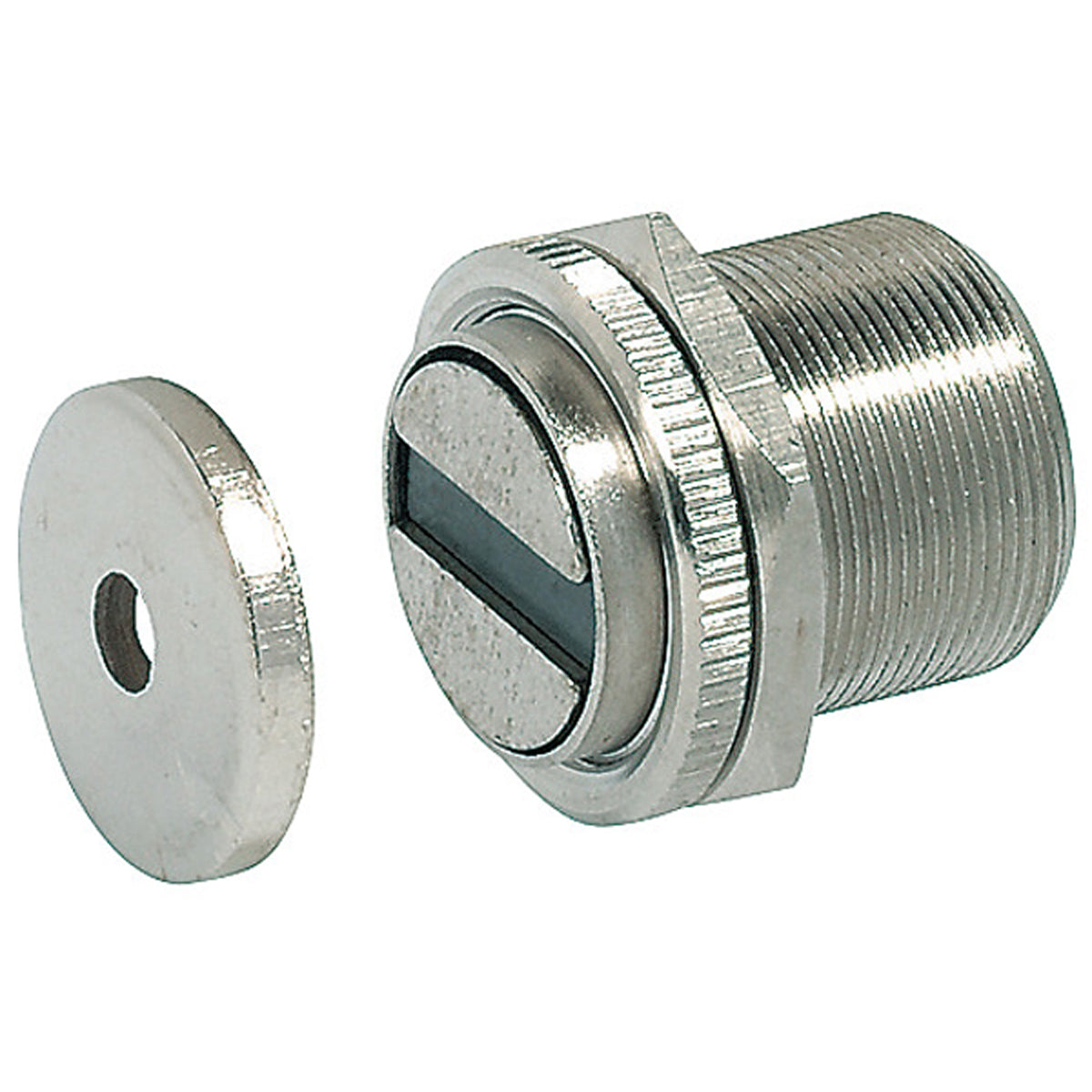

7kg All-Metal Magnetic Catch – M18 × 0.8

7kg All-Metal Magnetic Catch – M18 × 0.8

Stock Code: 24695010

Regular price £7.44 GBP
Regular price Sale price
Sale
Excluding Tax
View full details
>

PRODUCT DESCRIPTION

7kg All-Metal Magnetic Catch – M18 × 0.8

An all-metal magnetic catch for box-frame metal cabinets, retained through a wall or panel with a tightening nut. This 7 kg version has a fixed catch and fixed steel counterplate.

Technical specifications

Part number 24695010
Approximate magnetic pull 7 kg
Catch construction All metal; fixed
Counterplate Steel; fixed
Mounting Through panel; tightening nut
Body thread M18 × 0.8
Body axial length shown 23.5 mm
Spanner size 22 mm across flats
Counterplate size Ø19.5 × 3 mm

Fitting and use

Install the threaded body through a suitable wall or panel and secure it using the tightening nut. Align the steel counterplate on the closing surface. Use the dimensions for this exact pull version: the 7 kg and 10 kg fittings have different threads and sizes.

Dimension drawing

Dimensions are in millimetres. Check the drawing and actual fitting before machining.

24695010 – 7kg All-Metal Magnetic Catch – M18 × 0.8 dimensional drawing in millimetres

Frequently asked questions

Is it the same size as the other pull version?

No. This version uses a M18 × 0.8 thread, a 23.5 mm body length and 22 mm spanner flats.

Is the kg figure a door weight rating?

No. It is the approximate magnetic pull, not the weight of a door that the fitting can support. Contact, alignment and the gap between the parts affect retention.

Related products

TECHNICAL DETAILS

  • Application: Security
  • Size: M18 × 0.8 thread; 23.5 mm body length; SW22 flats
  • Width: 22mm
  • Height: 22mm
  • Length: 23.5mm
  • Capacity: 7
  • Colour: Metal
  • Material: All-metal catch; steel counterplate
