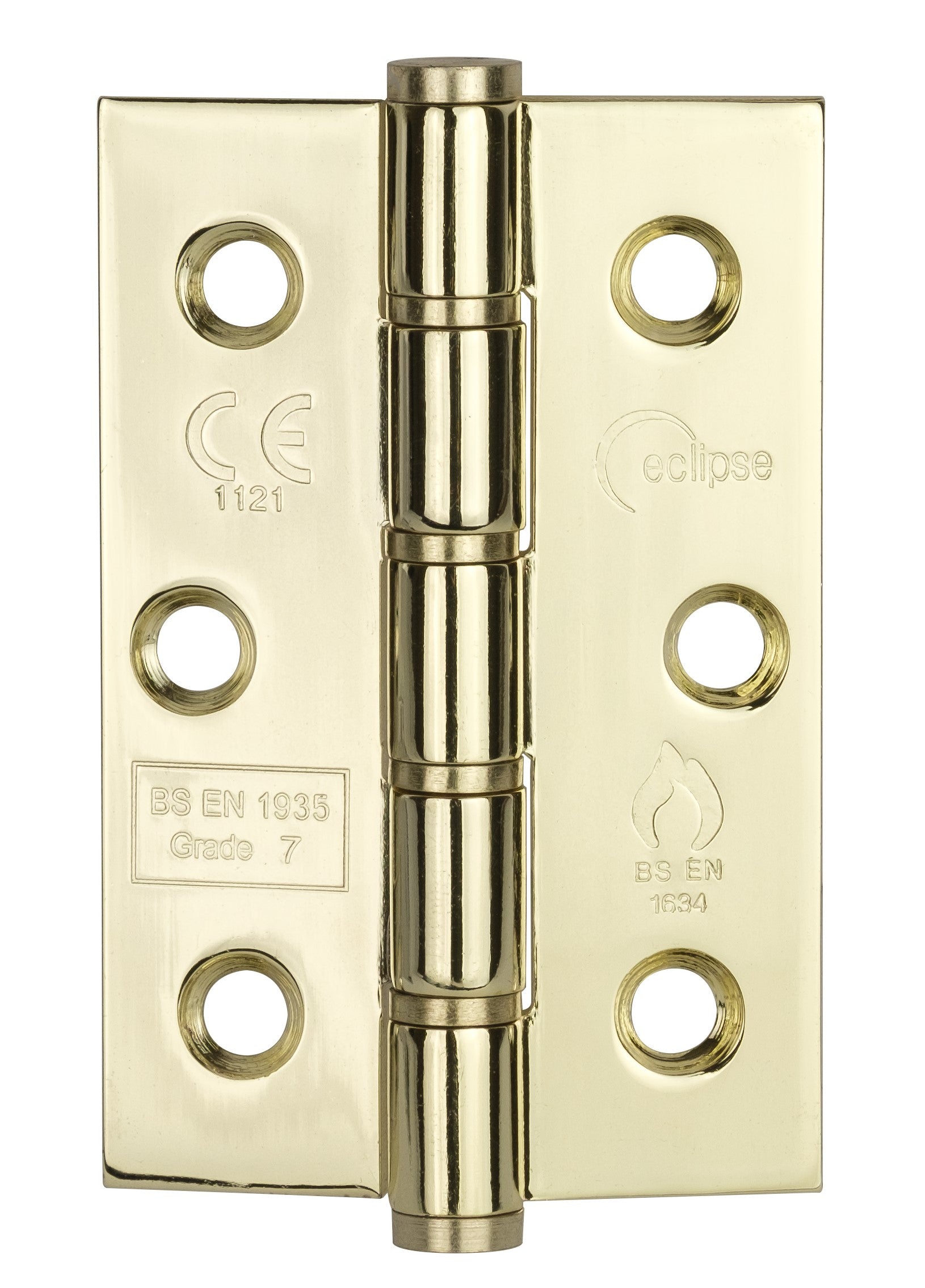

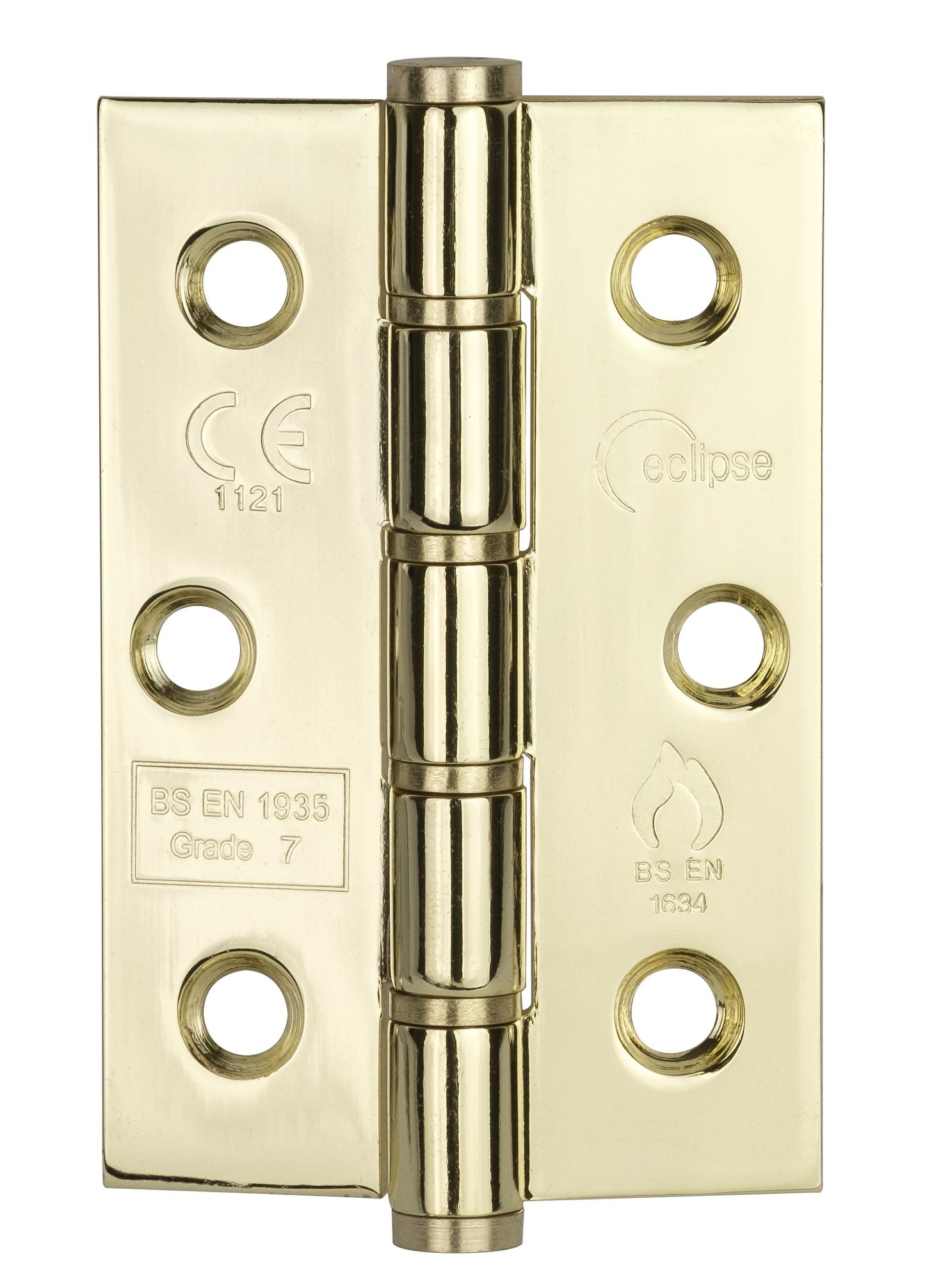

Eclipse Grade 7 Electro Brass Washered Door Hinges

This pair of Eclipse Grade 7 washered hinges combines a slim-knuckle design with durable SUS 201 stainless-steel construction and a warm electro brass plated finish. Each hinge measures 76 x 51 x 2mm.

The hinges have been performance tested through 200,000 cycles to BS EN 1935 Grade 7 and carry a classification for a maximum total door mass of 40kg. They are also tested to BS EN 1634 for FD30 and FD60 timber fire doors and FD240 steel doors, subject to the specification and installation requirements of the complete door assembly.

Key features

• Eclipse Grade 7 washered hinge
• 76 x 51 x 2mm dimensions
• Slim-knuckle design
• SUS 201 stainless-steel construction
• Electro brass plated finish
• Maximum classified total door mass: 40kg
• Performance tested through 200,000 cycles
• BS EN 1935 Grade 7
• BS EN 1634 fire tested
• FD30 and FD60 timber-door testing
• FD240 steel-door testing
• CE 2812, UKCA 1121 and Certifire CF336
• Eight-gauge countersunk fixing holes
• Eight 1¼-inch Pozi-drive threaded screws included
• Supplied as one pair containing two hinges

Technical specifications

Fire-door installation

Fire testing does not automatically make every installation compliant. The correct number of hinges, hinge positions, compatible intumescent protection, fixings and installation method must follow the relevant fire-door certificate, door-manufacturer instructions and complete door-set specification.

The stated 40kg figure is the maximum total door-mass classification for the hinge grade. It is not a per-hinge load allowance and must not be multiplied by the number of hinges fitted.

Browse the Eclipse product range, explore our door-hinge collection or contact us for product assistance.

Questions and answers

How many hinges are included?

The pack contains two matching hinges, forming one pair.

Are fixing screws supplied?

Yes. Eight 1¼-inch Pozi-drive threaded screws are included.

What is a washered hinge?

A washered hinge uses washers within the knuckle assembly to support smooth movement and reduce direct wear between the moving hinge sections.

What size is each hinge?

Each hinge measures 76mm high, 51mm wide when open and 2mm thick.

What does Grade 7 mean?

The hinge is performance tested through 200,000 cycles to BS EN 1935 Grade 7 and classified for a maximum total door mass of 40kg.

Can it be used on a fire door?

The hinge has BS EN 1634 testing for FD30 and FD60 timber doors and FD240 steel doors. Installation must comply with the certificate and the specification of the complete fire-door assembly.

Does 40kg mean each hinge can support 40kg?

No. The 40kg figure refers to the maximum classified total door mass, not an allowance for each individual hinge.

What is the finish?

The hinge has an electro brass plated finish, producing a bright, warm brass appearance over its stainless-steel base material.

Is this a ball-bearing hinge?

No. This specific product is a washered hinge and must not be described as ball bearing.

Is it suitable for exterior use?

This product is not described as an exterior-grade hinge. Suitability must be assessed against the environment, required corrosion resistance and maintenance regime.
