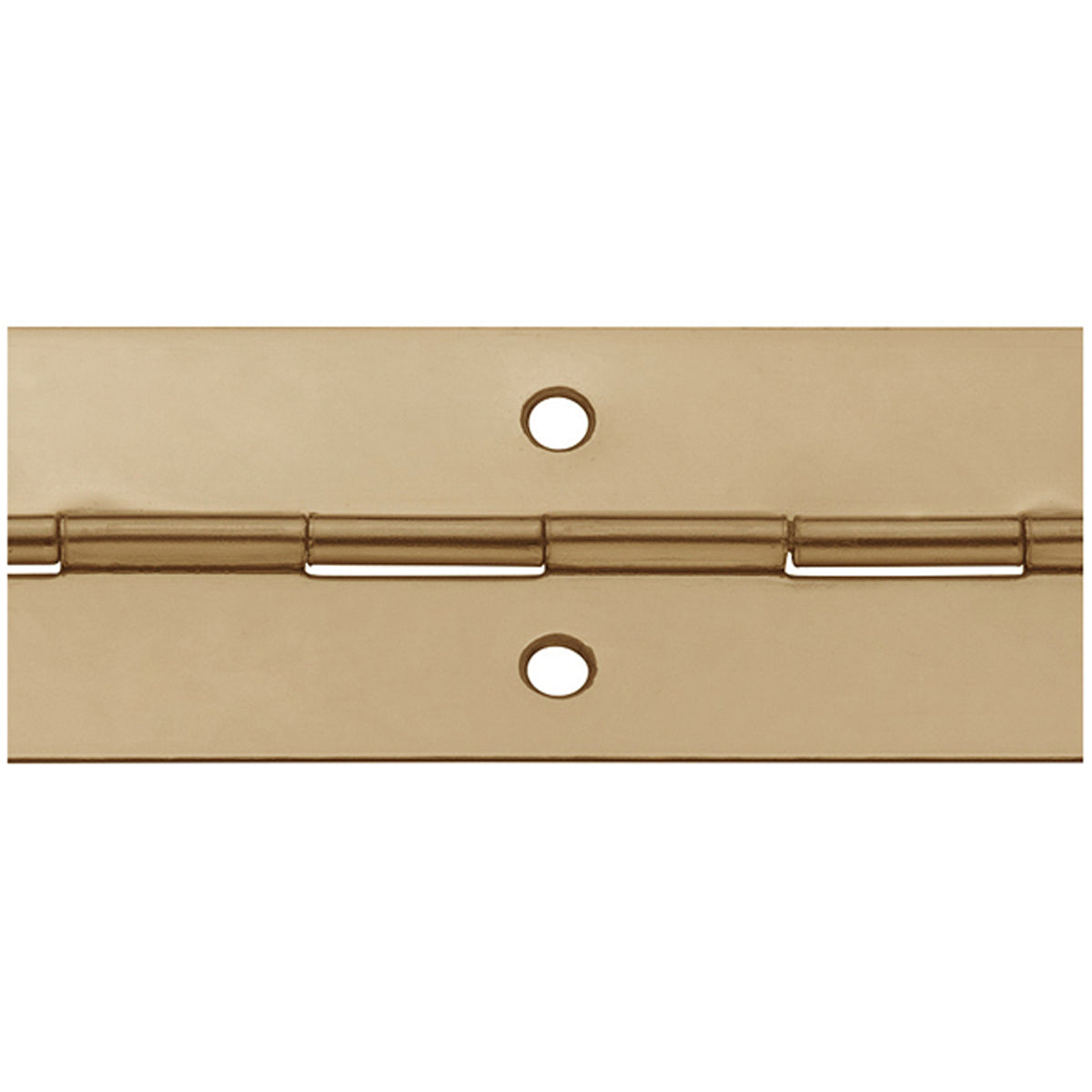

3500 × 20 × 0.7mm Brass-Plated Steel Piano Hinge

This rolled straight steel piano hinge, also called a continuous hinge, measures 3500mm long and 20mm wide when fully open. Its 0.7mm-thick steel leaves have a traditional brass-plated finish.

The narrow 20mm open width suits appropriately specified furniture, boxes, slim lids and access panels where continuous support is required without a broad hinge leaf. The brass-coloured finish provides a decorative appearance while the underlying construction remains steel.

The factory-produced holes are countersunk for 2.5mm-diameter screws. Fixings must be ordered separately and selected to suit the substrate and intended application.

Supplied as one complete 3500mm hinge length. It may be cut to a shorter required length using suitable steel-cutting equipment. Deburr and suitably protect exposed cut steel after shortening.

Key features

• Rolled straight piano hinge or continuous hinge
• Steel construction
• Traditional brass-plated finish
• 3500mm overall length
• Narrow 20mm open width
• 0.7mm leaf thickness
• Countersunk for 2.5mm-diameter screws
• Continuous support along the hinged edge
• May be cut to a shorter length
• Fixing screws ordered separately
• Supplied as one complete hinge

Specifications

Pin diameter, knuckle length, fixing-hole count and hole spacing are not confirmed and must not be advertised.

Typical applications

• Small cabinet and cupboard doors
• Furniture and fitted joinery
• Storage boxes and long narrow lids
• Display cases and screens
• Inspection and access panels
• Suitable fabricated assemblies

Cutting and installation

1. Confirm that the narrow 20mm profile suits the application.
2. Measure and mark the required finished length.
3. Cut with suitable steel-cutting equipment and appropriate protective equipment.
4. Remove sharp edges and swarf, then protect exposed cut steel as appropriate.
5. Align the complete hinge before marking fixing positions.
6. Use compatible 2.5mm-diameter countersunk screws suited to the substrate.
7. Test movement and alignment before final tightening.

Questions and answers

What size is this piano hinge?

It measures 3500mm long, 20mm wide when fully open and 0.7mm thick.

Is it solid brass?

No. It is manufactured from steel with a brass-plated finish.

Why choose a 20mm-wide piano hinge?

The narrow open width suits appropriately specified boxes, slim lids, cabinets and panels where broad hinge leaves are unsuitable.

What screws does it accept?

The holes are countersunk for 2.5mm-diameter screws. Choose a suitable screw type and length for the substrate.

Are fixing screws included?

No. Fixing screws must be ordered separately.

Can the hinge be shortened?

Yes. Use suitable steel-cutting equipment, remove sharp edges and protect exposed cut steel as appropriate.

Is the brass plating corrosion-proof?

No. Suitability depends on the environment, installation and maintenance. Do not describe it as corrosion-proof or marine grade.

Is it fire rated or load rated?

No fire-door rating, security classification or certified load capacity is declared.
