3500 × 32 × 0.7mm Brass-Plated Steel Piano Hinge

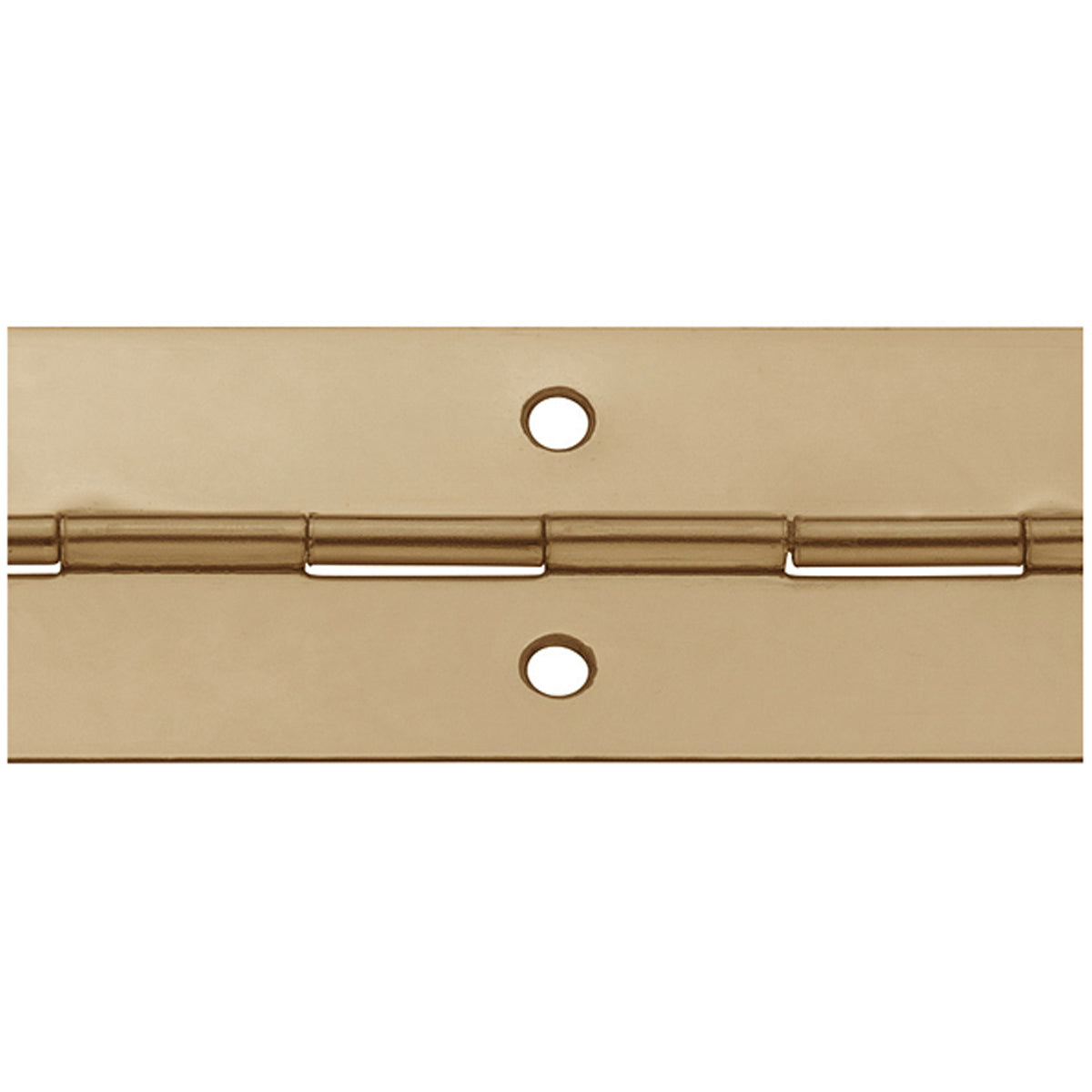

This rolled straight steel piano hinge, also called a continuous hinge, measures 3500mm long and 32mm wide when fully open. Its 0.7mm-thick steel leaves have a traditional brass-plated finish and a 3.3mm roll width.

A continuous hinge supports the hinged edge along its length. The 32mm open width suits appropriately specified furniture, cabinets, boxes, long lids, screens and access panels.

The factory-produced holes are countersunk for 2.5mm-diameter screws. Fixings must be ordered separately and selected to suit the substrate and intended application.

The brass-coloured surface provides a traditional appearance, while the underlying construction remains steel.

Supplied as one complete 3500mm hinge length. It may be cut to a shorter required length using suitable steel-cutting equipment. Deburr and suitably protect exposed cut steel after shortening.

Key features

• Rolled straight piano hinge or continuous hinge
• Steel construction
• Traditional brass-plated finish
• 3500mm overall length
• 32mm open width
• 0.7mm leaf thickness
• 3.3mm roll width
• Countersunk for 2.5mm-diameter screws
• Continuous support along the hinged edge
• May be cut to a shorter length
• Fixing screws ordered separately
• Supplied as one complete hinge

Specifications

Pin diameter, knuckle length, fixing-hole count and hole spacing are not confirmed and must not be advertised.

Typical applications

• Cabinet and cupboard doors
• Furniture and fitted joinery
• Storage boxes and long lids
• Display cases and screens
• Inspection and access panels
• Suitable fabricated assemblies

Why use a continuous hinge?

A continuous hinge supports the hinged edge across its length rather than concentrating movement and fixing at several separate hinge positions. This can help maintain alignment and distribute movement along a long lid, door or panel.

Cutting and installation

1. Confirm that the hinge dimensions and construction suit the application.
2. Support the full 3500mm length before measuring or cutting.
3. Cut with suitable steel-cutting equipment and appropriate protective equipment.
4. Remove sharp edges and swarf, then protect exposed cut steel as appropriate.
5. Align the complete hinge before marking fixing positions.
6. Use compatible 2.5mm-diameter countersunk screws suited to the substrate.
7. Test movement and alignment before final tightening.

Questions and answers

What size is this piano hinge?

It measures 3500mm long, 32mm wide when fully open and 0.7mm thick. Its roll width is 3.3mm.

Is it solid brass?

No. It is manufactured from steel with a decorative brass-plated finish.

What screws does it accept?

The holes are countersunk for 2.5mm-diameter screws. Choose a suitable screw type and length for the substrate.

Are fixing screws included?

No. Fixing screws must be ordered separately.

Can the hinge be shortened?

Yes. Use suitable steel-cutting equipment, remove sharp edges and protect exposed cut steel as appropriate.

Is the brass plating corrosion-proof?

No. Suitability depends on the environment, installation and maintenance. Do not describe it as corrosion-proof, weatherproof or marine grade.

Is it fire rated or load rated?

No fire-door rating, security classification or certified load capacity is declared.
