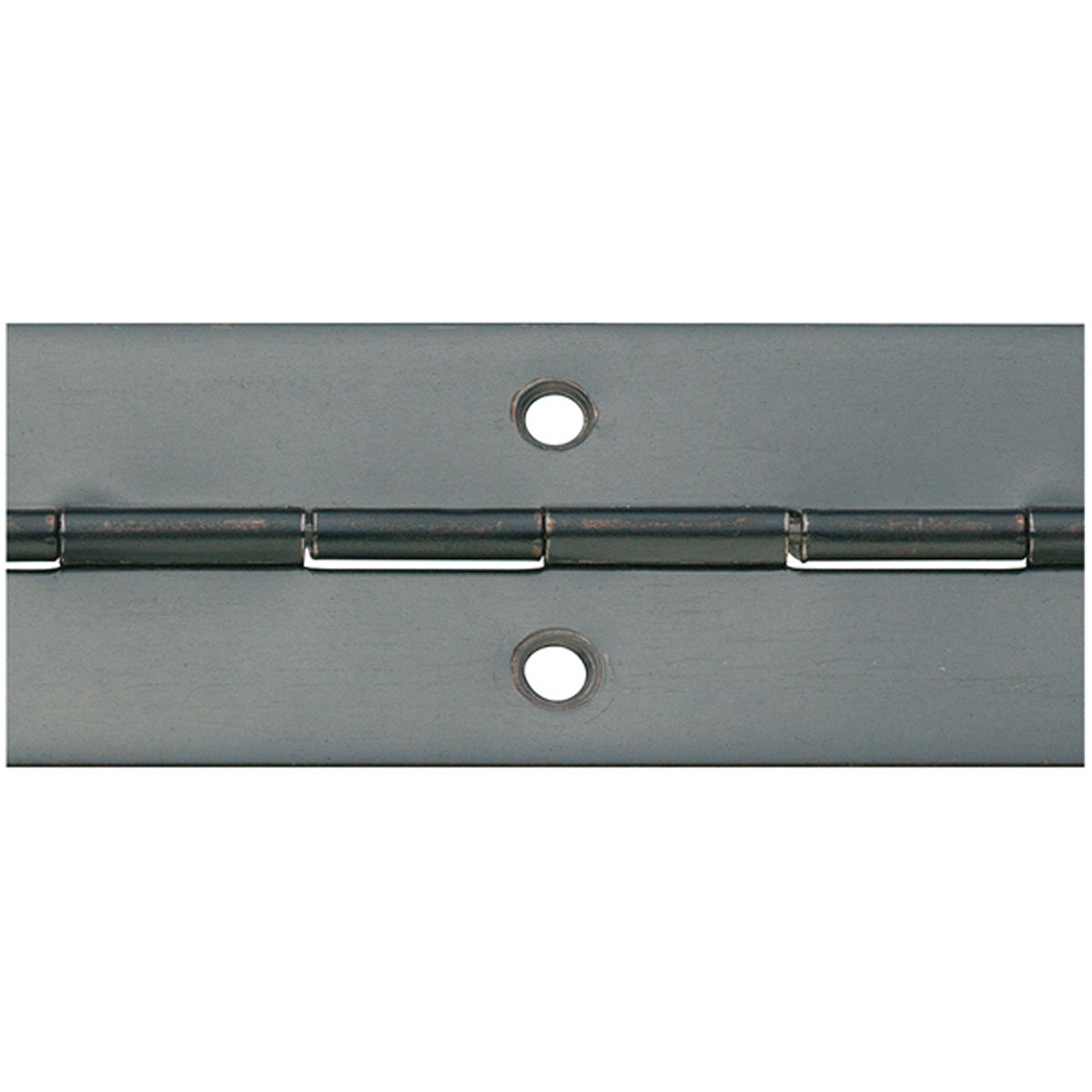

3500 × 32 × 0.7mm Burnished Steel Piano Hinge

This rolled straight steel piano hinge, also called a continuous hinge, measures 3500mm long and 32mm wide when fully open. Its 0.7mm-thick steel leaves have a traditional burnished finish.

A continuous hinge supports the hinged edge along its length instead of concentrating movement at several separate hinge positions. It is suitable for appropriately specified furniture, cabinets, boxes, long lids, screens and access panels.

The factory-produced holes are countersunk for 2.5mm-diameter screws. Fixings must be ordered separately and selected to suit the substrate and intended application.

Supplied as one complete 3500mm hinge length. It may be cut to a shorter required length using suitable steel-cutting equipment. Deburr and suitably protect exposed cut steel after shortening.

Key features

• Rolled straight piano hinge or continuous hinge
• Steel construction
• Traditional burnished finish
• 3500mm overall length
• 32mm open width
• 0.7mm leaf thickness
• Countersunk for 2.5mm-diameter screws
• Continuous support along the hinged edge
• May be cut to a shorter length
• Fixing screws ordered separately
• Supplied as one complete hinge

Specifications

Pin diameter, knuckle length, fixing-hole count and hole spacing are not confirmed and must not be advertised.

Typical applications

• Cabinet and cupboard doors
• Furniture and fitted joinery
• Storage boxes and long lids
• Display cases and screens
• Inspection and access panels
• Suitable fabricated assemblies

Cutting and installation

1. Confirm compatibility with the application and required movement.
2. Measure and mark the required finished length.
3. Cut with suitable steel-cutting equipment and appropriate protective equipment.
4. Remove sharp edges and swarf, then protect exposed cut steel as appropriate.
5. Align the complete hinge before marking fixing positions.
6. Use compatible 2.5mm-diameter countersunk screws suited to the substrate.
7. Test movement and alignment before final tightening.

Questions and answers

What size is this piano hinge?

It measures 3500mm long, 32mm wide when fully open and 0.7mm thick.

What is it made from?

It is manufactured from steel with a burnished finish.

Is it solid brass?

No. This version is burnished steel and must not be described as solid brass or brass plated.

What screws does it accept?

The holes are countersunk for 2.5mm-diameter screws. Choose a suitable screw type and length for the substrate.

Are fixing screws included?

No. Fixing screws must be ordered separately.

Can the hinge be shortened?

Yes. Use suitable steel-cutting equipment, remove sharp edges and protect exposed cut steel as appropriate.

Is the burnished finish corrosion-proof?

No. Suitability depends on the environment, installation and maintenance. Do not describe it as corrosion-proof, stainless steel or marine grade.

Is it fire rated or load rated?

No fire-door rating, security classification or certified load capacity is declared.
