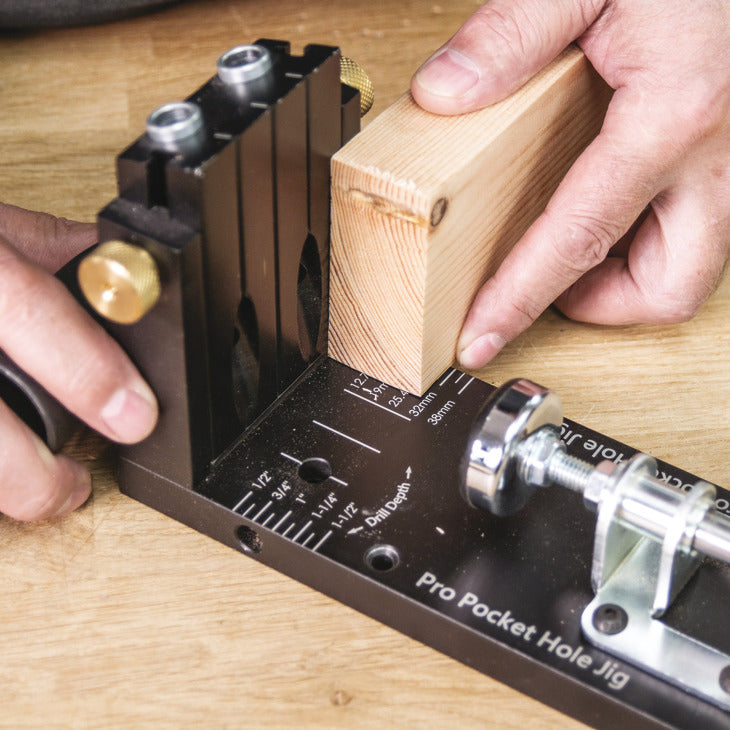

Trend PH/JIG/AK Pro Pocket Hole Jig Kit

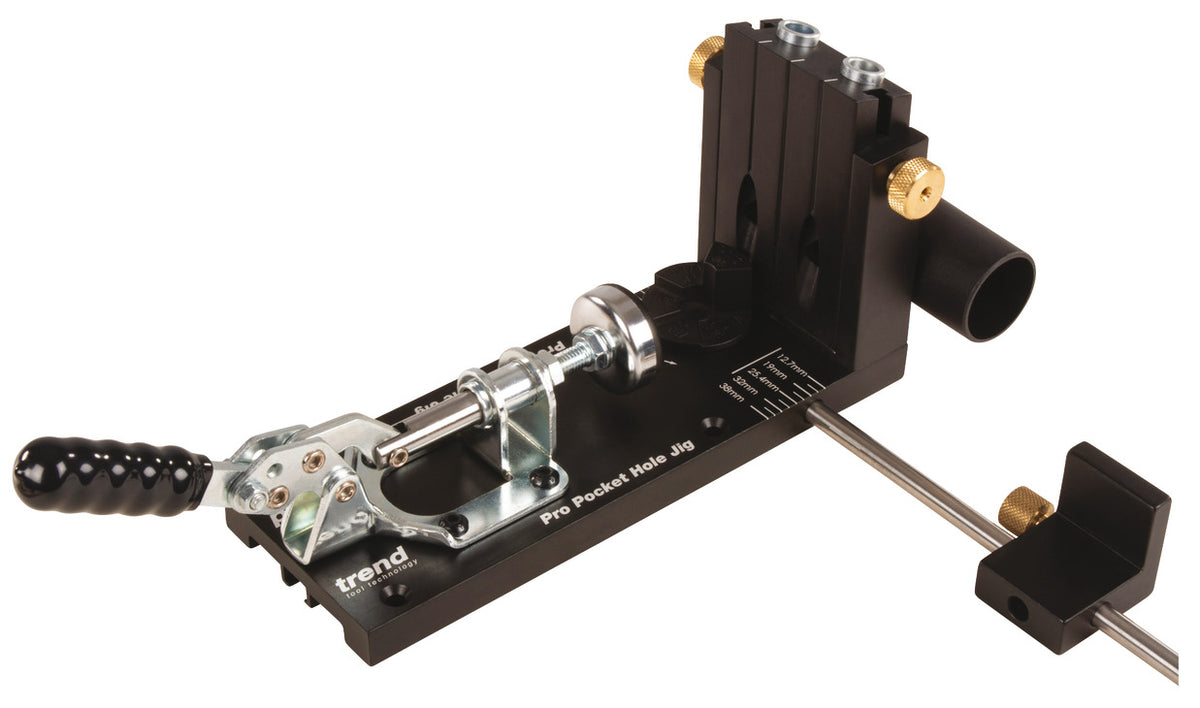

Create fast, accurate and secure pocket-hole joints in timber and sheet materials with the Trend PH/JIG/AK Pro Pocket Hole Jig Kit. This adjustable professional jig drills accurately positioned angled holes so components can be joined with square-drive pocket-hole screws.

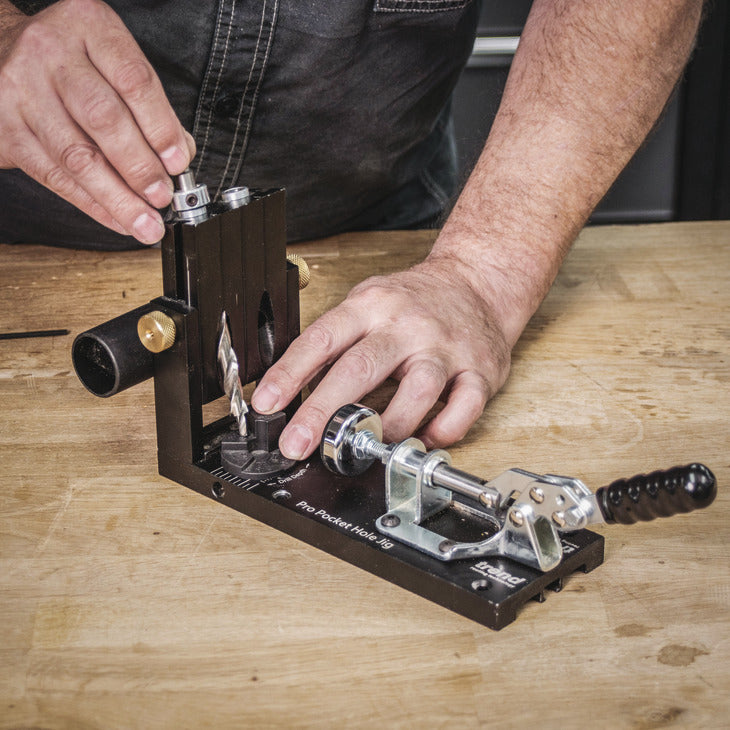

The jig accommodates materials from 12.7 mm to 38 mm thick and workpieces at least 38 mm wide. Solid hardened drill-guide bushes provide a fixed 30 mm hole pitch, while the supplied 9.5 mm HSS drill bit and depth-setting turret help produce consistent pocket holes.

A workpiece support, end stop and face clamp are included for controlled positioning. The dust-extraction spout helps manage drilling debris, while the supplied No.2 square-drive bits and selection of 100 screws provide a comprehensive starting kit for furniture making, cabinet construction, repairs and general joinery.

Key Features

• Professional adjustable pocket-hole drilling jig
• Suitable for material from 12.7–38 mm thick
• Minimum workpiece width of 38 mm
• Solid hardened drill-guide bushes
• Fixed 30 mm hole pitch
• 9.5 mm pocket-hole drill diameter

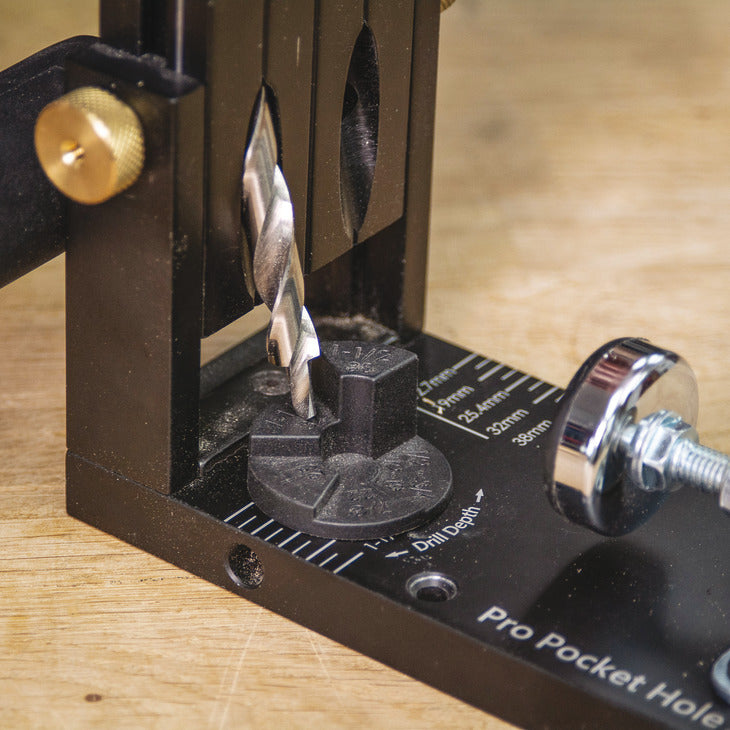

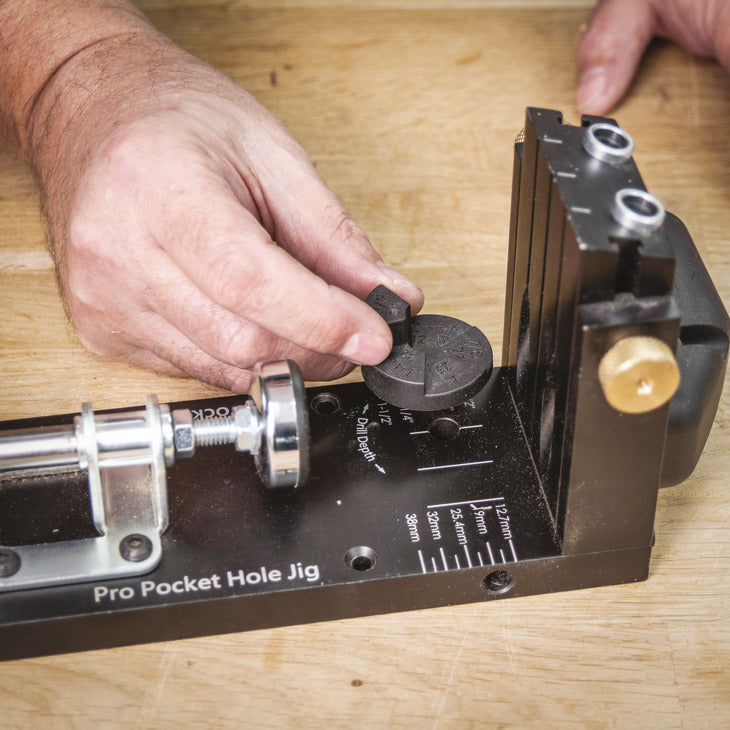

• Quick drill-depth setting turret
• Workpiece support and adjustable end stop
• Dust-extraction spout
• Face clamp included
• Uses No.2 square-drive pocket-hole screws
• Suitable for timber, MDF, plywood and blockboard

Strong, Efficient Pocket-Hole Jointing

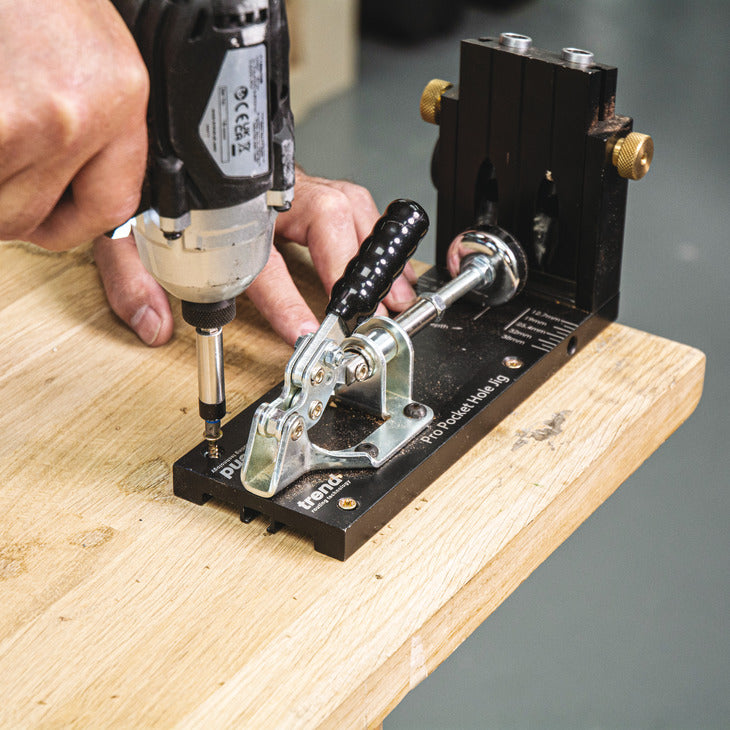

Pocket-hole joints allow components to be assembled quickly using angled screws. The square-drive screw system helps reduce driver slippage and cam-out during installation. Once glued and screwed, the workpiece can be handled immediately, reducing the need to leave assemblies clamped while the adhesive cures.

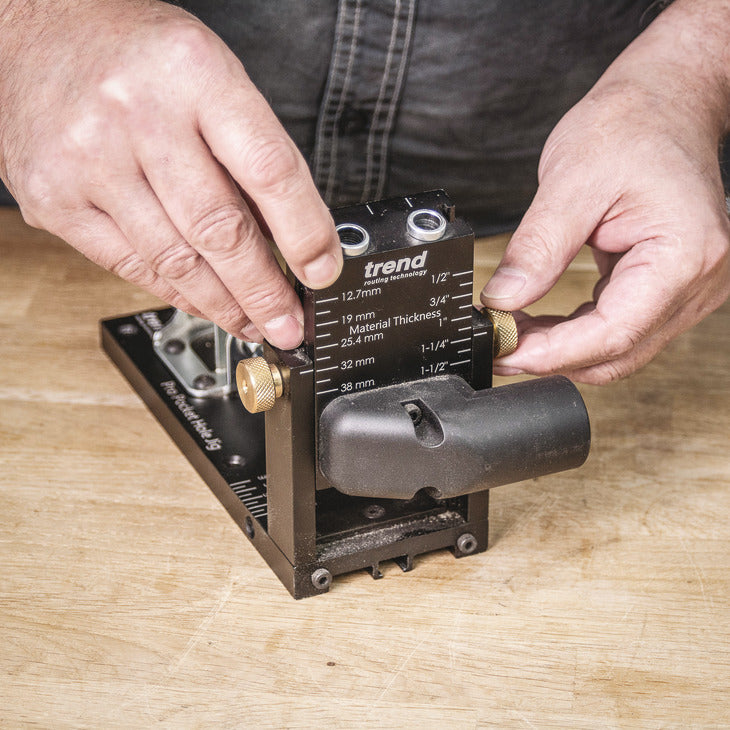

The jig can be adjusted for different material thicknesses, making it useful for constructing cabinet frames, furniture, panels and other joinery assemblies, as well as completing repairs where a discreet mechanical joint is required.

Technical Specifications

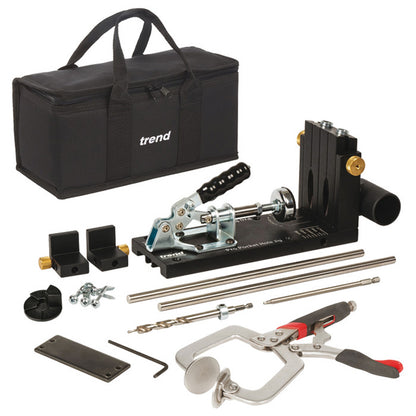

Supplied With

• 1 × Trend Pro pocket-hole jig
• 1 × face clamp
• 1 × 9.5 mm HSS drill bit with depth collar
• 1 × 75 mm No.2 square-drive bit
• 1 × 150 mm No.2 square-drive bit
• 2 × hex keys
• 1 × dust-extraction spout
• 100 × assorted dome-head pocket-hole screws

Supplied Screw Selection

• 10 × No.7 × 25 mm coarse-thread screws
• 30 × No.7 × 30 mm fine-thread screws
• 30 × No.7/8 × 30 mm coarse-thread screws
• 10 × No.8 × 38 mm coarse-thread screws
• 10 × No.8 × 50 mm coarse-thread screws
• 10 × No.8 × 63 mm coarse-thread screws

Suitable Materials

• Solid timber
• MDF
• Plywood
• Blockboard

Select the appropriate supplied screw length and thread type for the material and joint. Check the drill-depth setting and test the joint on an offcut before working on the finished component.

Frequently Asked Questions

What is the Trend Pro Pocket Hole Jig used for?

It drills accurately positioned angled pocket holes so timber and sheet-material components can be joined using square-drive pocket-hole screws.

What material thicknesses can the jig accommodate?

The height is adjustable for material from 12.7 mm to 38 mm thick.

What is the minimum workpiece width?

The material must be at least 38 mm wide.

Which materials can be joined?

The jig is suitable for timber, MDF, plywood and blockboard.

What drill size and hole spacing does it use?

The jig uses the supplied 9.5 mm HSS drill bit. Its solid hardened guide bushes have a fixed hole pitch of 30 mm.

Does the kit include a clamp?

Yes. One face clamp is supplied for positioning and holding components during the jointing process.

Are drill and driver bits included?

Yes. The kit includes a 9.5 mm HSS drill bit with collar, one 75 mm square-drive bit and one 150 mm square-drive bit.

Are pocket-hole screws included?

Yes. The kit contains 100 assorted dome-head screws in coarse and fine thread options and several lengths.

Does the jig support dust extraction?

Yes. A dust-extraction spout is included to help remove drilling debris when connected to a compatible extraction system.

What is the manufacturer’s reference?

The Trend product reference is PH/JIG/AK.
