Blum 71T9550 CLIP top 95° Overlay Thick-Door Screw-On Hinge, Nickel

Blum 71T9550 CLIP top 95° Overlay Thick-Door Screw-On Hinge, Nickel

Stock Code: HI71T9550

£1.72 GBP
Sale
View full details

PRODUCT DESCRIPTION

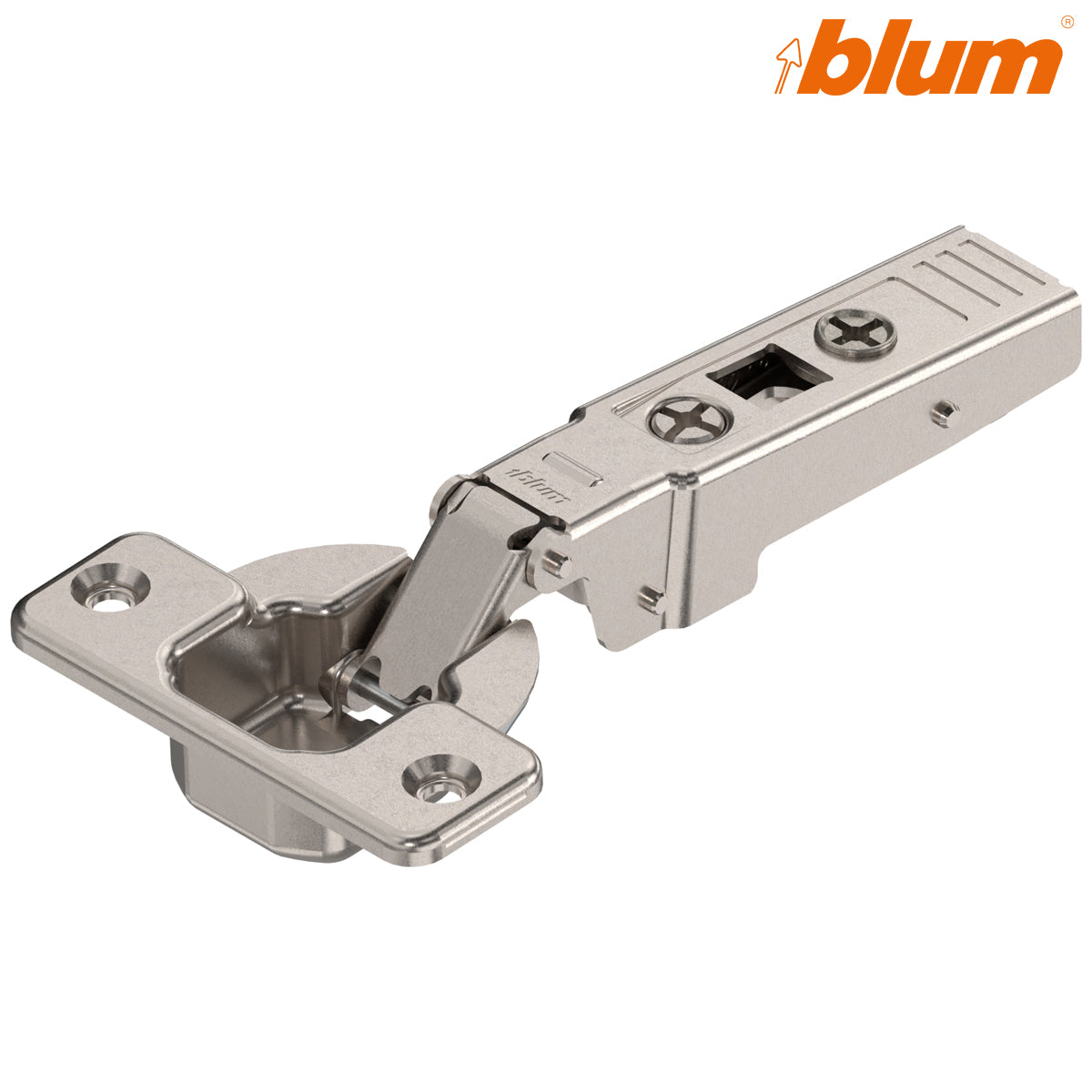

Blum 71T9550 CLIP top 95° Overlay Thick-Door Hinge

Fit a full-overlay cabinet door with a thick or profiled edge using Blum 71T9550. Its 95° profile-hinge geometry helps accommodate fronts that need more considered clearance than a standard cabinet door. This nickel-plated hinge has a sprung self-closing action, a screw-on door cup and no integrated BLUMOTION soft close. One hinge is supplied.

Plan the front and gaps together

Blum planning data referenced in the listing covers fronts up to 32 mm in suitable configurations, not as an unconditional limit for every profile. Cup drilling distance, edge radius, front thickness, required overlay and neighbouring doors or walls determine the minimum gap and whether the door can open freely. Confirm the complete 71T9550 fitting drawing and trial-fit an unusual moulded or thick front before drilling the full run.

Screw-on fixing with a separate plate

Secure the cup in a correctly prepared cabinet door using suitable screws. The CLIP arm attaches to a compatible cabinet-side Blum mounting plate and can be released for door fitting or adjustment. Select and purchase the plate separately for the desired overlay and cabinet construction; adjustment depends on that selection.

Choose the closing action

The hinge spring draws the door closed without damping the final movement. If integrated damping is required, compare the 71B9550 BLUMOTION version and verify its exact cup fixing and front plan before substituting it. Do not assume a separate damper is compatible with 71T9550 without an exact accessory reference.

Key specifications

  • Blum part 71T9550; Hart Wholesale SKU HI71T9550; barcode 9002617451153
  • 95° CLIP top hinge for a full-overlay thick or profiled door
  • Sprung self-closing; no integrated soft close
  • Nickel finish; screw-on door cup; one hinge
  • Compatible cabinet mounting plate sold separately

Browse Blum CLIP top hinges for other applications and fixing types.

Frequently Asked Questions

Is the Blum 71T9550 a soft-close hinge?

No. It has a closing spring but no integrated BLUMOTION damper.

Which doors is it intended for?

Full-overlay doors with thick or profiled fronts, subject to the exact cabinet dimensions and fitting plan.

Does 32 mm front thickness always fit?

No. The existing planning information covers suitable arrangements up to 32 mm, but the edge shape, drilling distance, overlay and gaps must be checked for each door.

How is the cup fixed?

It is screwed into a correctly prepared door; it is not INSERTA or knock-in.

Is a mounting plate included?

No. A compatible CLIP plate must be selected separately.

Is this the version for TIP-ON?

This is a sprung hinge that draws the door closed. A handleless push-to-open system needs an appropriately specified hinge and cabinet plan.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
