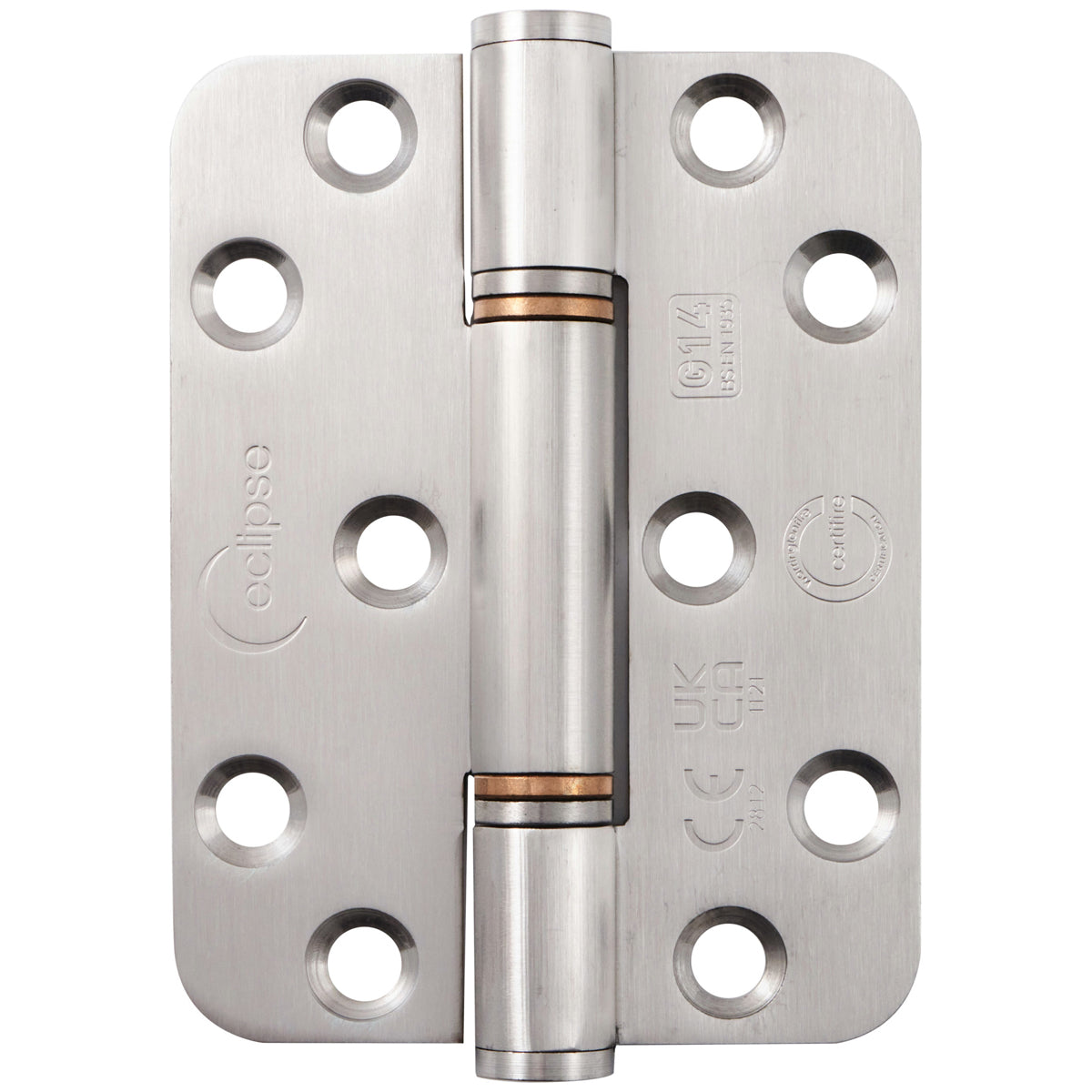

ECLIPSE THRUST BEARING HINGE RADIUS G14 102x76x3 STST/SSS PK3

ECLIPSE THRUST BEARING HINGE RADIUS G14 102x76x3 STST/SSS PK3

Stock Code: HI1252O9

£12.34 GBP
Sale
View full details
Previous
ECLIPSE THRUST BEARING HINGE RADIUS G14 102x76x3 STST/SSS PR
Next
ECLIPSE THRUST BEARING HINGE G14 102x76x3 STST/SSS PK3

PRODUCT DESCRIPTION

Eclipse Thrust Bearing Hinge — Grade 14 | 102x76x3mm | Radius Corners | Satin Stainless Steel | Pack of 3

A premium Grade 14 thrust bearing hinge from the Eclipse range, finished in Satin Stainless Steel and manufactured with 10mm radius corners. Sold as a pack of 3 — the trade-preferred quantity for a complete single-door installation. Manufactured from SUS 201 stainless steel and engineered for the most demanding heavy-duty timber and steel fire doors up to 160kg.

Tested to 200,000 cycles to BS EN 1935 Grade 14, and fire-tested to FD30, FD60, FD90, FD120 timber and FD240 steel doors under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.

Key Features

  • Grade 14 performance — rated for doors up to 160kg total mass
  • Thrust bearing mechanism for smooth, heavy-load operation
  • 10mm radius corners
  • SUS 201 stainless steel construction
  • Satin Stainless Steel finish
  • Size: 102 x 76 x 3mm
  • 12-gauge countersunk fixing holes
  • Fire tested: FD30/60/90/120 timber & FD240 steel (BS EN 1634)
  • Cycle tested: 200,000 cycles (BS EN 1935 Grade 14)
  • Certifications: CE 2812 | UKCA 1121 | Certifire CF336
  • Supplied with 12 × 1½" Pozi Drive threaded screws
  • Sold as a pack of 3 hinges

Specifications

  • SKU: HI1252O9
  • Size: 102 x 76 x 3mm
  • Material: SUS 201 Stainless Steel
  • Finish: Satin Stainless Steel (SSS)
  • Corner Style: 10mm radius
  • Grade: BS EN 1935 Grade 14
  • Fire Rating: FD30/60/90/120 timber | FD240 steel (BS EN 1634)
  • Pack Quantity: 3 hinges
  • Fixings: 12 × 1½" Pozi Drive screws included

Also available as a pair (SKU: HIF234B). Browse the full Eclipse range or explore all hinges at Hart Wholesale.

TECHNICAL DETAILS

  • Application: Furniture Hinges
  • Size: 102 x 76 x 3mmmm
  • Width: 76mmmm
  • Height: 102mmmm
  • Finish: Satin Stainless Steel
  • Colour: Satin Stainless Steel
  • Load capacity: 160kg (Grade 14)
  • Material: SUS 201 Stainless Steel
