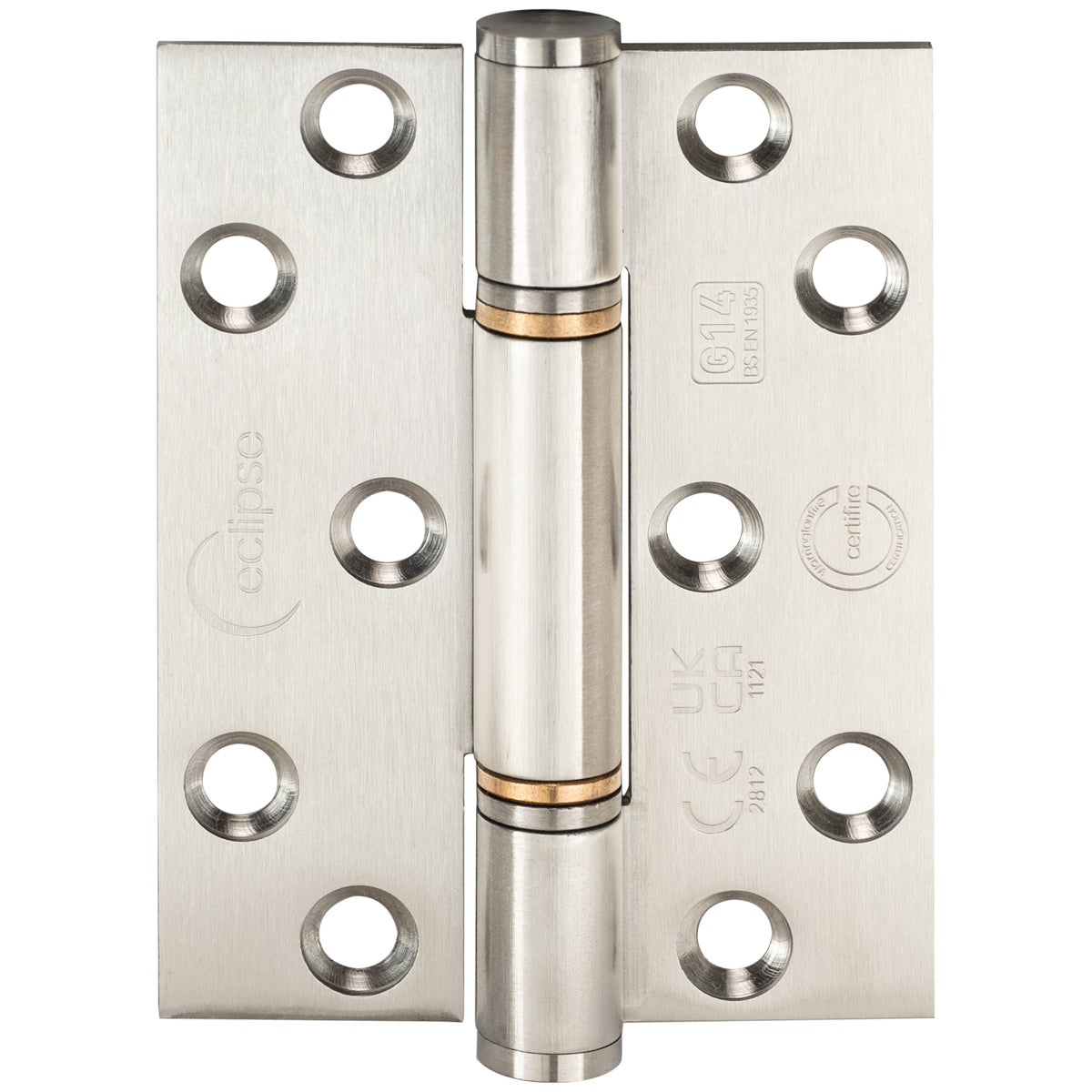

ECLIPSE THRUST BEARING HINGE G14 102x76x3 STST/SSS PR

ECLIPSE THRUST BEARING HINGE G14 102x76x3 STST/SSS PR

Stock Code: HIF234A

£7.47 GBP
Sale
View full details
Previous
ECLIPSE THRUST BEARING HINGE G14 102x76x3 STST/SSS PK3
Next
ECLIPSE MILD STEEL BALL BEARING HINGE G13 102x76x2.7 PCP PR

PRODUCT DESCRIPTION

Eclipse Thrust Bearing Hinge — Grade 14 | 102x76x3mm | Satin Stainless Steel

A premium Grade 14 thrust bearing hinge from the Eclipse range, finished in Satin Stainless Steel. Manufactured from SUS 201 stainless steel, this hinge is engineered for the most demanding heavy-duty timber and steel fire doors up to 160kg in both residential and commercial settings.

Tested to 200,000 cycles to BS EN 1935 Grade 14, and fire-tested to FD30, FD60, FD90, FD120 timber and FD240 steel doors under BS EN 1634. Certified to CE 2812, UKCA 1121, and Certifire CF336.

Key Features

  • Grade 14 performance — rated for doors up to 160kg total mass
  • Thrust bearing mechanism for smooth, heavy-load operation
  • SUS 201 stainless steel construction
  • Satin Stainless Steel finish
  • Size: 102 x 76 x 3mm
  • 12-gauge countersunk fixing holes
  • Fire tested: FD30/60/90/120 timber & FD240 steel (BS EN 1634)
  • Cycle tested: 200,000 cycles (BS EN 1935 Grade 14)
  • Certifications: CE 2812 | UKCA 1121 | Certifire CF336
  • Supplied with 12 × 1½" Pozi Drive threaded screws
  • Sold as a pack of 2 hinges

Specifications

  • SKU: HIF234A
  • Size: 102 x 76 x 3mm
  • Material: SUS 201 Stainless Steel
  • Finish: Satin Stainless Steel (SSS)
  • Grade: BS EN 1935 Grade 14
  • Fire Rating: FD30/60/90/120 timber | FD240 steel (BS EN 1634)
  • Pack Quantity: 2 hinges (1 pair)
  • Fixings: 12 × 1½" Pozi Drive screws included

Also available as a pack of 3 (SKU: HI1252O8) and with radius corners (SKU: HIF234B). Browse the full Eclipse range or explore all hinges at Hart Wholesale.

TECHNICAL DETAILS

  • Application: Furniture Hinges
  • Size: 102 x 76 x 3mmmm
  • Width: 76mmmm
  • Height: 102mmmm
  • Finish: Satin Stainless Steel
  • Colour: Satin Stainless Steel
  • Load capacity: 160kg (Grade 14)
  • Material: SUS 201 Stainless Steel
