Name: TECTUS FR TE340 3D HINGE 160x28 BZL
Brand: SIMONSWERK UK LTD
SKU: HIB207G
Price: 102.51 GBP
Availability: InStock

PRODUCT DESCRIPTION

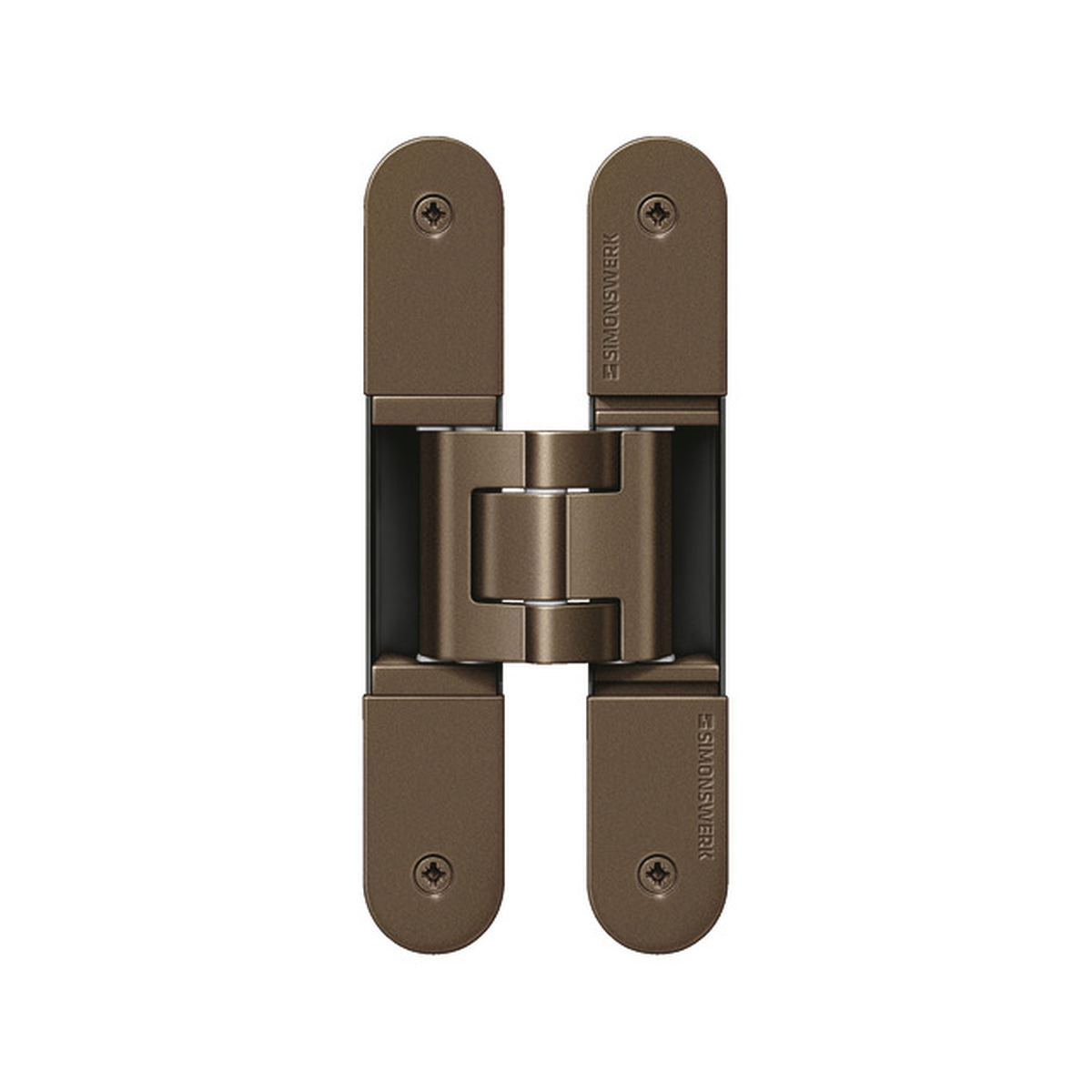

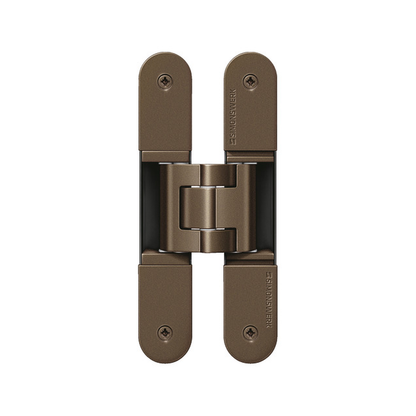

The Tectus TE340 3D FR hinge in Bronze Finish Light, code 175, offers a light bronze finish in a completely concealed system for unrebated residential and heavy-duty doors. This FR version incorporates an integrated intumescent kit, while keeping the hinge hardware hidden when the door is closed.

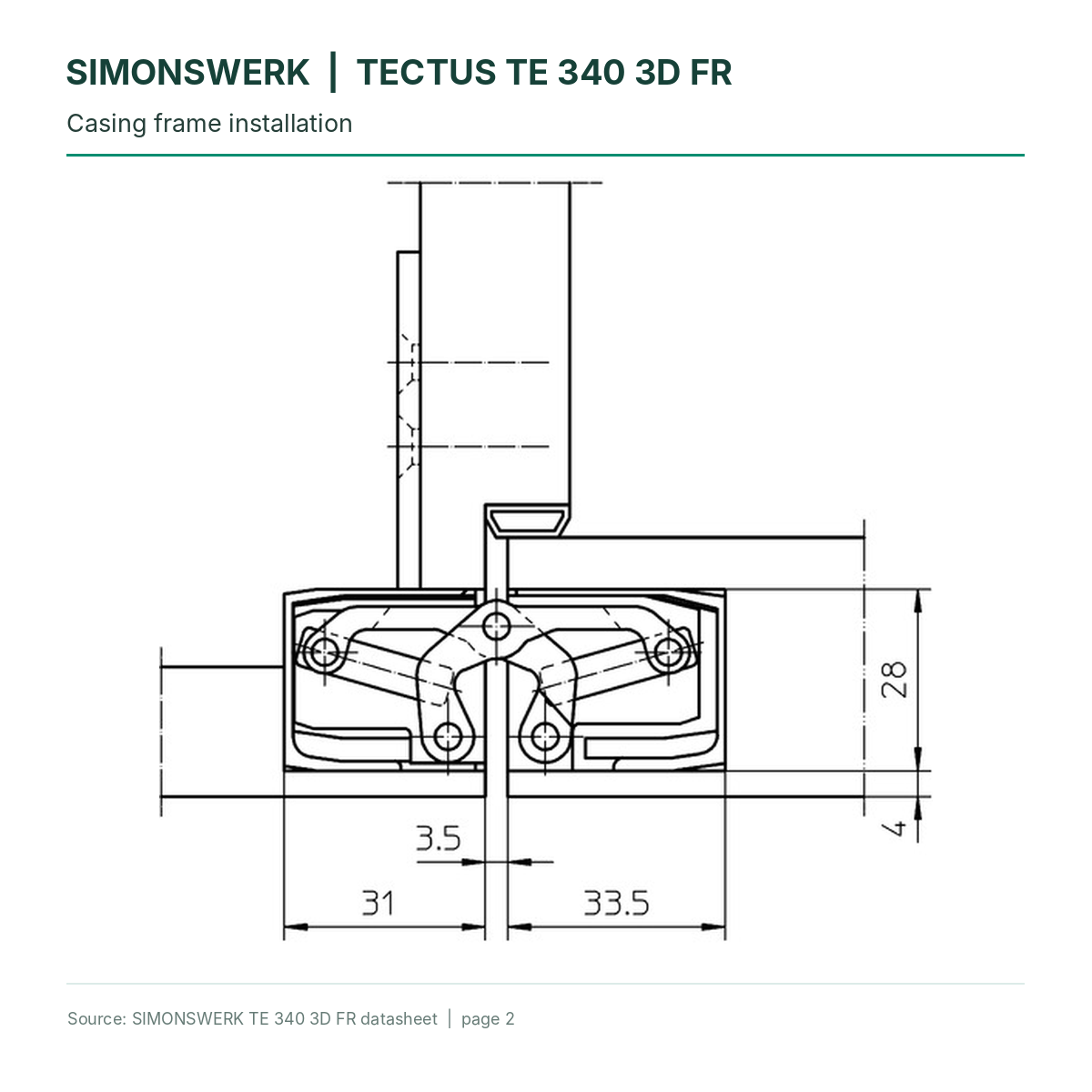

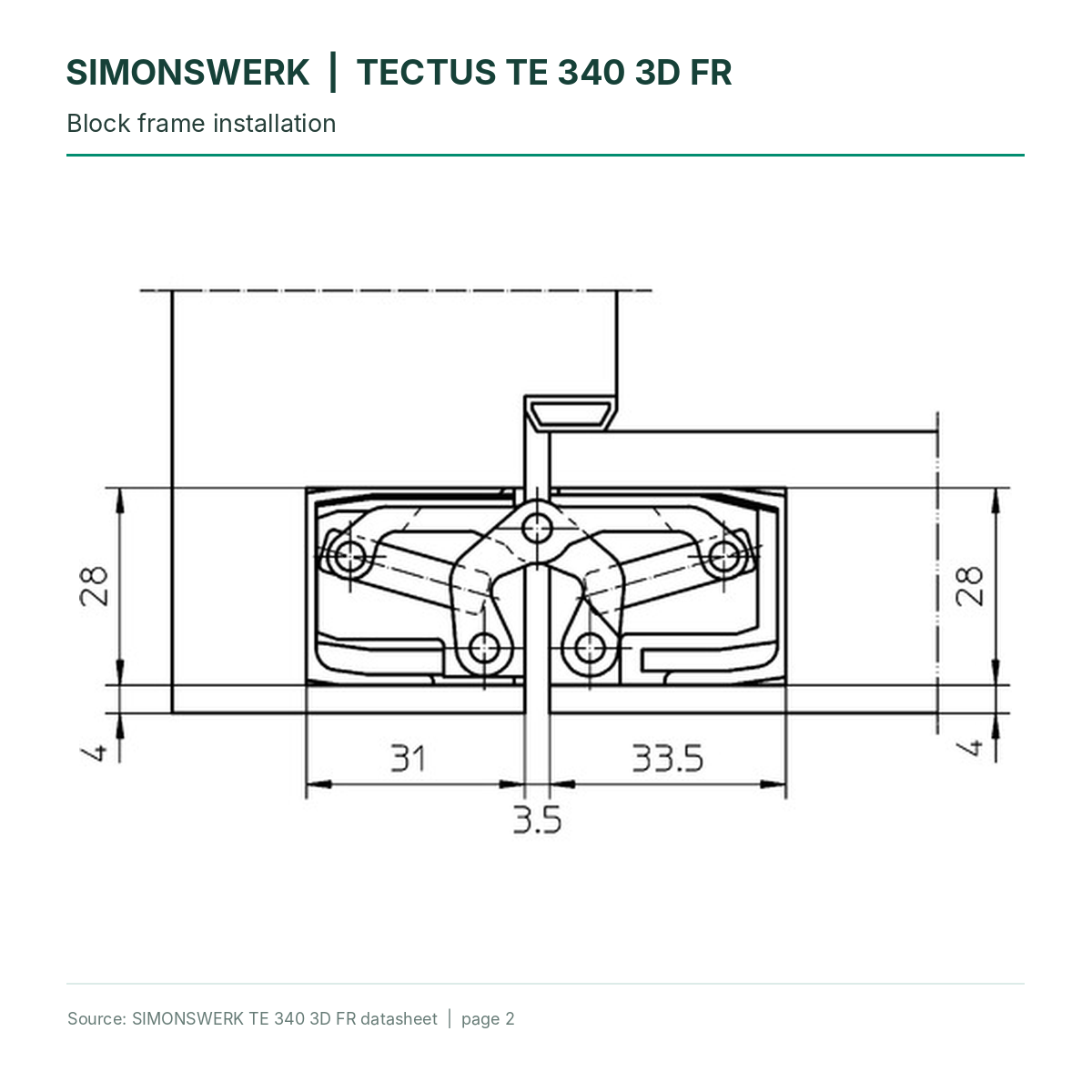

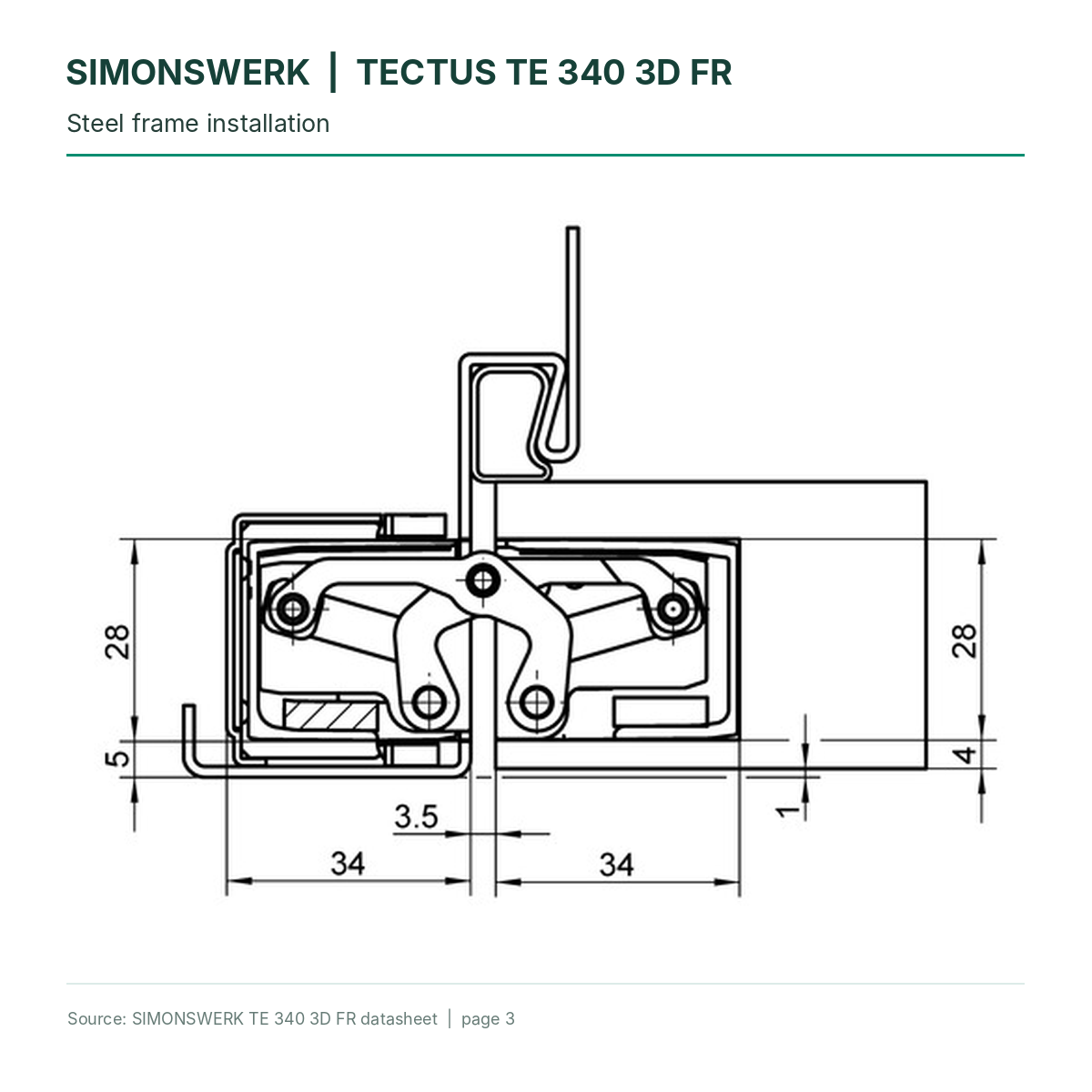

Three-dimensional adjustment helps achieve even gaps and accurate door alignment. Maintenance-free slide bearings simplify ongoing care, and the sideways-closing hinge body gives a neat mortise appearance. The system accommodates timber, steel or aluminium frames.

Technical specifications

Model: TE340 3D FR
Finish: Bronze Finish Light, code 175
Integrated intumescent kit
Load capacity: Up to 80kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

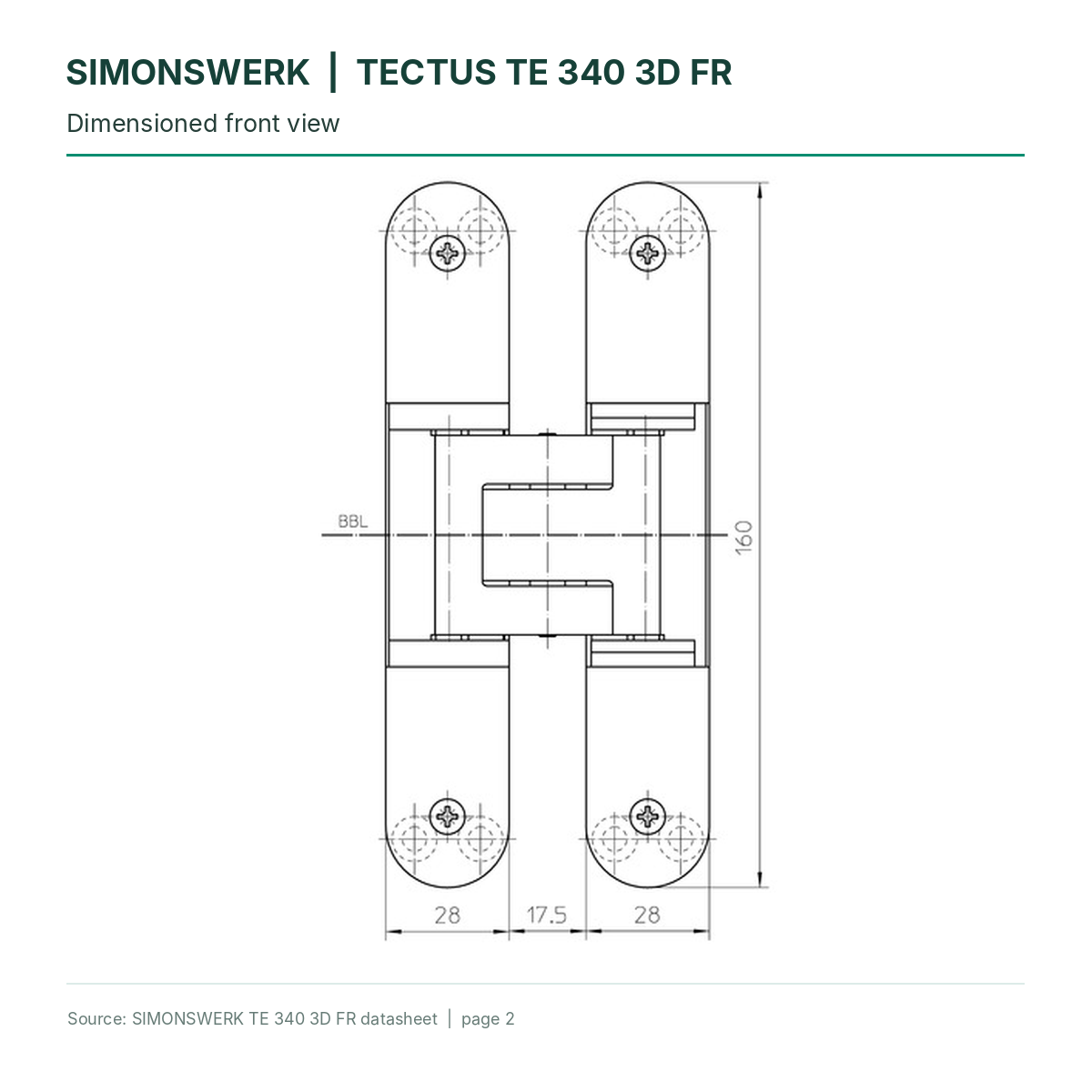

Overall length: 160mm
Width at door and frame: 28mm
Minimum door thickness: 36mm
Opening angle: Up to 180°
Side adjustment: ±3mm
Height adjustment: ±3mm
Compression adjustment: ±1mm
Suitable for right- and left-hand applications
Maintenance-free slide bearings
Cutter diameter: 24mm
Collar ring diameter: 30mm
Quantity supplied: 1 hinge

Installation and fire-door suitability

Select the appropriate TE340 routing templates and frame receiver for the door construction. Fire-door suitability depends on the door construction, and test evidence must cover the complete door set and assembly. Confirm suitability with the door manufacturer before installation; the hinge alone does not establish a fire rating for the door.

Follow the manufacturer's installation and load-capacity guidance. At an opening position of 180°, the door may require additional fixing.

Product code: HIB207G
