PRODUCT DESCRIPTION
The Tectus TE240 3D concealed hinge in Matte Deep Black, finish code 107, combines a matt black finish with adjustable alignment for flush residential doors. The hinge is completely hidden when the door is closed, leaving a clean door face without exposed hinge hardware.

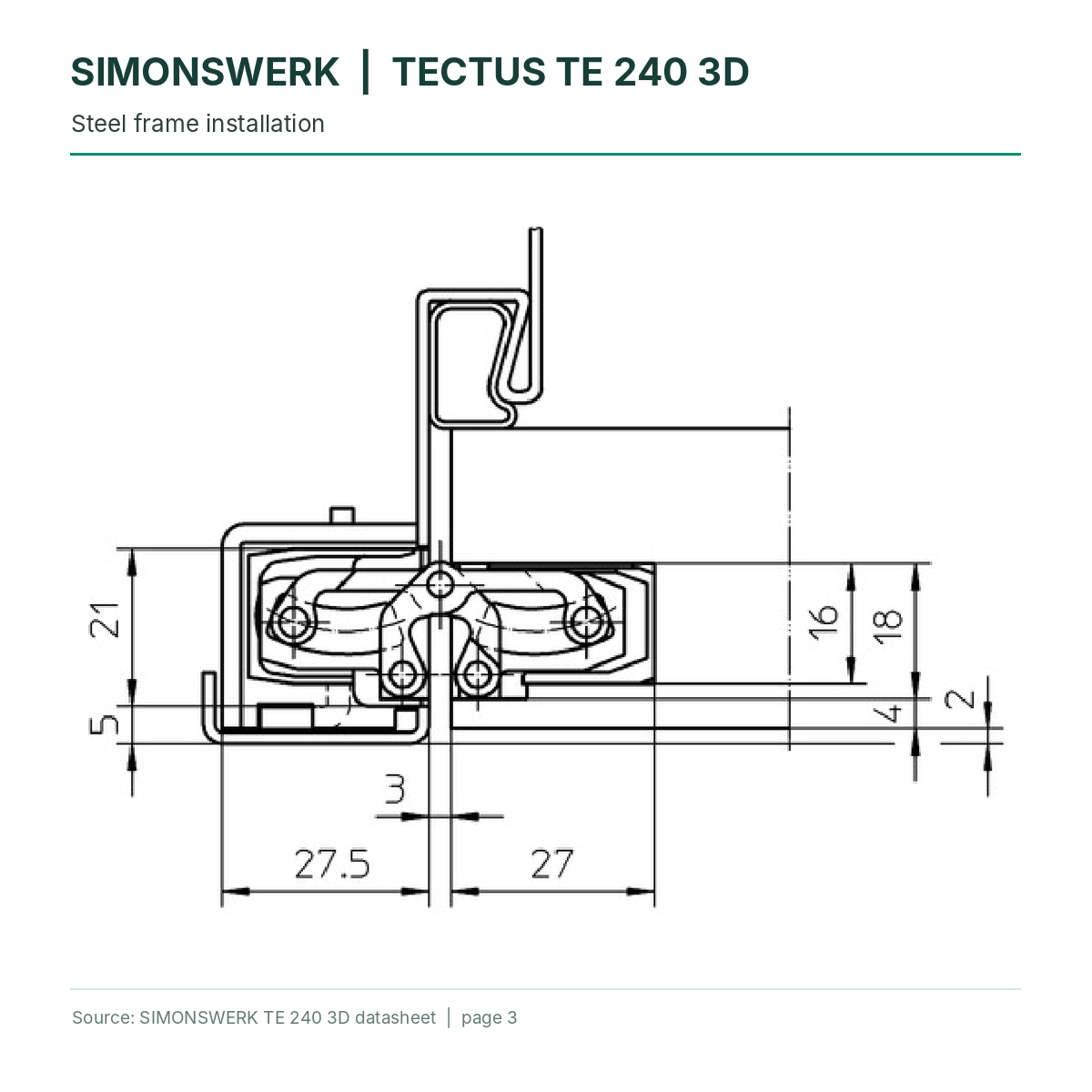

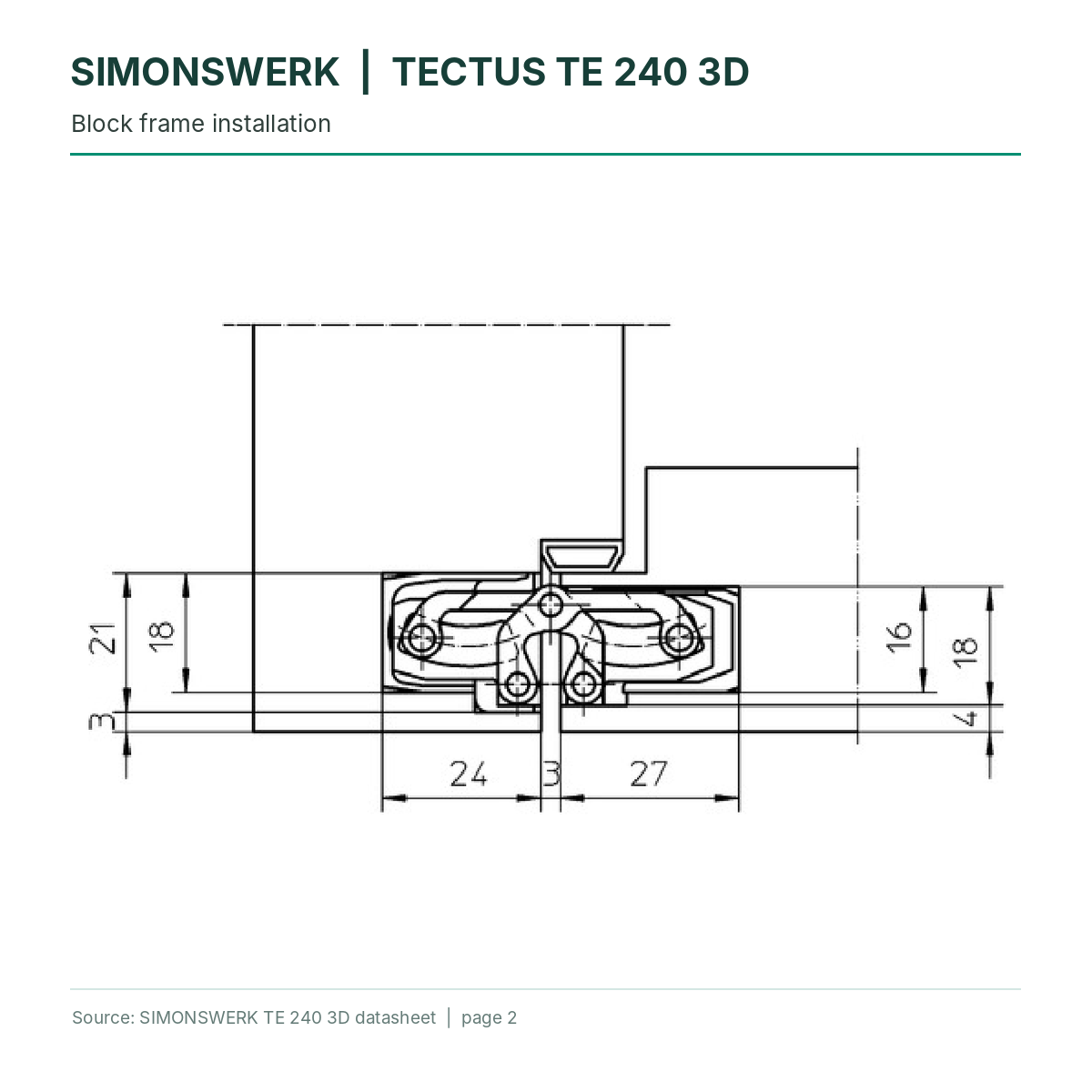

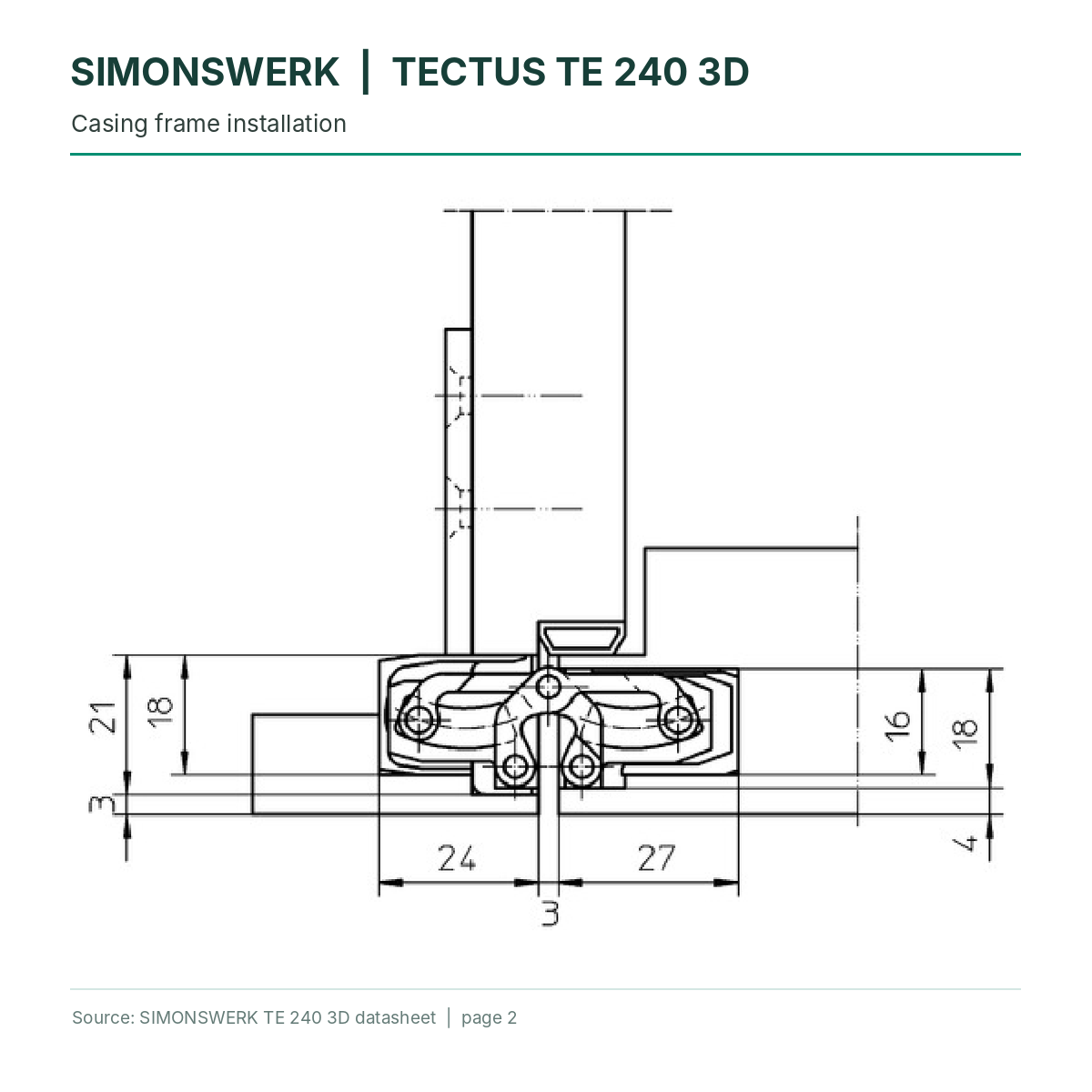

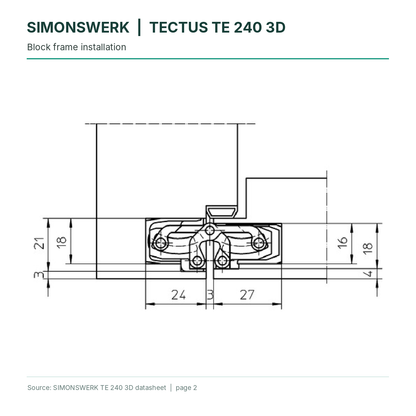

Suitable for unrebated and rebated flush doors, the TE240 accommodates timber or steel door leaves with timber, steel or aluminium frames. Its sideways-closing hinge body provides a neat mortise appearance, while maintenance-free slide bearings remove the need for bearing lubrication.
Technical specifications
- Model: TE240 3D
- Finish: Matte Deep Black, code 107
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

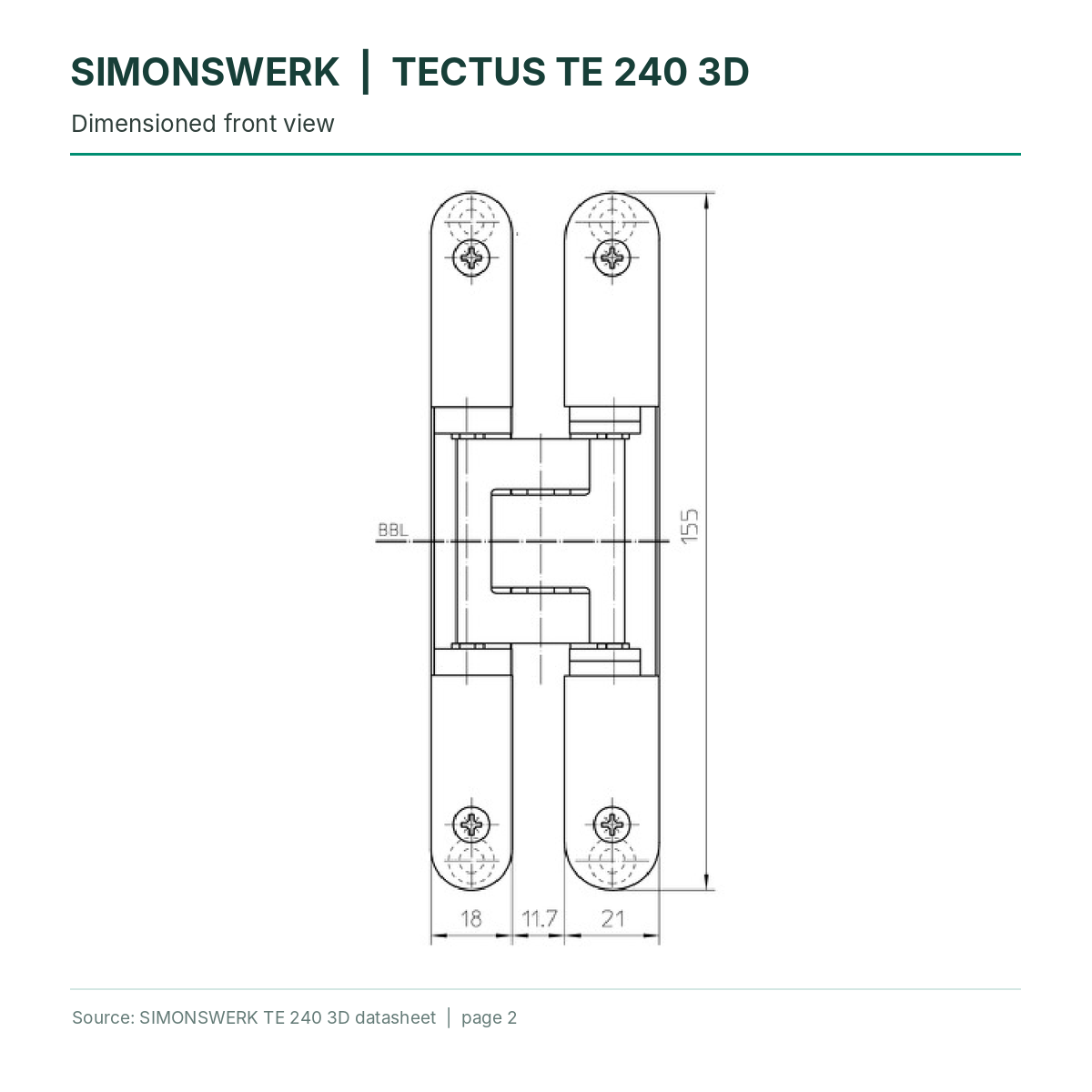

- Overall length: 155mm
- Minimum door thickness: 24mm

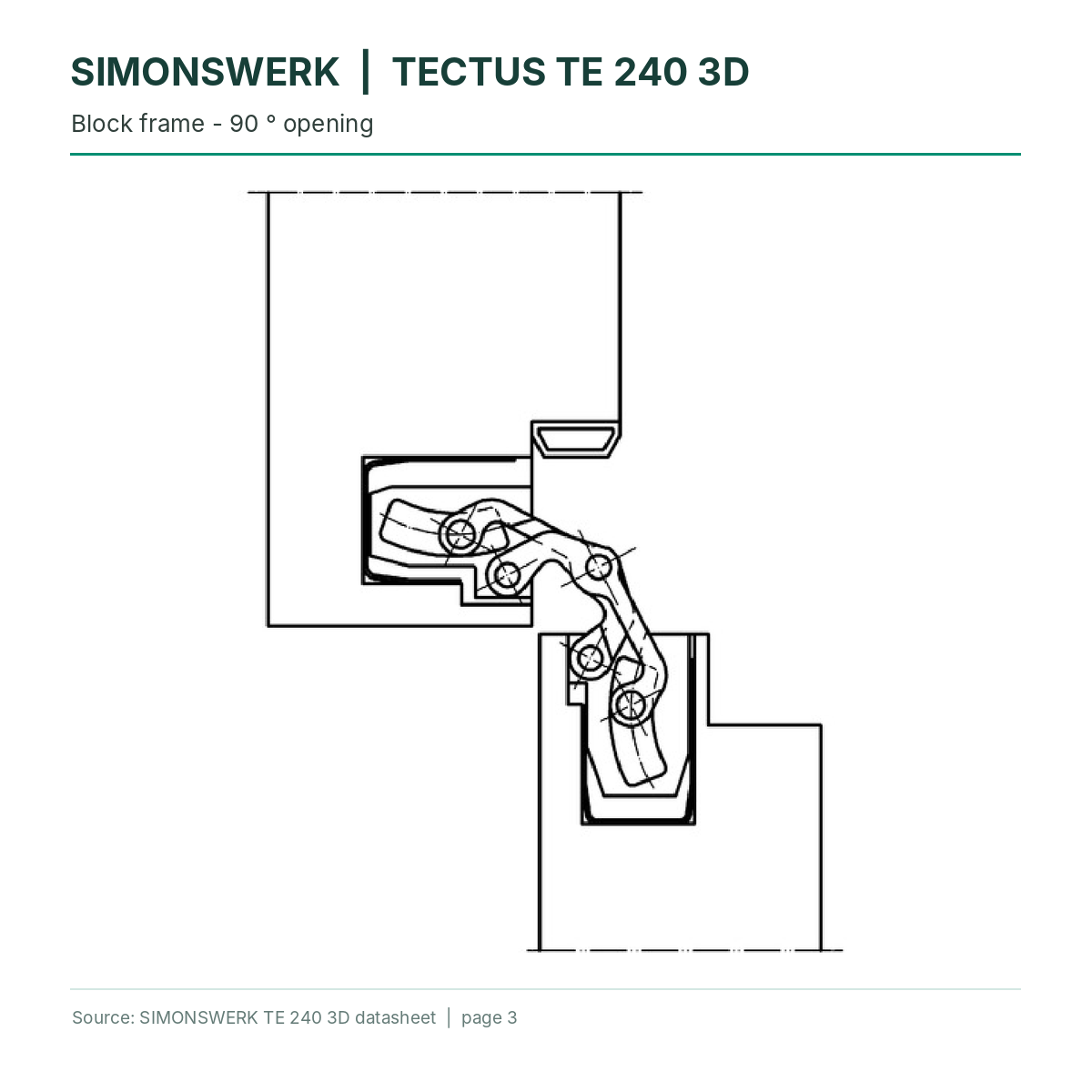

- Opening angle: Up to 180°
- Three-dimensional adjustment: side, height and compression
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Suitable for right- and left-hand applications
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance

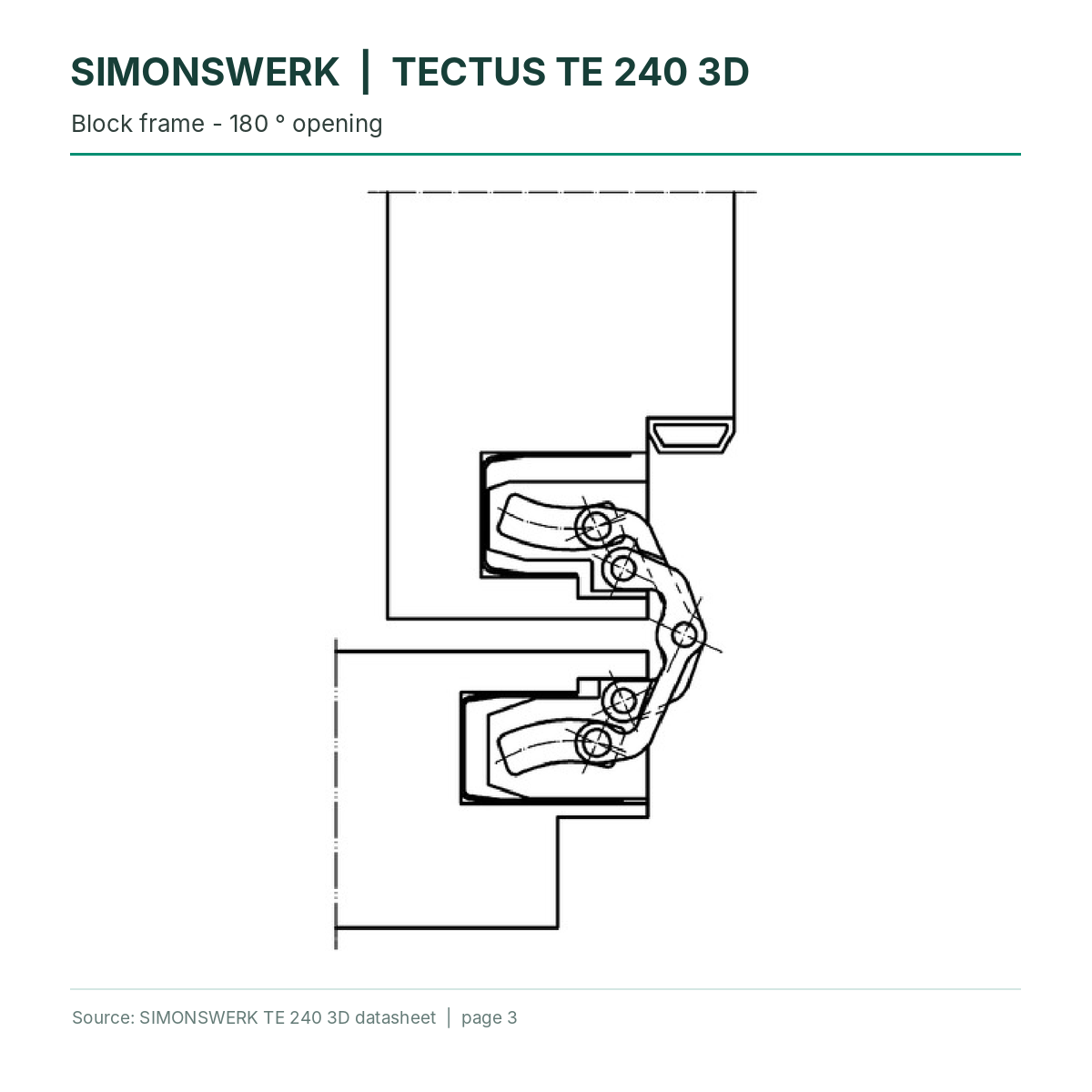

Select the appropriate TE240 routing template and frame receiver for the door construction, and follow the manufacturer's installation and load-capacity guidance. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200B
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Matt Black
