PRODUCT DESCRIPTION

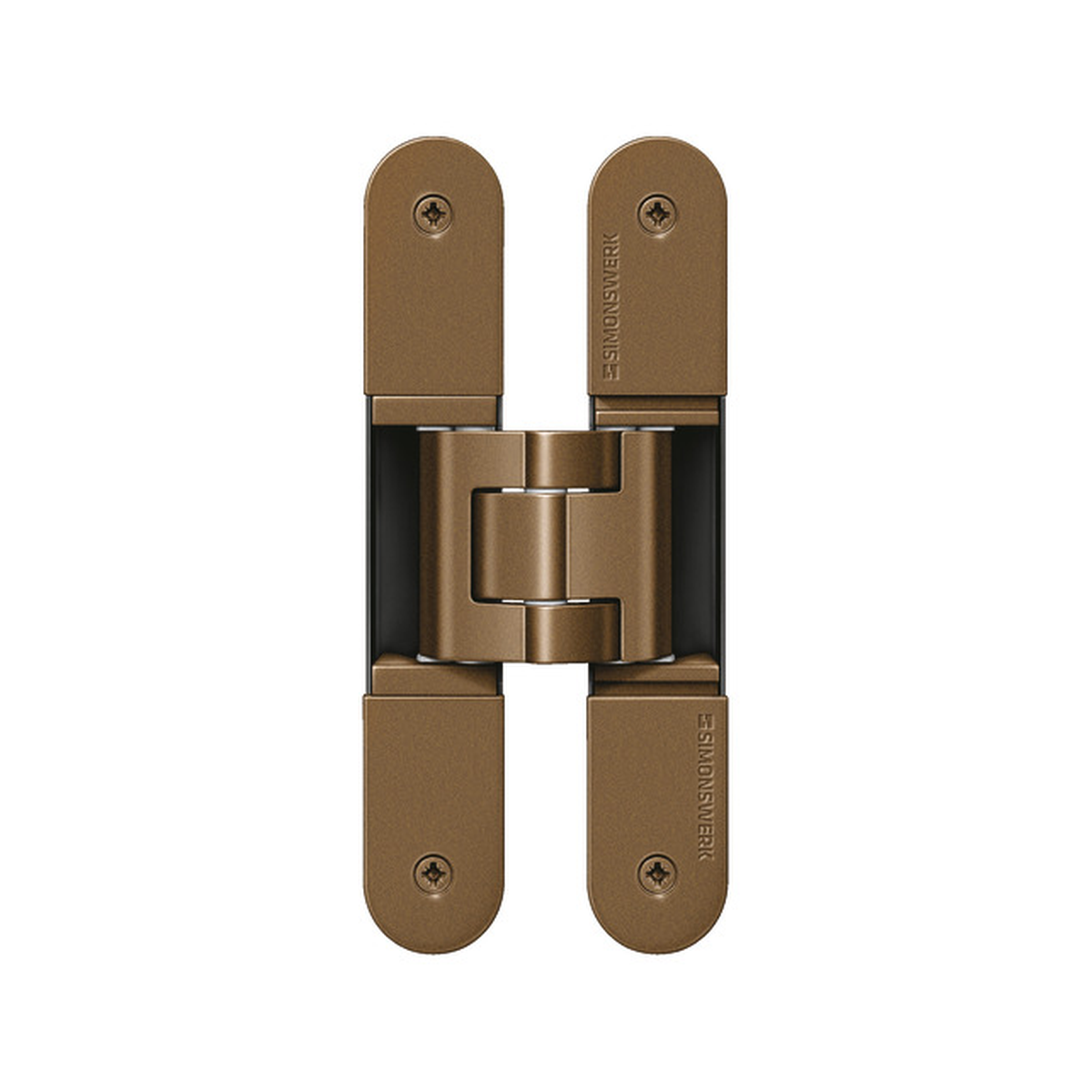

The Tectus TE240 3D concealed hinge in Bronze Metallic, finish code 168, offers a metallic bronze finish within a compact hinge system for flush residential doors. Its completely concealed design keeps hinge hardware out of sight when the door is closed, while the sideways-closing hinge body gives a neat mortise appearance.

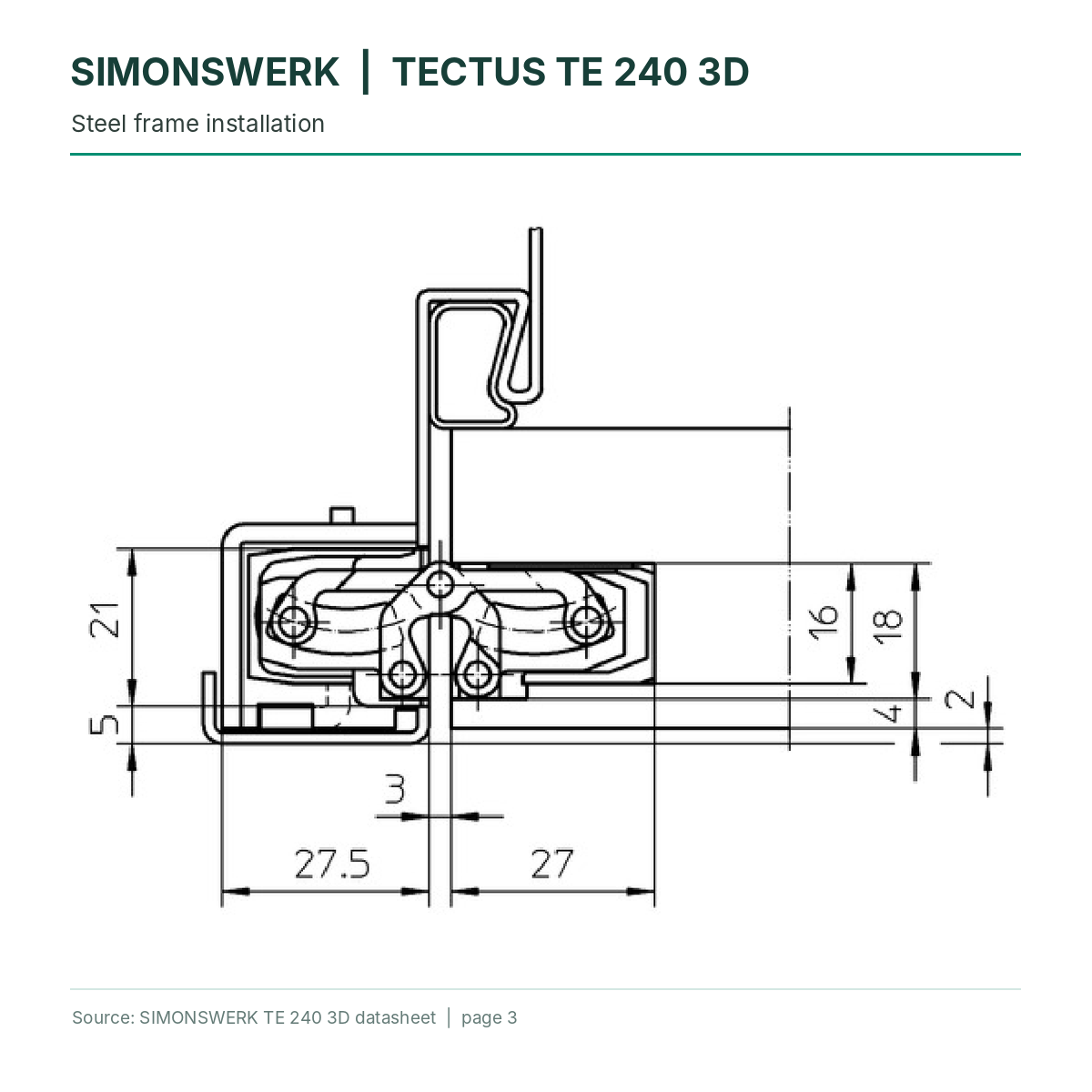

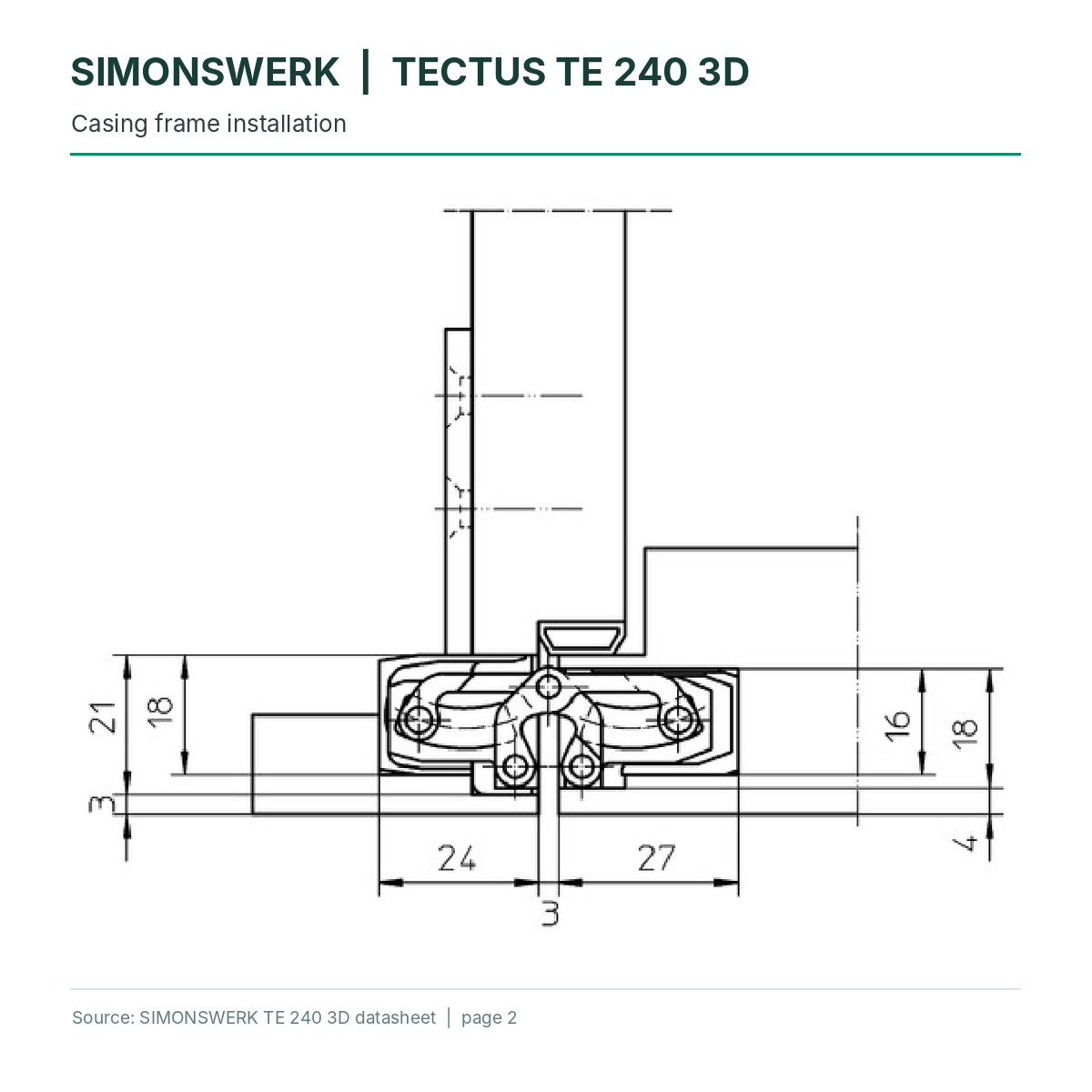

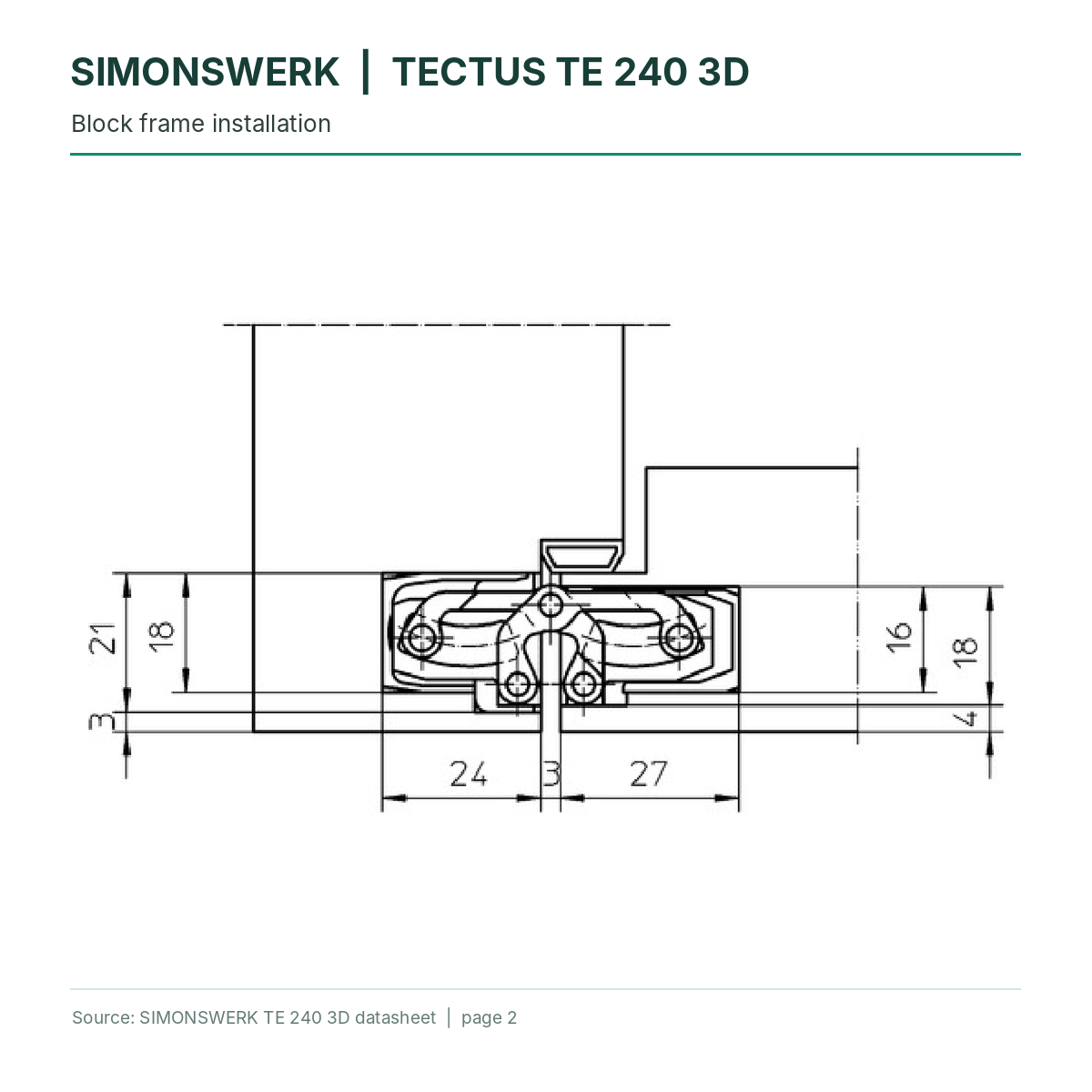

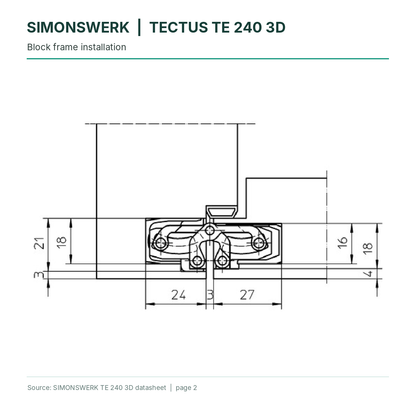

Designed for unrebated and rebated flush doors, the TE240 suits timber or steel door leaves with timber, steel or aluminium frames. Three-dimensional adjustment helps achieve accurate door alignment, and maintenance-free slide bearings simplify ongoing care.
Technical specifications
- Model: TE240 3D
- Finish: Bronze Metallic, code 168
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

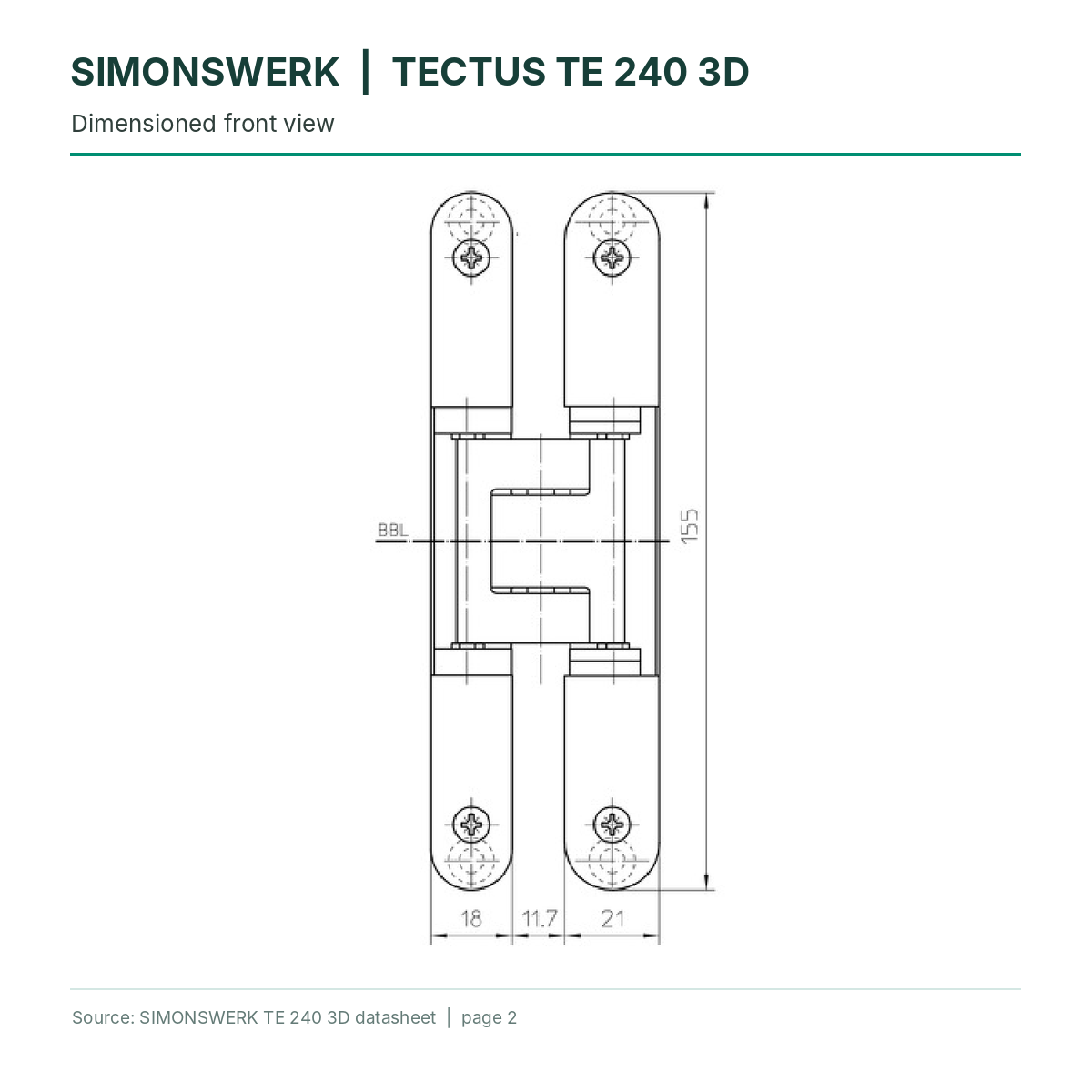

- Overall length: 155mm
- Minimum door thickness: 24mm

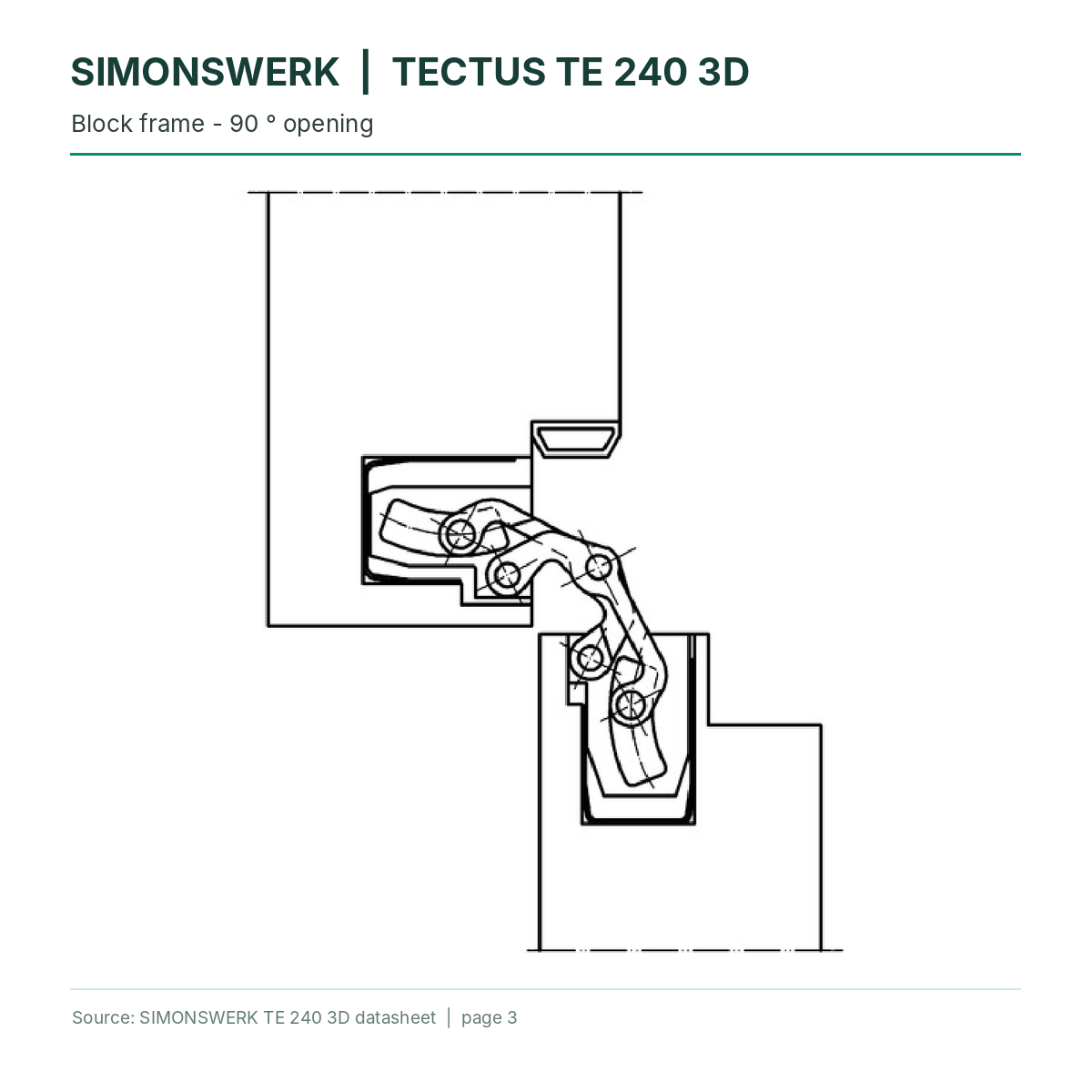

- Opening angle: Up to 180°
- Three-dimensional adjustment: side, height and compression
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Suitable for right- and left-hand applications
- Maintenance-free slide bearings
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance

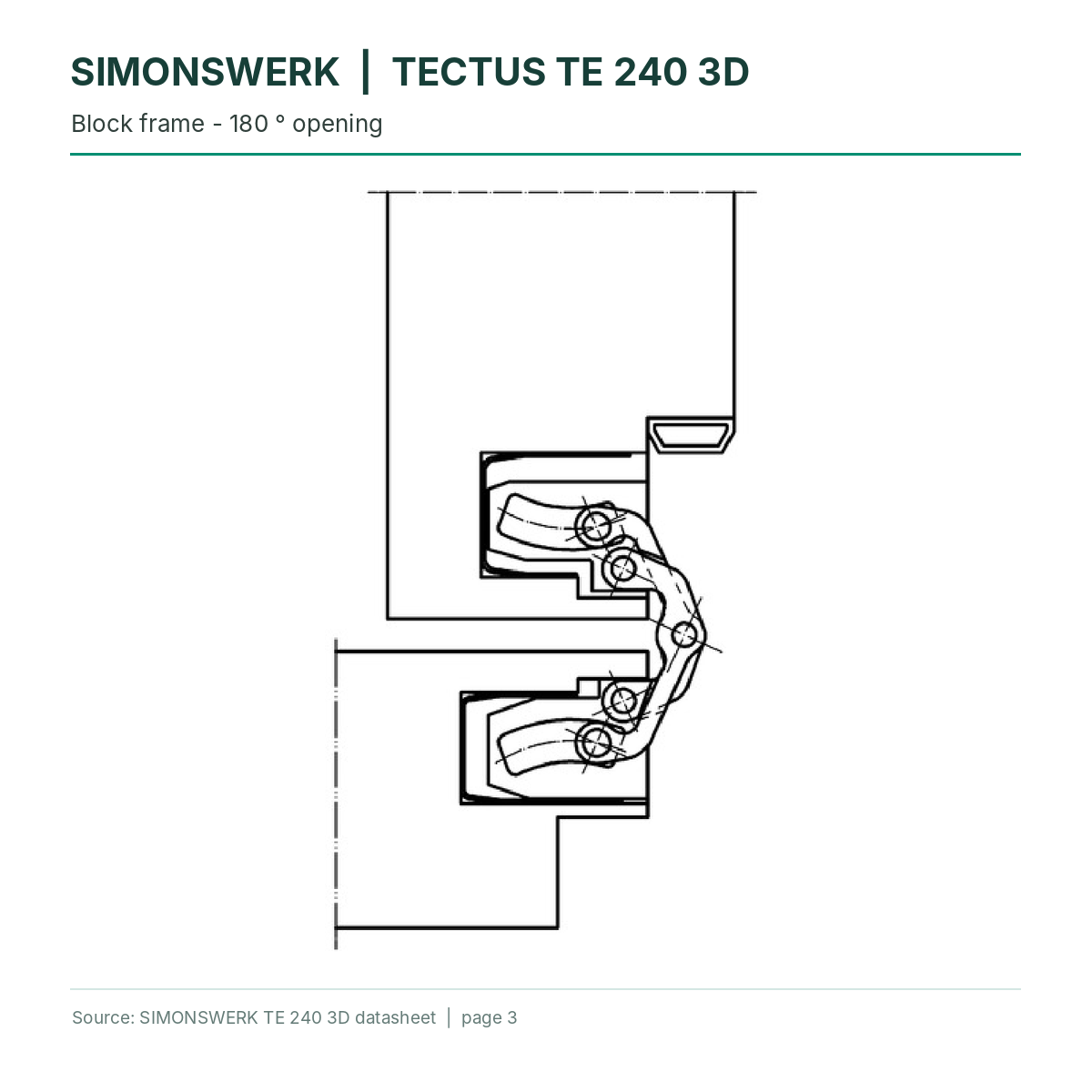

Choose the appropriate TE240 routing template and frame receiver for the door construction. Follow the manufacturer's installation and load-capacity guidance for the complete assembly. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200D
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Bronze Metallic
