PRODUCT DESCRIPTION

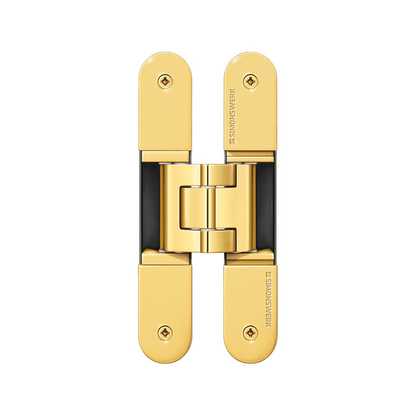

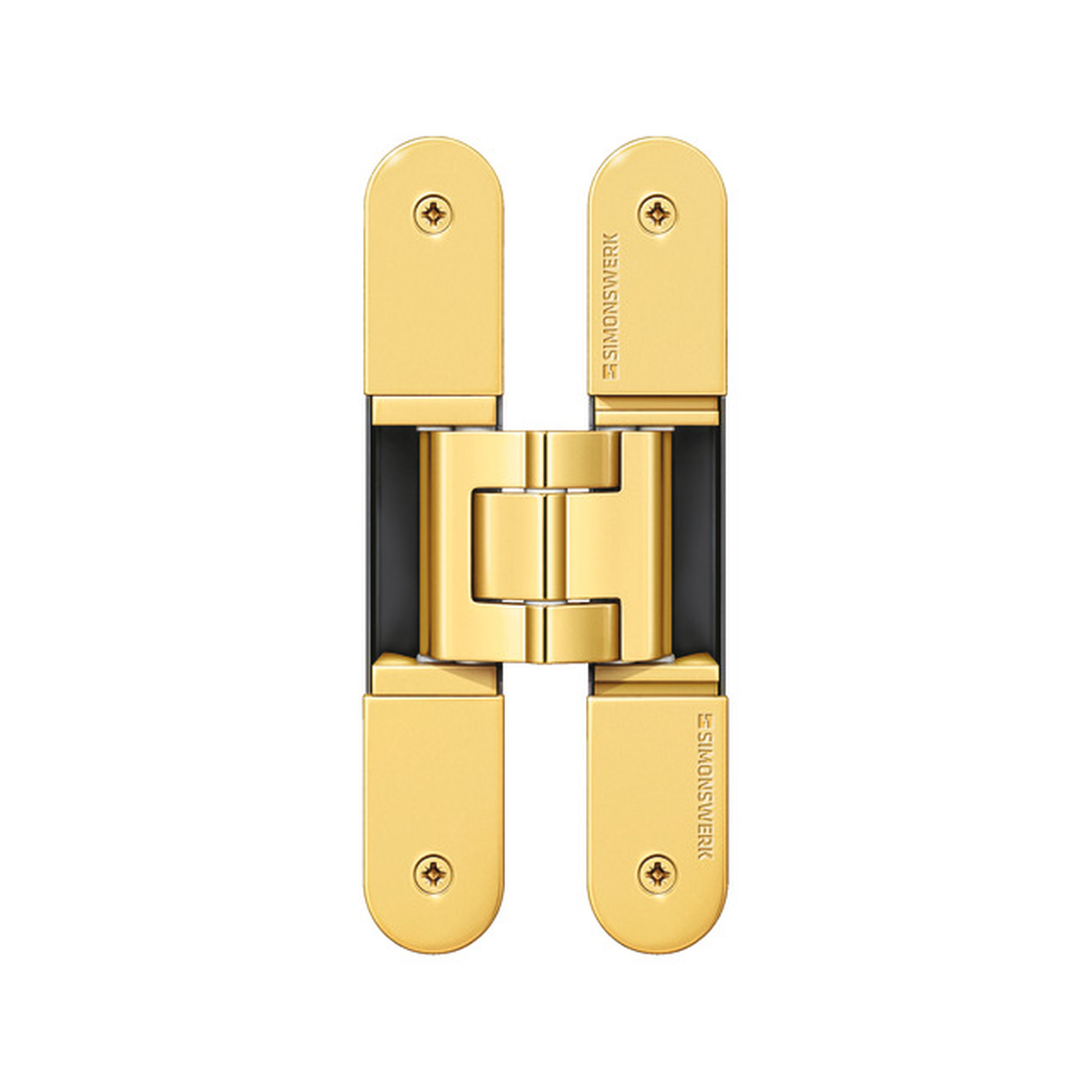

The Tectus TE240 3D hinge in Polished Brass, finish code 030, pairs a polished brass appearance with a completely concealed design for flush residential doors. When the door closes, the hinge disappears from view, keeping the door face free of exposed hinge hardware.

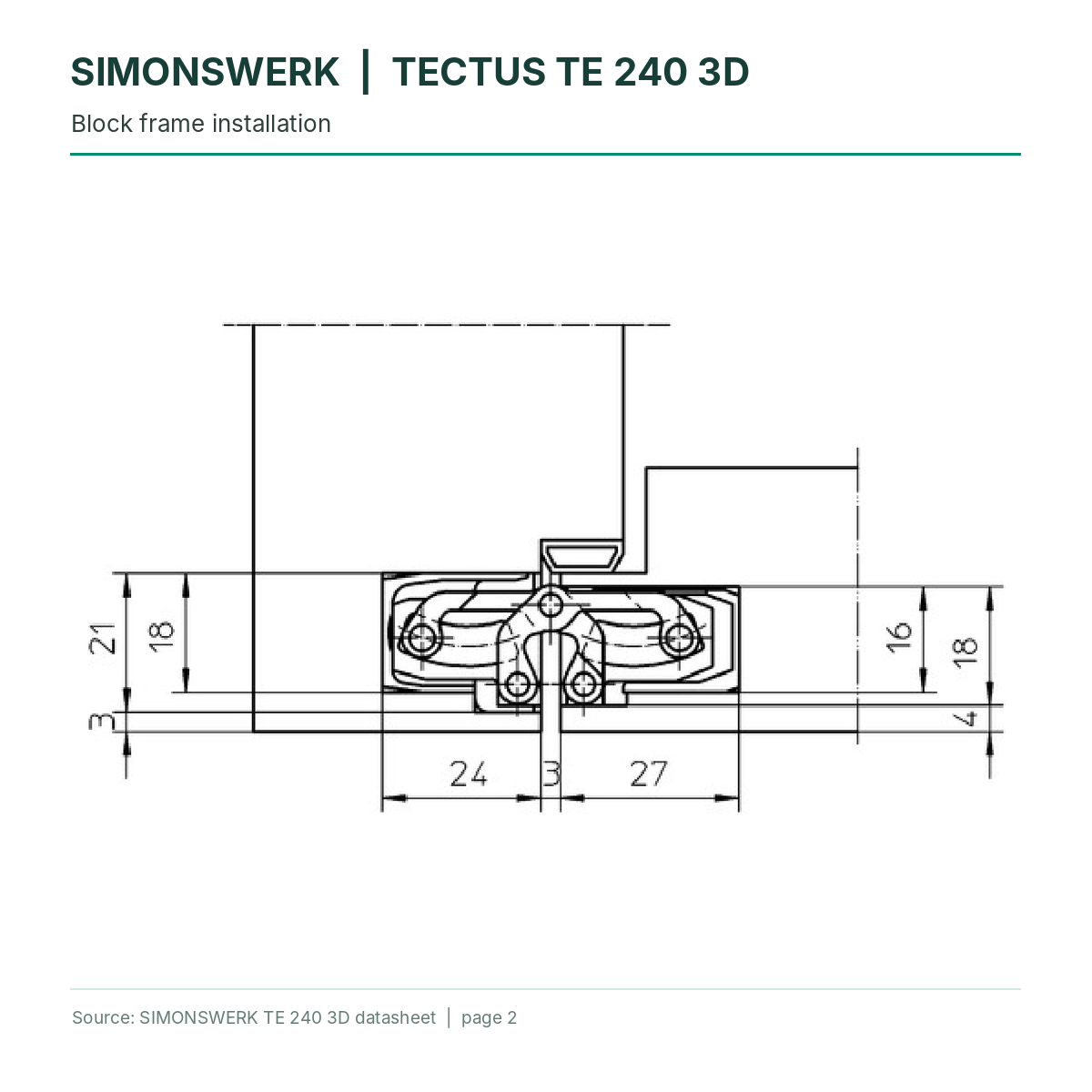

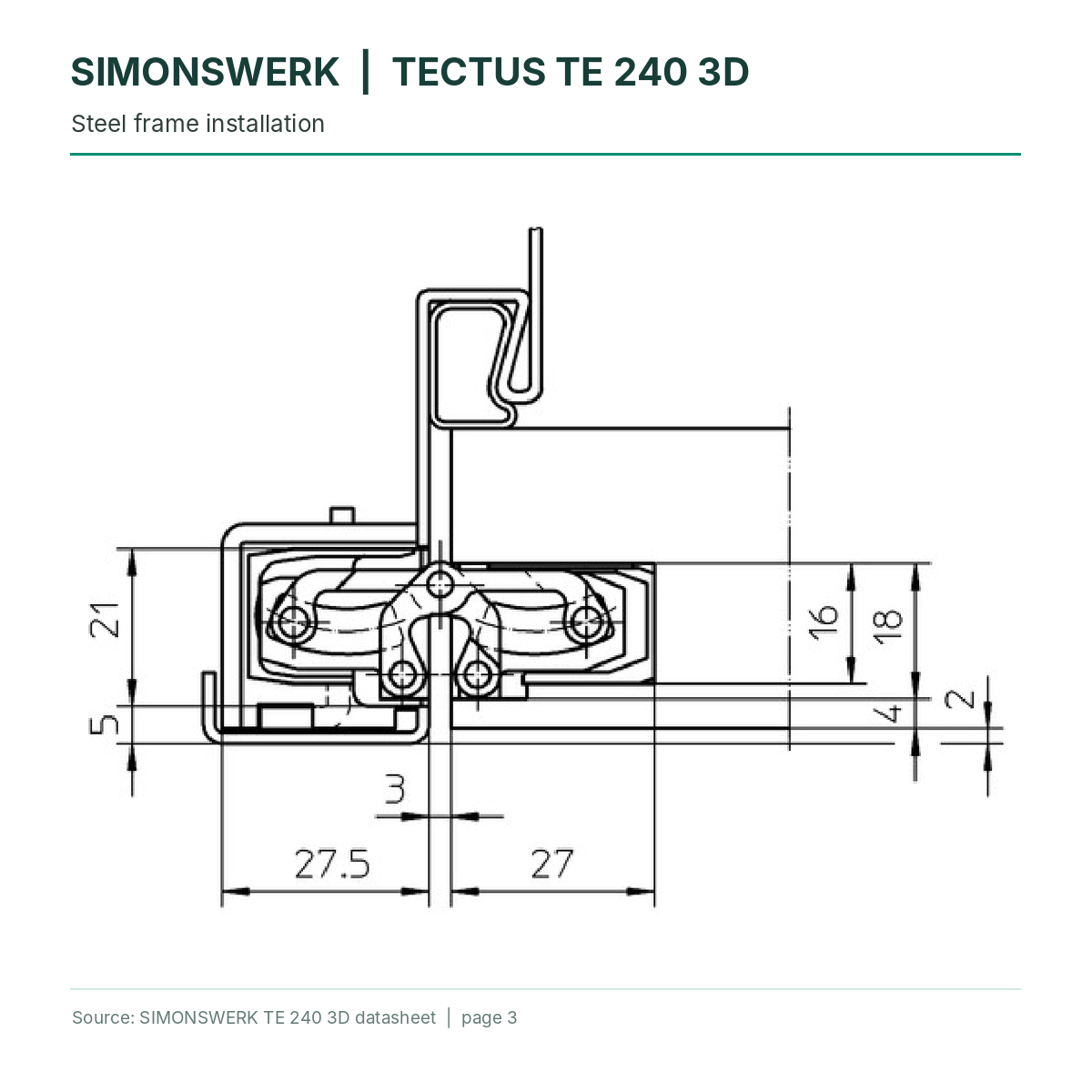

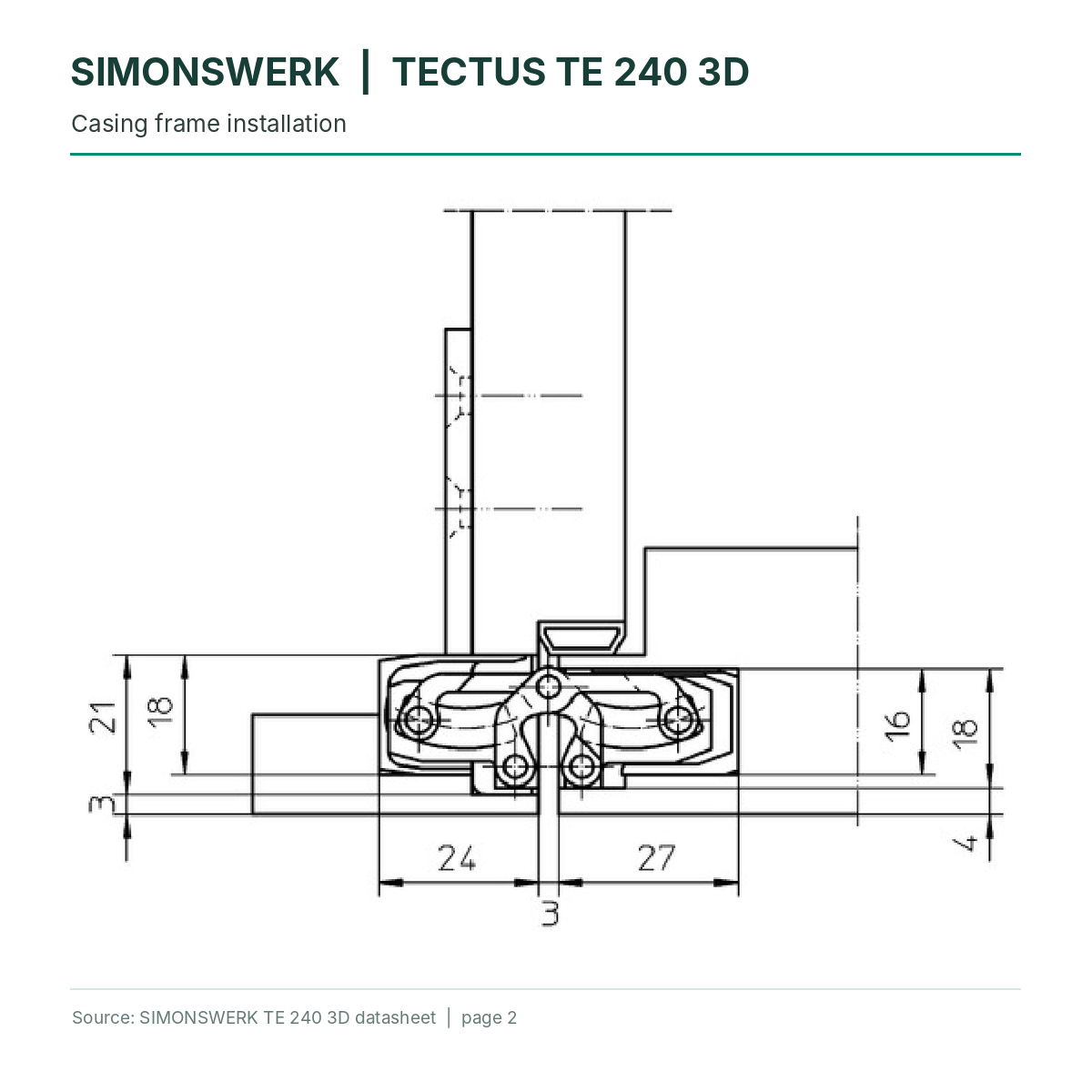

Suitable for unrebated and rebated flush doors, the TE240 is designed for timber or steel door leaves with timber, steel or aluminium frames. Three-dimensional adjustment allows the installer to align the door in height, side position and compression, while maintenance-free slide bearings simplify ongoing care. The sideways-closing hinge body gives a neat mortise appearance.
Technical specifications
- Model: TE240 3D
- Finish: Polished Brass, code 030
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

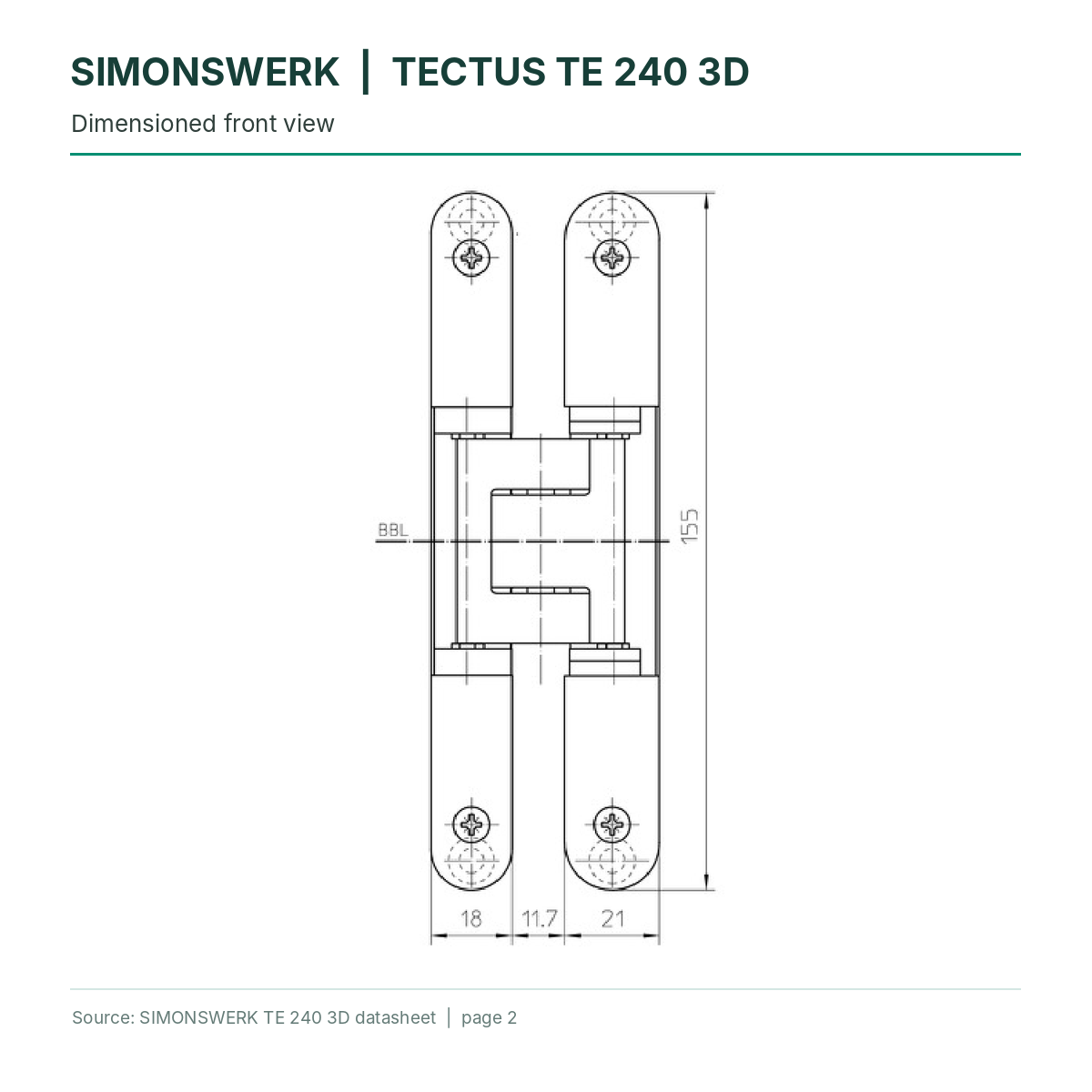

- Overall length: 155mm
- Minimum door thickness: 24mm

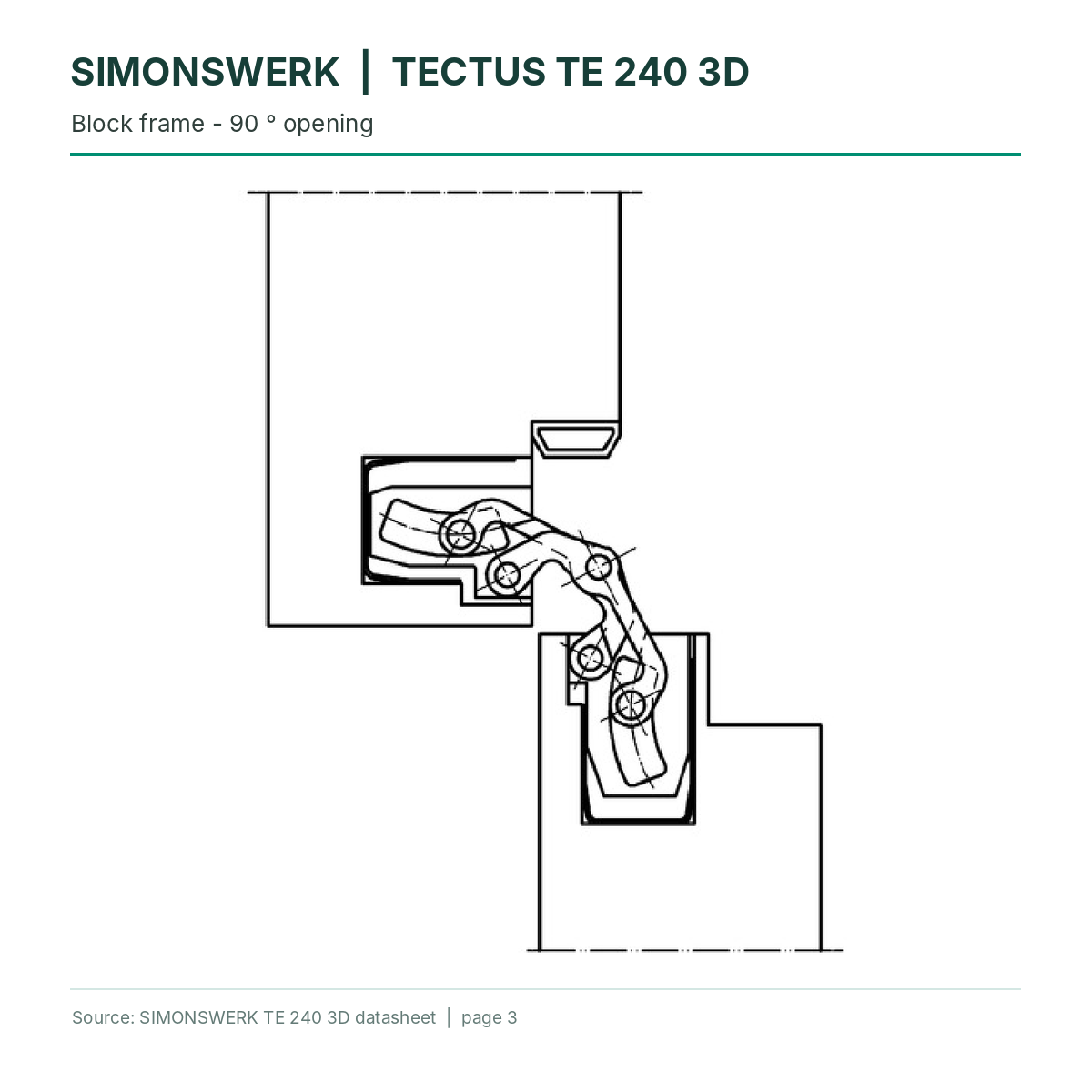

- Opening angle: Up to 180°
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Compression adjustment for three-dimensional alignment
- Suitable for right- and left-hand applications
- Maintenance-free slide bearings
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance

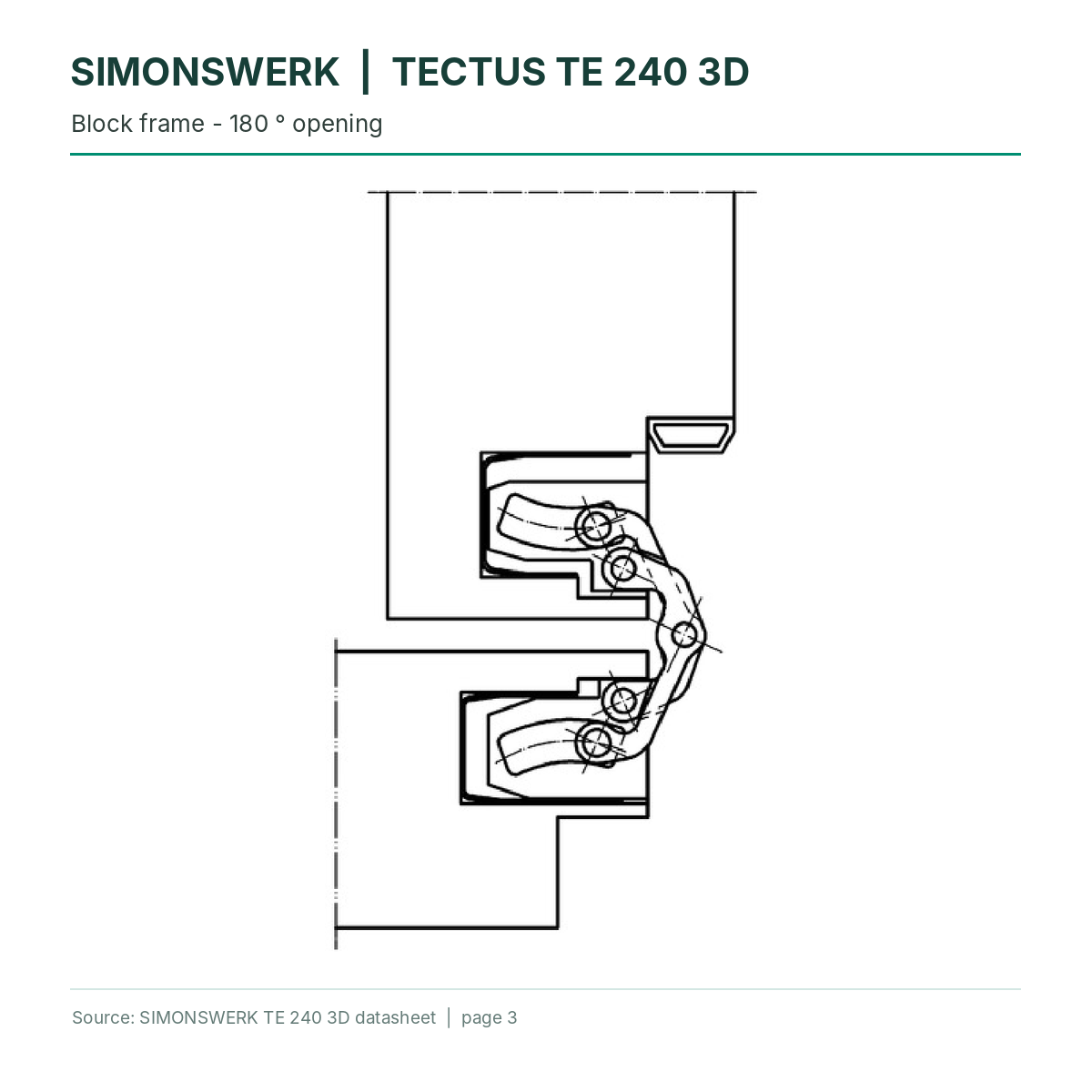

Use the appropriate TE240 routing template and frame receiver for the door construction. Follow the manufacturer's installation and load-capacity guidance for the complete assembly. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200C
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Polished Brass
