PRODUCT DESCRIPTION

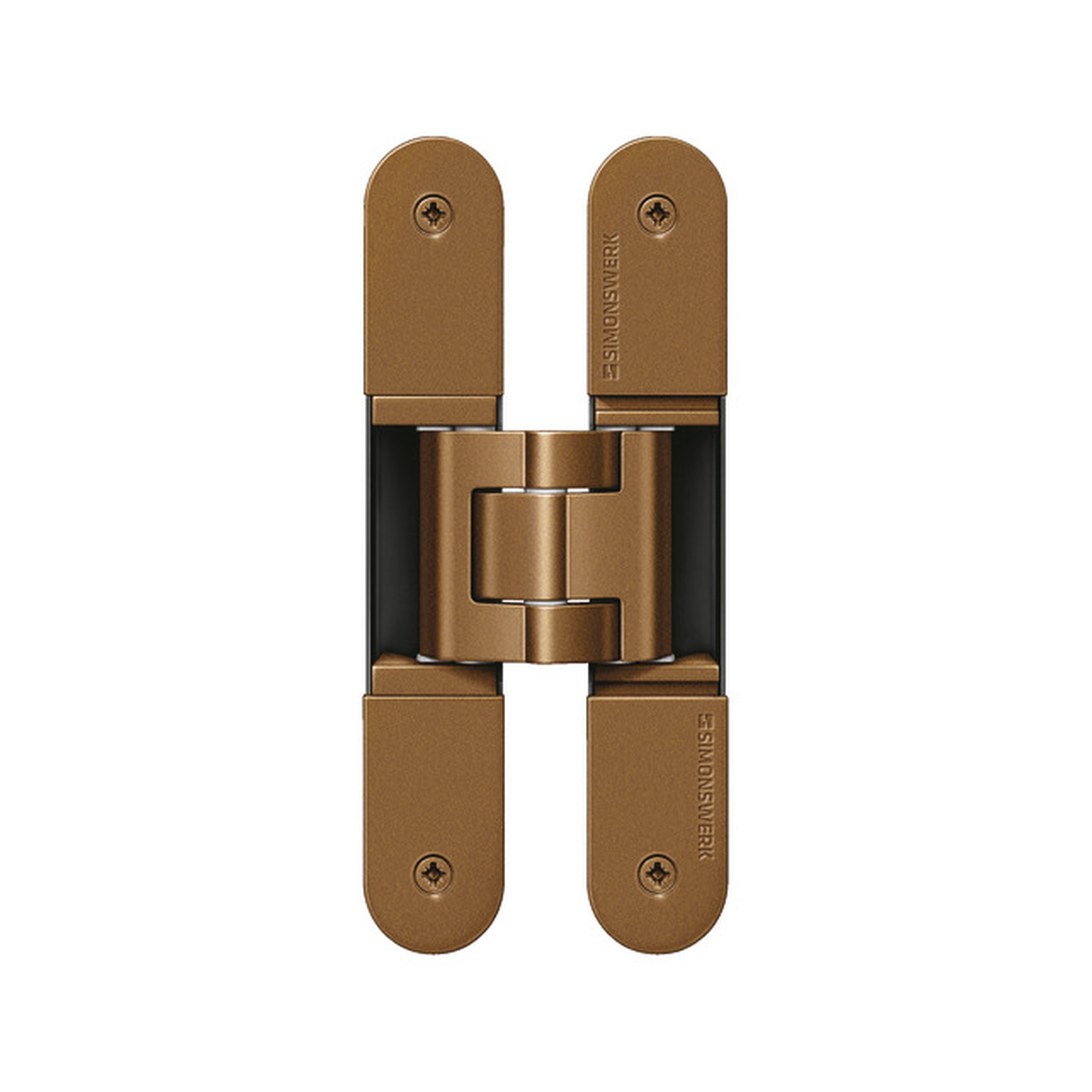

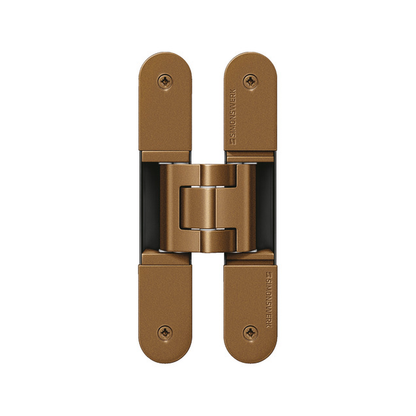

The Tectus TE240 3D concealed hinge in Bronze Finish, code 174, provides adjustable support for flush residential doors without exposed hinge hardware when the door is closed. This is the Bronze Finish option, distinct from Bronze Metallic 168 and the Light and Dark Bronze Finish versions.

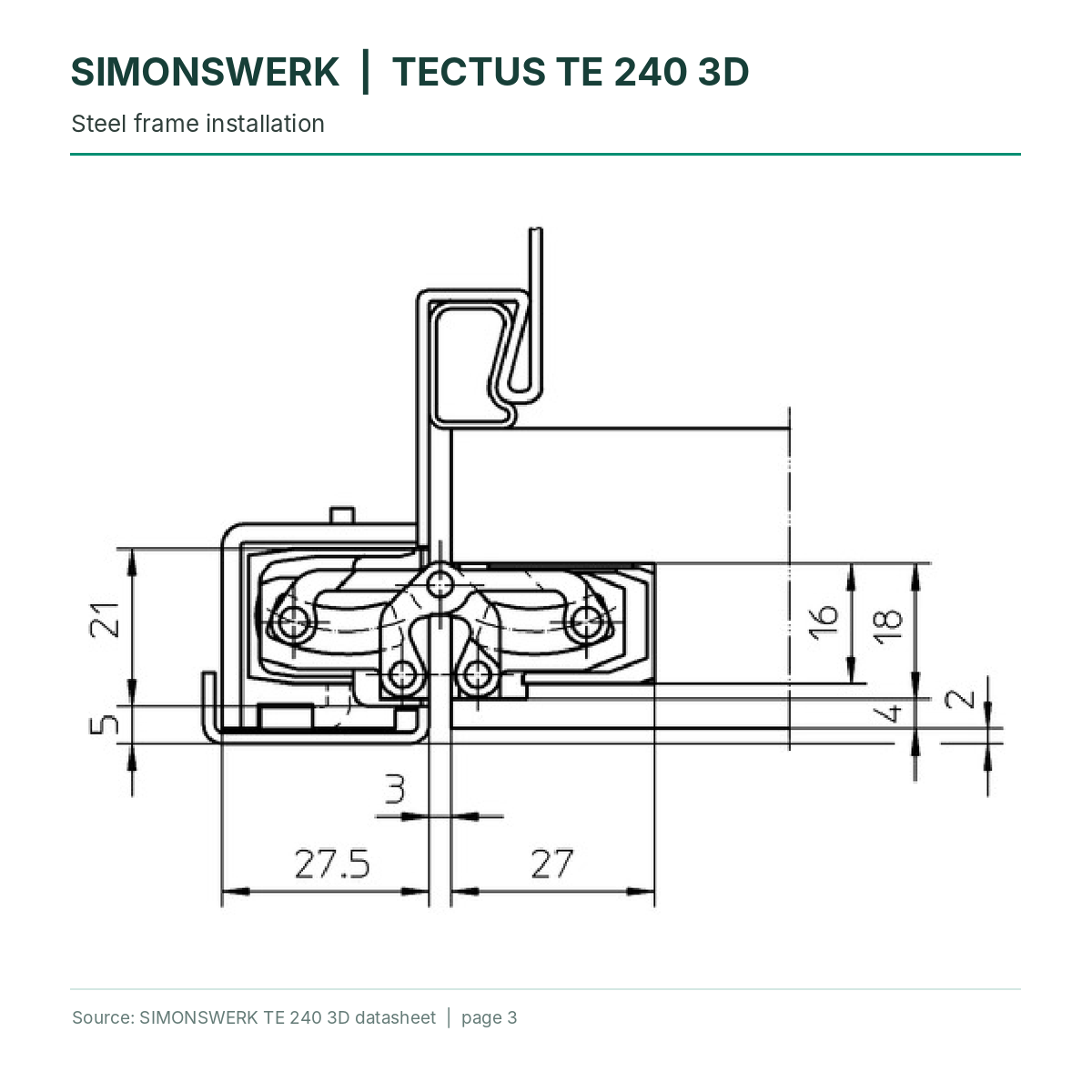

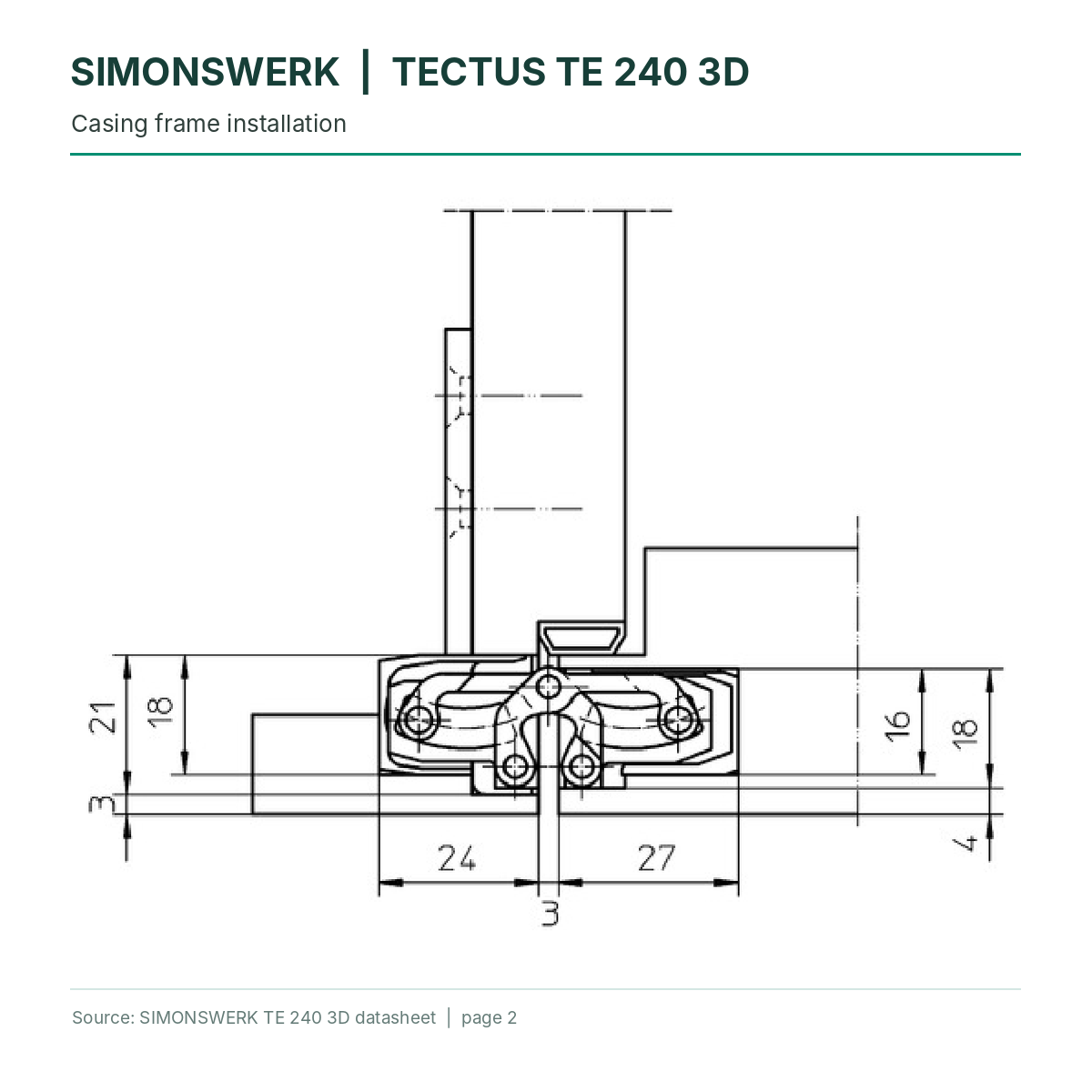

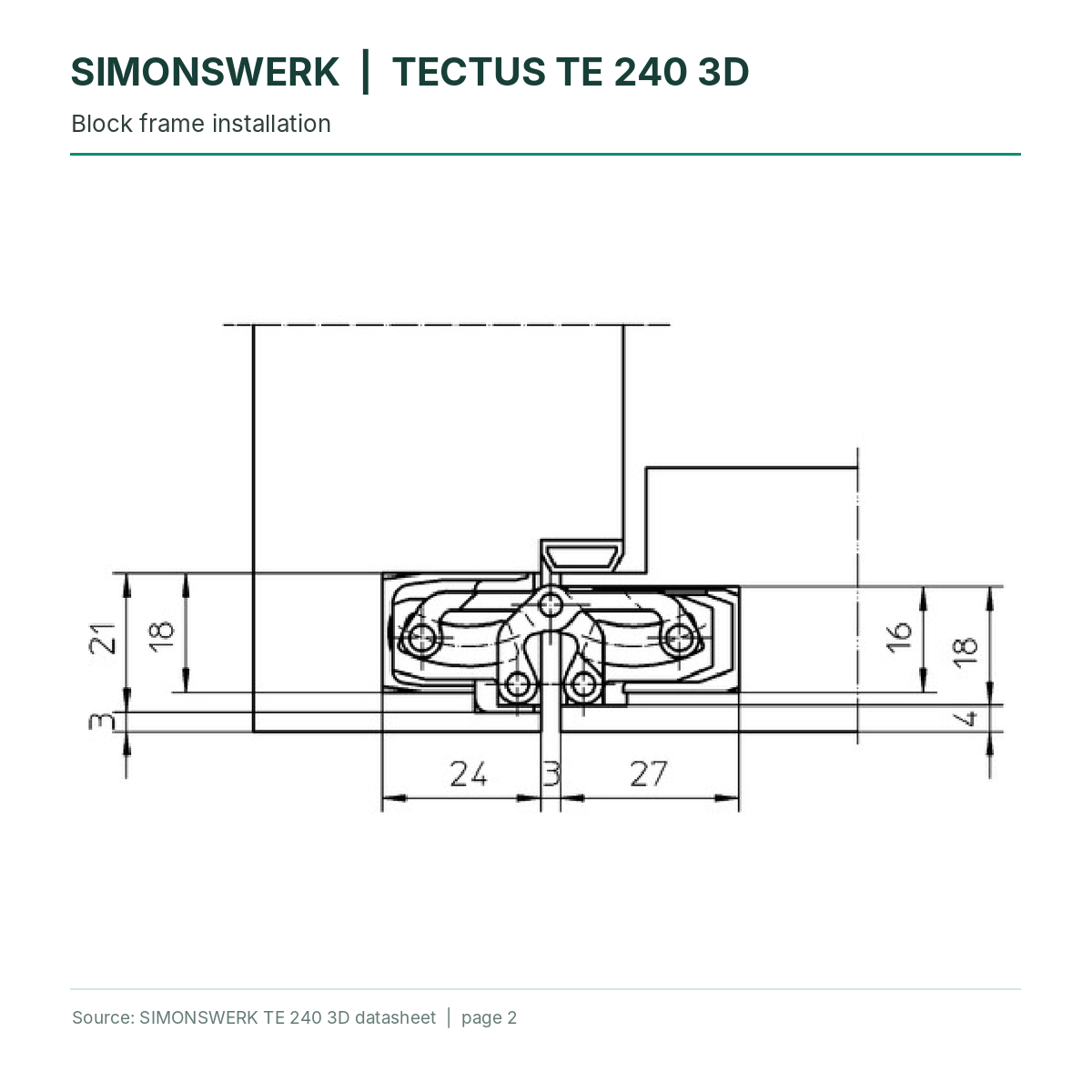

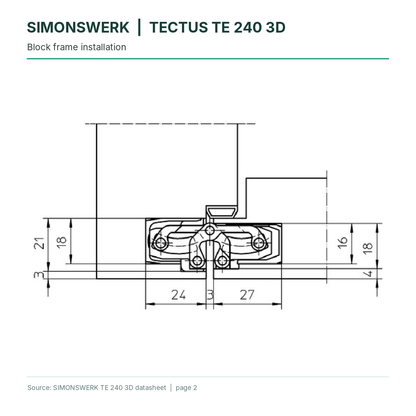

For unrebated and rebated flush doors, the TE240 suits timber or steel door leaves with timber, steel or aluminium frames. Its sideways-closing hinge body creates a neat mortise appearance. Three-dimensional adjustment helps the installer align the door, while maintenance-free slide bearings simplify ongoing care.
Technical specifications
- Model: TE240 3D
- Finish: Bronze Finish, code 174
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

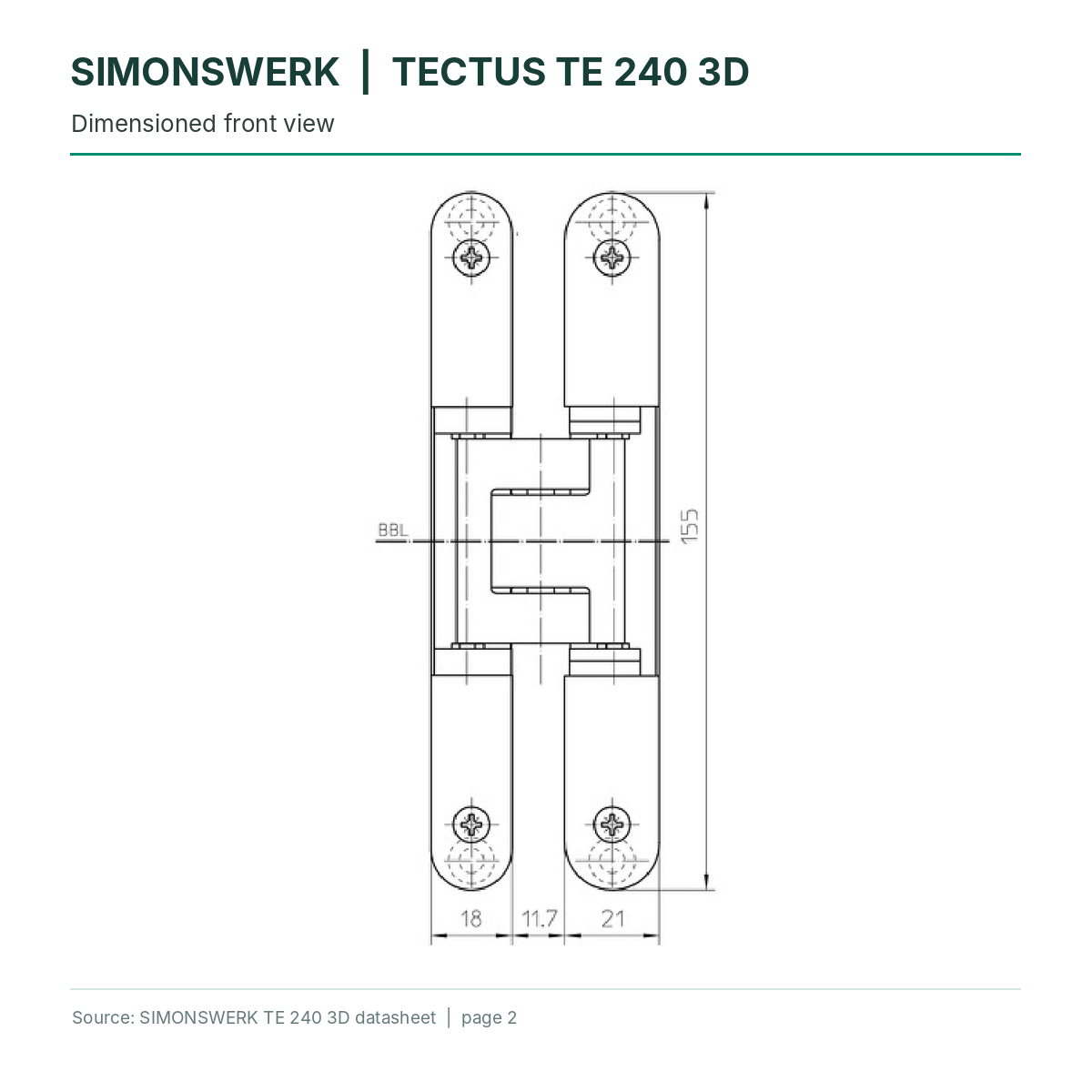

- Overall length: 155mm
- Minimum door thickness: 24mm

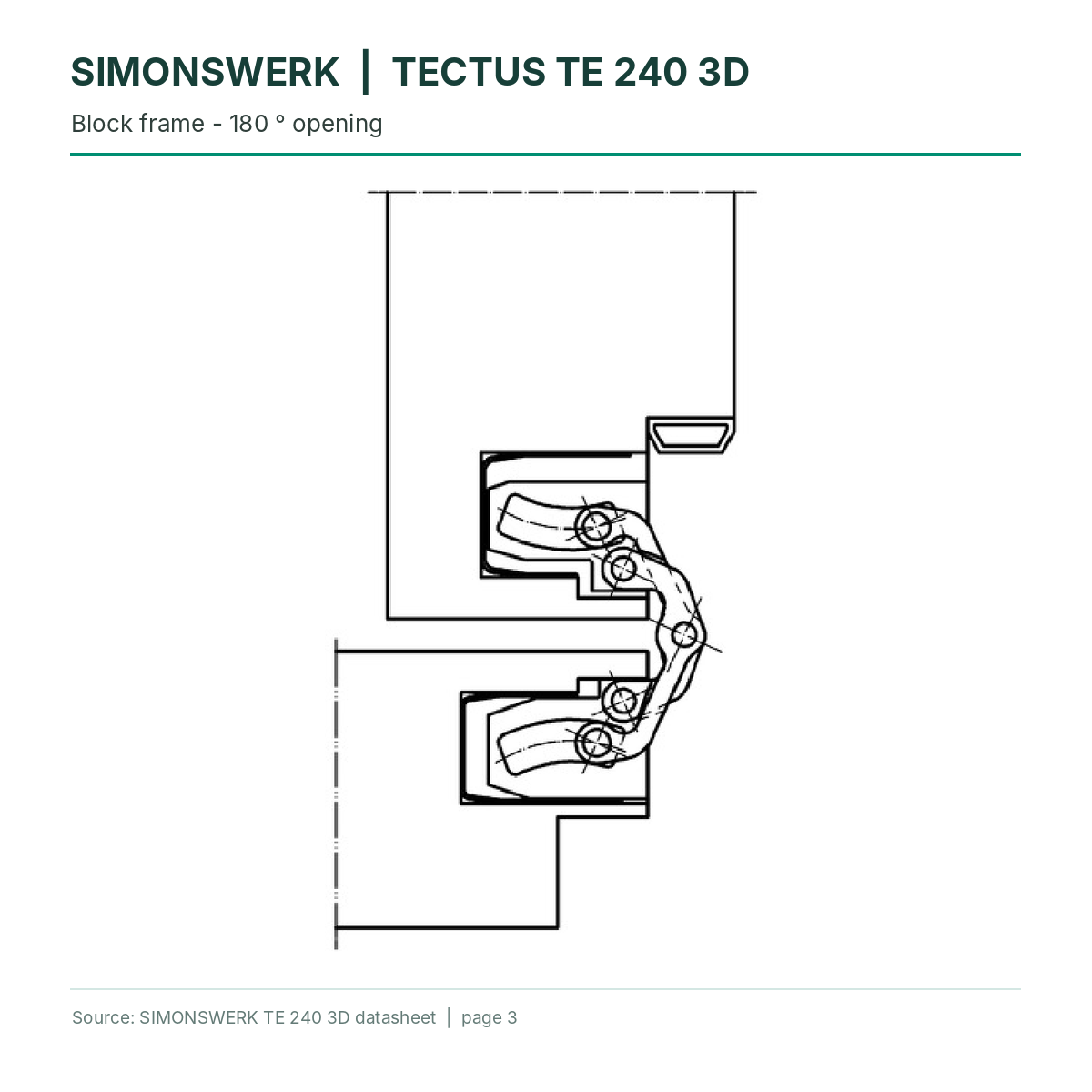

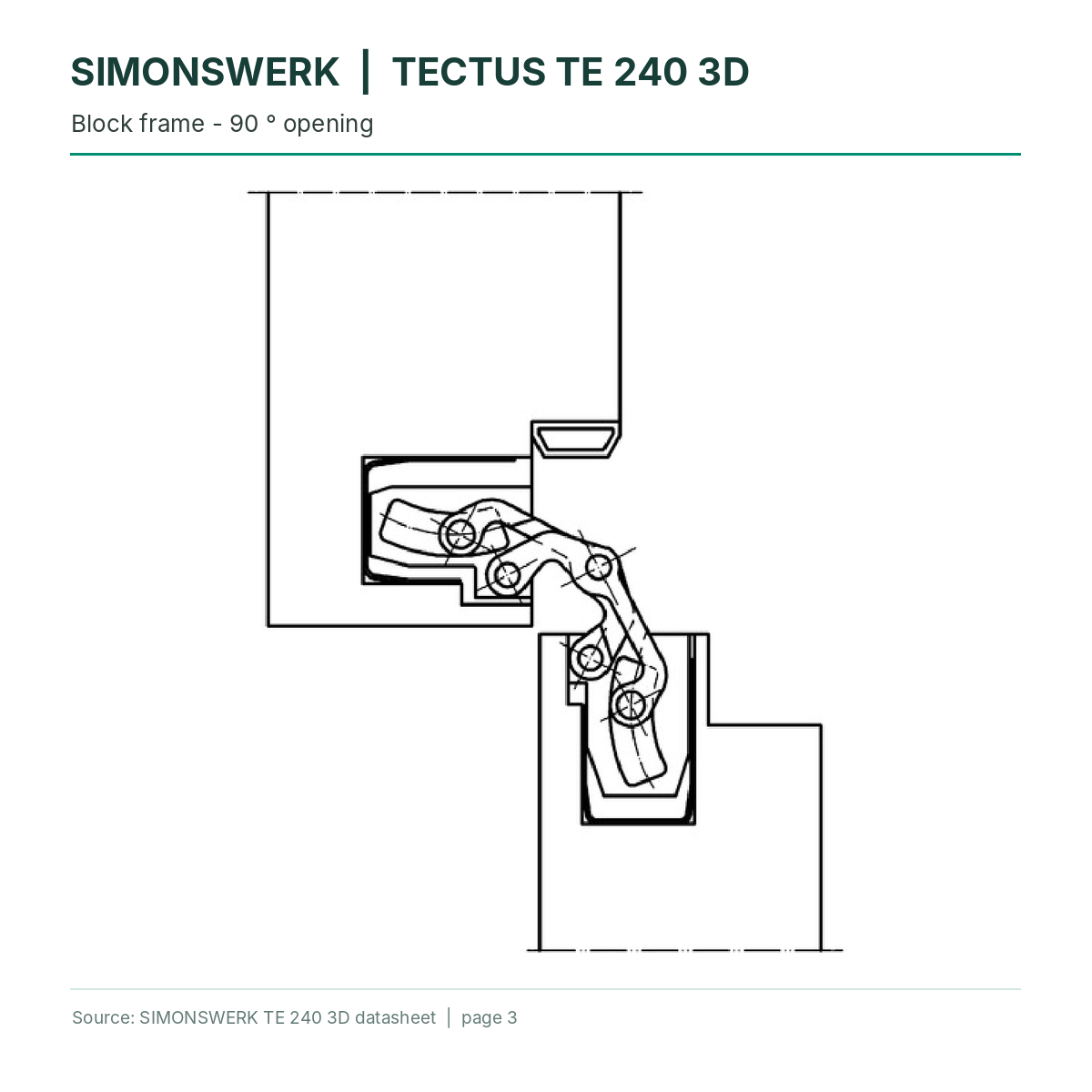

- Opening angle: Up to 180°
- Three-dimensional adjustment: side, height and compression
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Suitable for right- and left-hand applications
- Maintenance-free slide bearings
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance
Use the appropriate TE240 routing template and frame receiver for the door construction, following the manufacturer's installation and load-capacity guidance for the complete assembly. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200E
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Bronze Finish
