PRODUCT DESCRIPTION

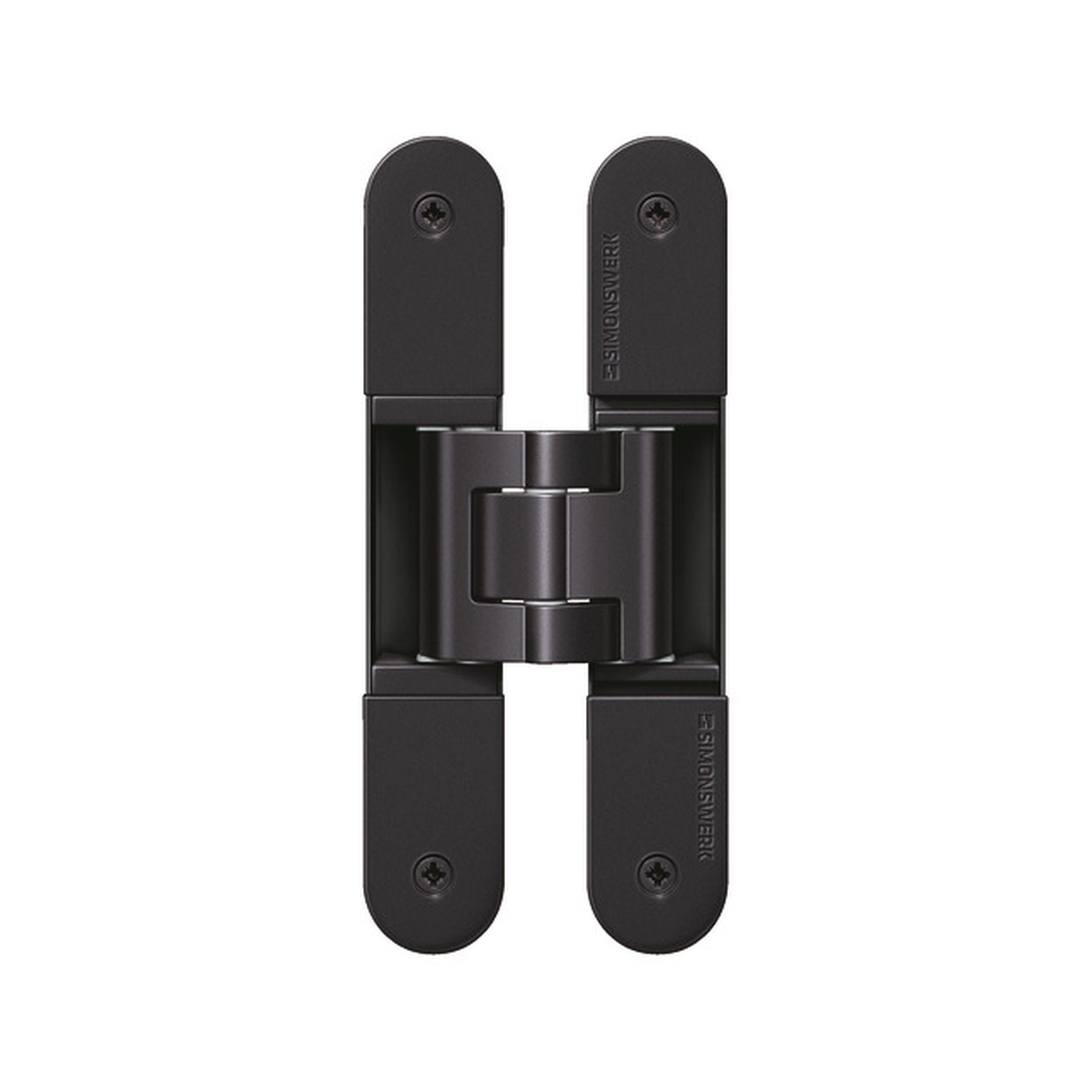

The Tectus TE240 3D hinge in Rustic Umber, finish code 156, offers a completely concealed solution for flush residential doors. Hidden from view when the door is closed, it leaves the door face clear of exposed hinge hardware, while the Rustic Umber finish identifies the exact option for your installation.

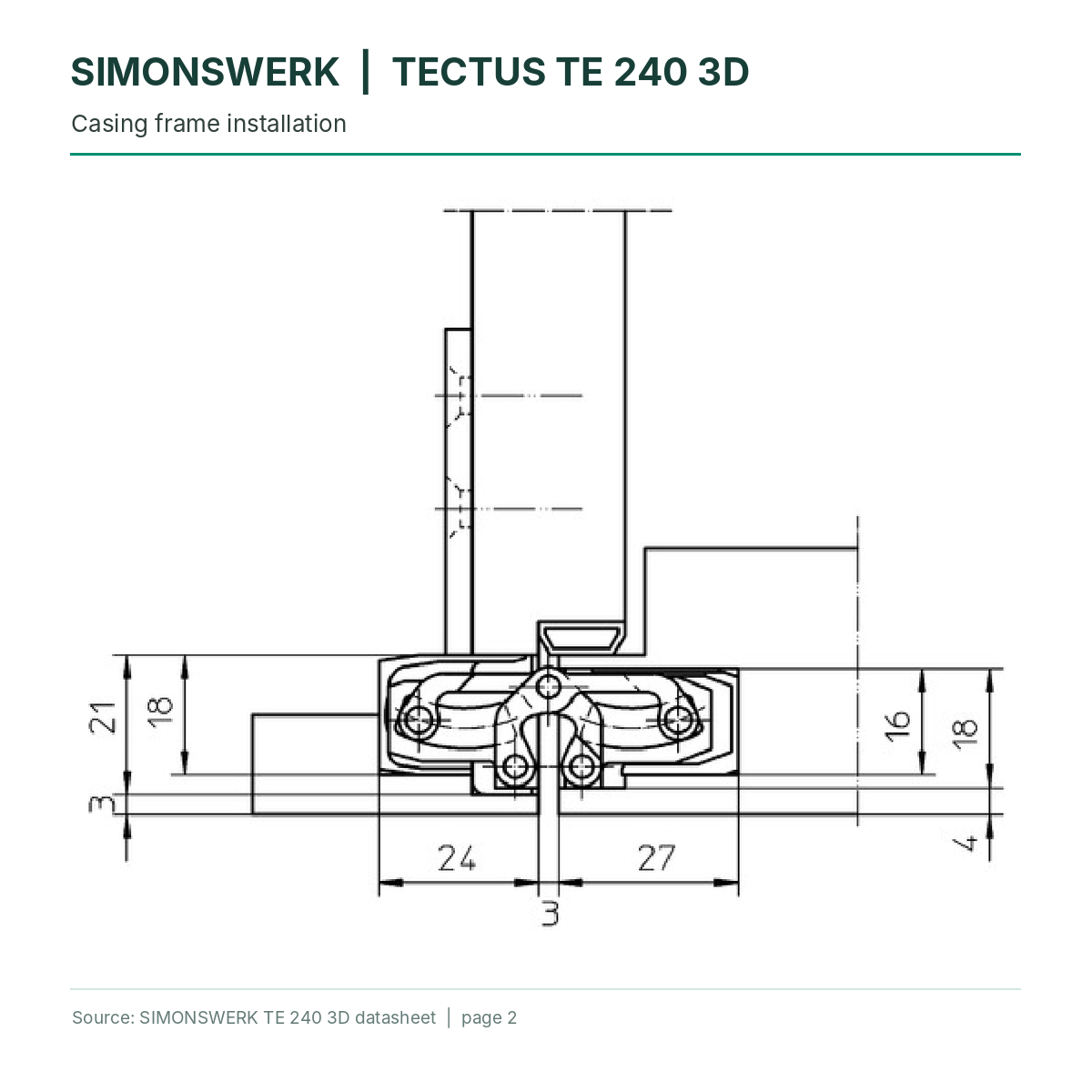

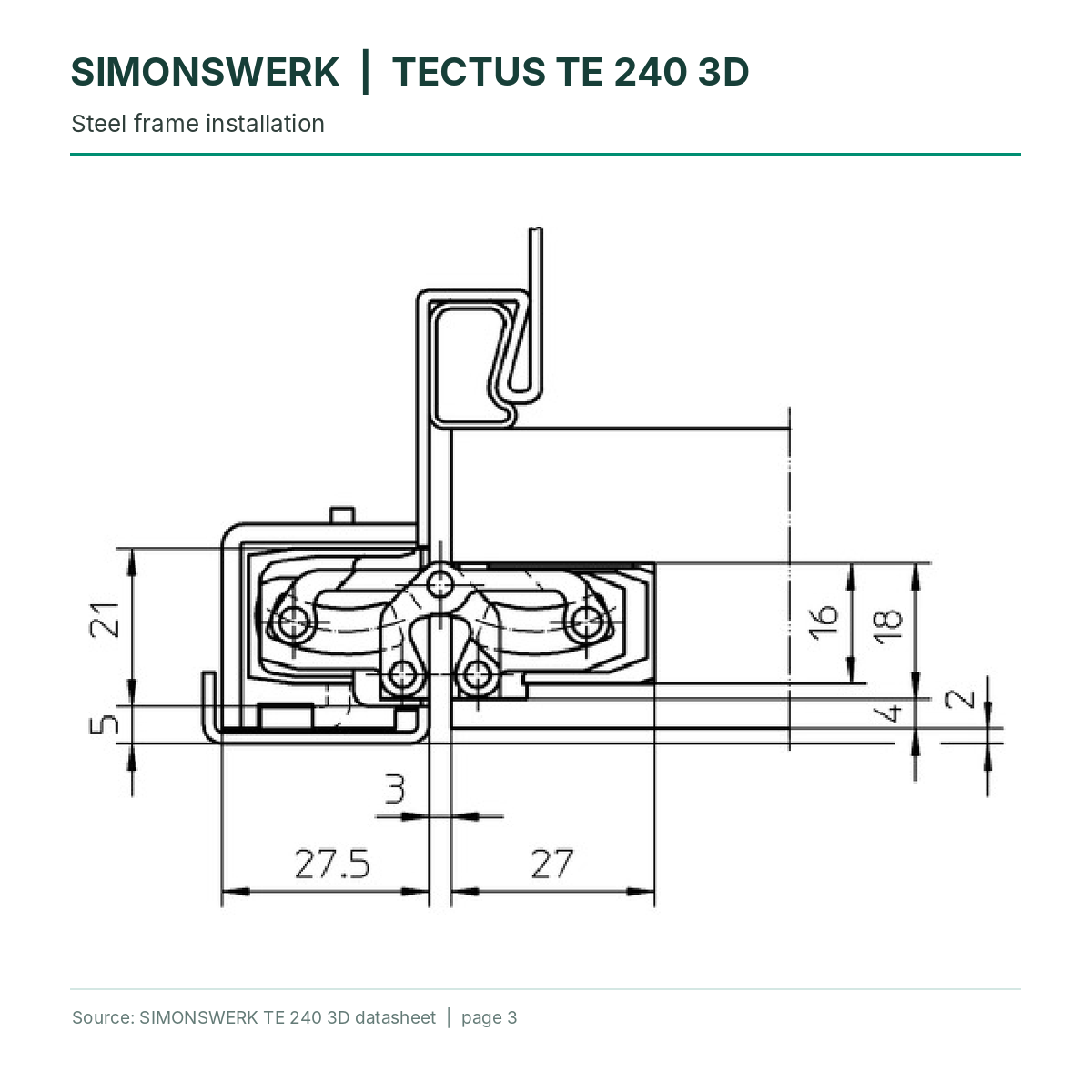

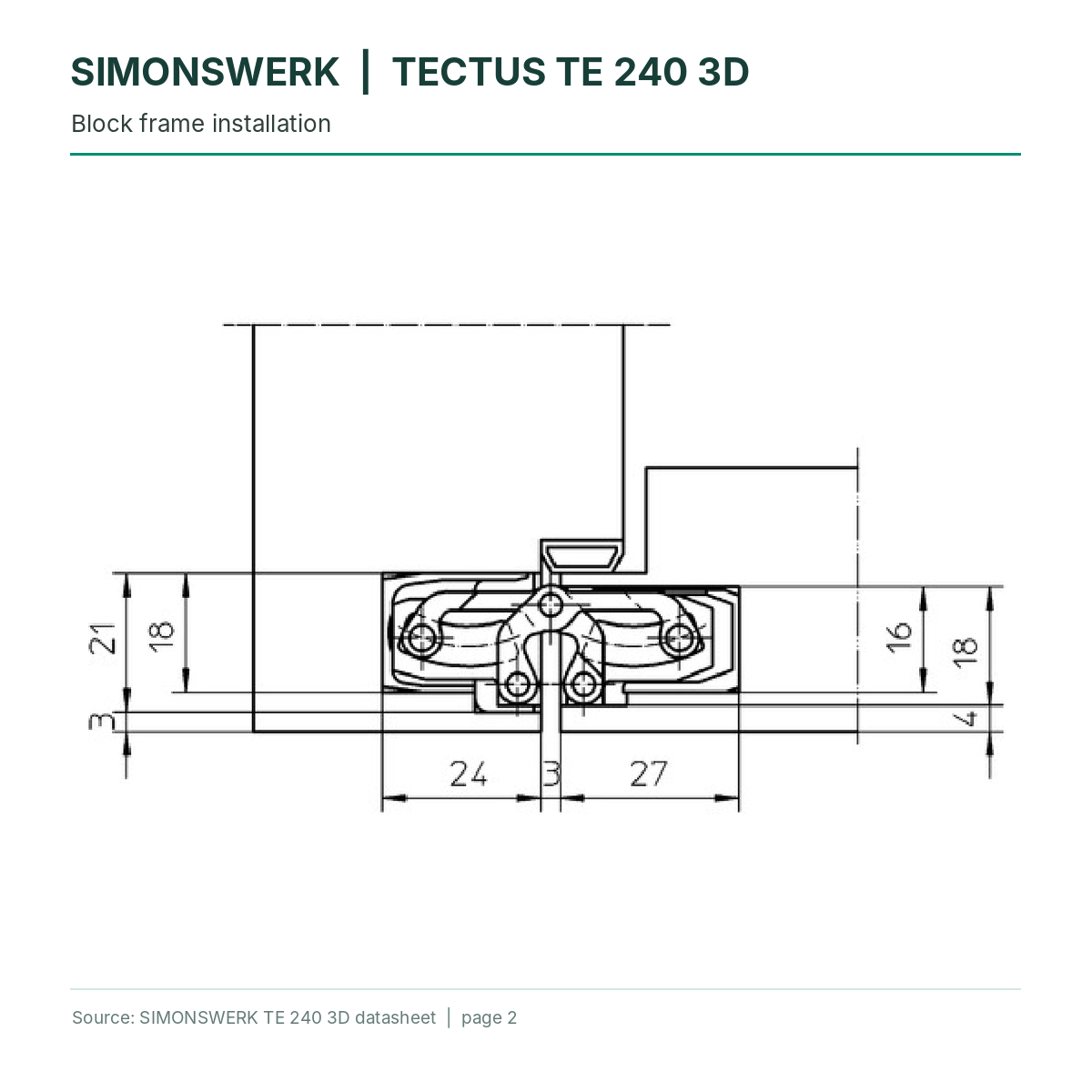

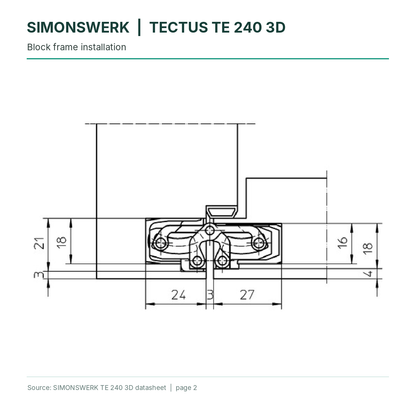

Suitable for unrebated and rebated flush doors, the TE240 works with timber or steel door leaves and timber, steel or aluminium frames. The sideways-closing hinge body provides a neat mortise appearance. Three-dimensional adjustment helps the installer achieve accurate alignment, and maintenance-free slide bearings simplify ongoing care.
Technical specifications
- Model: TE240 3D
- Finish: Rustic Umber, code 156
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

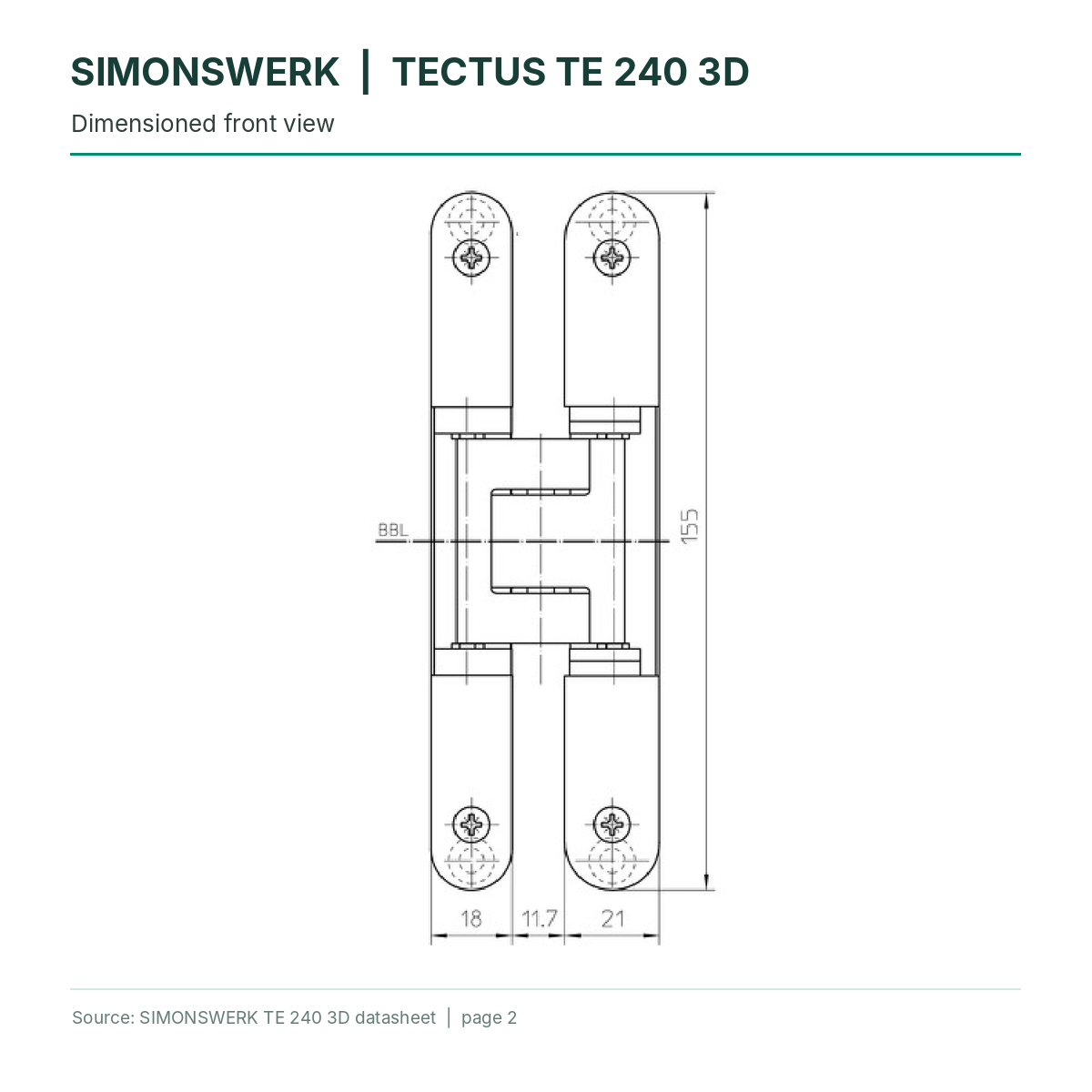

- Overall length: 155mm
- Minimum door thickness: 24mm
- Opening angle: Up to 180°
- Three-dimensional adjustment: side, height and compression
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Suitable for right- and left-hand applications
- Maintenance-free slide bearings
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance

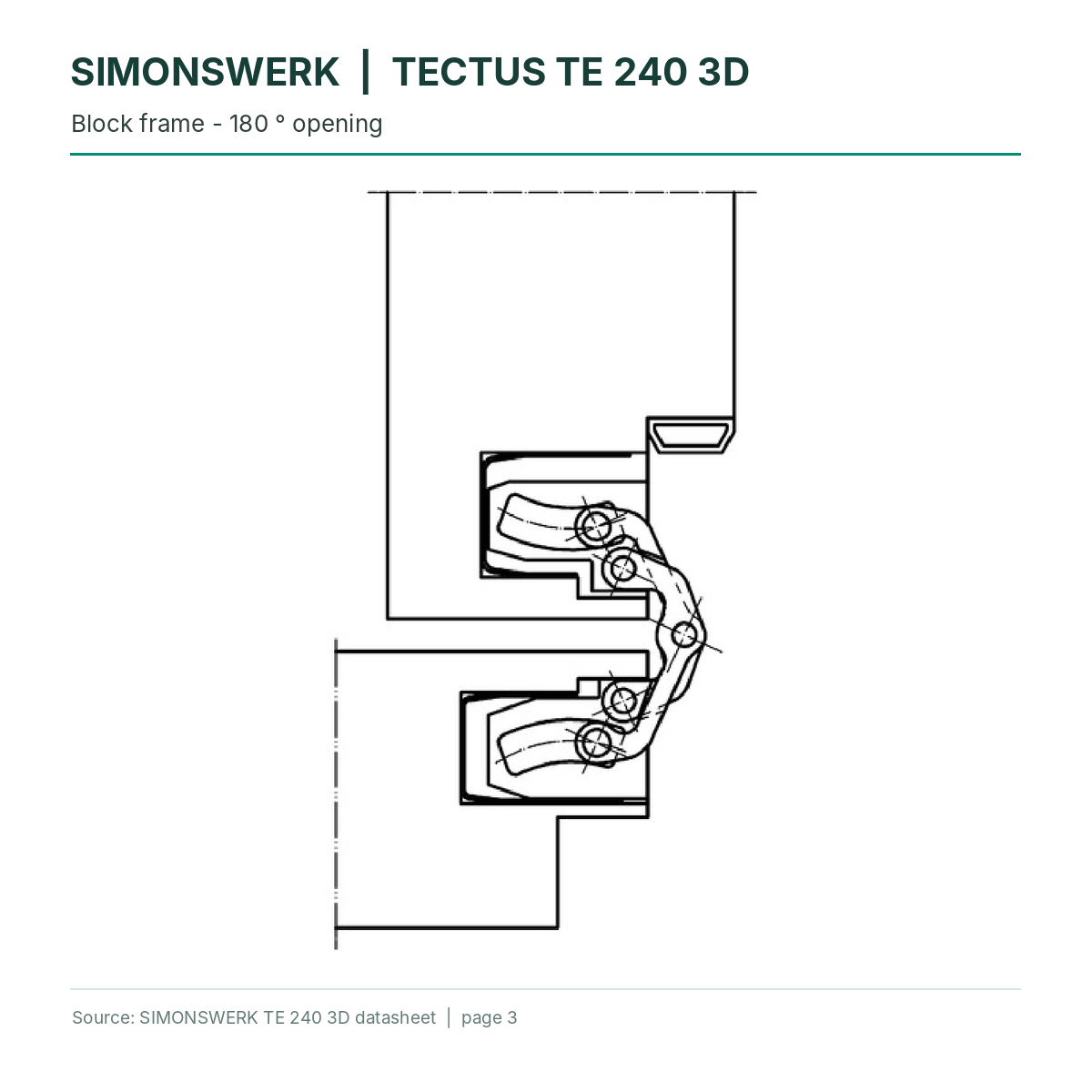

Choose the appropriate TE240 routing template and frame receiver for the door construction. Follow the manufacturer's installation and load-capacity guidance for the complete assembly. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200L
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Rustic Umber
