PRODUCT DESCRIPTION

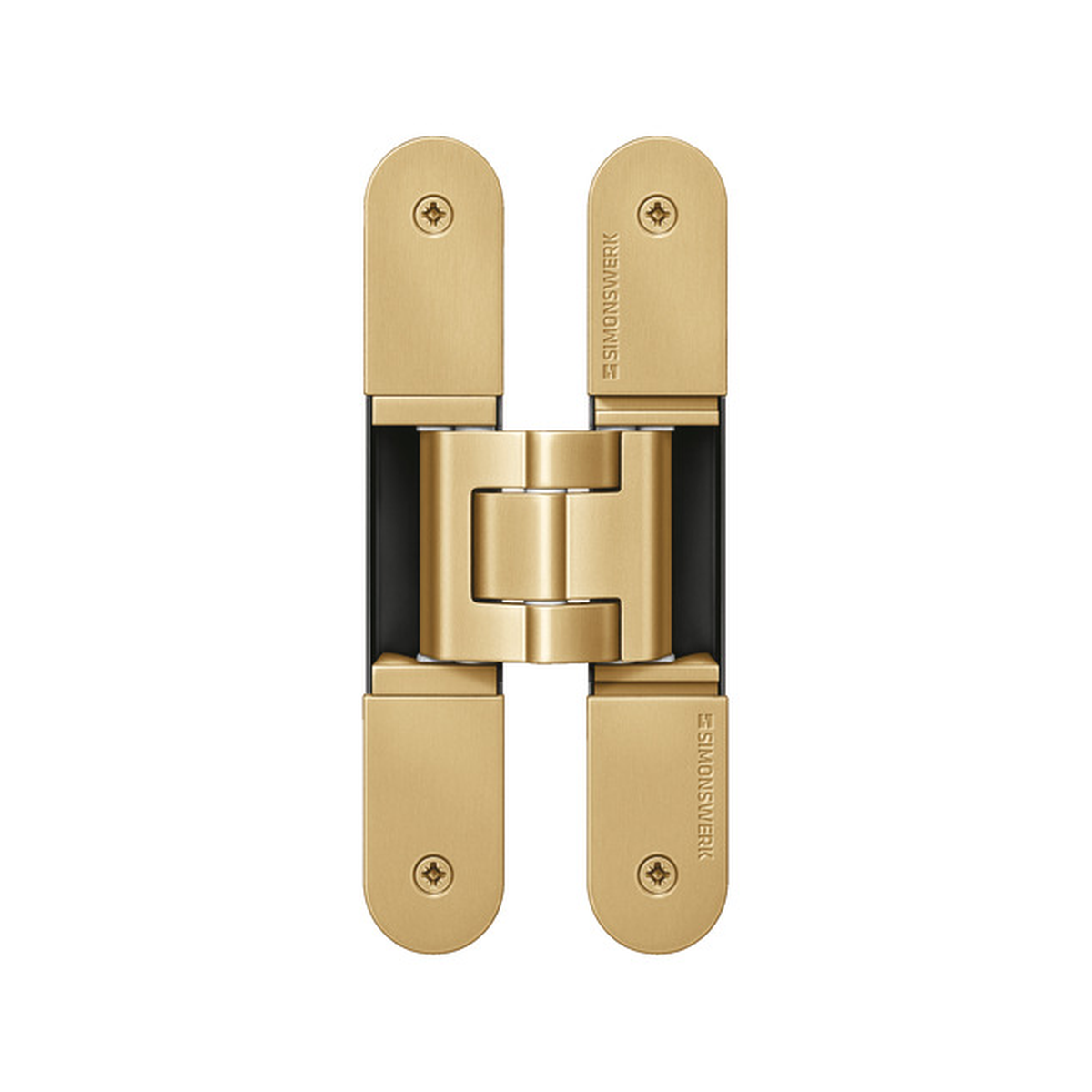

The Tectus TE240 3D hinge in Satin Brass, finish code 047, pairs a satin brass appearance with completely concealed hardware for flush residential doors. When the door is closed, the hinge stays out of sight, leaving a clean door face. This is the Satin Brass option, distinct from Polished Brass 030.

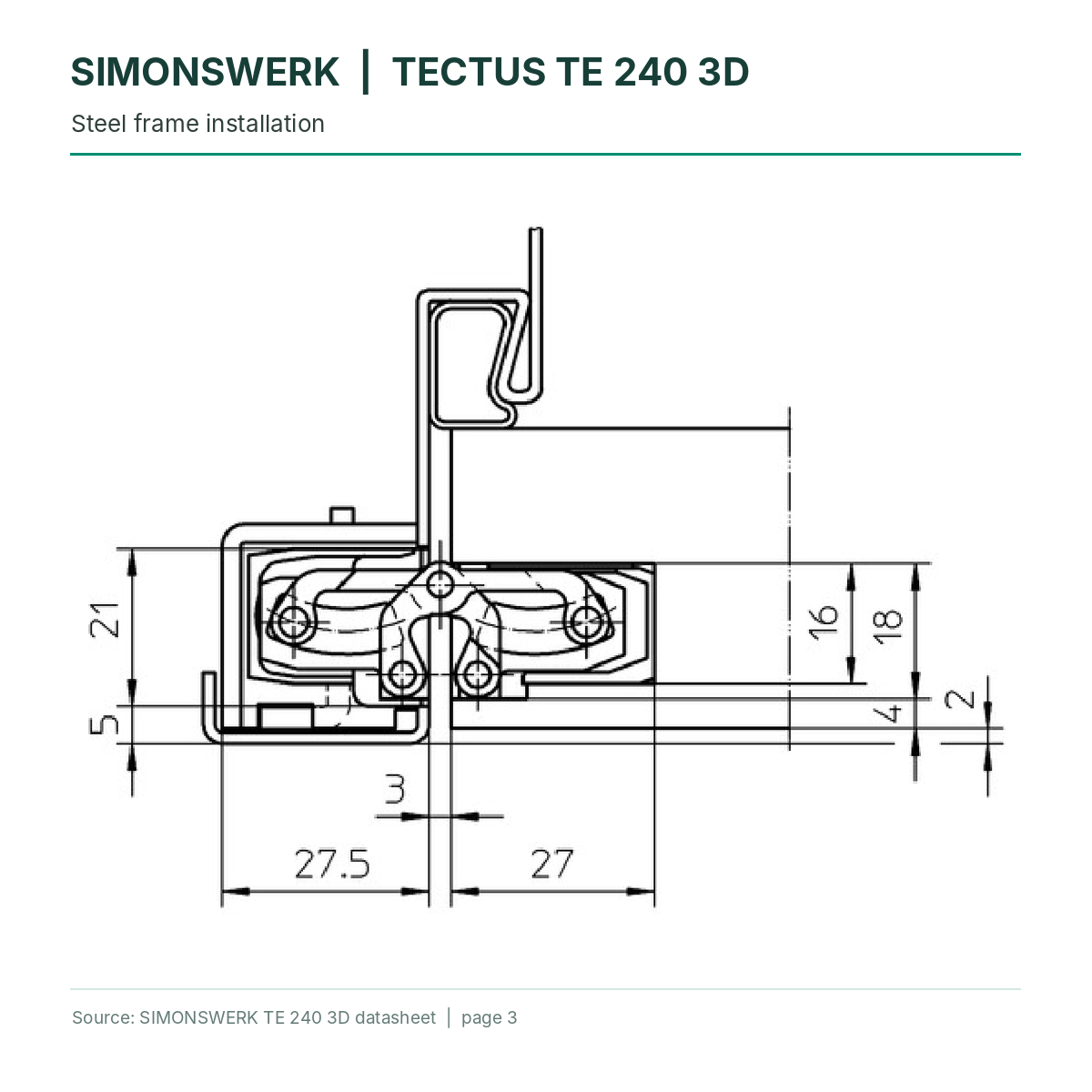

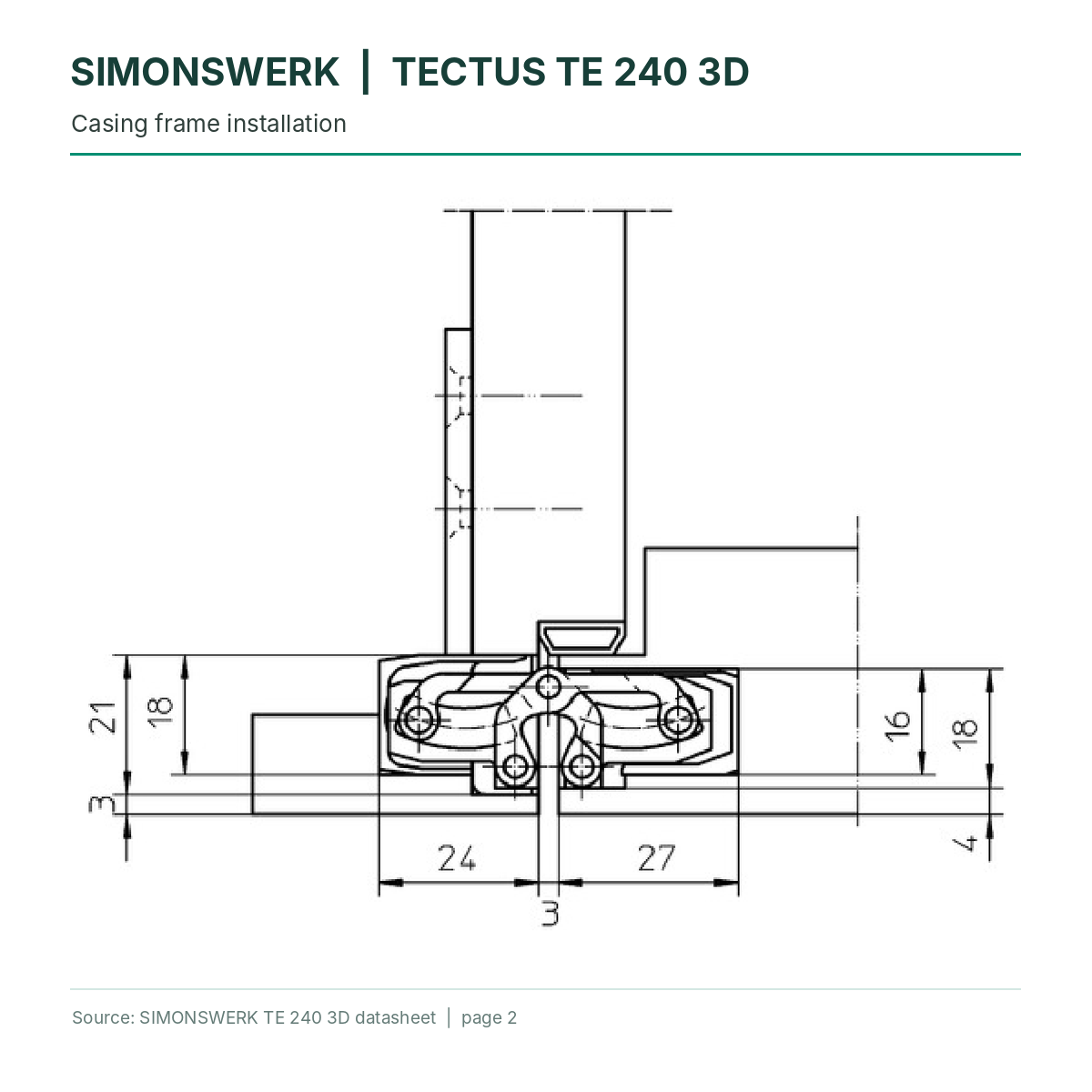

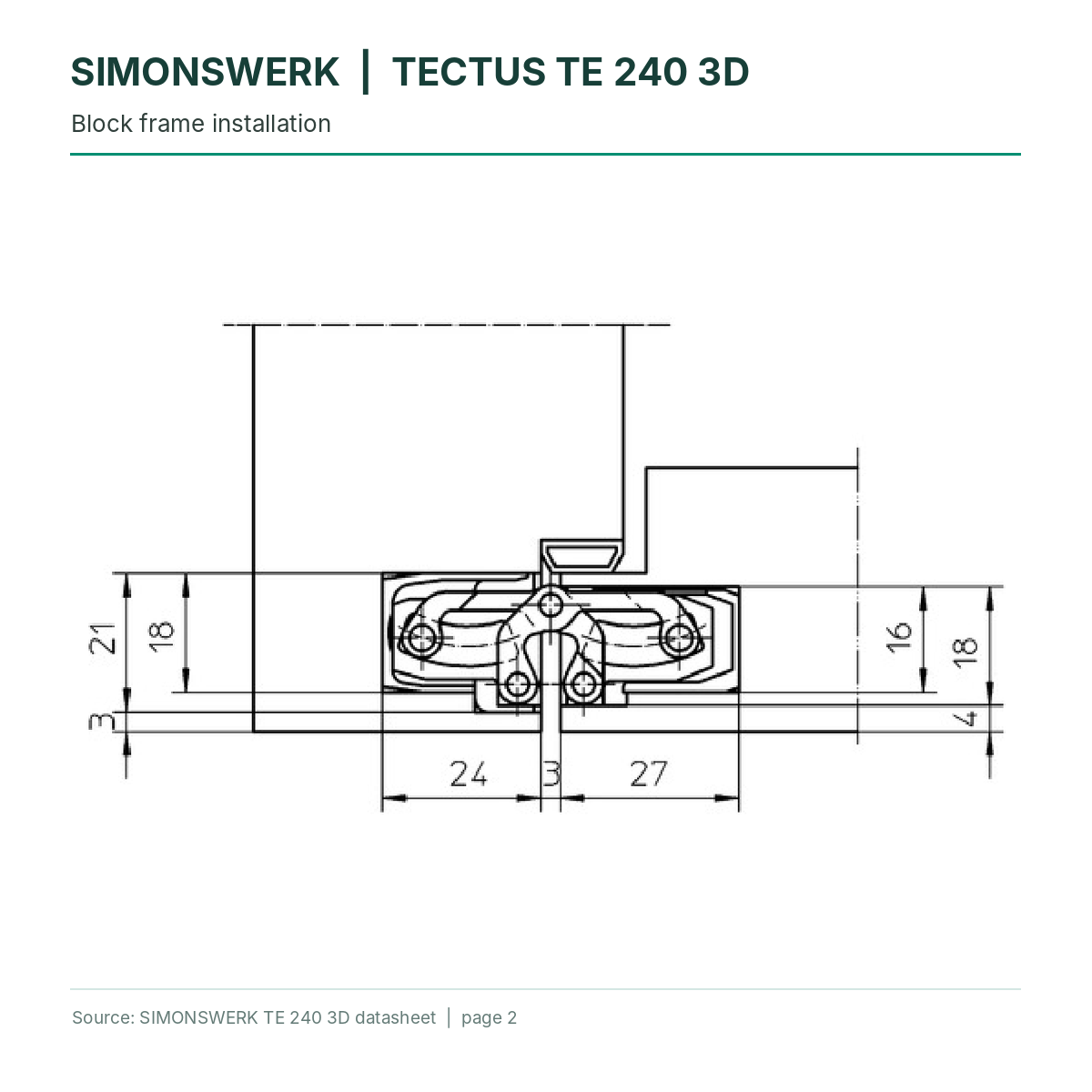

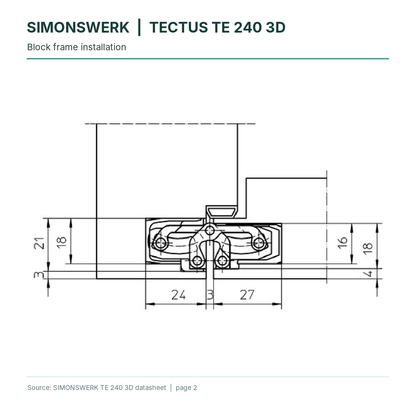

Designed for unrebated and rebated flush doors, the TE240 accommodates timber or steel door leaves with timber, steel or aluminium frames. Its sideways-closing hinge body creates a neat mortise appearance, while three-dimensional adjustment helps the installer achieve accurate alignment. Maintenance-free slide bearings simplify ongoing care.
Technical specifications
- Model: TE240 3D
- Finish: Satin Brass, code 047
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

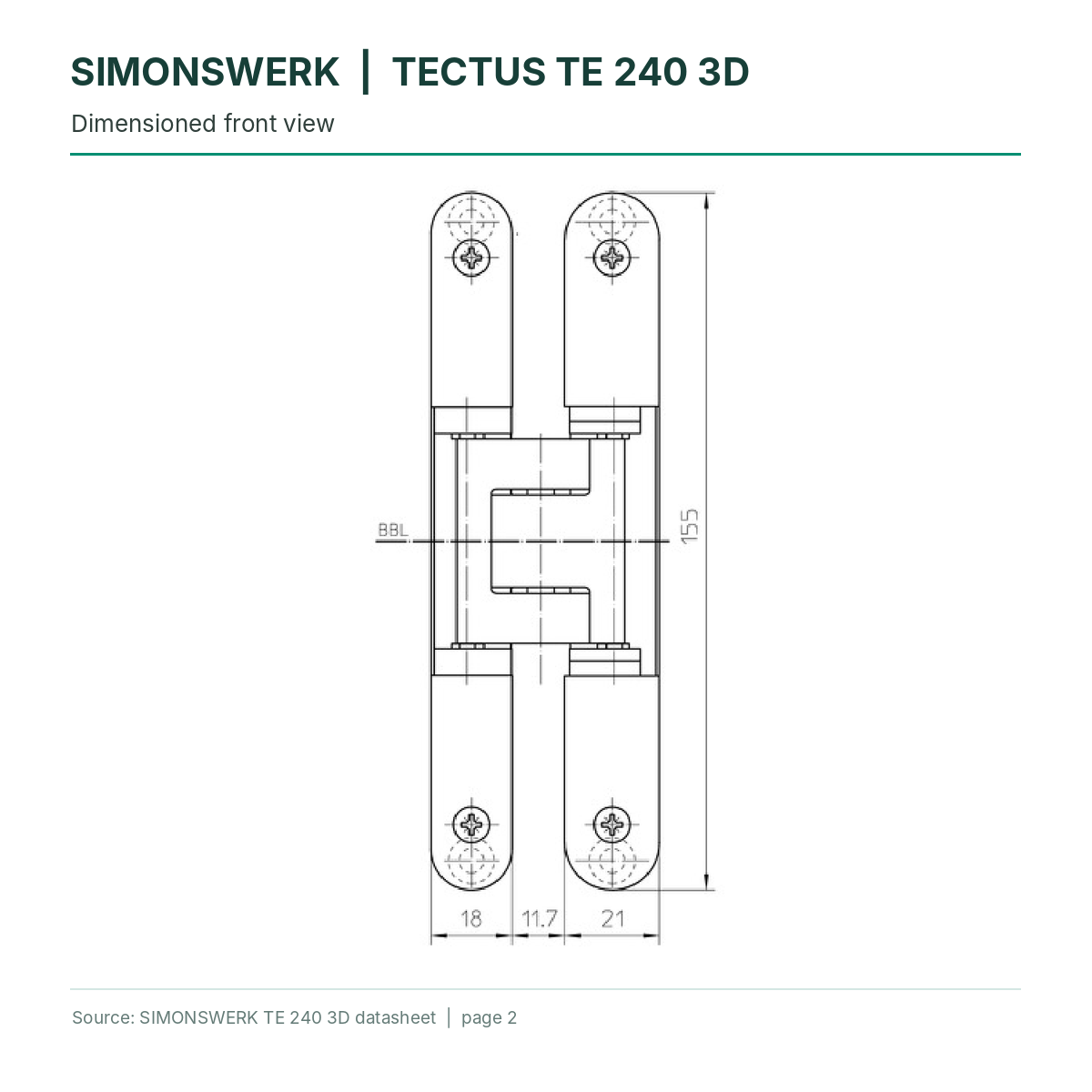

- Overall length: 155mm
- Minimum door thickness: 24mm

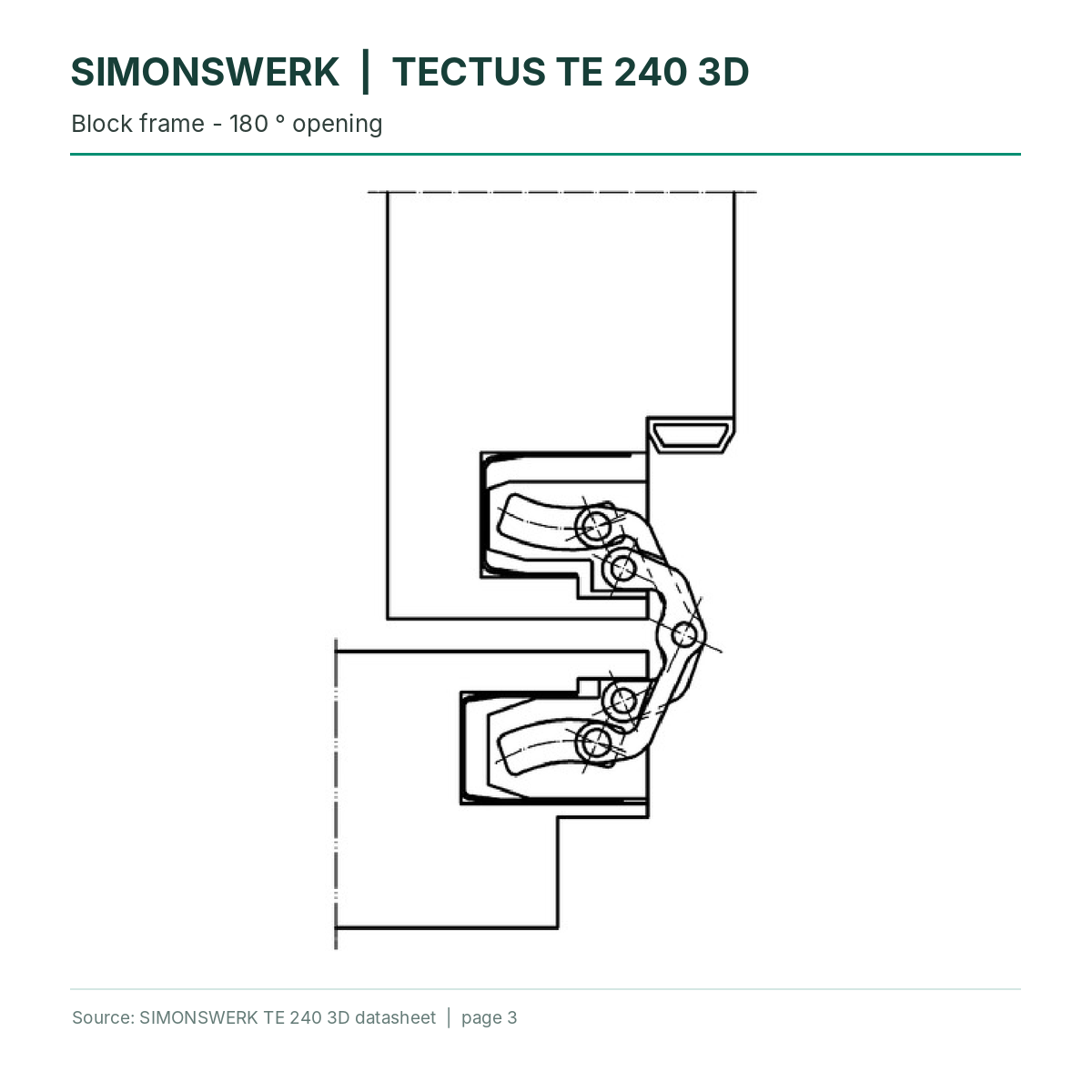

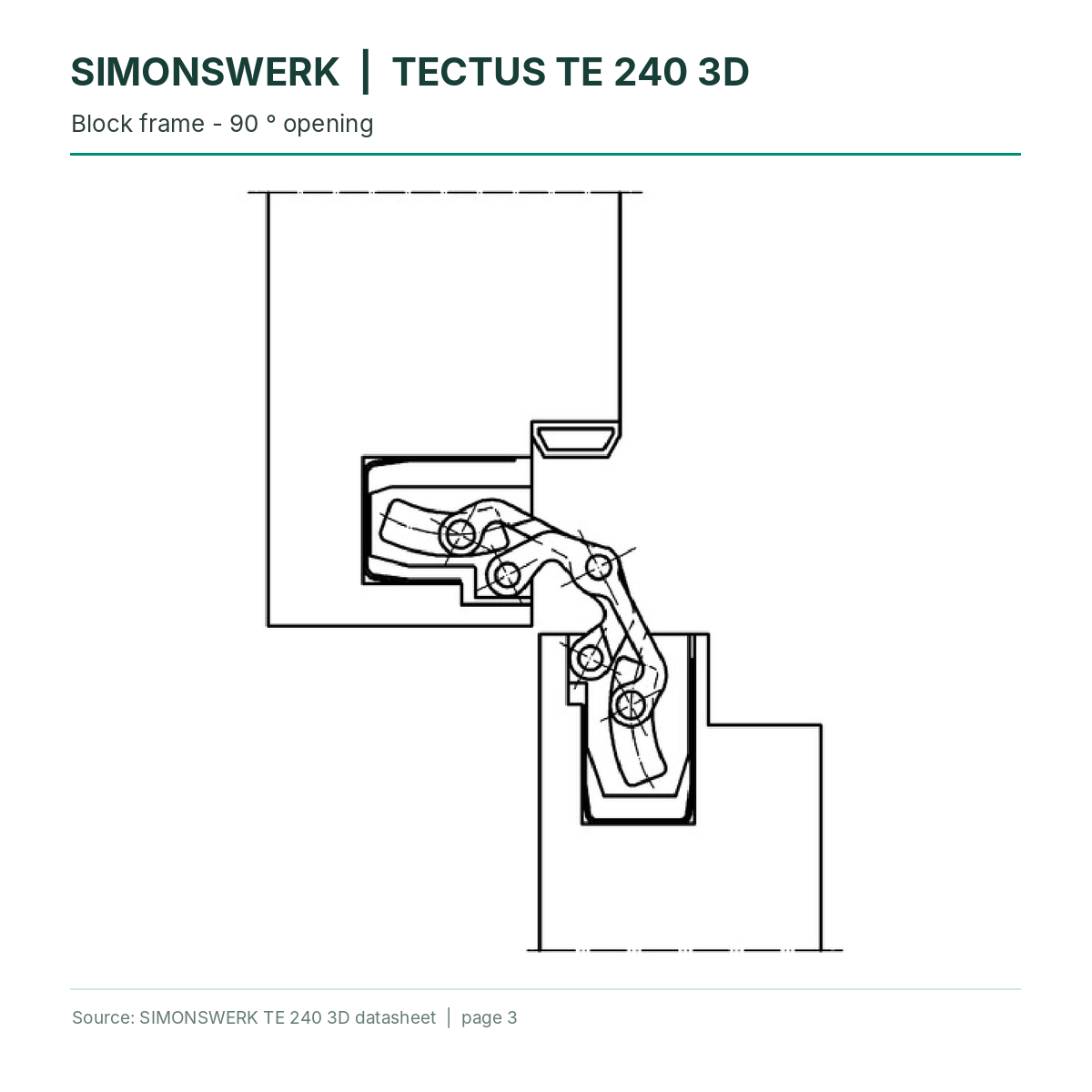

- Opening angle: Up to 180°
- Three-dimensional adjustment: side, height and compression
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Suitable for right- and left-hand applications
- Maintenance-free slide bearings
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance
Use the appropriate TE240 routing template and frame receiver for the door construction. Follow the manufacturer's installation and load-capacity guidance for the complete assembly. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200M
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Satin Brass
