PRODUCT DESCRIPTION
The Tectus TE240 3D concealed hinge in Satin Chrome Look (F1), finish code 124, provides a satin chrome appearance for flush residential doors. This is the Satin Chrome Look finish, distinct from Satin Chrome 146.

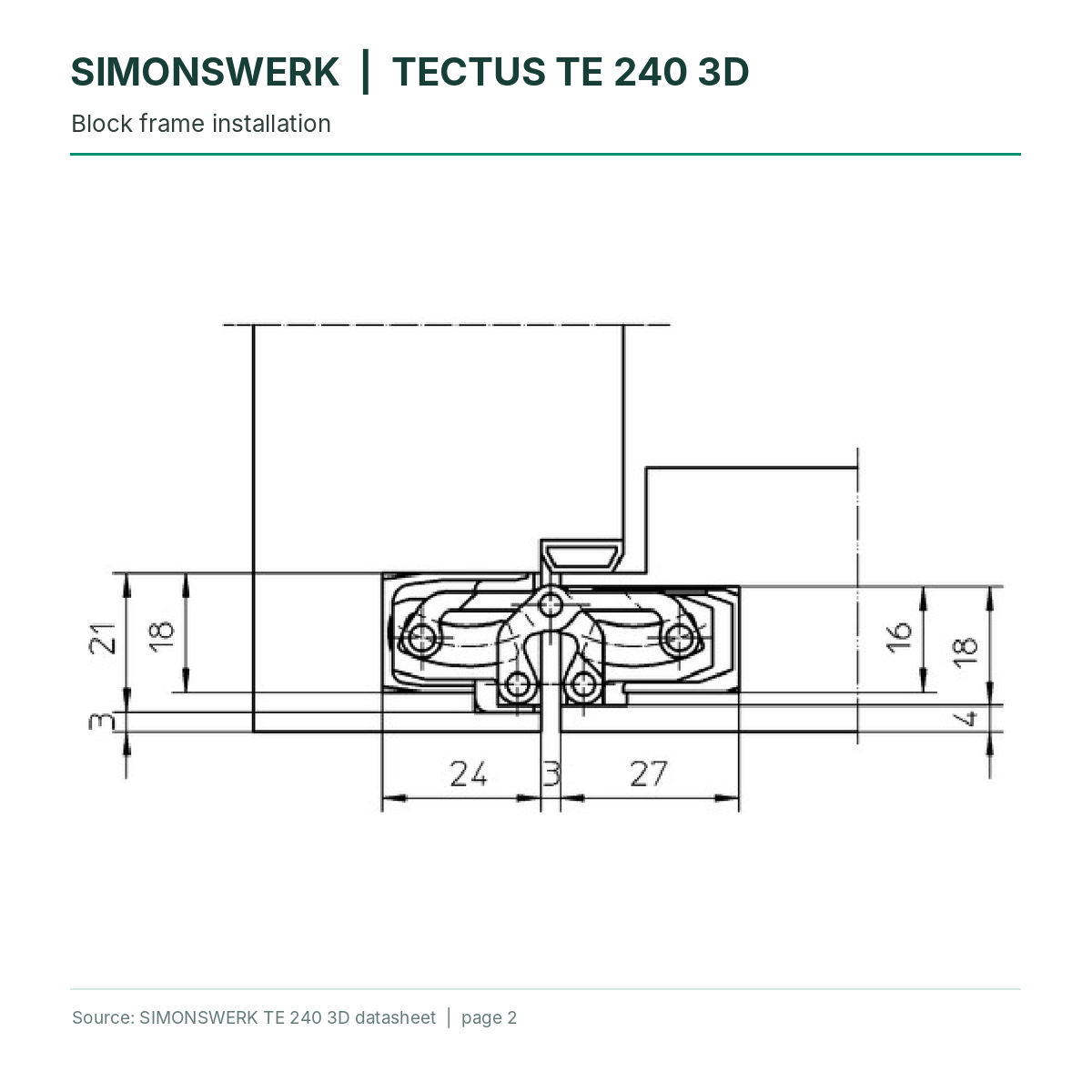

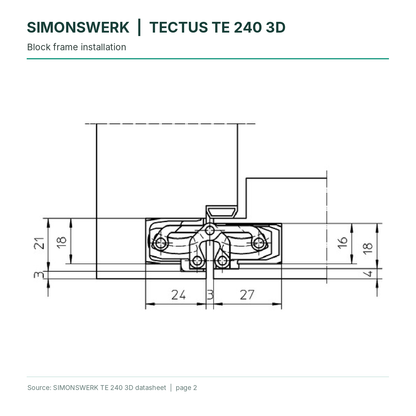

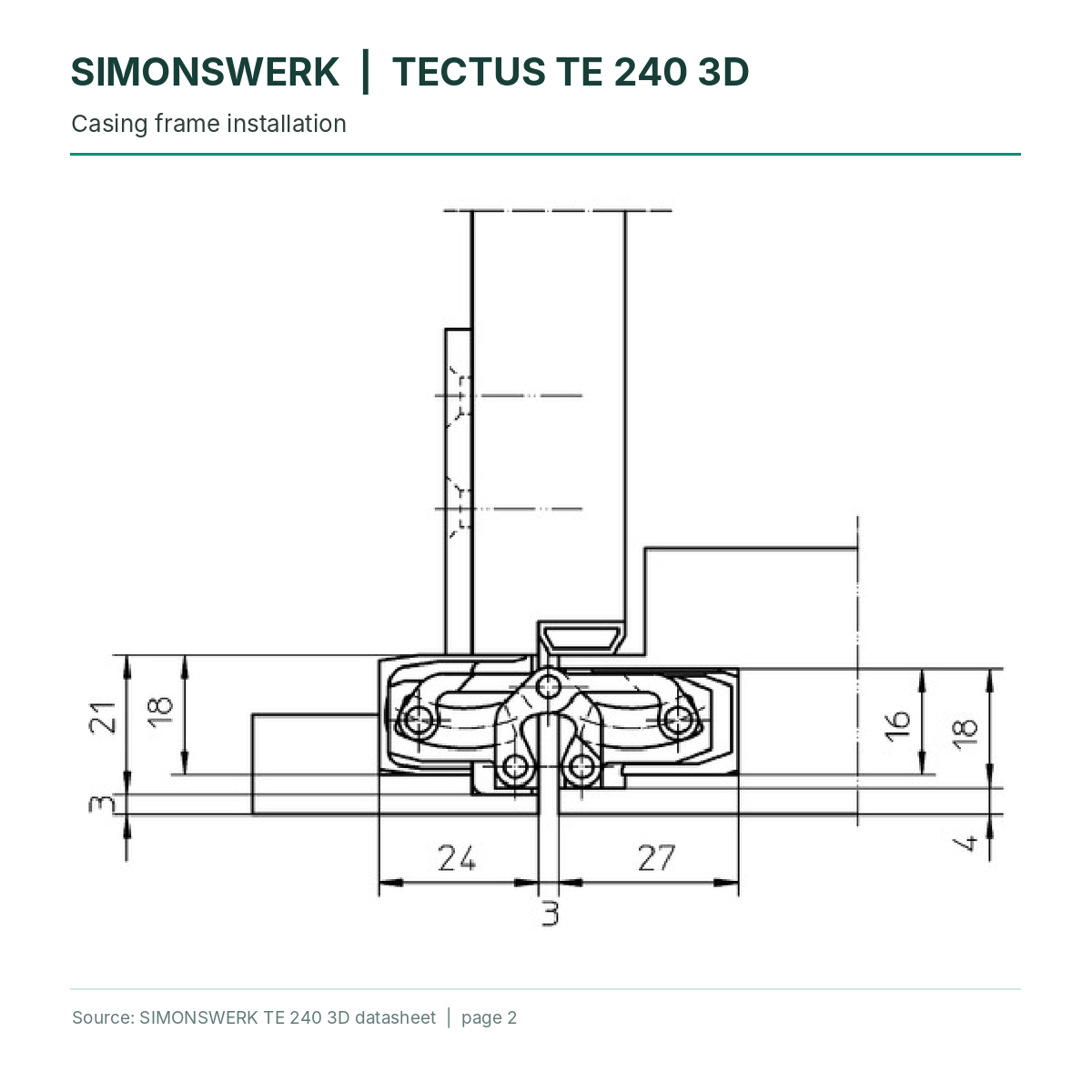

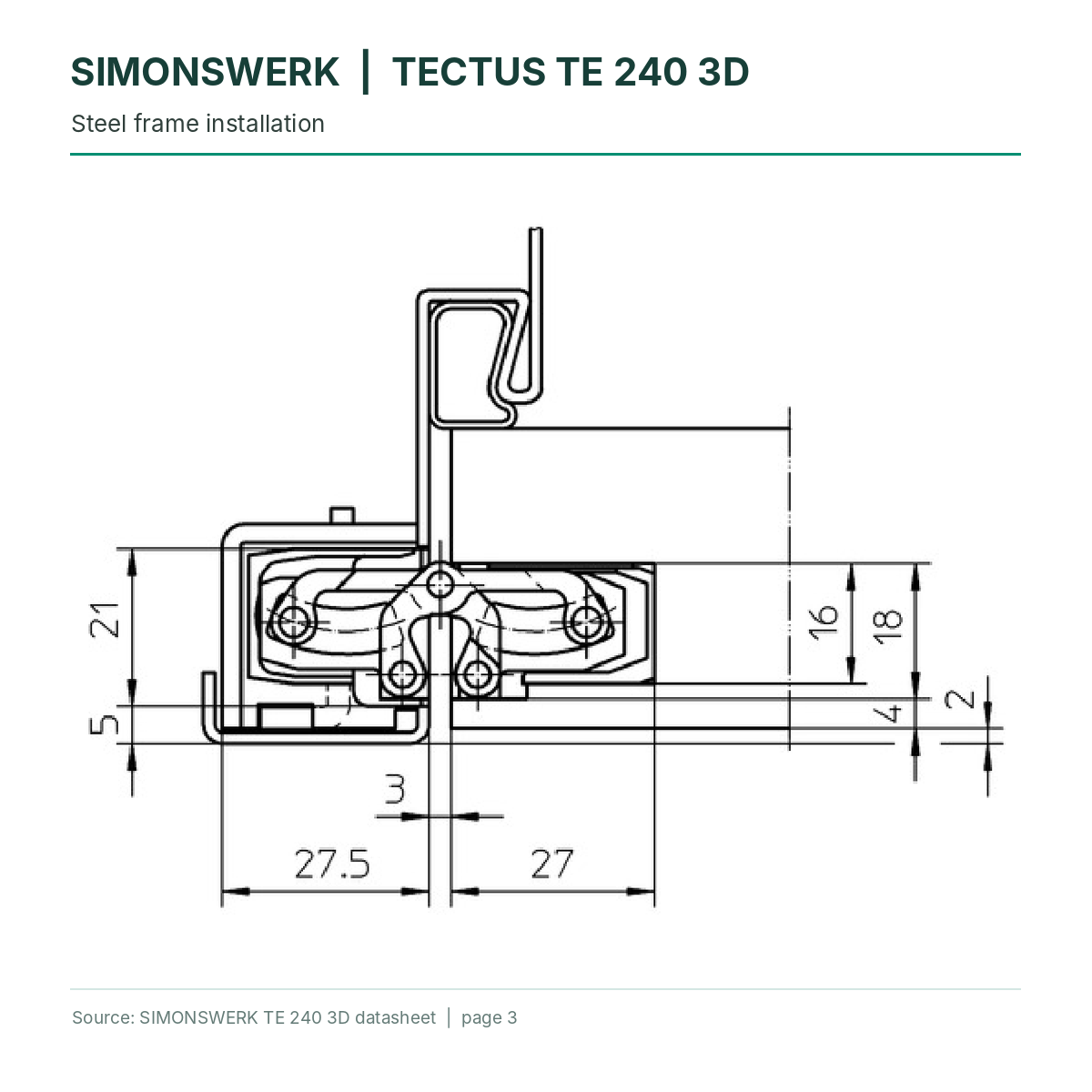

Completely hidden when the door is closed, the TE240 keeps hinge hardware out of sight. It suits unrebated and rebated flush doors with timber or steel door leaves and timber, steel or aluminium frames. The sideways-closing hinge body gives a neat mortise appearance, while three-dimensional adjustment helps achieve accurate alignment. Maintenance-free slide bearings simplify ongoing care.
Technical specifications
- Model: TE240 3D
- Finish: Satin Chrome Look (F1), code 124
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

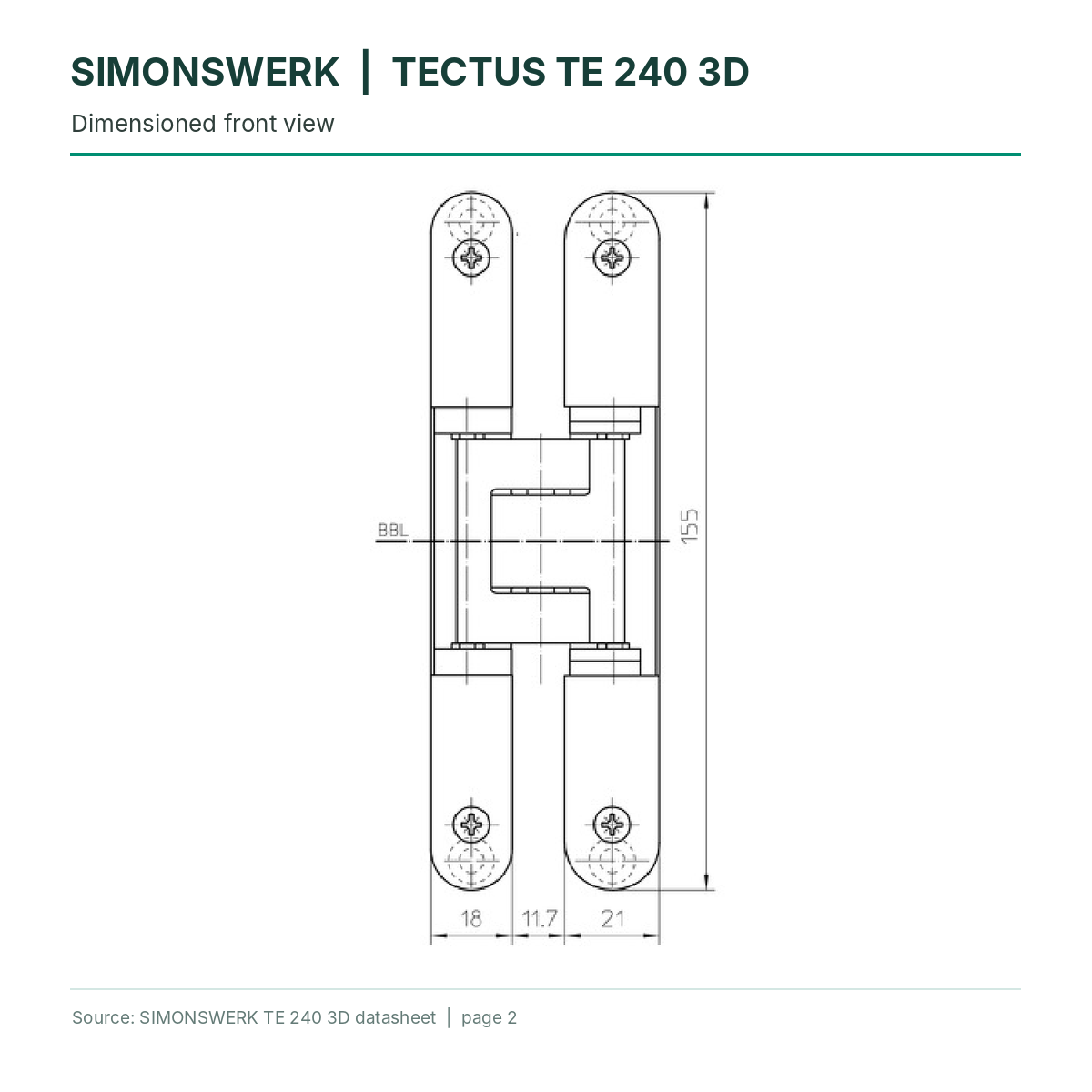

- Overall length: 155mm
- Minimum door thickness: 24mm

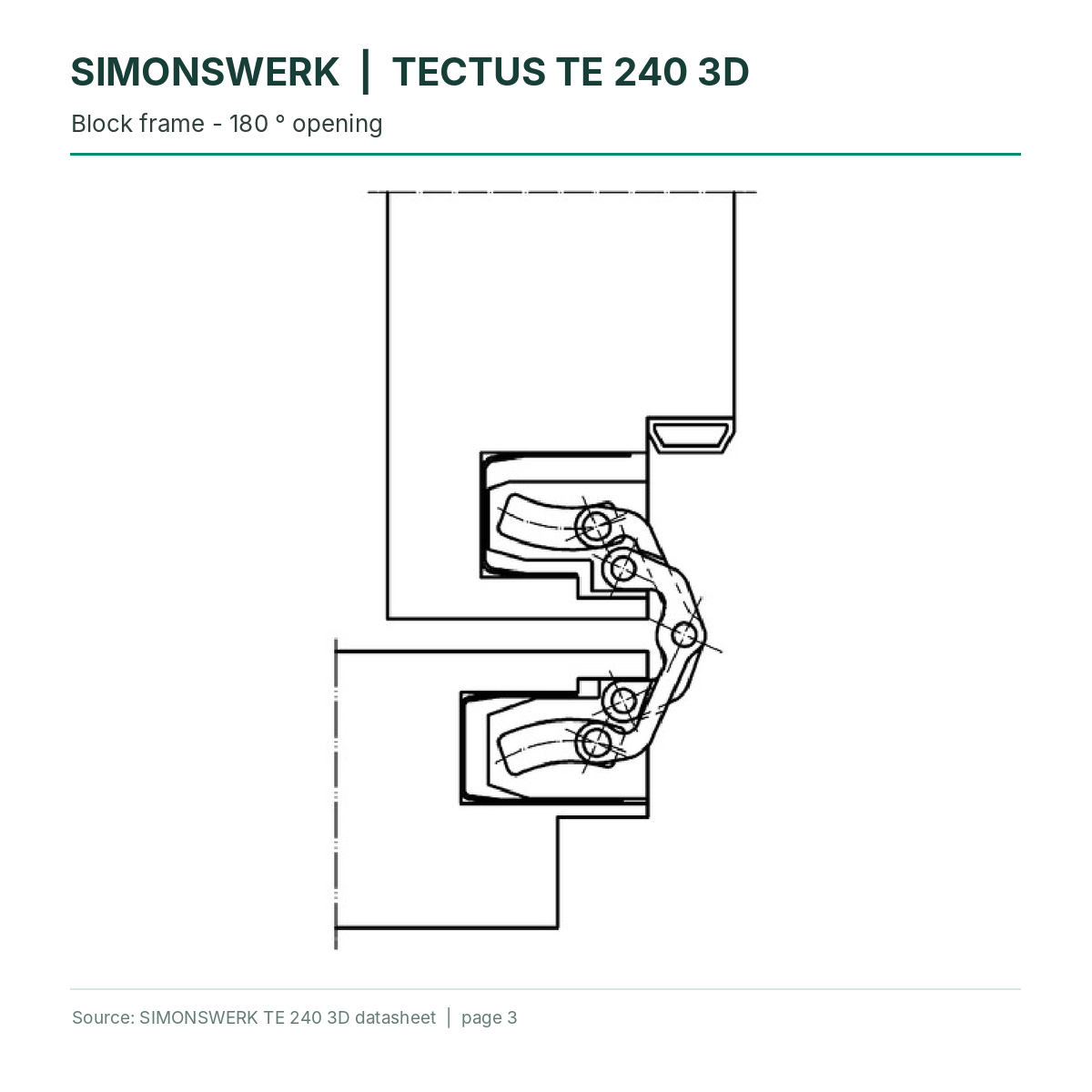

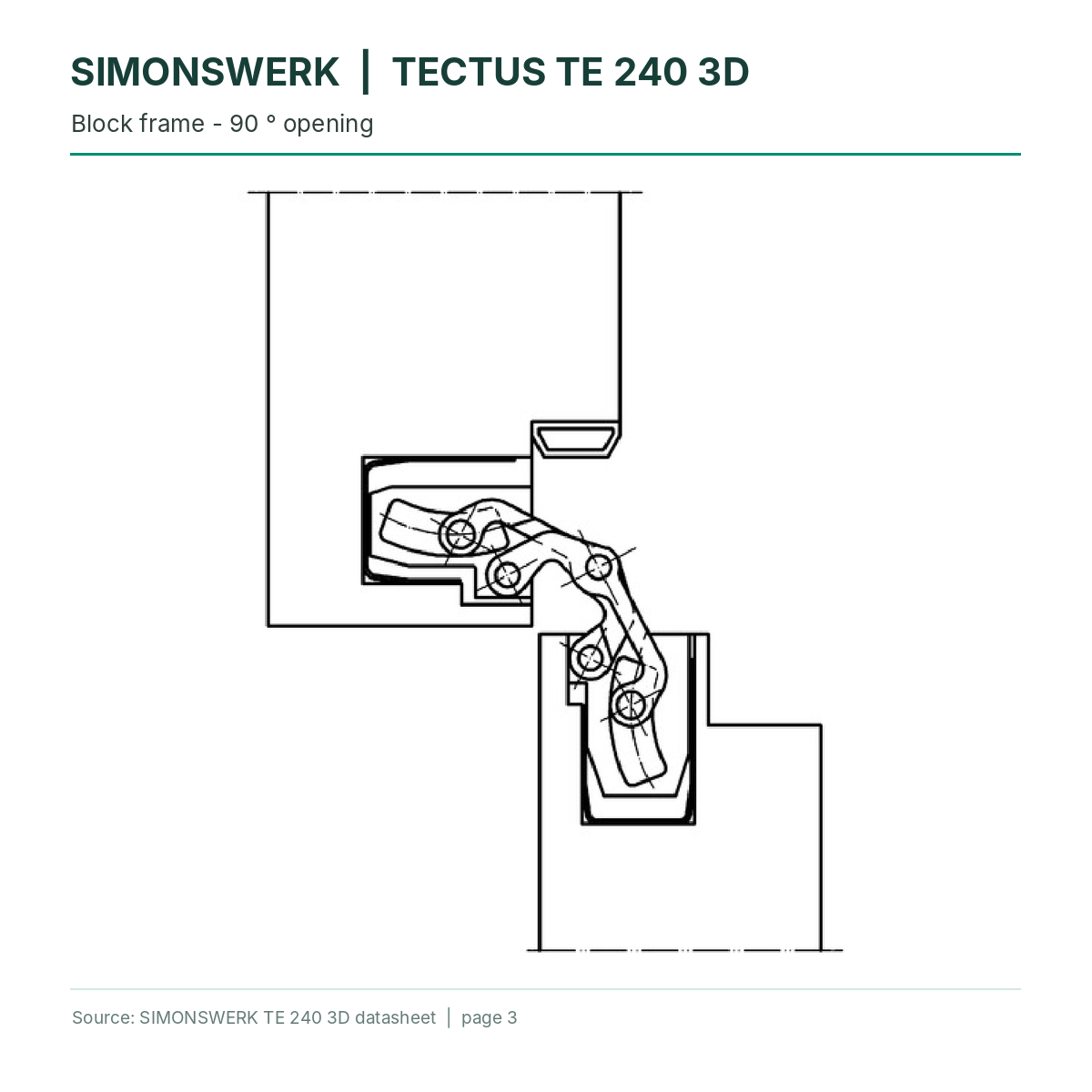

- Opening angle: Up to 180°
- Three-dimensional adjustment: side, height and compression
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Suitable for right- and left-hand applications
- Maintenance-free slide bearings
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance
Use the appropriate TE240 routing template and frame receiver for the door construction. Follow the manufacturer's installation and load-capacity guidance for the complete assembly. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200H
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Satin Chrome Look
