PRODUCT DESCRIPTION

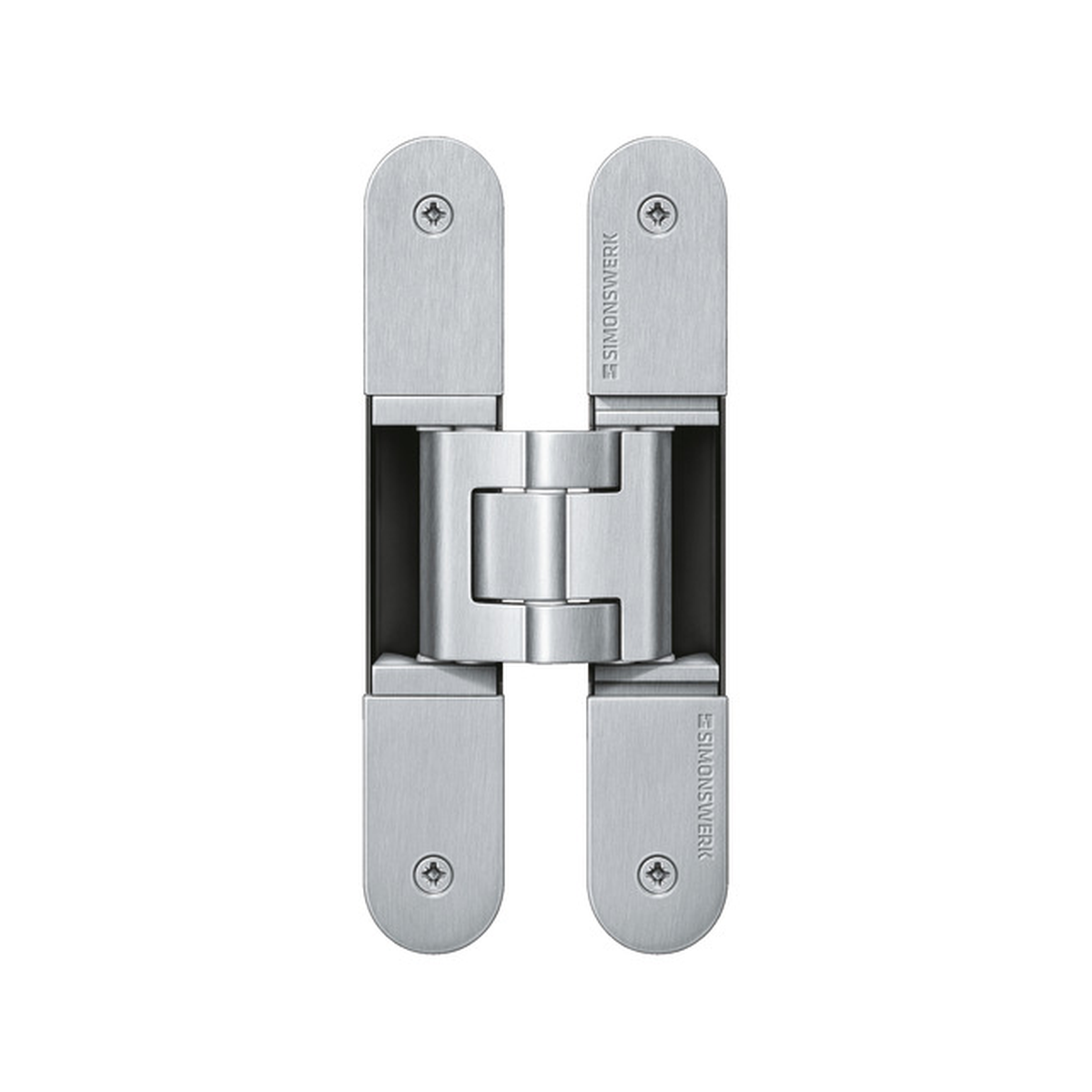

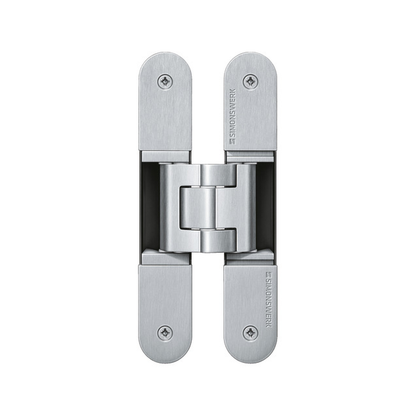

The Tectus TE240 3D hinge in Satin Chrome, finish code 146, provides a completely concealed hinge system for flush residential doors. This is the Satin Chrome finish, distinct from Satin Chrome Look 124 (F1), so the finish code helps identify the correct option for your project.
Hidden when the door is closed, the TE240 keeps the door face free from visible hinge hardware. It is suitable for unrebated and rebated flush doors with timber or steel door leaves and timber, steel or aluminium frames. Three-dimensional adjustment supports accurate alignment, while the sideways-closing hinge body gives a neat mortise appearance. Maintenance-free slide bearings simplify ongoing care.
Technical specifications
- Model: TE240 3D
- Finish: Satin Chrome, code 146
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

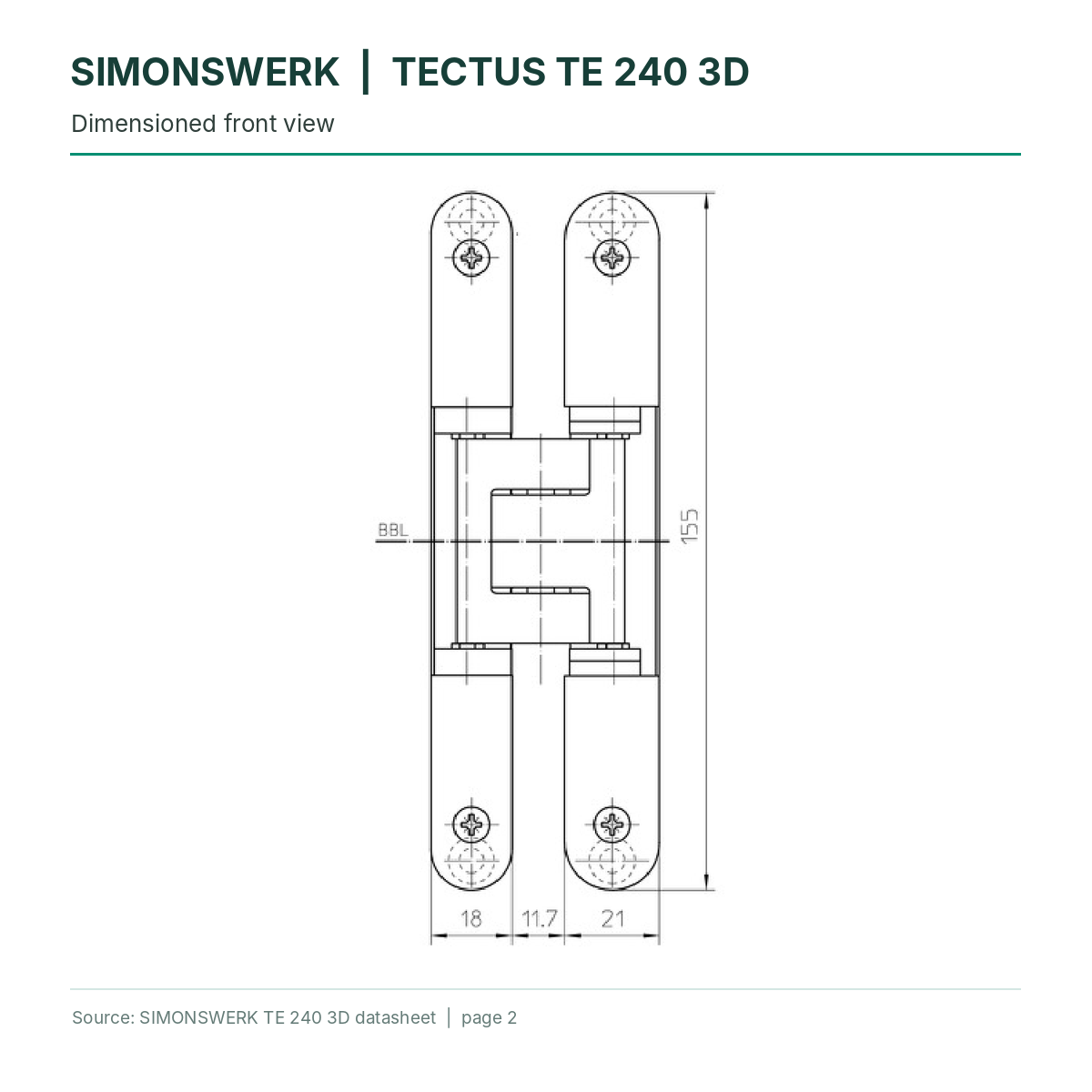

- Overall length: 155mm
- Minimum door thickness: 24mm

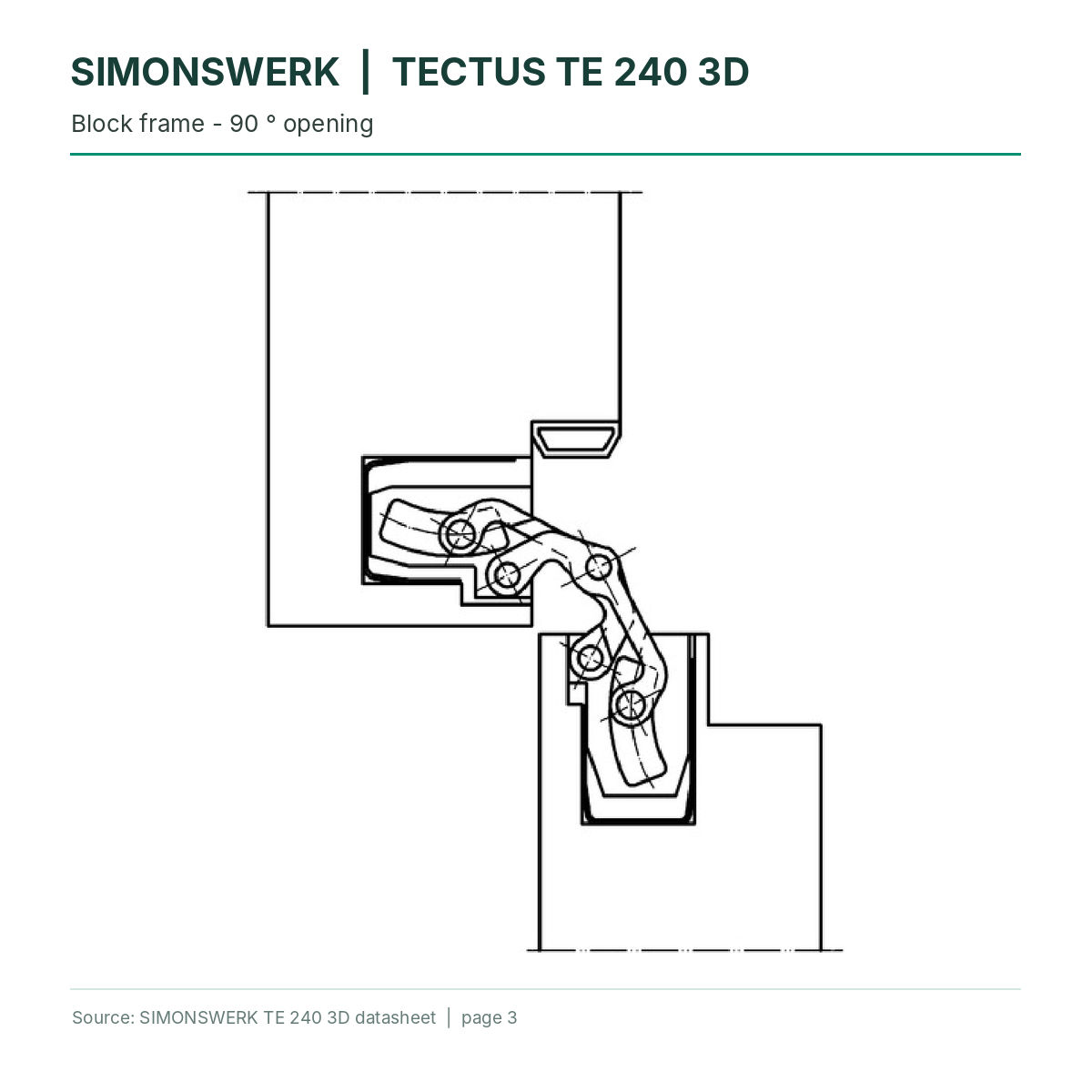

- Opening angle: Up to 180°
- Three-dimensional adjustment: side, height and compression
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Suitable for right- and left-hand applications
- Maintenance-free slide bearings
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance

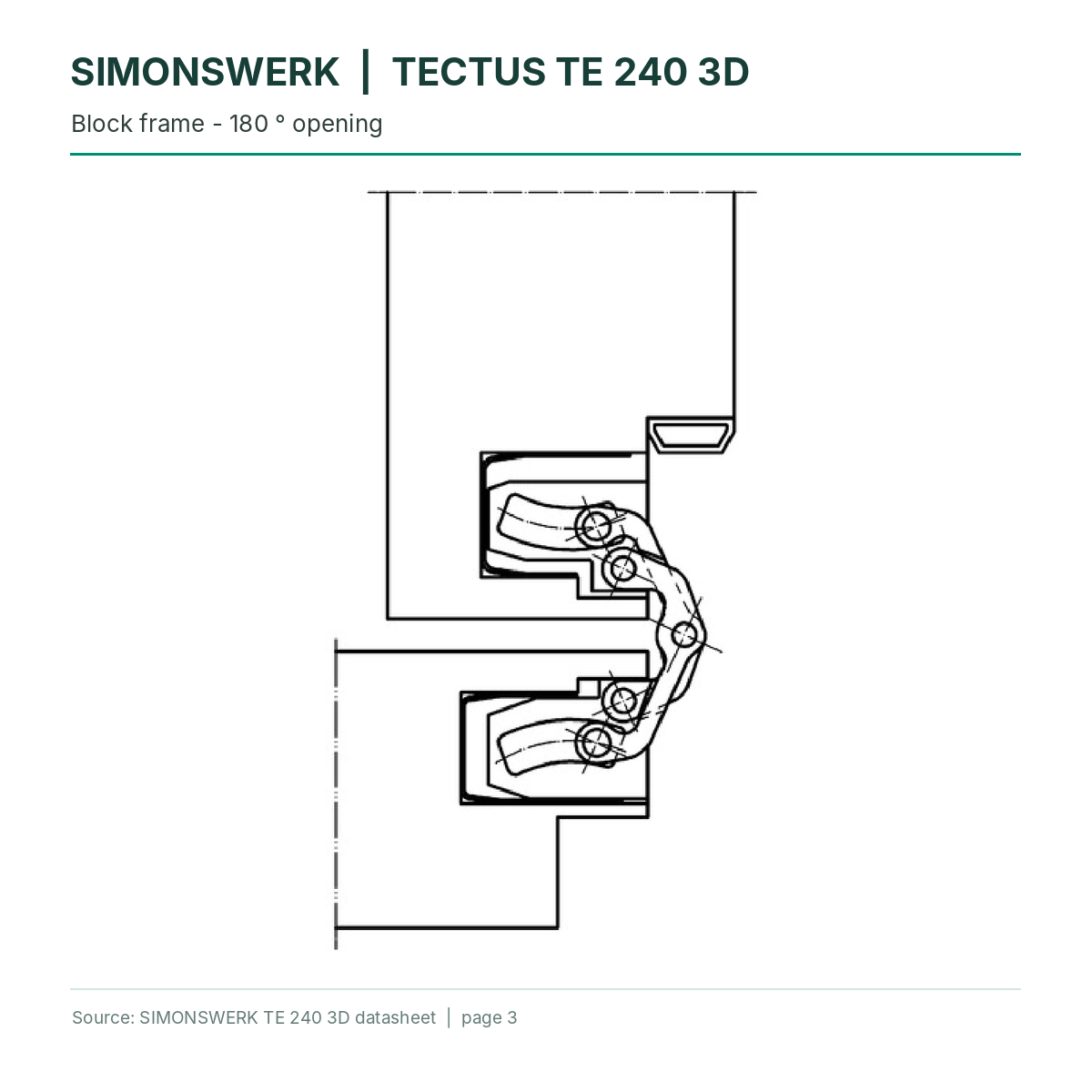

Select the appropriate TE240 routing template and frame receiver for the door construction. Follow the manufacturer's installation and load-capacity guidance for the complete assembly. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200N
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Satin Chrome
