PRODUCT DESCRIPTION

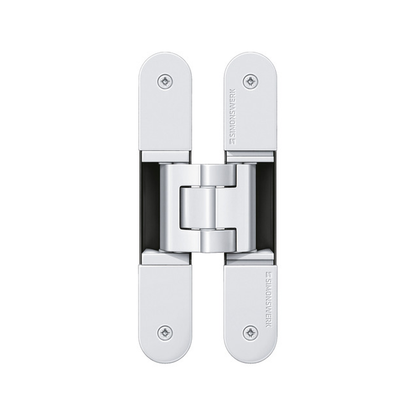

The Tectus TE240 3D concealed hinge in Traffic White, finish code 070 (RAL 9016), combines a white finish with precise alignment for flush residential doors. Completely hidden when the door is closed, the hinge leaves the door face free from exposed hardware.

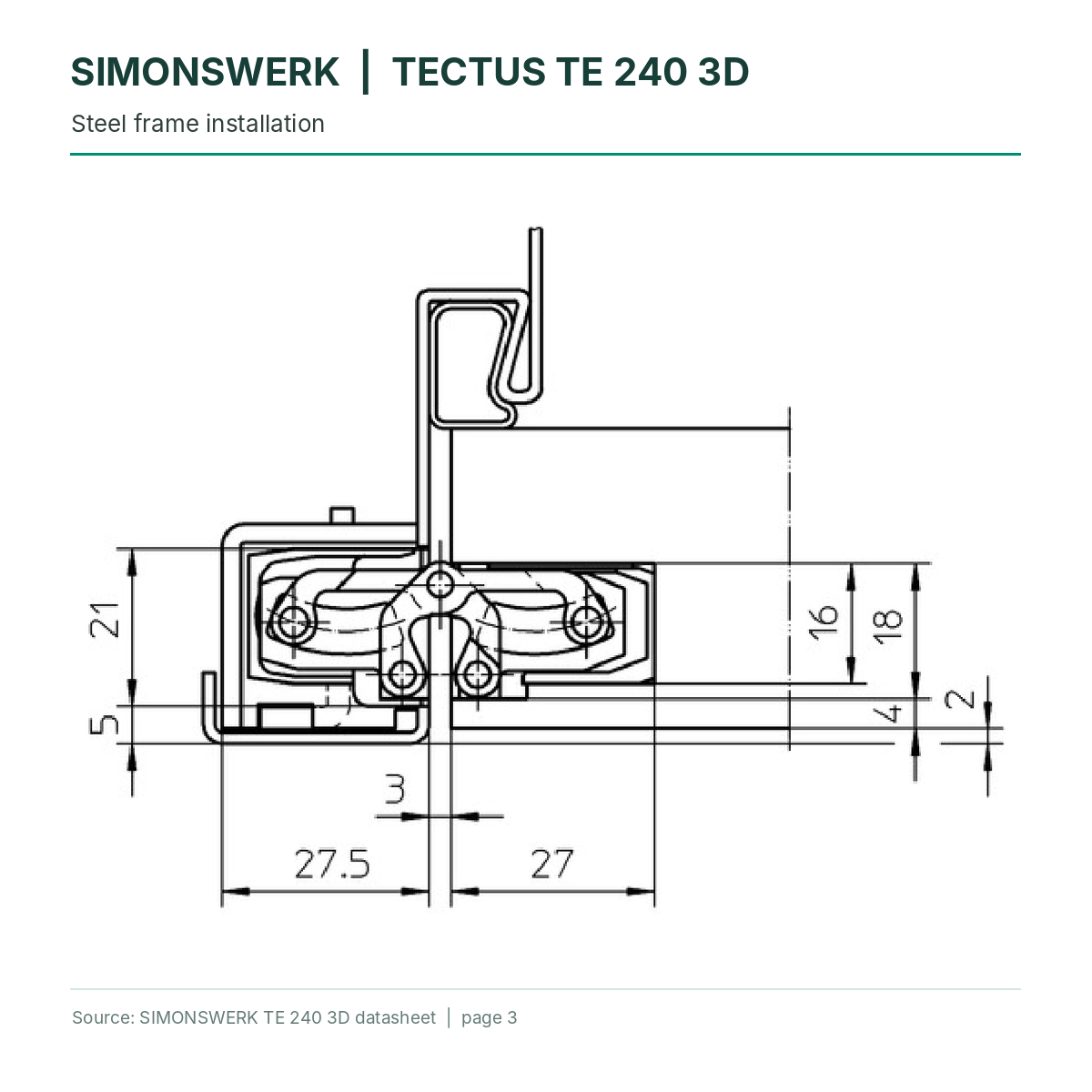

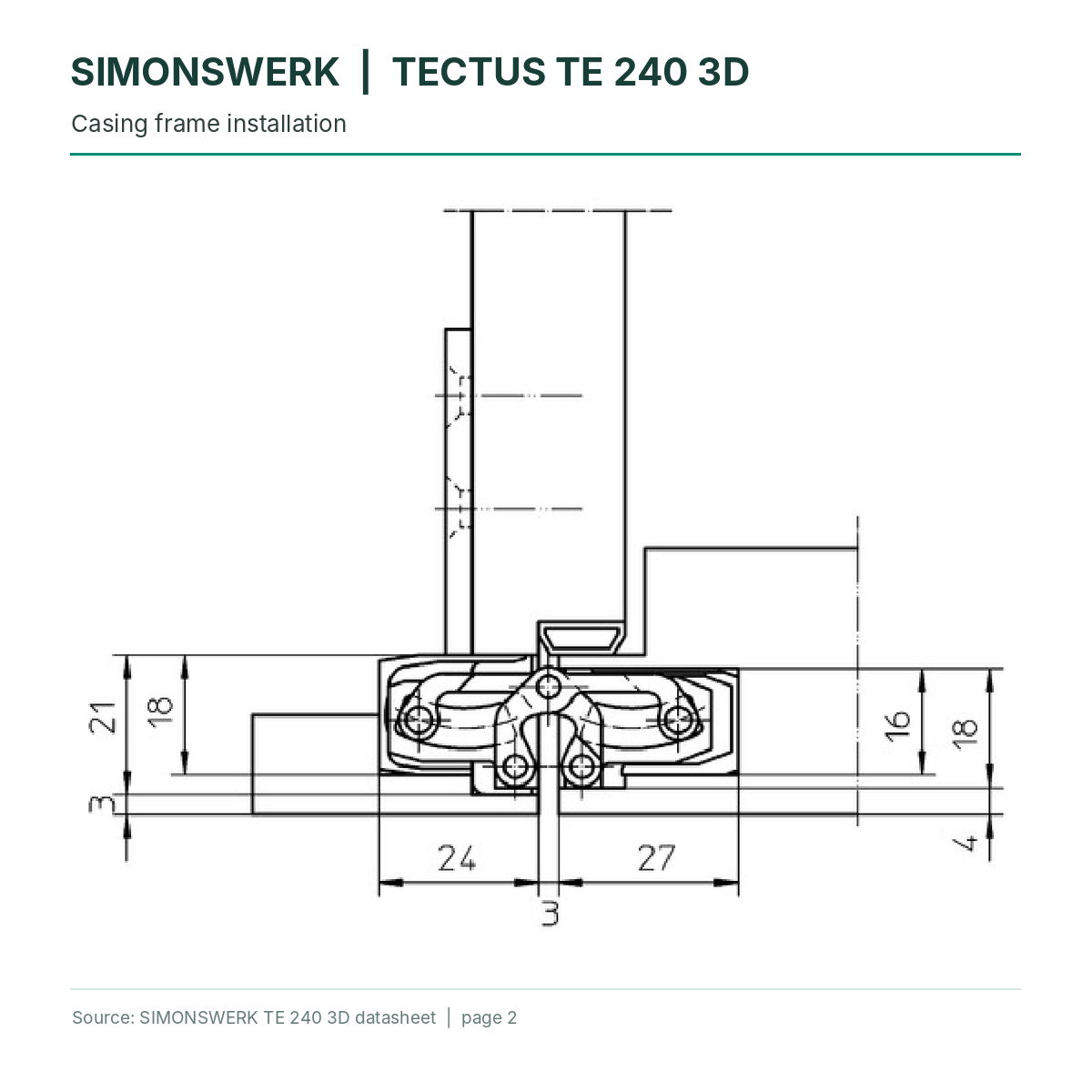

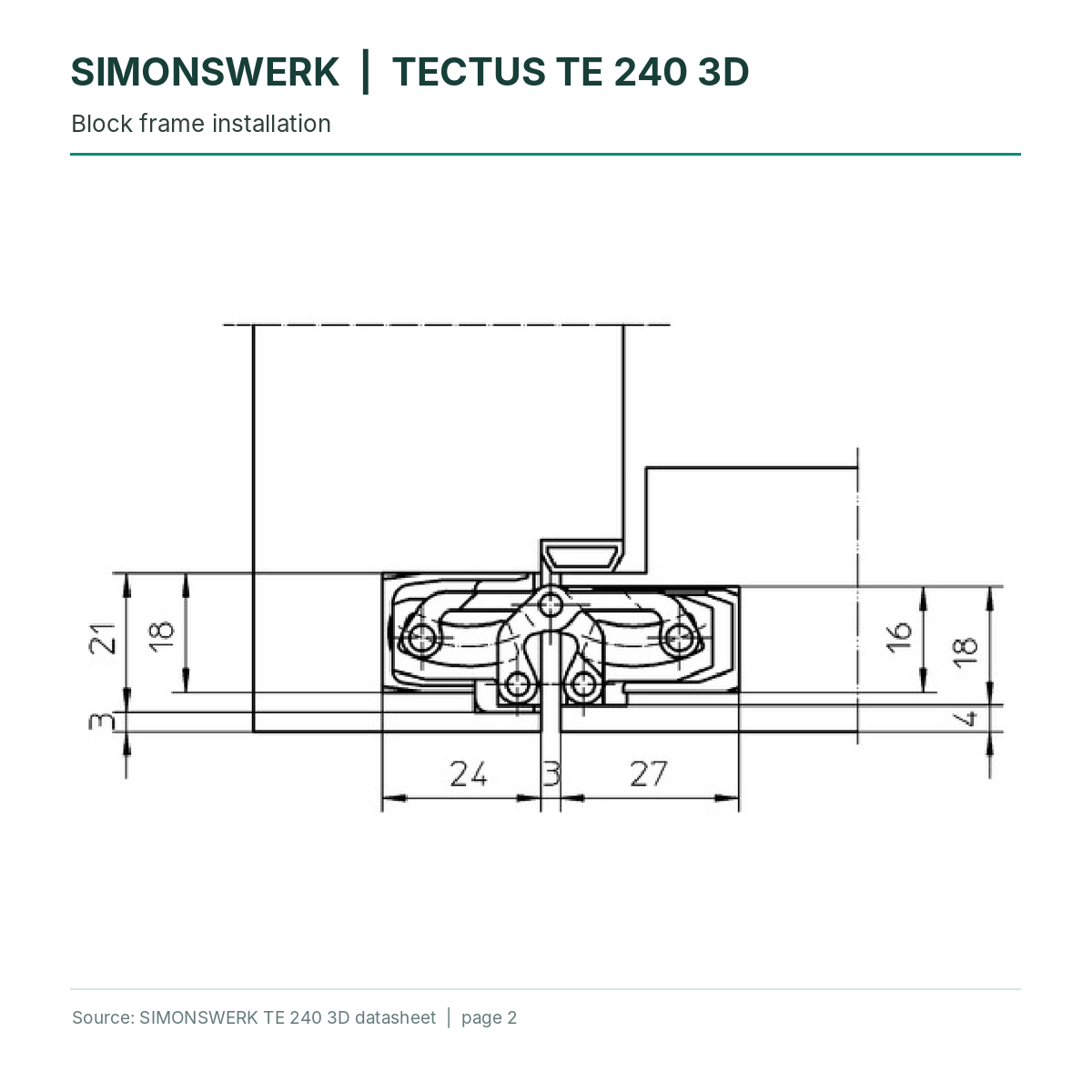

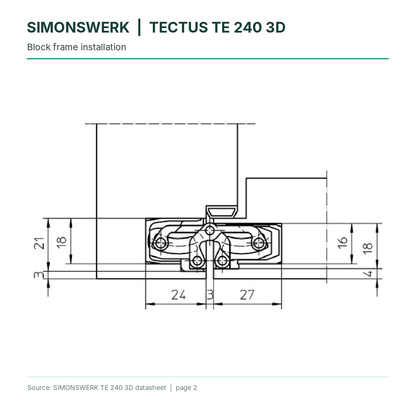

For unrebated and rebated flush doors, the TE240 accommodates timber or steel door leaves with timber, steel or aluminium frames. Three-dimensional adjustment helps the installer set the door's side position, height and compression. Its sideways-closing hinge body gives a neat mortise appearance, while maintenance-free slide bearings simplify ongoing care.
Technical specifications
- Model: TE240 3D
- Finish: Traffic White, code 070 (RAL 9016)
- Load capacity: Up to 60kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

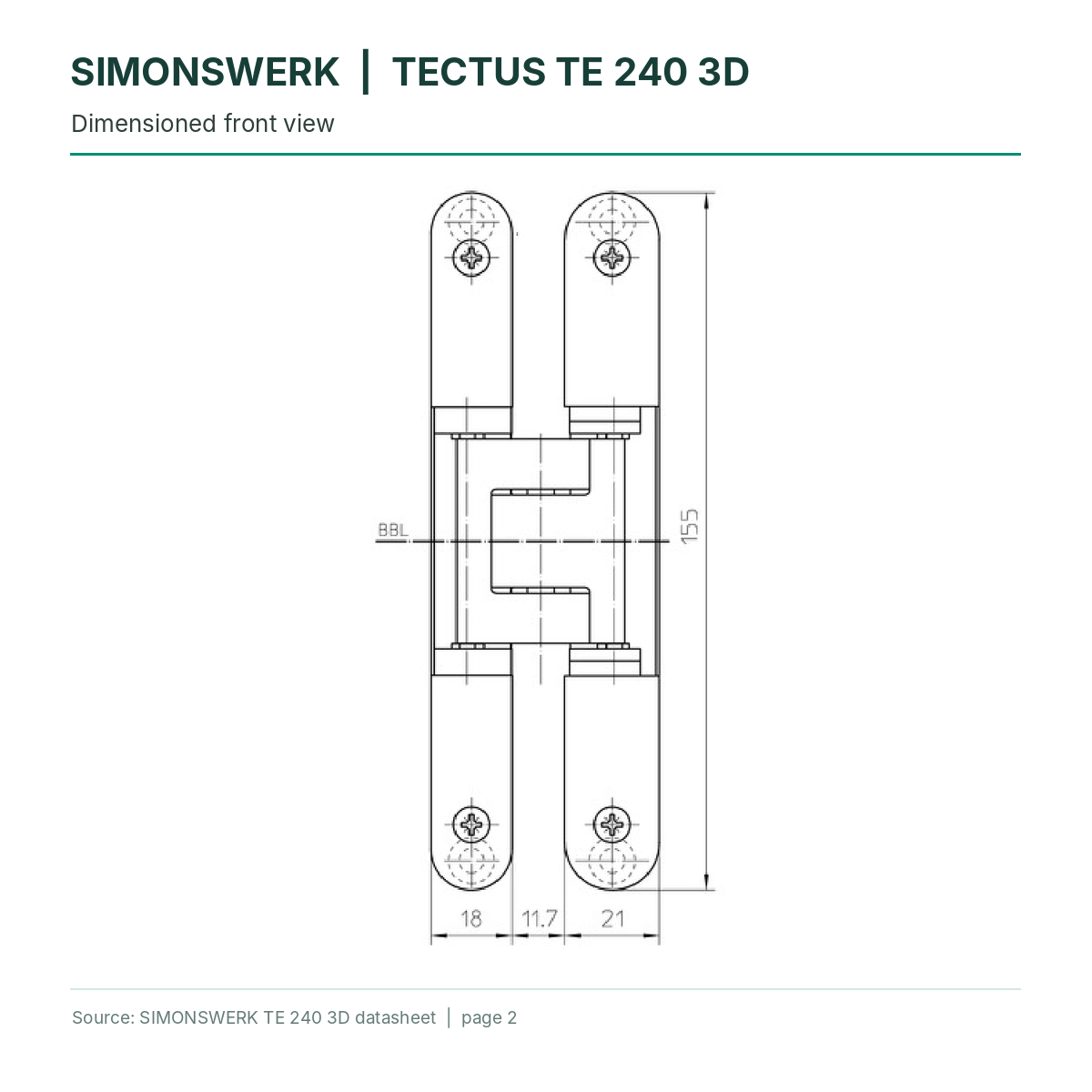

- Overall length: 155mm
- Minimum door thickness: 24mm

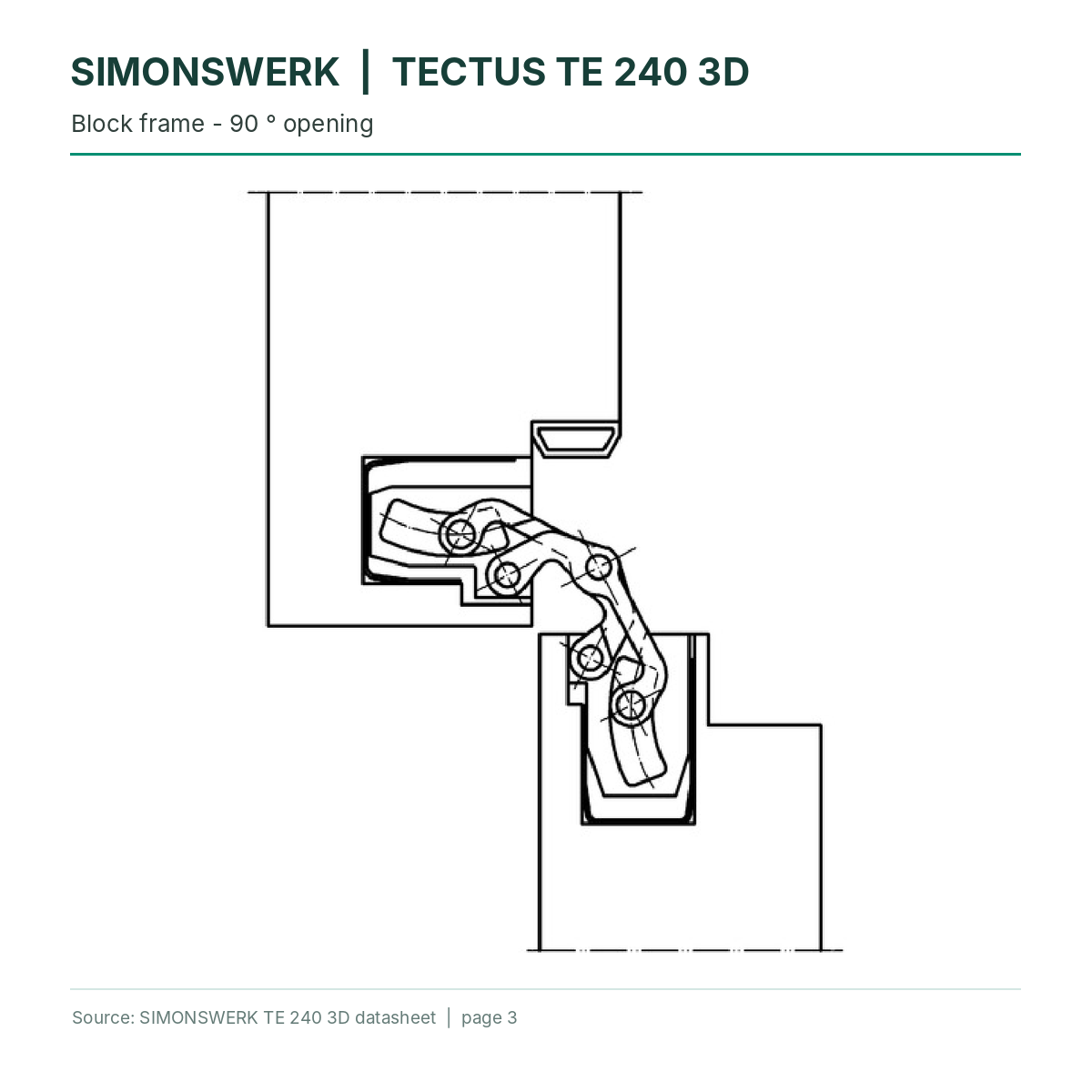

- Opening angle: Up to 180°
- Three-dimensional adjustment: side, height and compression
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Suitable for right- and left-hand applications
- Maintenance-free slide bearings
- Cutter diameter: 16mm
- Collar ring diameter: 30mm
- Quantity supplied: 1 hinge
Installation guidance
Use the appropriate TE240 routing template and frame receiver for the door construction. Follow the manufacturer's installation and load-capacity guidance for the complete assembly. At an opening position of 180°, the door may require additional fixing.
Product code: HIB200R
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Traffic White
