PRODUCT DESCRIPTION

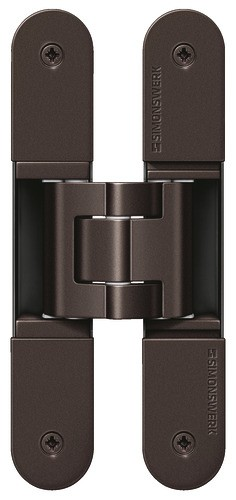

The Tectus TE340 3D concealed hinge in Bronze Finish Dark, code 176, offers a dark bronze finish for flush residential and commercial doors. Its completely concealed design keeps the hinge out of sight when the door is closed, while three-dimensional adjustment helps achieve precise alignment.
Maintenance-free slide bearings support smooth operation. The system is suitable for wood, steel or aluminium door panels and frames, with a small gap between the door and frame for finger protection.
Technical specifications
- Model: TE340 3D
- Finish: Bronze Finish Dark, code 176
- Load capacity: Up to 80kg using two hinges on a door leaf with a 2:1 height-to-width ratio, subject to the manufacturer's application conditions

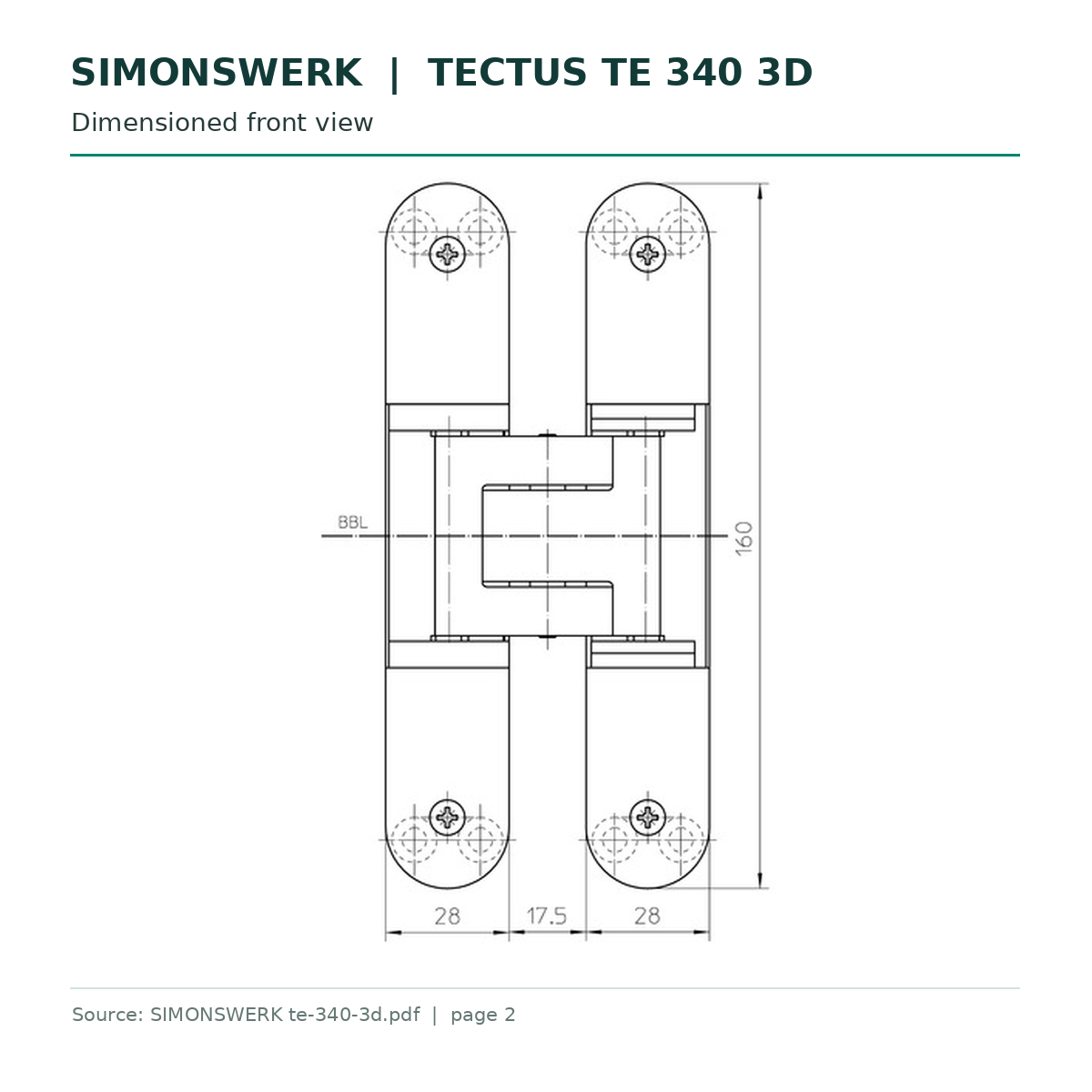

- Length: 160mm
- Width at door and frame: 28mm
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Compression adjustment: ±1mm
- Maintenance-free slide bearings
- Quantity supplied: 1 hinge
Installation guidance

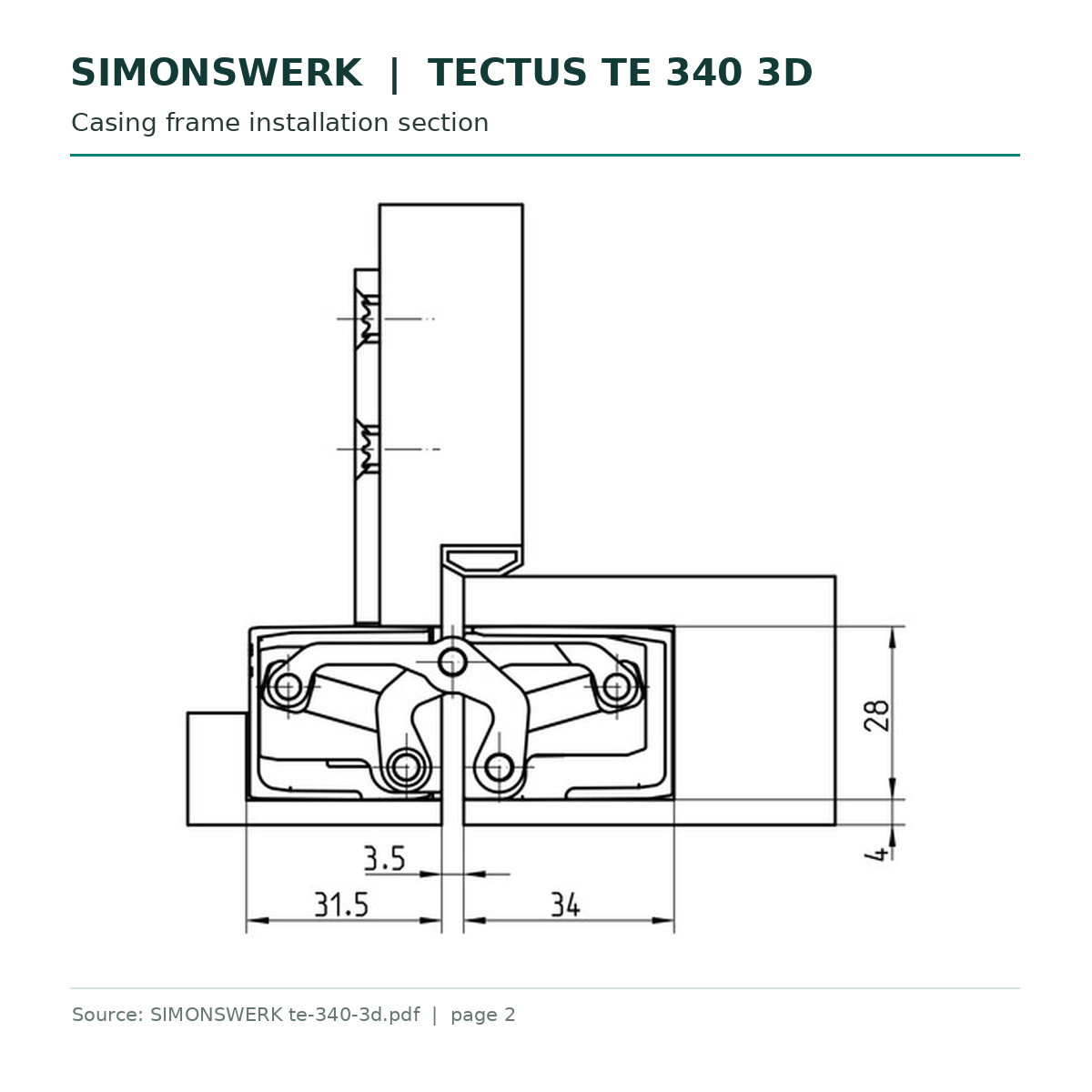

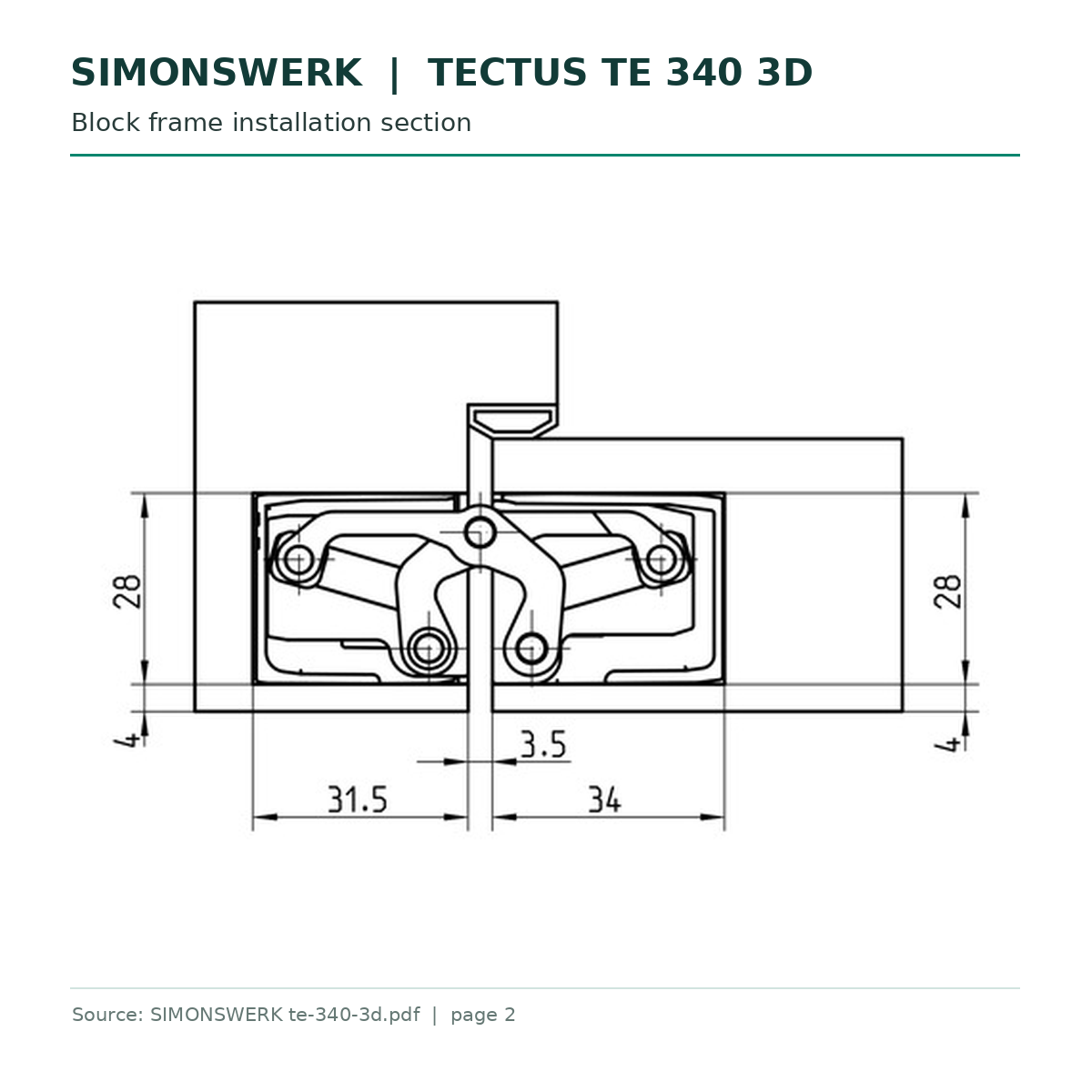

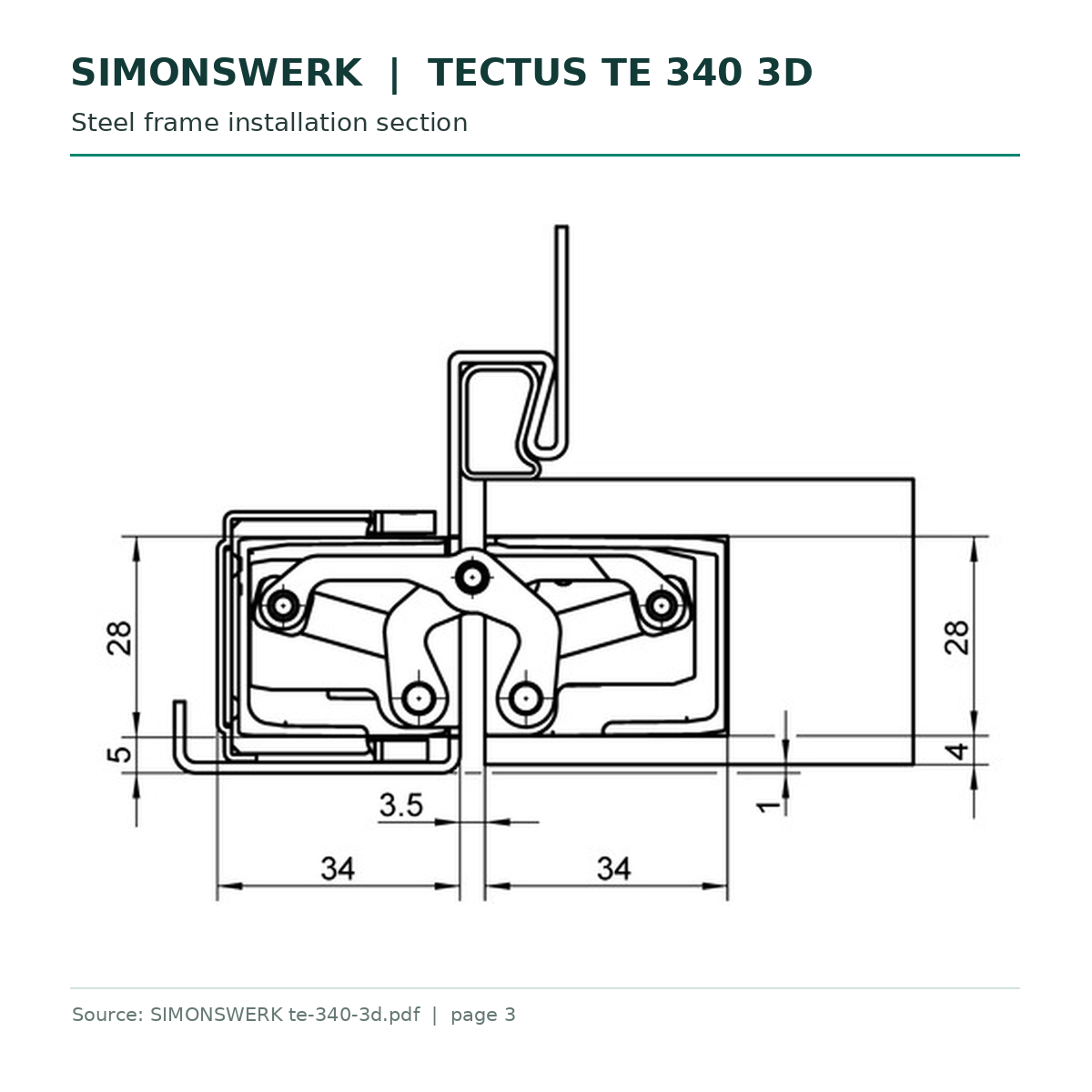

Use the appropriate routing template and frame receiver or reinforcement for the door construction. Aluminium door panels require a minimum thickness of 38mm. For fire-rated doors, check with the door manufacturer regarding additional reinforcement material and the suitability of the complete door assembly.
Product code: HIB201G
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Bronze Finish Dark
