PRODUCT DESCRIPTION

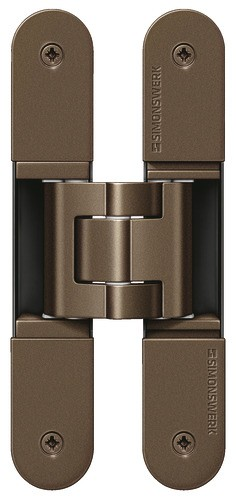

The Tectus TE340 3D concealed hinge in Bronze Finish Light, code 175, brings a light bronze finish to flush residential and commercial doors without leaving hinge hardware visible when the door is closed. Three-dimensional adjustment allows precise door alignment, complemented by maintenance-free slide bearings.
The completely concealed system is suitable for wood, steel or aluminium door panels and frames. A small gap between the door and frame provides finger protection.
Technical specifications
- Model: TE340 3D
- Finish: Bronze Finish Light, code 175
- Load capacity: Up to 80kg using two hinges on a door leaf with a 2:1 height-to-width ratio, subject to the manufacturer's application conditions
- Length: 160mm
- Width at door and frame: 28mm
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Compression adjustment: ±1mm
- Maintenance-free slide bearings
- Quantity supplied: 1 hinge
Installation guidance
Use the appropriate routing template and frame receiver or reinforcement for the door construction. Aluminium door panels require a minimum thickness of 38mm. For fire-rated doors, check with the door manufacturer regarding additional reinforcement material and the suitability of the complete door assembly.
Product code: HIB201D
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Bronze Finish Light
