PRODUCT DESCRIPTION

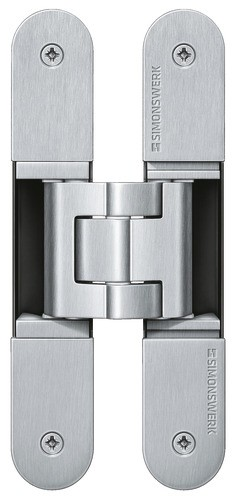

The Tectus TE340 3D concealed hinge in Satin Chrome, finish code 146, provides adjustable support for flush residential and commercial doors while keeping the hinge hardware hidden when the door is closed. This is the Satin Chrome finish, distinct from Satin Chrome Look (F1), code 124.
Three-dimensional adjustment helps achieve accurate door alignment. Maintenance-free slide bearings support smooth operation, and the completely concealed system is suitable for wood, steel or aluminium door panels and frames. A small gap between the door and frame provides finger protection.
Technical specifications
- Model: TE340 3D
- Finish: Satin Chrome, code 146
- Load capacity: Up to 80kg using two hinges on a door leaf with a 2:1 height-to-width ratio, subject to the manufacturer's application conditions

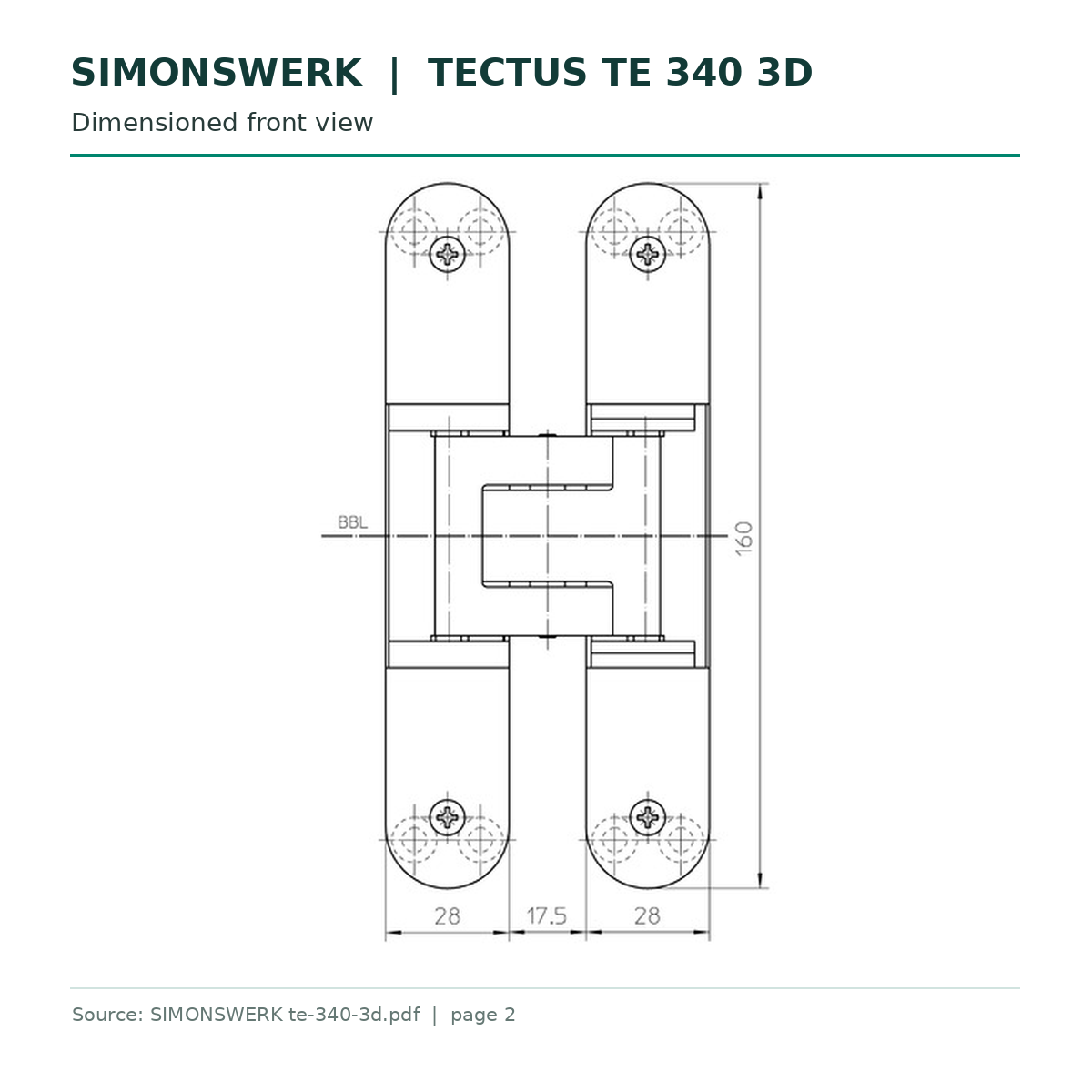

- Length: 160mm
- Width at door and frame: 28mm
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Compression adjustment: ±1mm
- Maintenance-free slide bearings
- Quantity supplied: 1 hinge

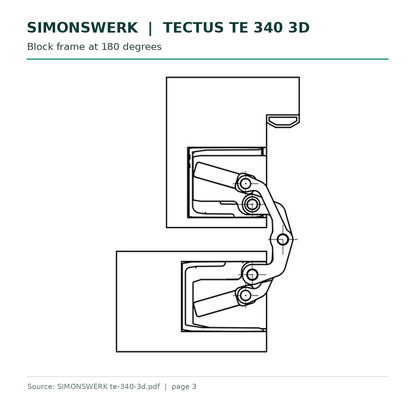

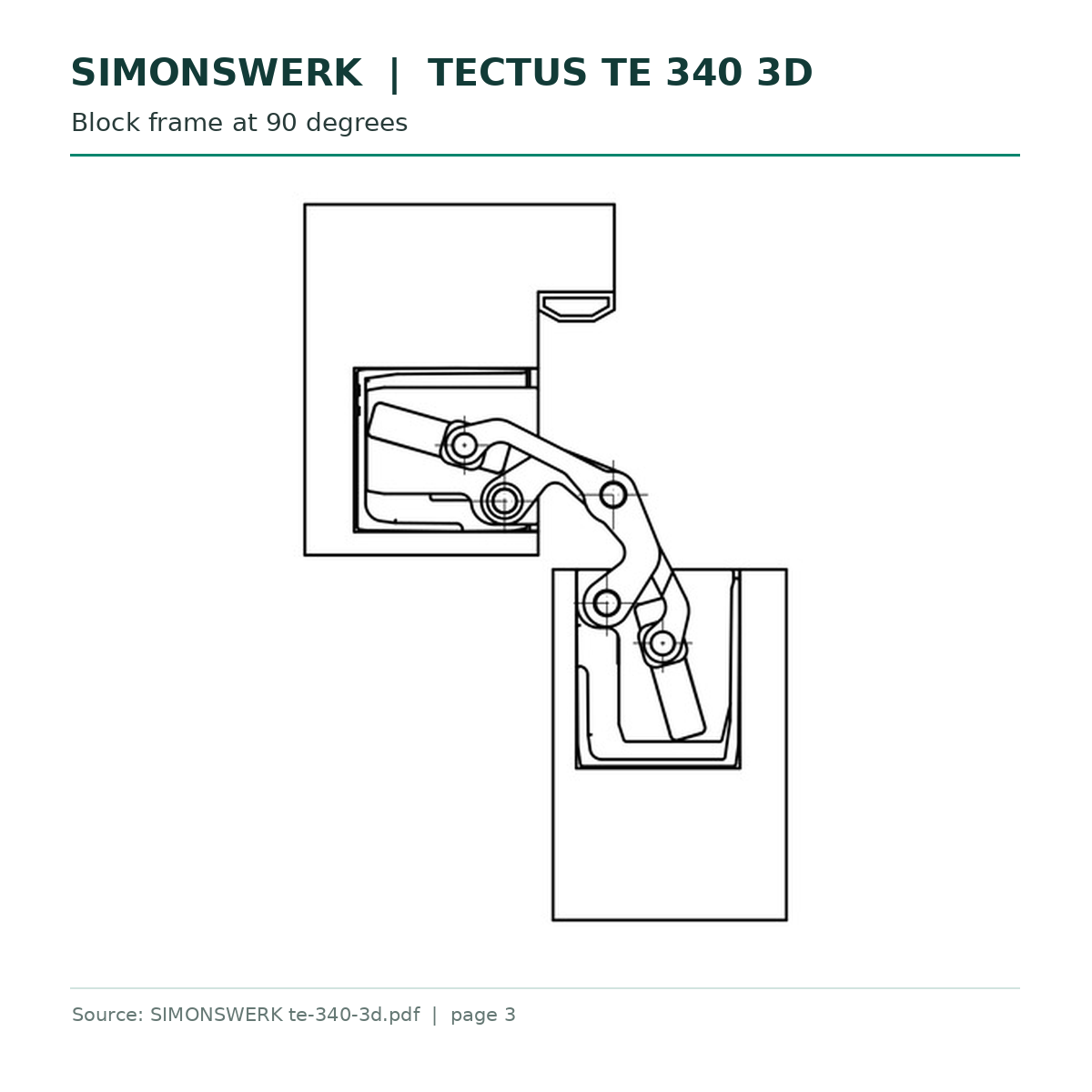

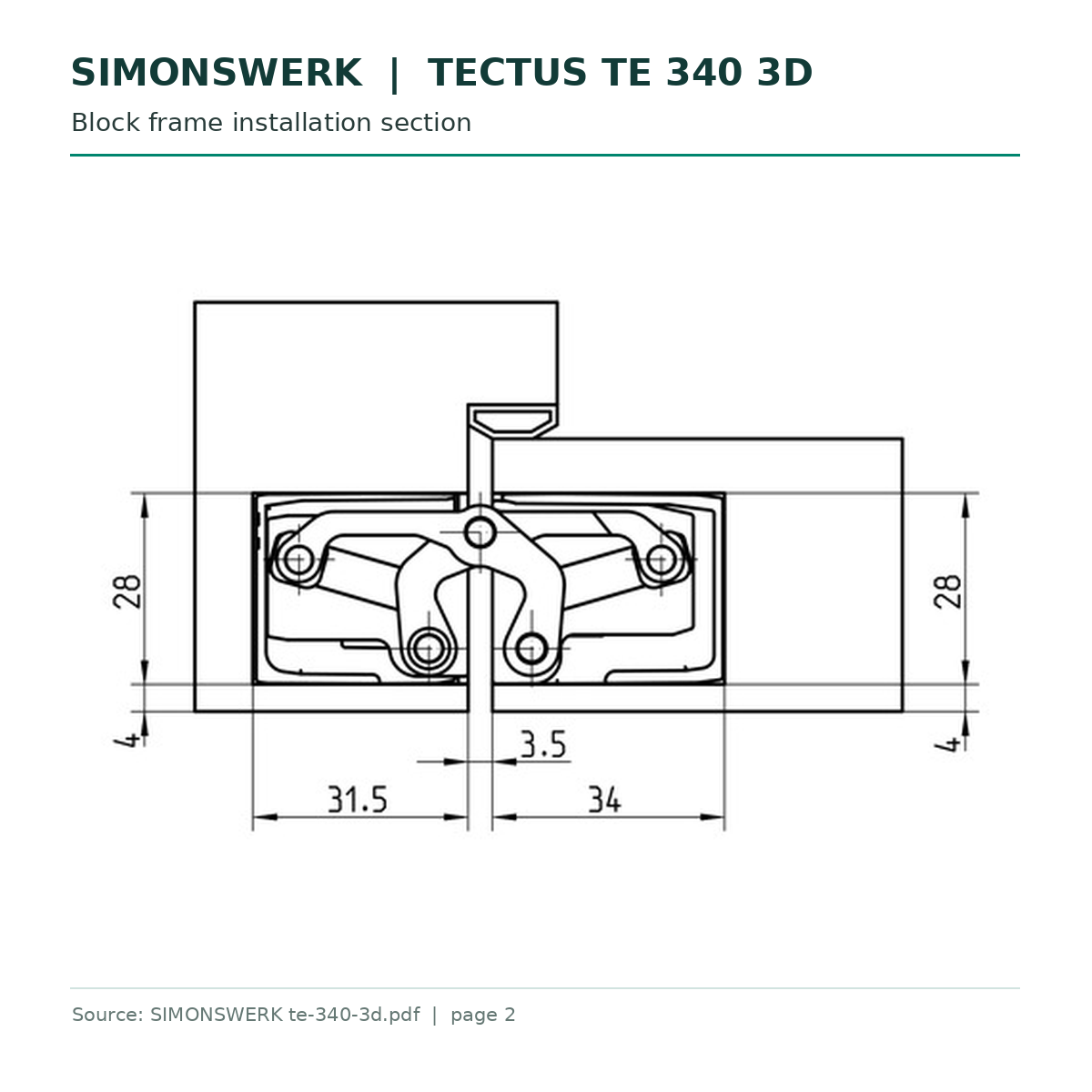

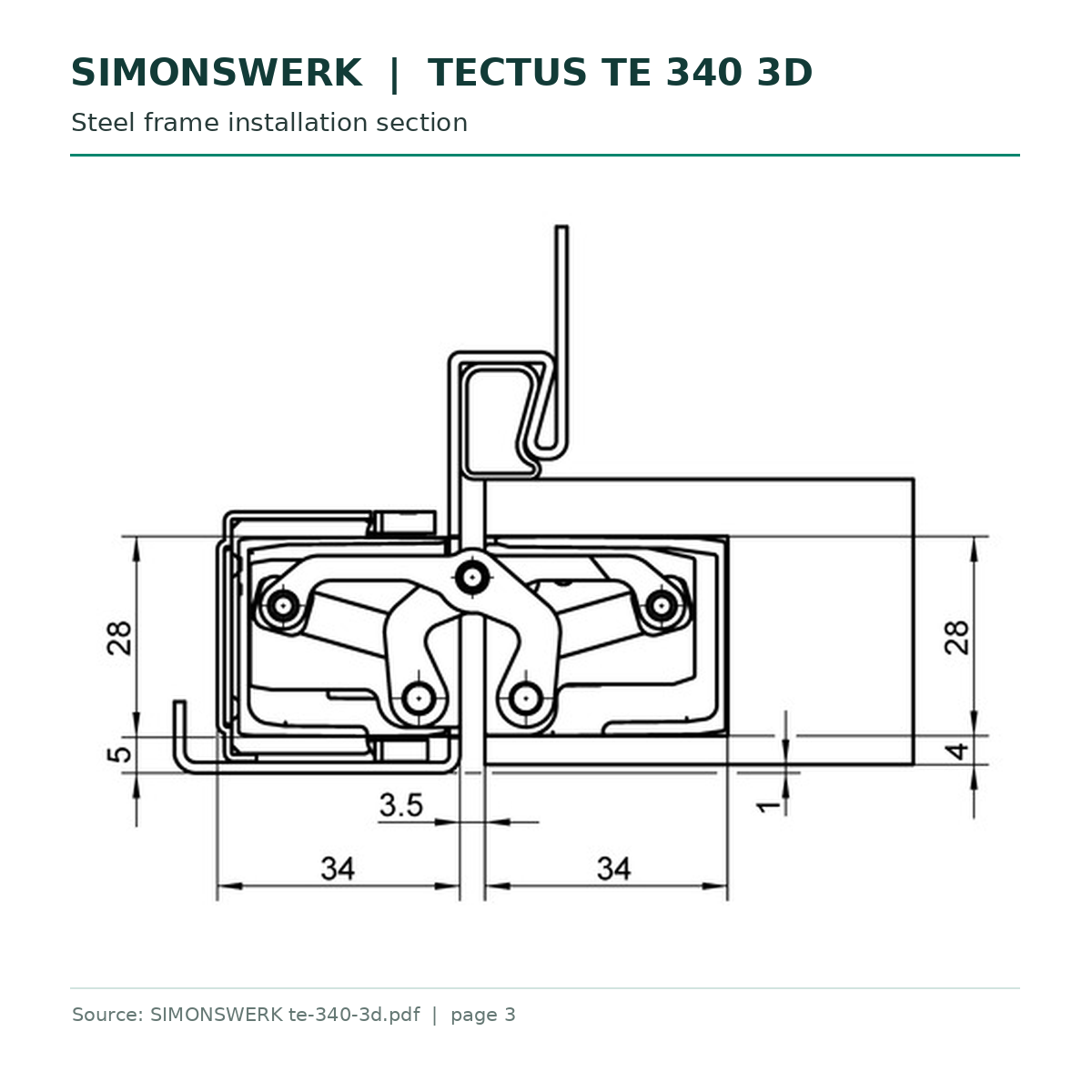

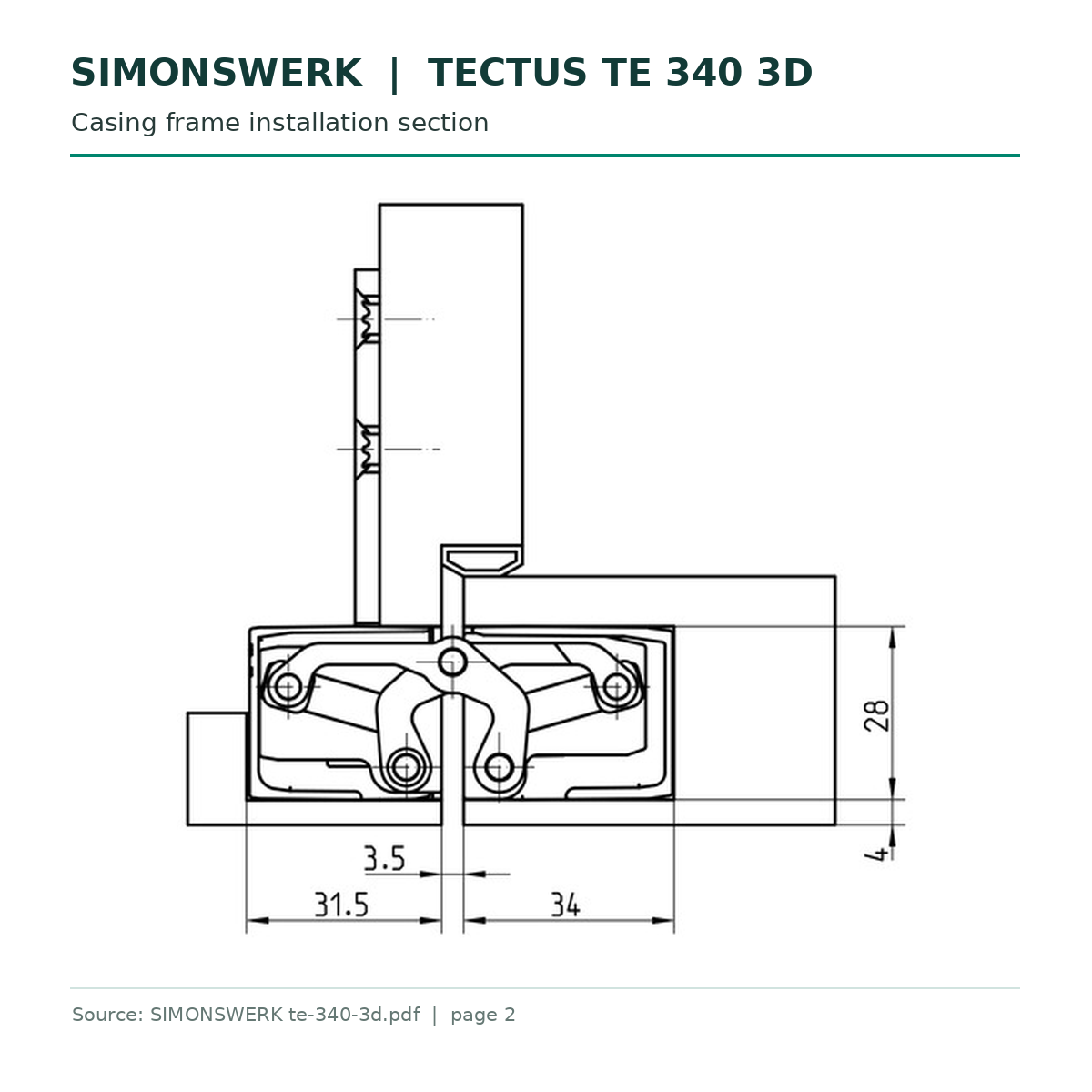

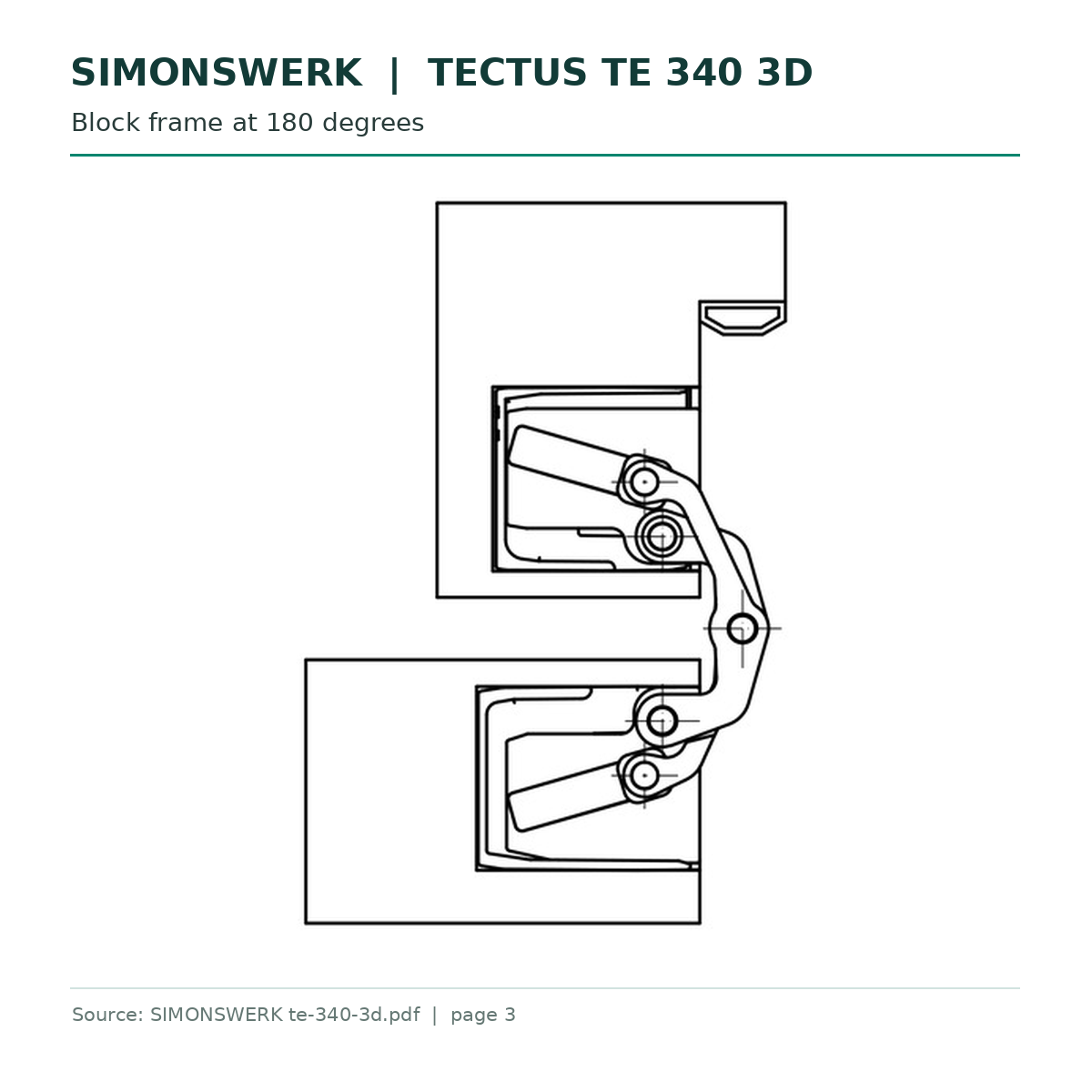

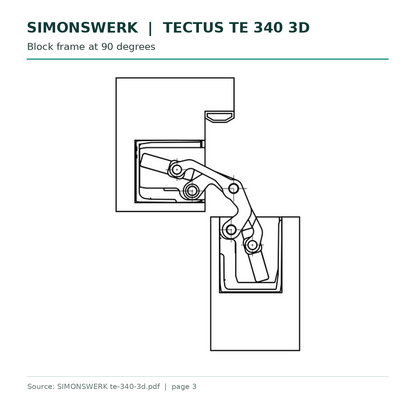

Installation guidance
Use the appropriate routing template and frame receiver or reinforcement for the door construction. Aluminium door panels require a minimum thickness of 38mm. For fire-rated doors, check with the door manufacturer regarding additional reinforcement material and the suitability of the complete door assembly.
Product code: HIB201Q
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Satin Chrome
