PRODUCT DESCRIPTION

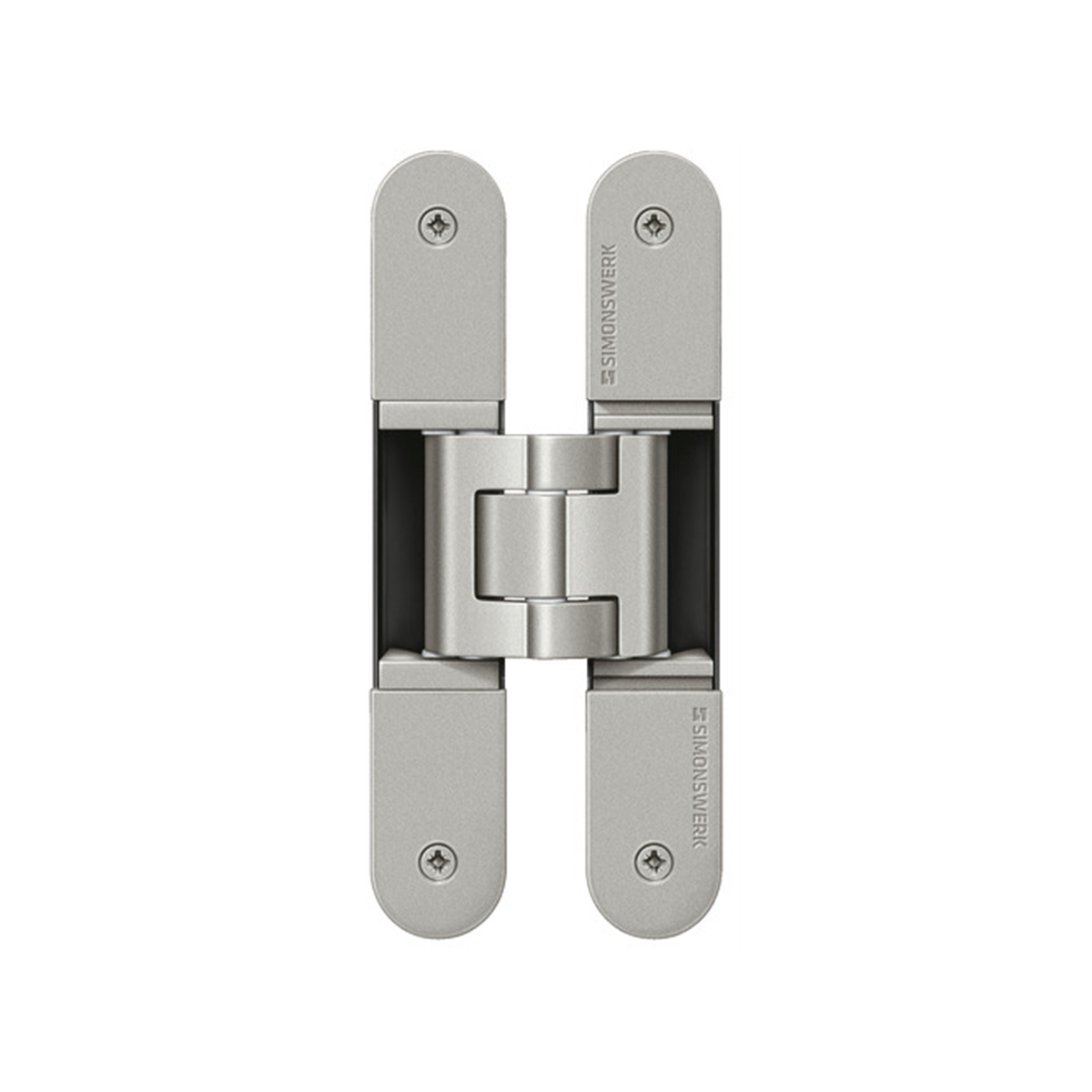

The Tectus TE340 3D concealed hinge in Satin Nickel Look (F2), finish code 125, keeps the hardware hidden when a flush door is closed. For residential and commercial installations, three-dimensional adjustment helps achieve accurate alignment between the door and frame.
Its maintenance-free slide bearings support smooth operation. The completely concealed hinge system suits wood, steel or aluminium door panels and frames, with a small gap between the door and frame for finger protection.
Technical specifications
- Model: TE340 3D
- Finish: Satin Nickel Look (F2), code 125
- Load capacity: Up to 80kg using two hinges on a door leaf with a 2:1 height-to-width ratio, subject to the manufacturer's application conditions

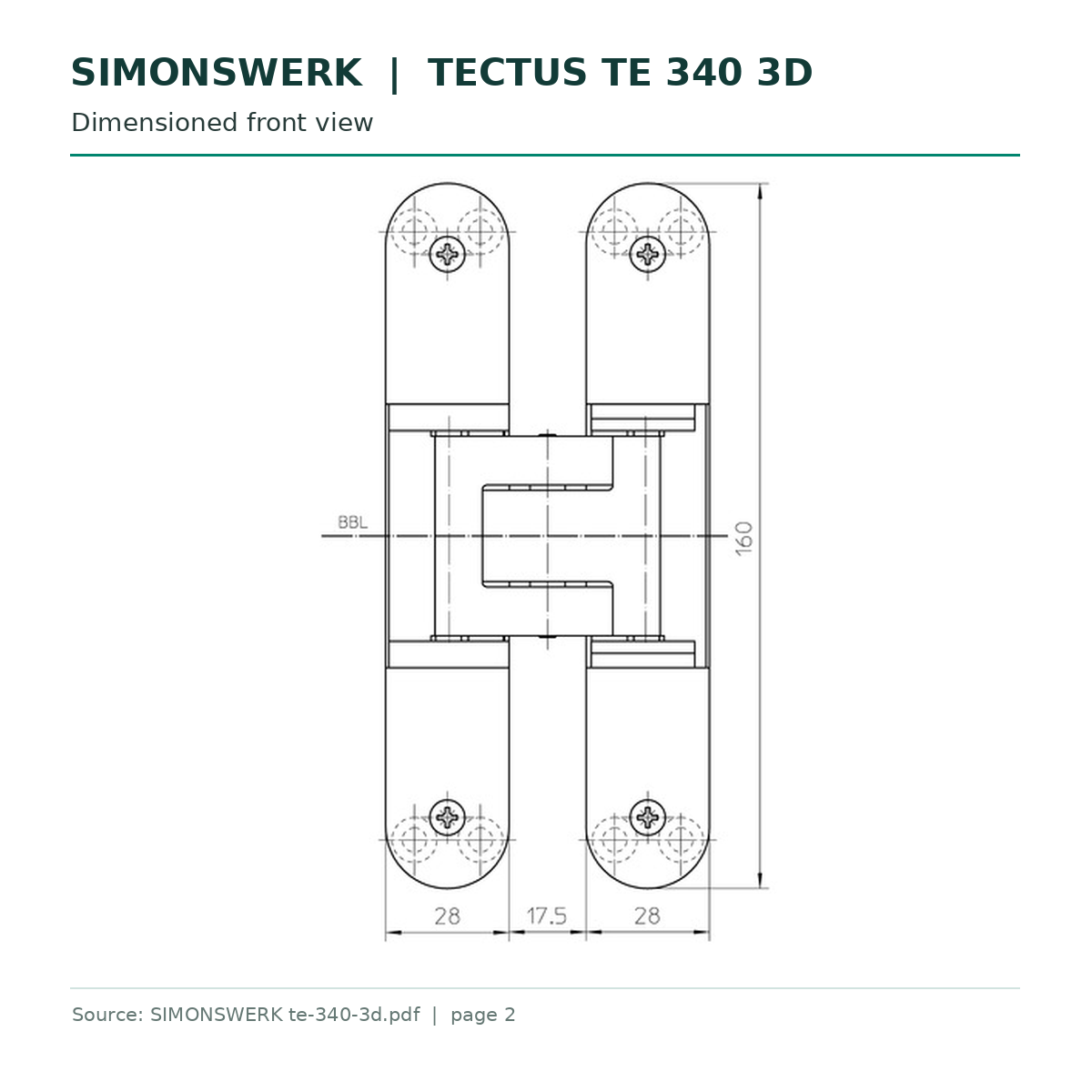

- Length: 160mm
- Width at door and frame: 28mm
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Compression adjustment: ±1mm
- Maintenance-free slide bearings
- Quantity supplied: 1 hinge
Installation guidance

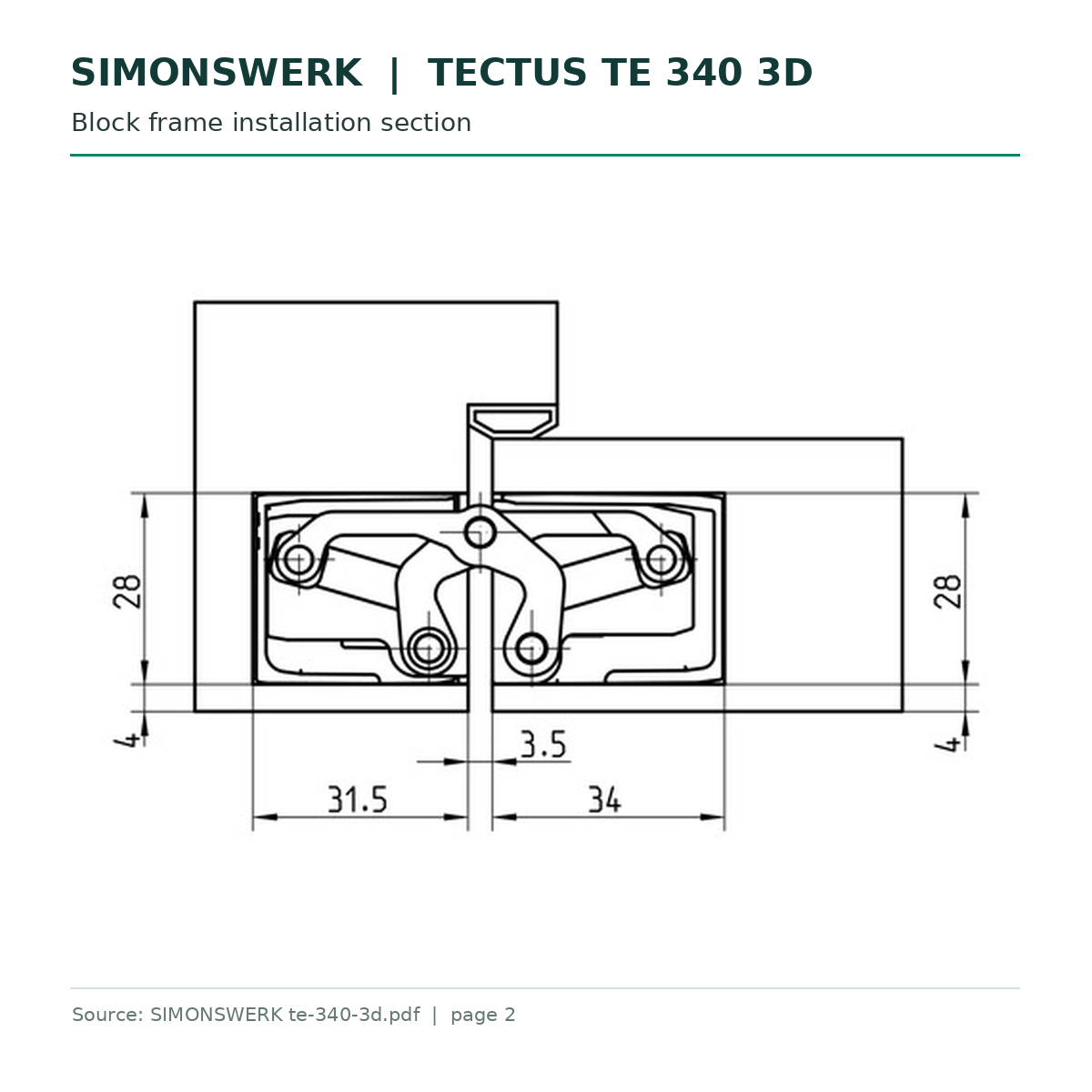

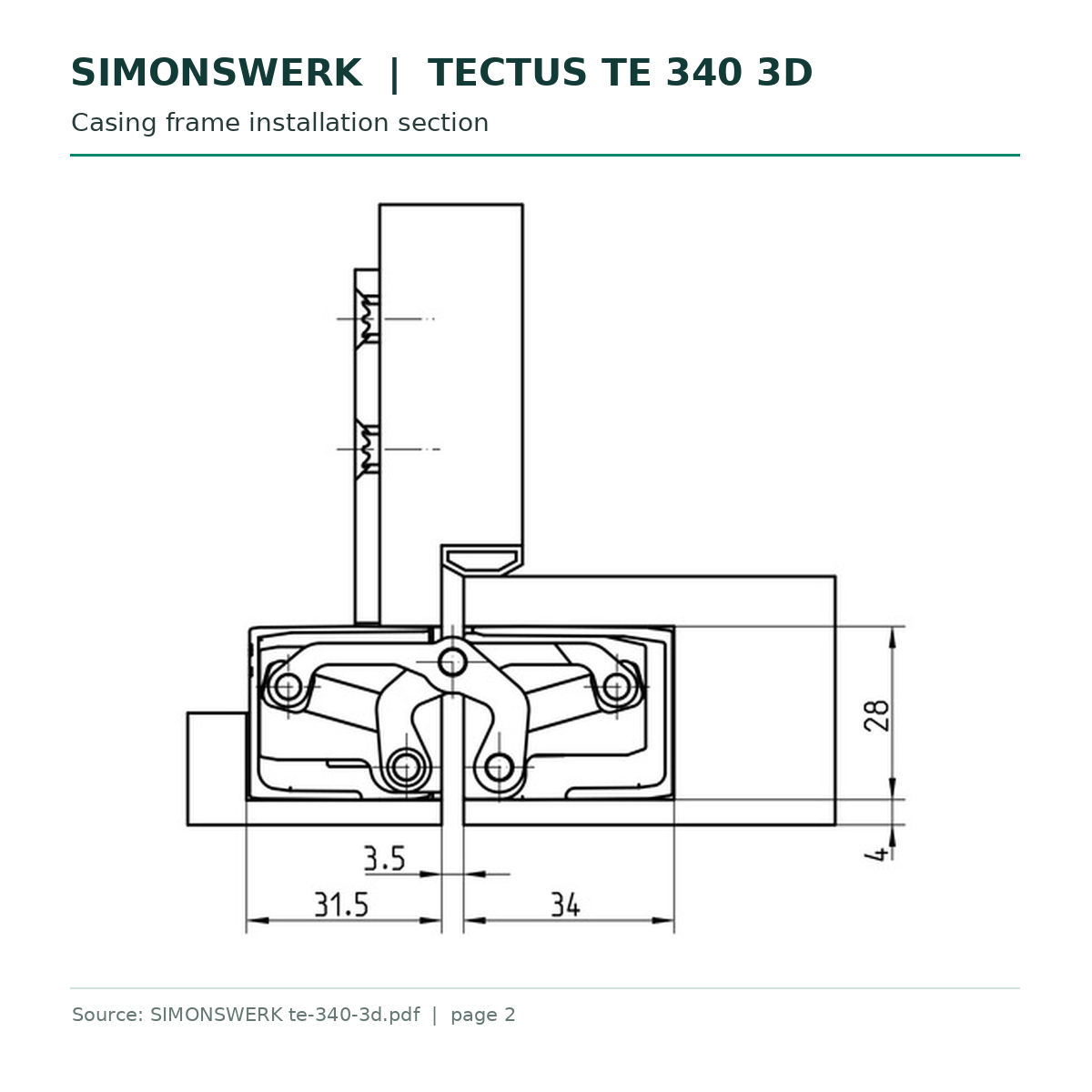

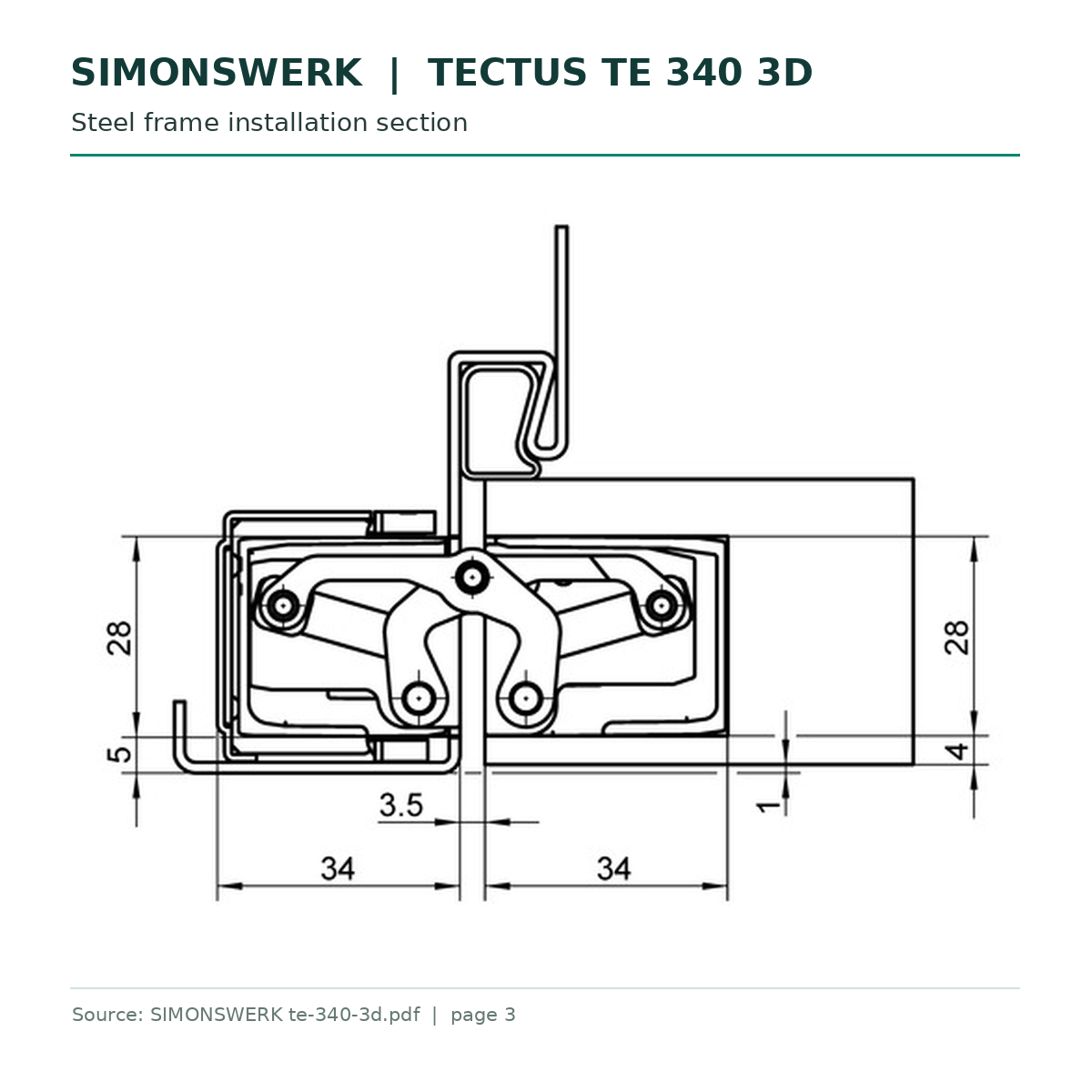

Use the appropriate routing template and frame receiver or reinforcement for the door construction. Aluminium door panels require a minimum thickness of 38mm. For fire-rated doors, check with the door manufacturer regarding additional reinforcement material and the suitability of the complete door assembly.
Product code: HIB201J
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Satin Nickel Look
