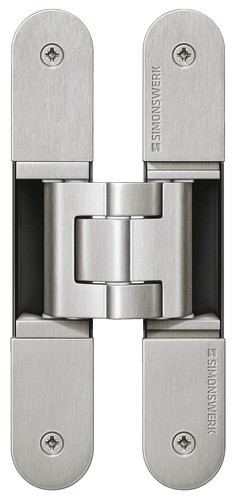

Name: TECTUS TE340 3D HINGE 160x28 144 SATIN NICKEL
Brand: SIMONSWERK UK LTD
SKU: HIB201R
Price: 85.52 GBP
Availability: InStock

PRODUCT DESCRIPTION

The Tectus TE340 3D concealed hinge in Satin Nickel, finish code 144, combines a satin nickel finish with a completely concealed hinge system for flush residential and commercial doors. The hardware stays hidden when the door is closed, while three-dimensional adjustment allows precise alignment within the frame.

Maintenance-free slide bearings support smooth operation. The system is suitable for wood, steel or aluminium door panels and frames, with a small gap between the door and frame for finger protection. This finish is Satin Nickel 144, distinct from Satin Nickel Look (F2), code 125.

Technical specifications

Model: TE340 3D
Finish: Satin Nickel, code 144
Load capacity: Up to 80kg using two hinges on a door leaf with a 2:1 height-to-width ratio, subject to the manufacturer's application conditions

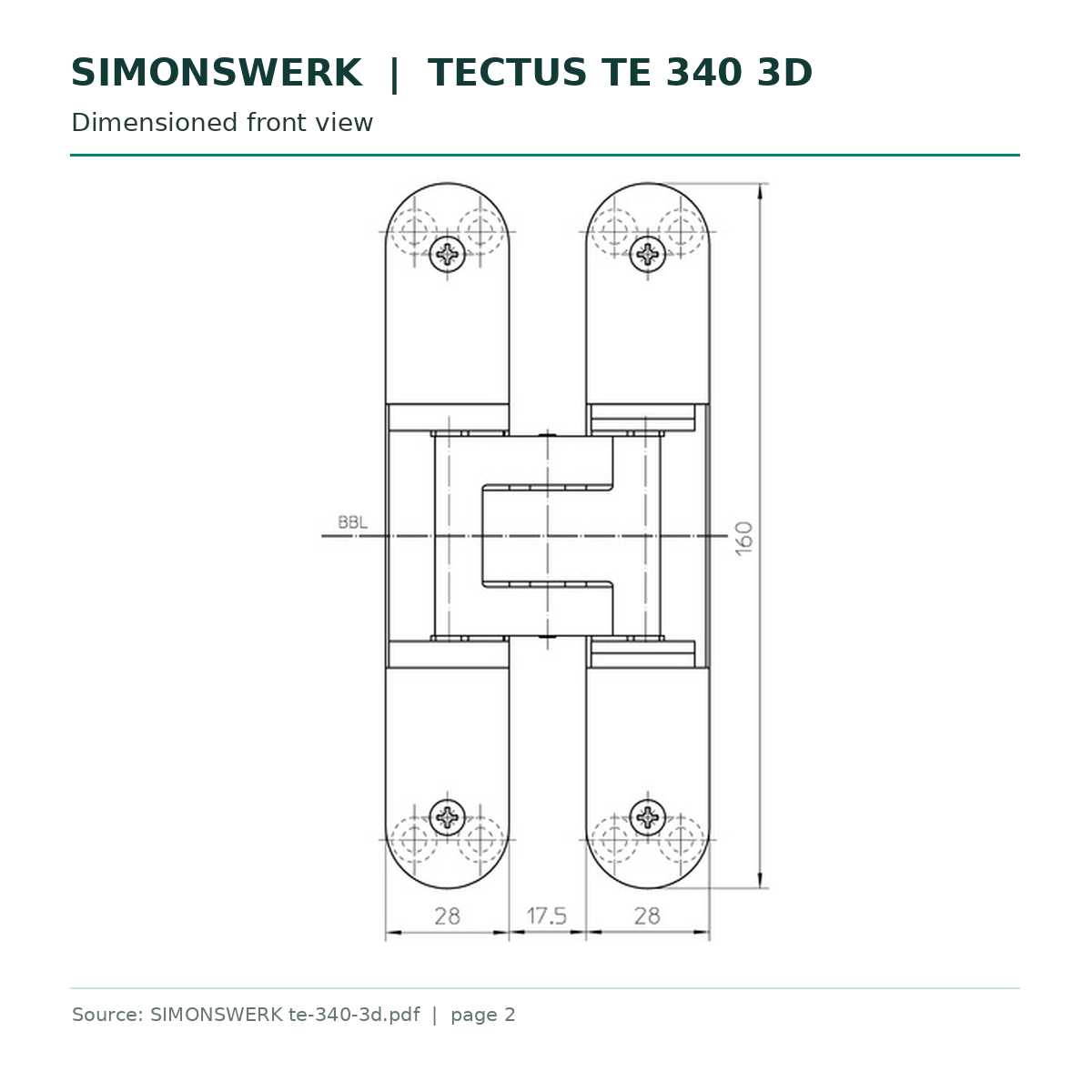

Length: 160mm
Width at door and frame: 28mm
Side adjustment: ±3mm
Height adjustment: ±3mm
Compression adjustment: ±1mm
Maintenance-free slide bearings
Quantity supplied: 1 hinge

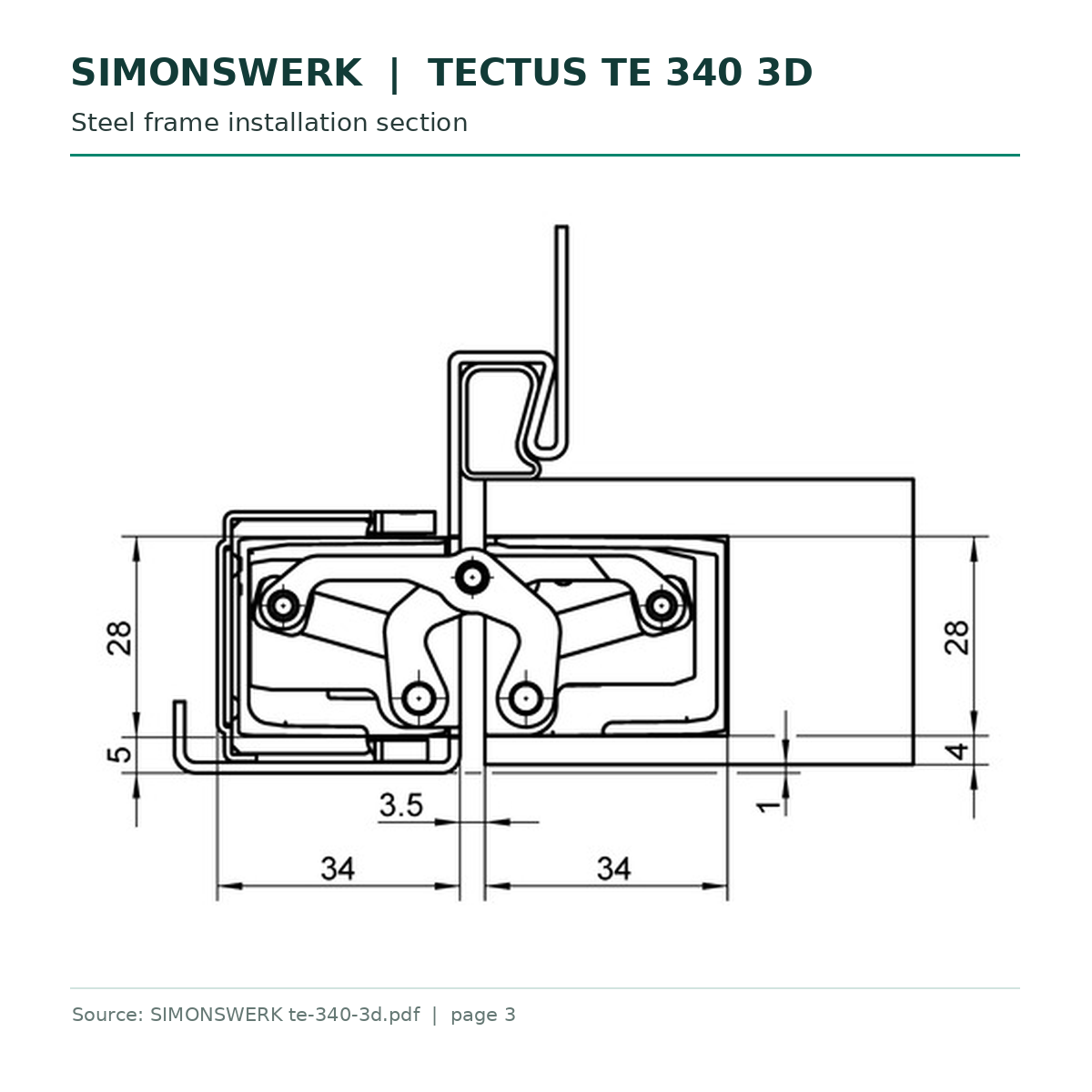

Installation guidance

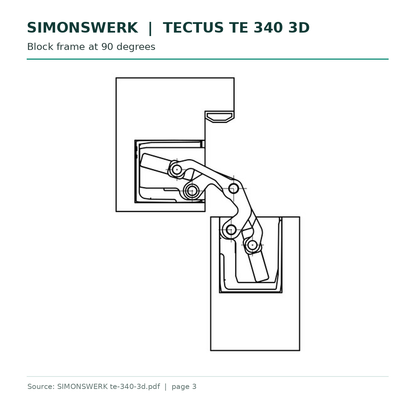

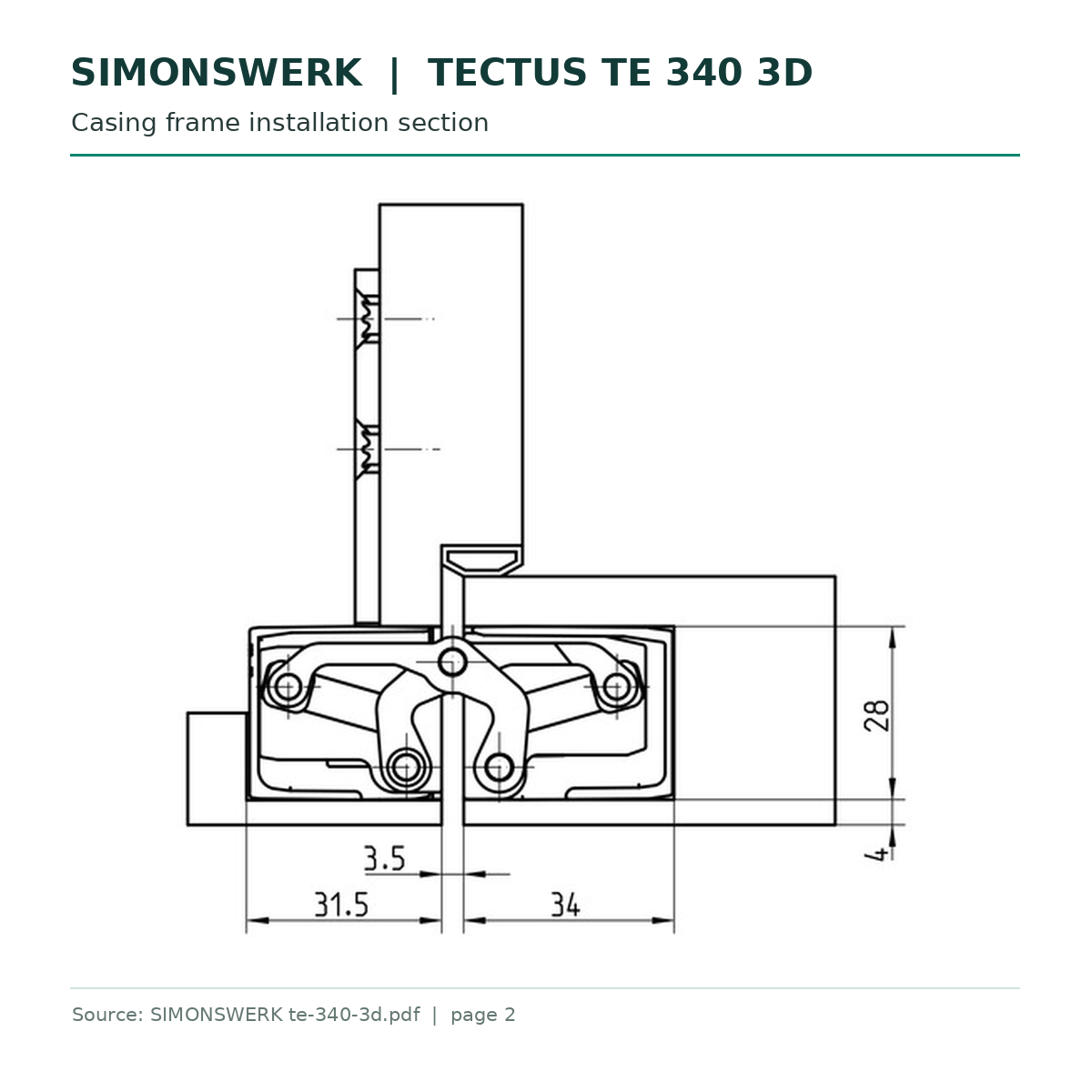

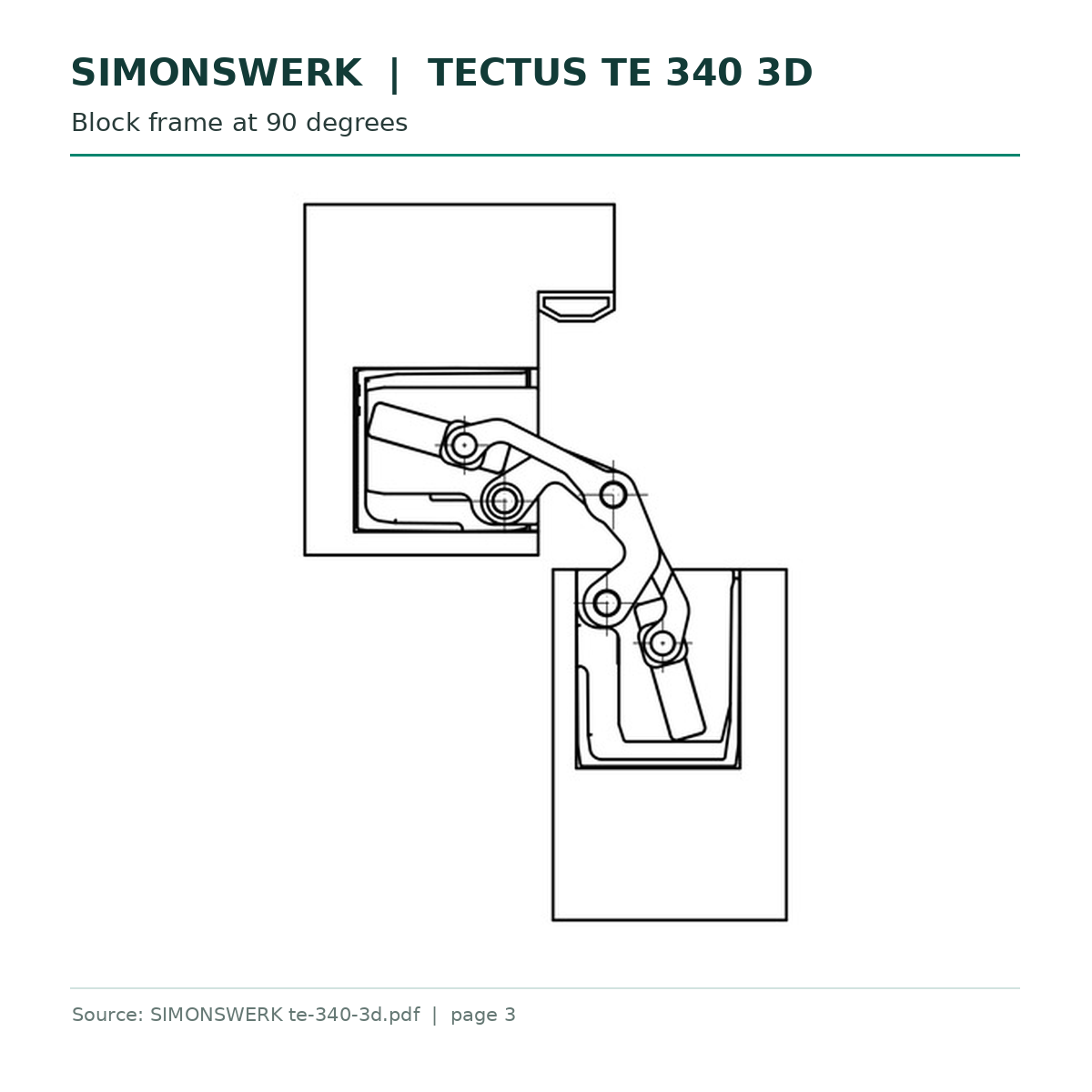

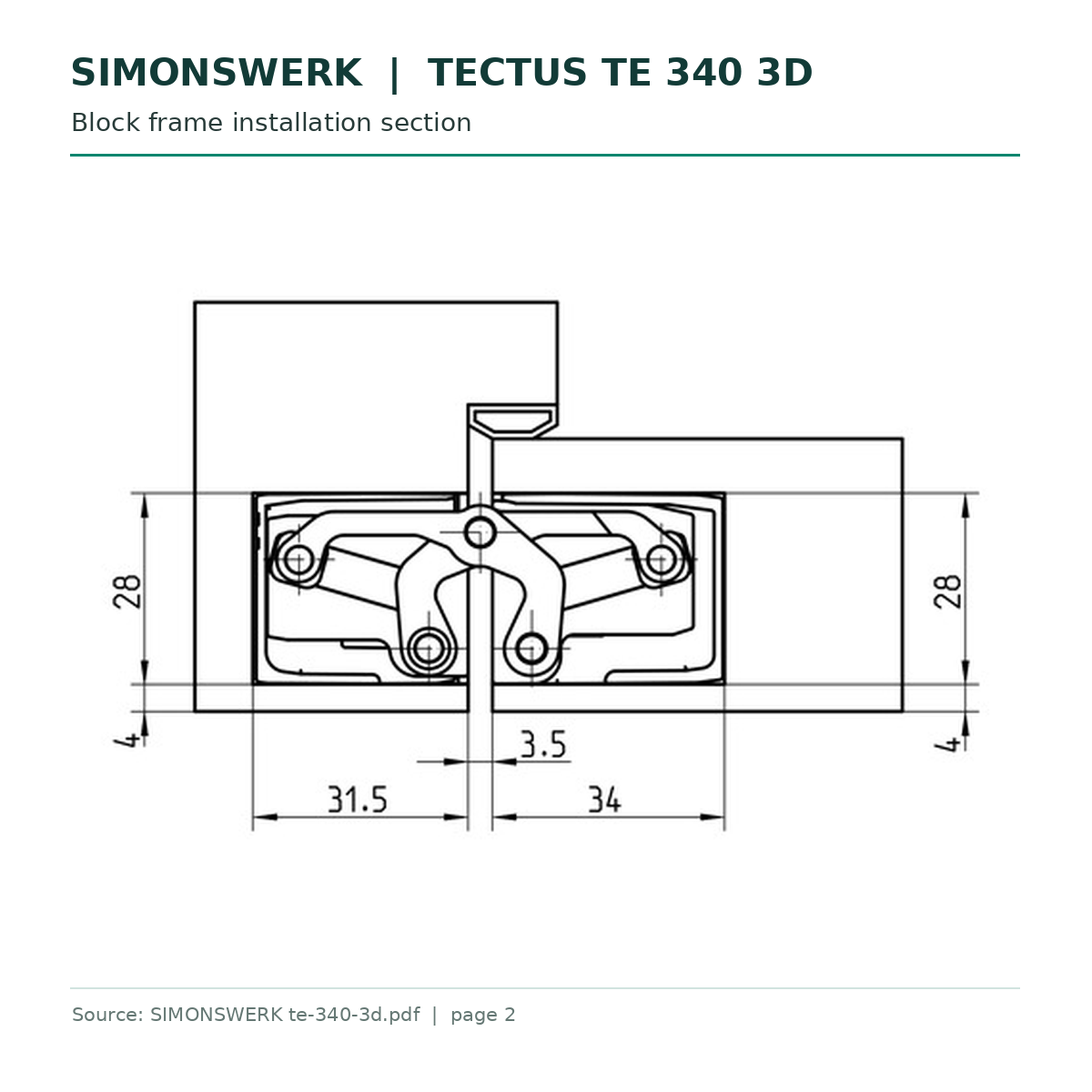

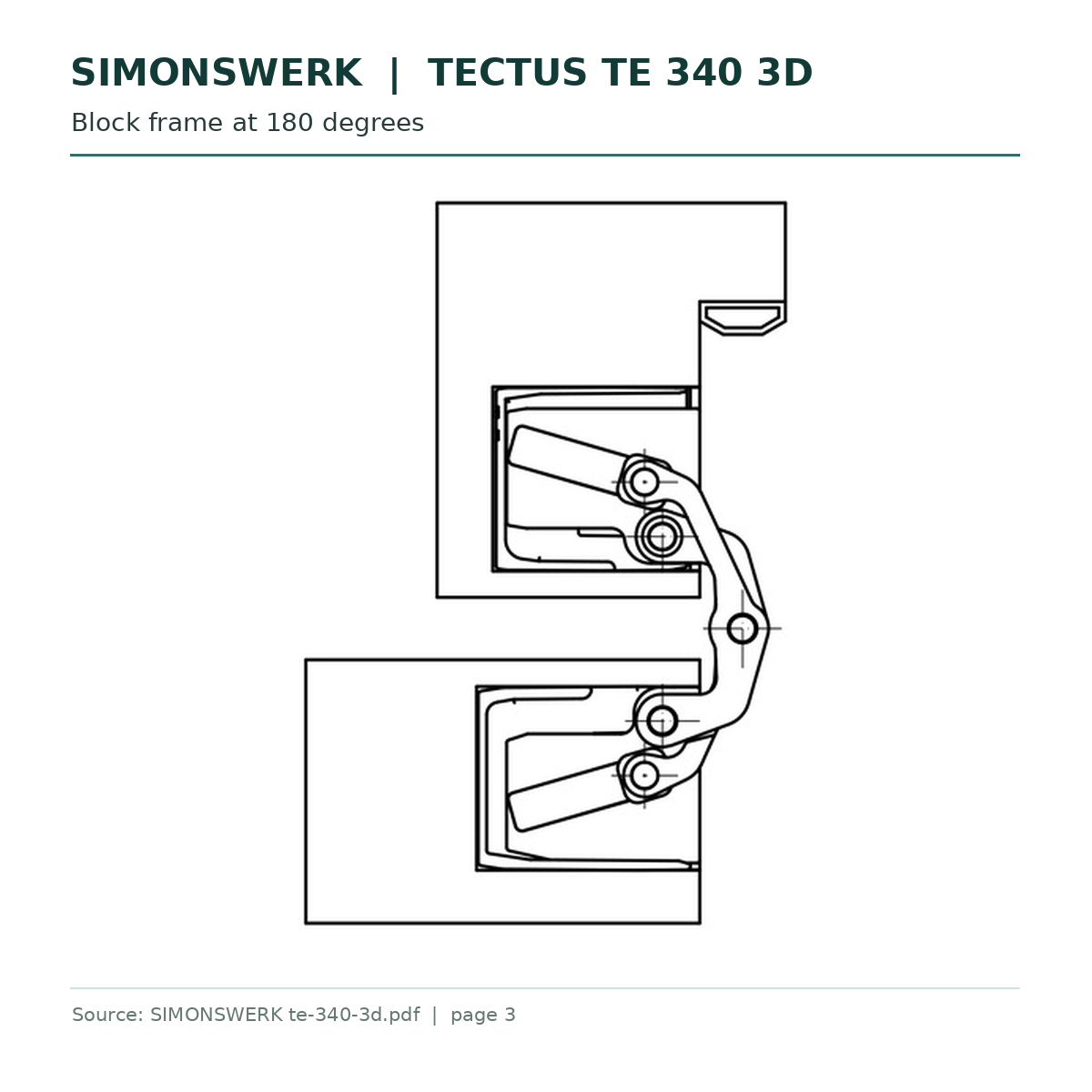

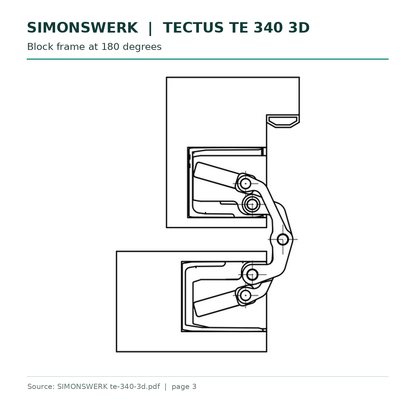

Use the appropriate routing template and frame receiver or reinforcement for the door construction. Aluminium door panels require a minimum thickness of 38mm. For fire-rated doors, check with the door manufacturer regarding additional reinforcement material and the suitability of the complete door assembly.

Product code: HIB201R
