PRODUCT DESCRIPTION

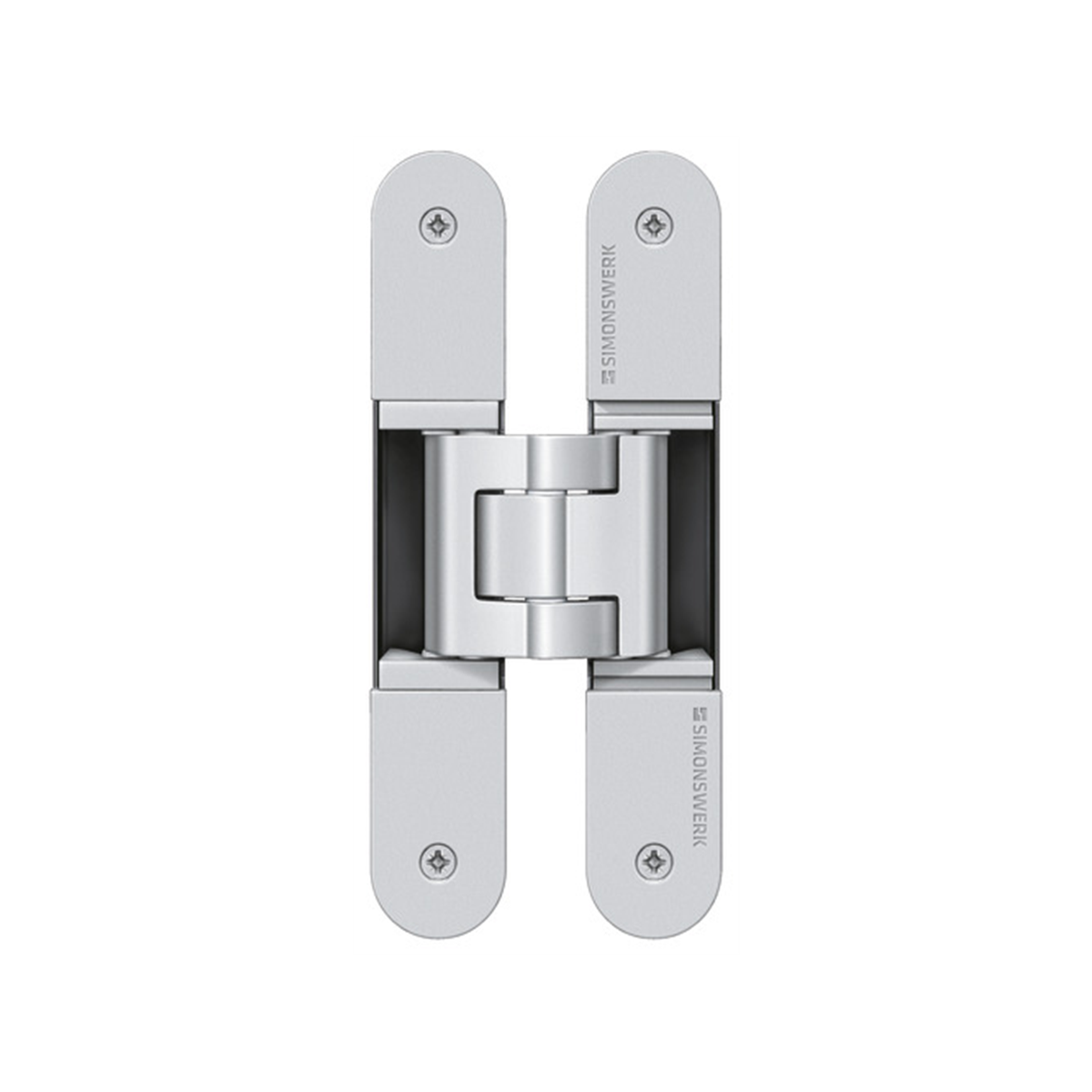

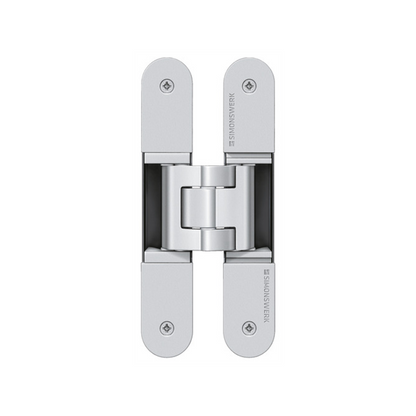

The Tectus TE340 3D concealed hinge in Stainless Steel Look (SSL), finish code 126, provides a stainless steel appearance within a completely concealed hinge system for flush residential and commercial doors. This finish designation describes the appearance, rather than specifying solid stainless steel construction.
Three-dimensional adjustment helps achieve accurate door alignment, while maintenance-free slide bearings support smooth operation. The system is suitable for wood, steel or aluminium door panels and frames, with a small gap between the door and frame for finger protection.
Technical specifications
- Model: TE340 3D
- Finish: Stainless Steel Look (SSL), code 126
- Load capacity: Up to 80kg using two hinges on a door leaf with a 2:1 height-to-width ratio, subject to the manufacturer's application conditions

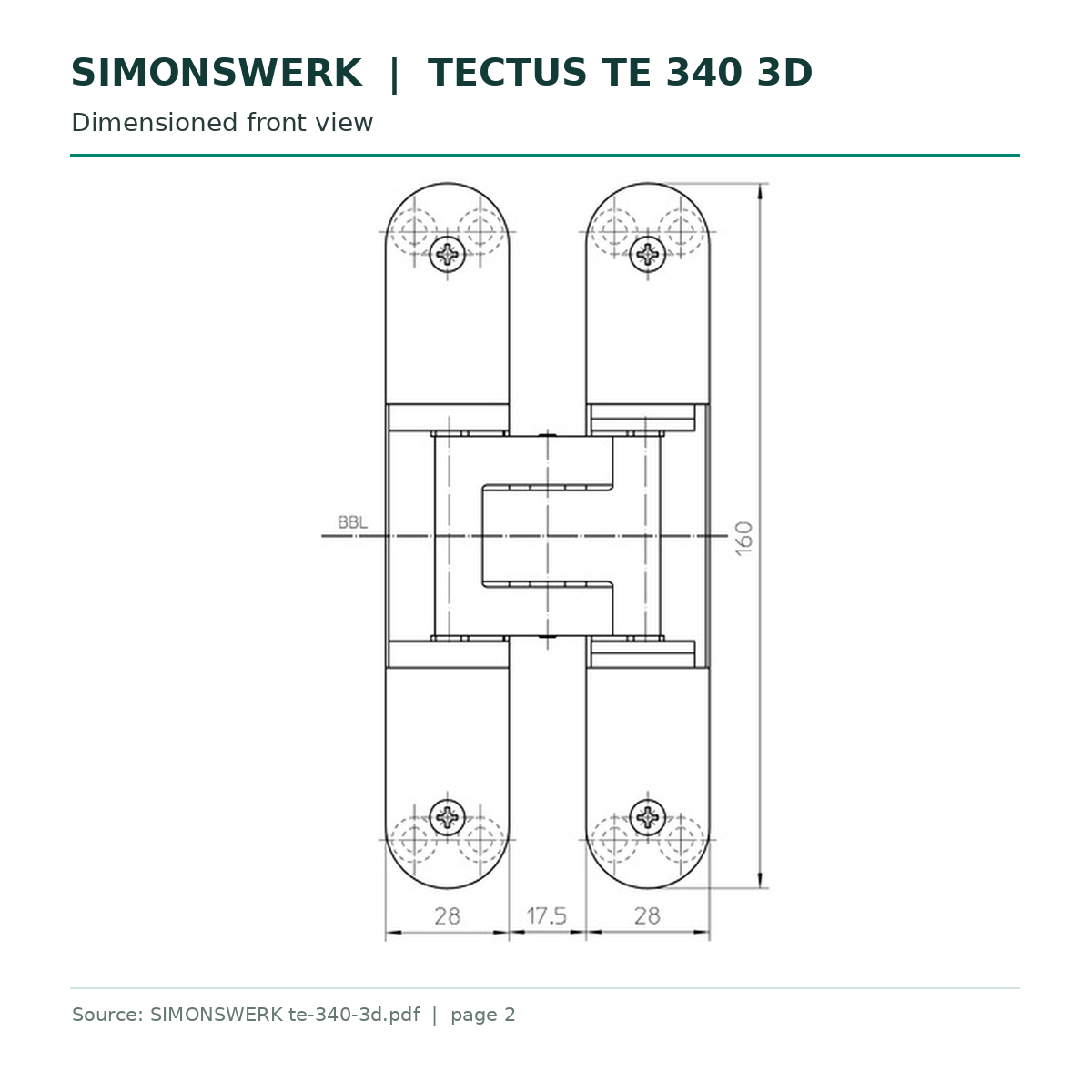

- Length: 160mm
- Width at door and frame: 28mm
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Compression adjustment: ±1mm
- Maintenance-free slide bearings
- Quantity supplied: 1 hinge
Installation guidance

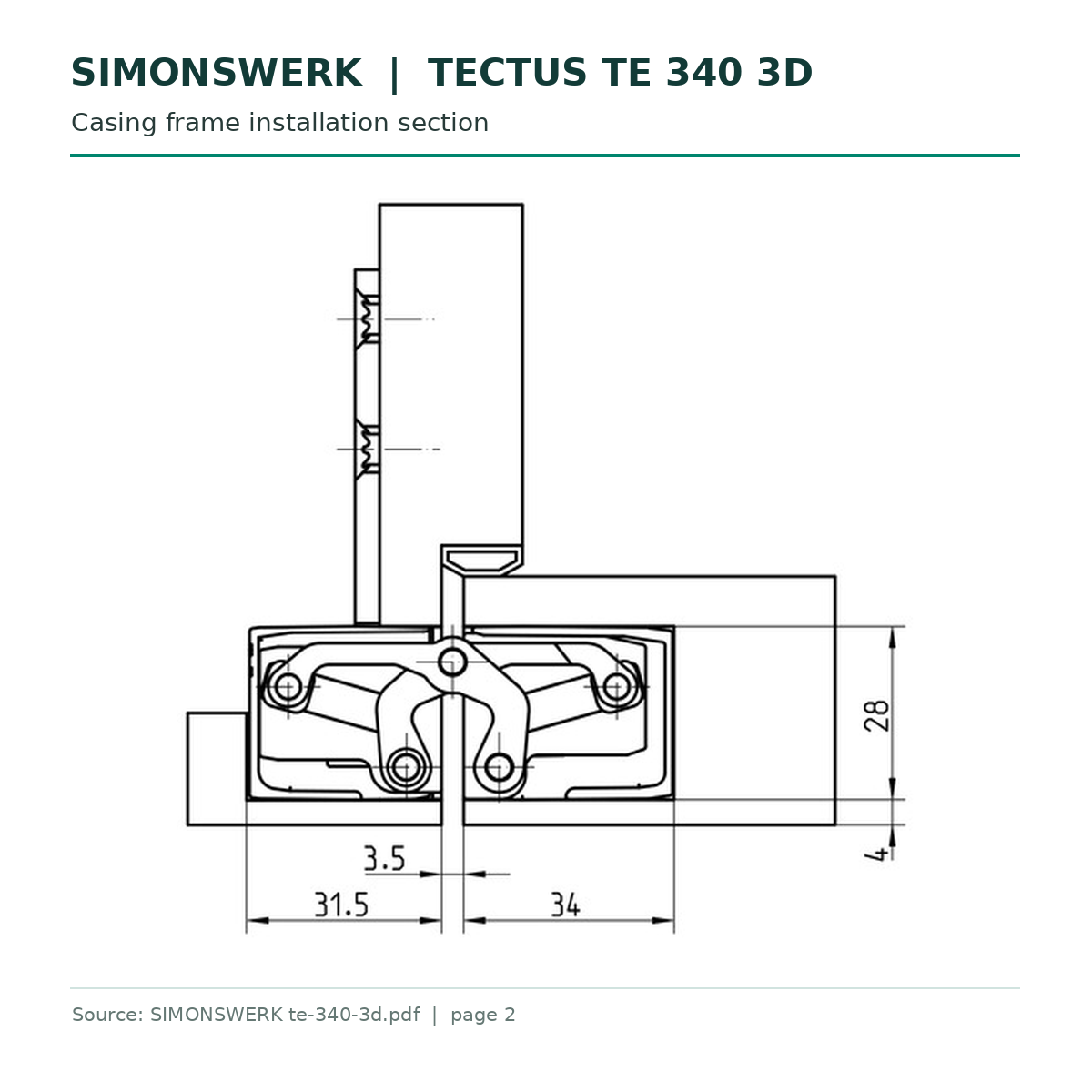

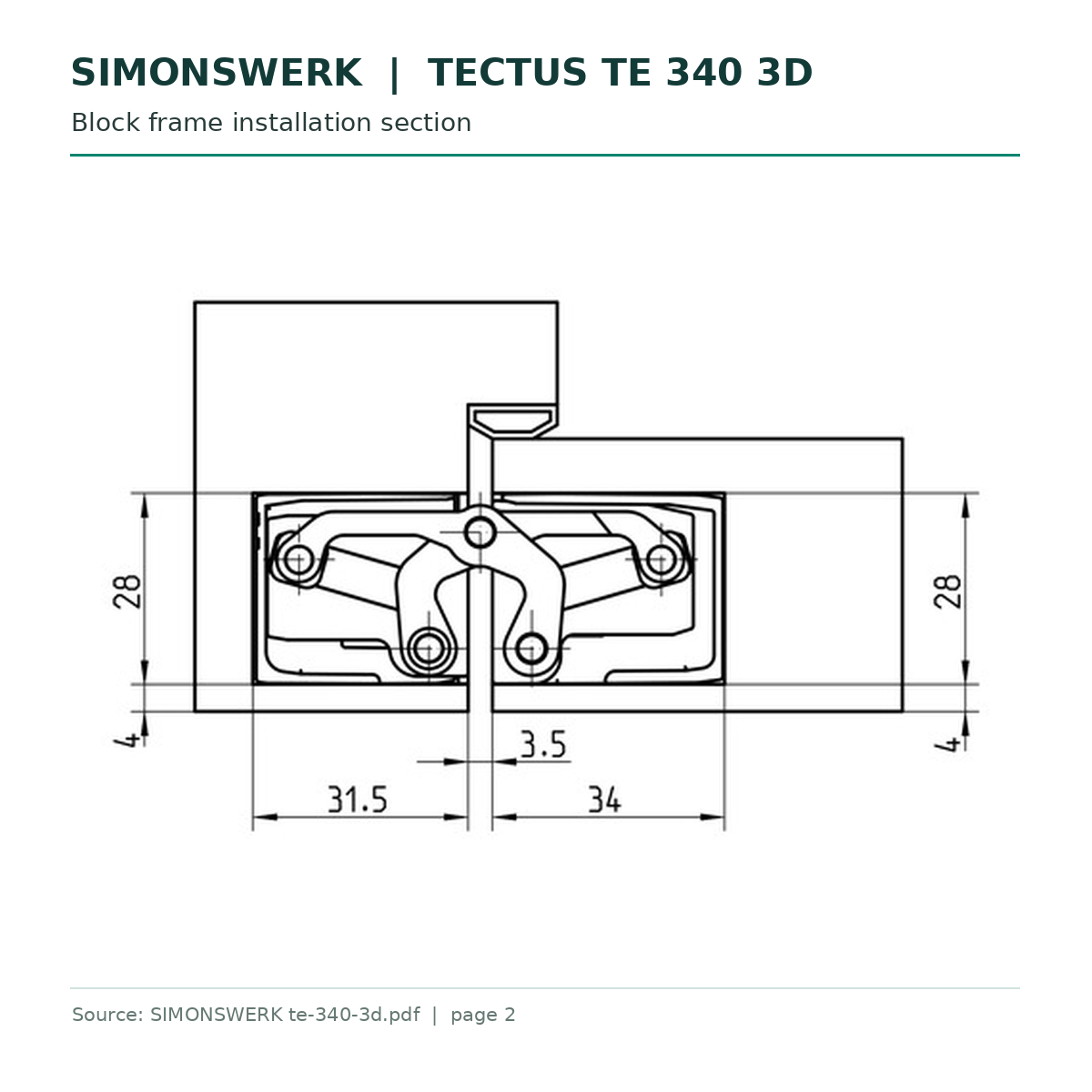

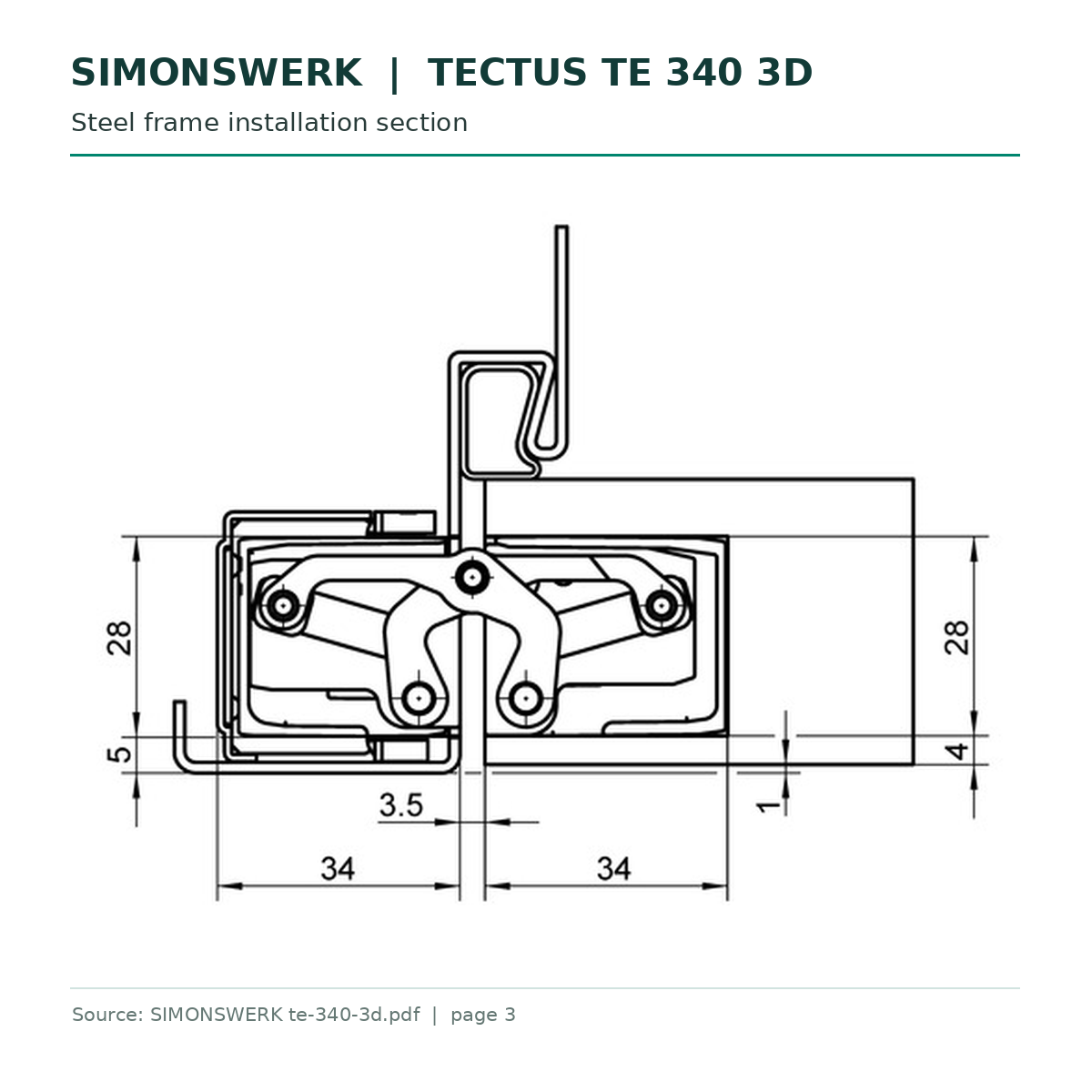

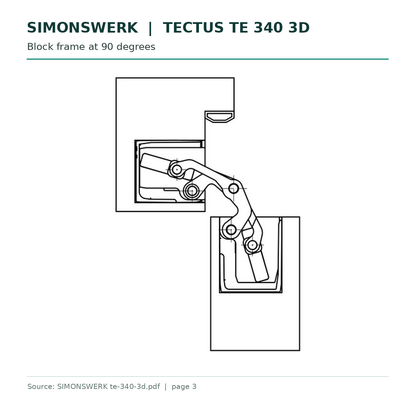

Use the appropriate routing template and frame receiver or reinforcement for the door construction. Aluminium door panels require a minimum thickness of 38mm. For fire-rated doors, check with the door manufacturer regarding additional reinforcement material and the suitability of the complete door assembly.
Product code: HIB201T
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Stainless Steel Look
