PRODUCT DESCRIPTION

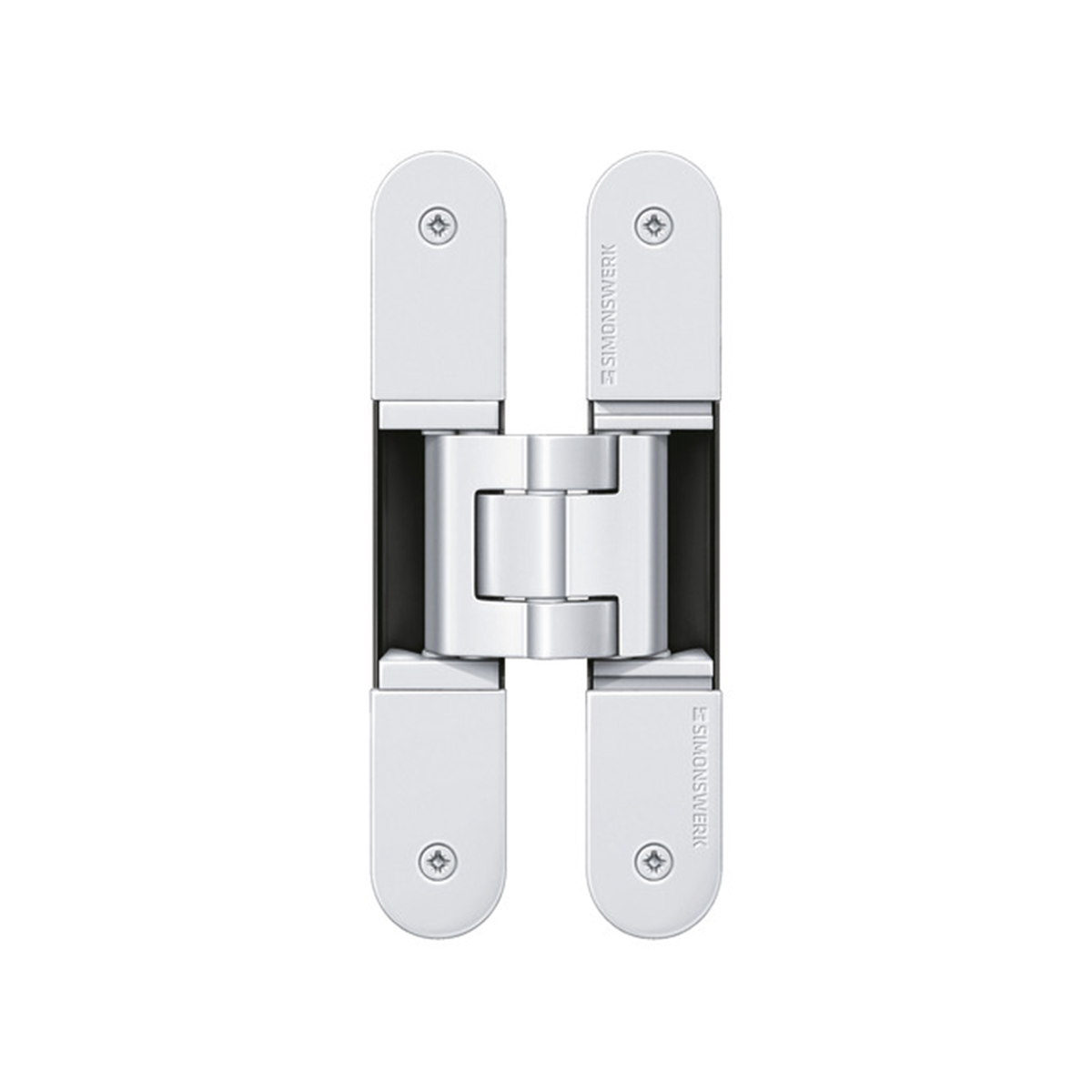

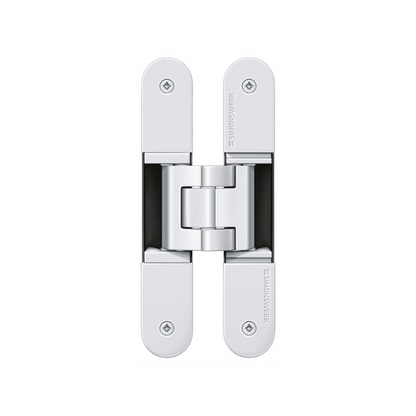

The Tectus TE340 3D concealed hinge in Traffic White, finish code 070 (RAL 9016), keeps hinge hardware hidden when a flush door is closed. Designed for residential and commercial doors, it combines three-dimensional adjustment for accurate alignment with maintenance-free slide bearings.

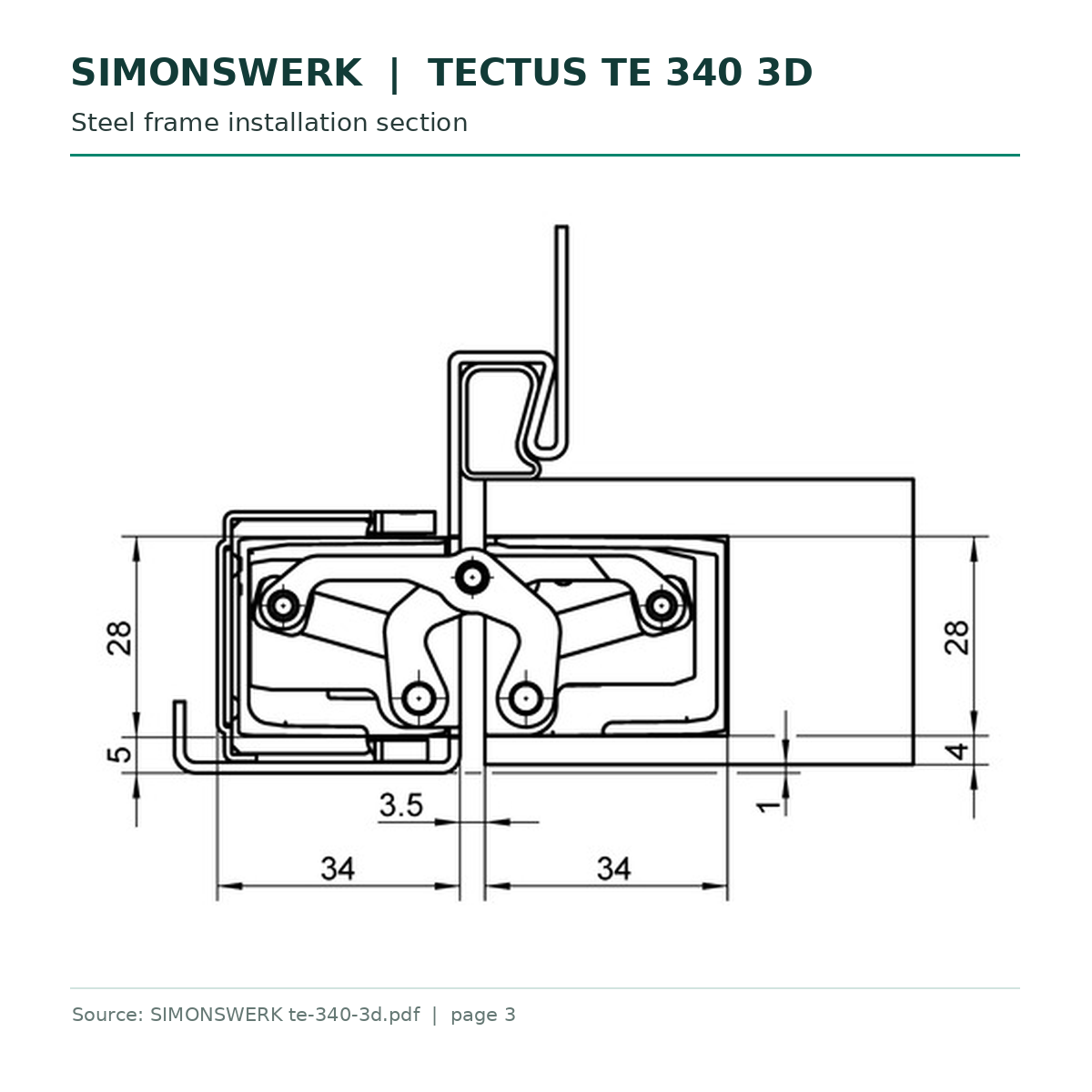

The completely concealed system is suitable for wood, steel or aluminium door panels and frames. A small gap between the door and frame provides finger protection.
Technical specifications
- Model: TE340 3D
- Finish: Traffic White, code 070 (RAL 9016)
- Load capacity: Up to 80kg using two hinges on a door leaf with a 2:1 height-to-width ratio, subject to the manufacturer's application conditions

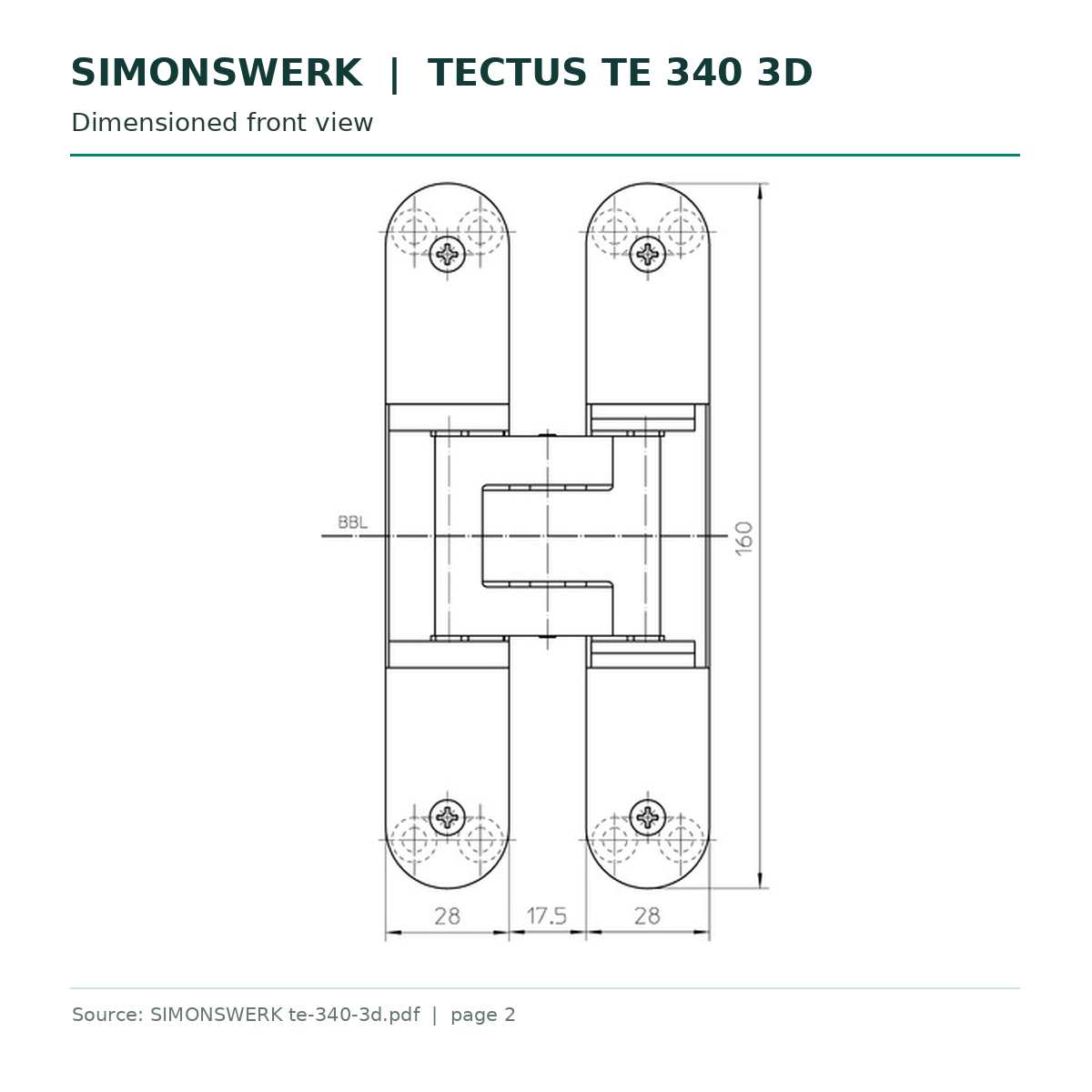

- Length: 160mm

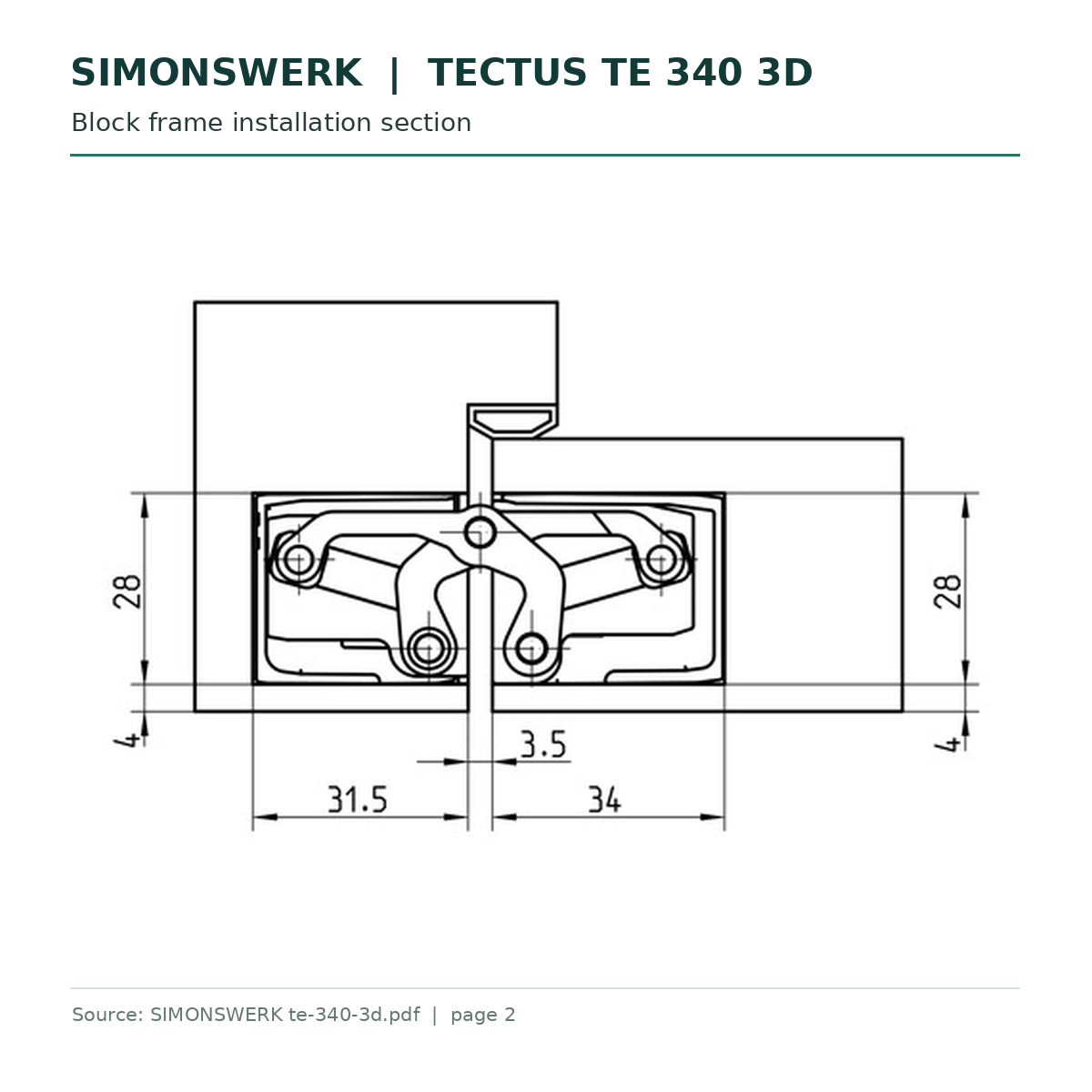

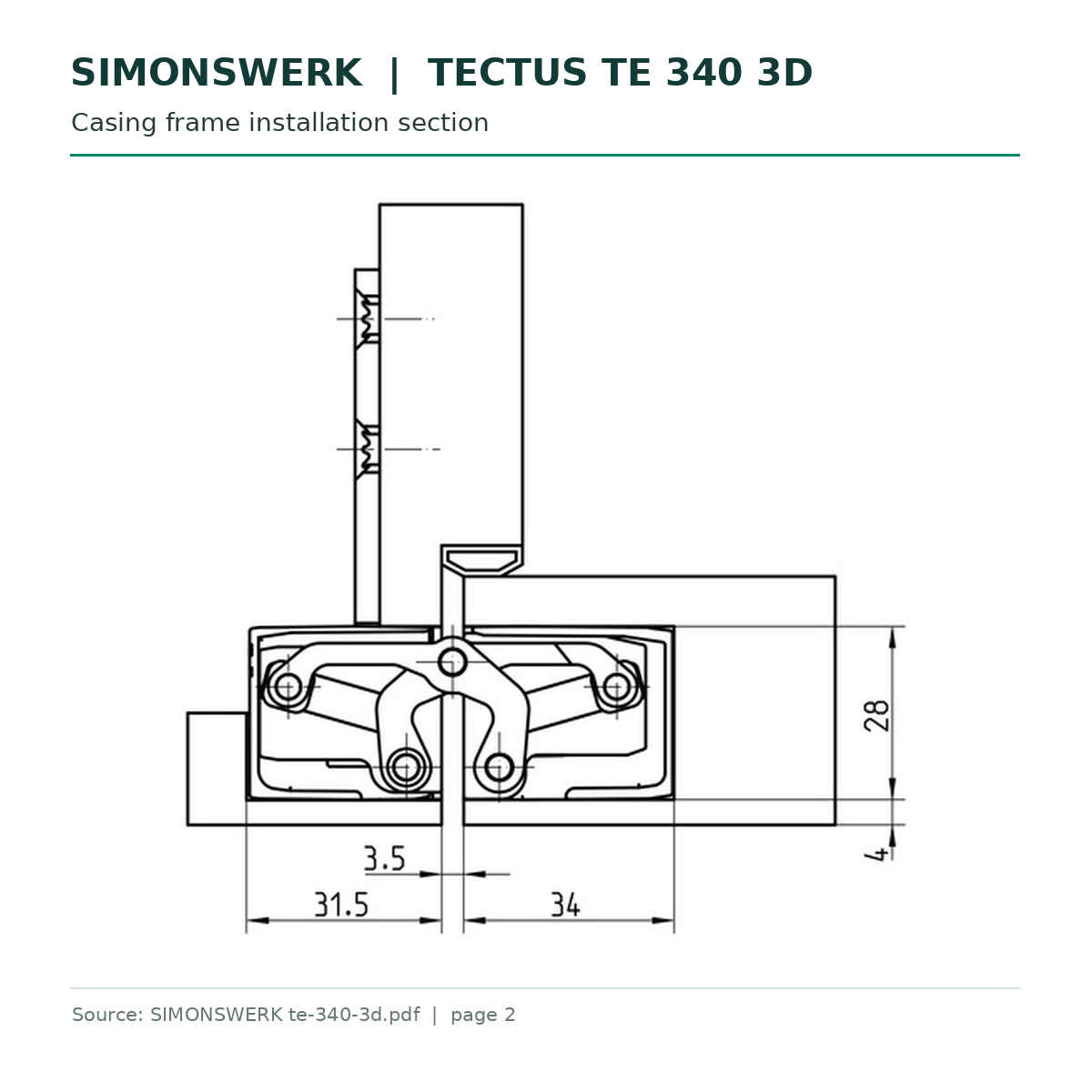

- Width at door and frame: 28mm
- Side adjustment: ±3mm
- Height adjustment: ±3mm
- Compression adjustment: ±1mm
- Maintenance-free slide bearings
- Quantity supplied: 1 hinge
Installation guidance

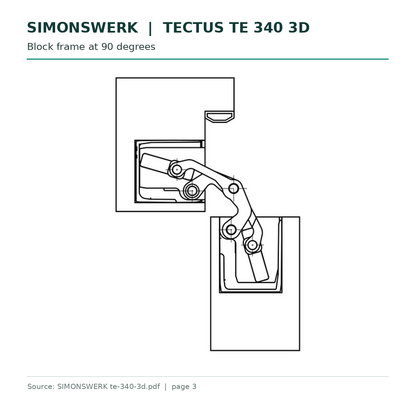

Use the appropriate routing template and frame receiver or reinforcement for the door construction. Aluminium door panels require a minimum thickness of 38mm. For fire-rated doors, check with the door manufacturer regarding additional reinforcement material and the suitability of the complete door assembly.
Product code: HIB201S
TECHNICAL DETAILS
- Application: Furniture Hinges
- Finish: Traffic White
