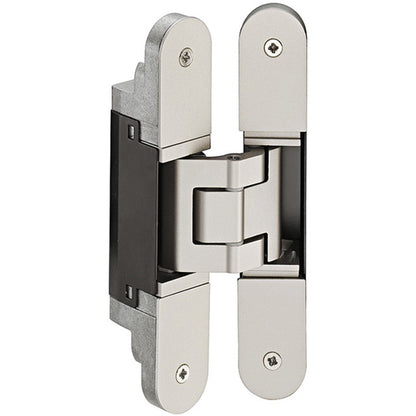

The Tectus TE340 3D concealed hinge in matt chrome provides a completely concealed hinge system for flush residential and commercial doors. Three-dimensional adjustment helps align the door within its frame, while maintenance-free slide bearings support smooth operation.

Designed for wood, steel or aluminium door panels and frames, the system maintains a small gap between the door and frame for finger protection.

Technical specifications

• Model: TE340 3D
• Finish: Matt chrome (MCP)
• Load capacity: Up to 80kg using two hinges on a door leaf with a 2:1 height-to-width ratio, subject to the manufacturer's application conditions

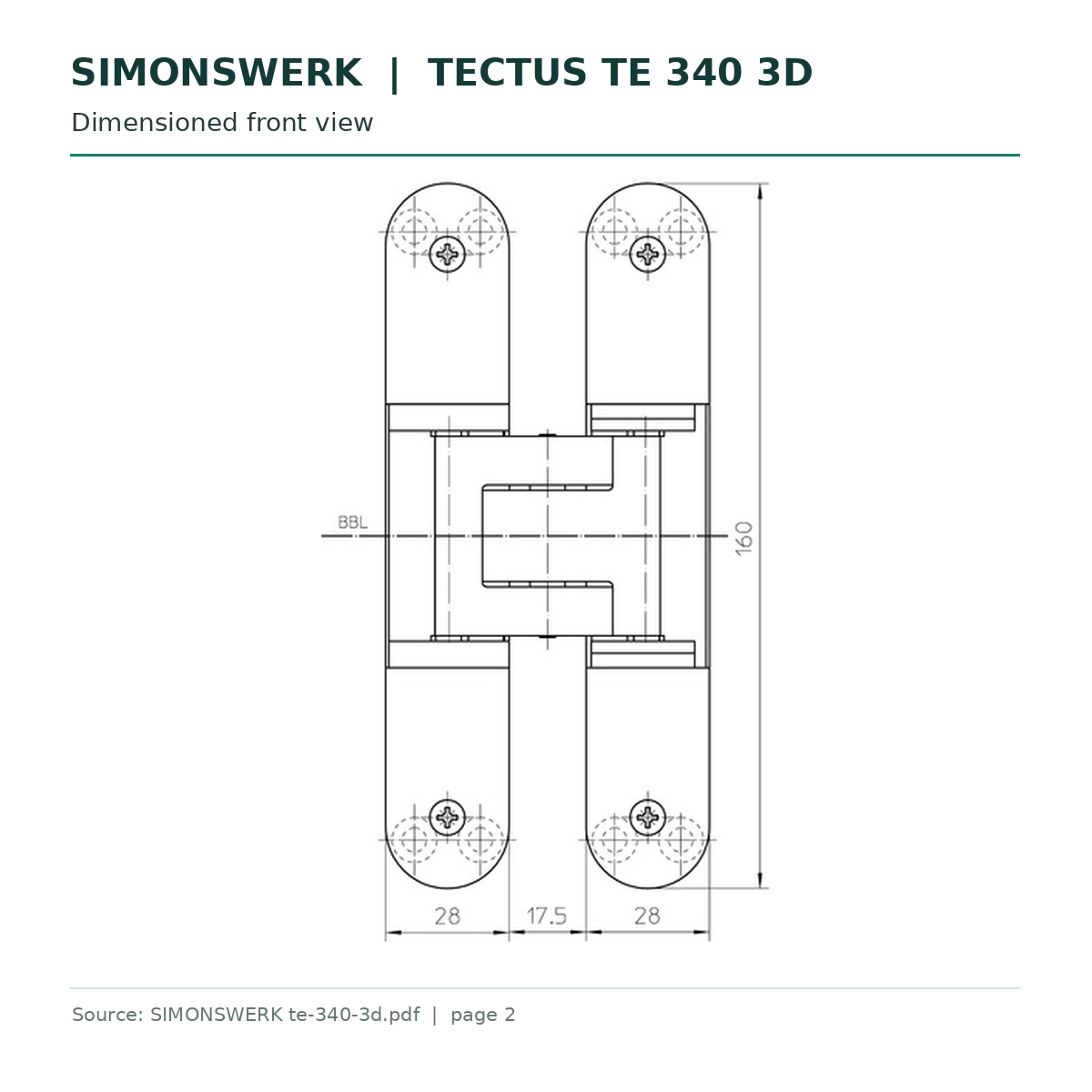

• Length: 160mm
• Width at door and frame: 28mm
• Side adjustment: ±3mm
• Height adjustment: ±3mm
• Compression adjustment: ±1mm
• Maintenance-free slide bearings
• Quantity supplied: 1 hinge

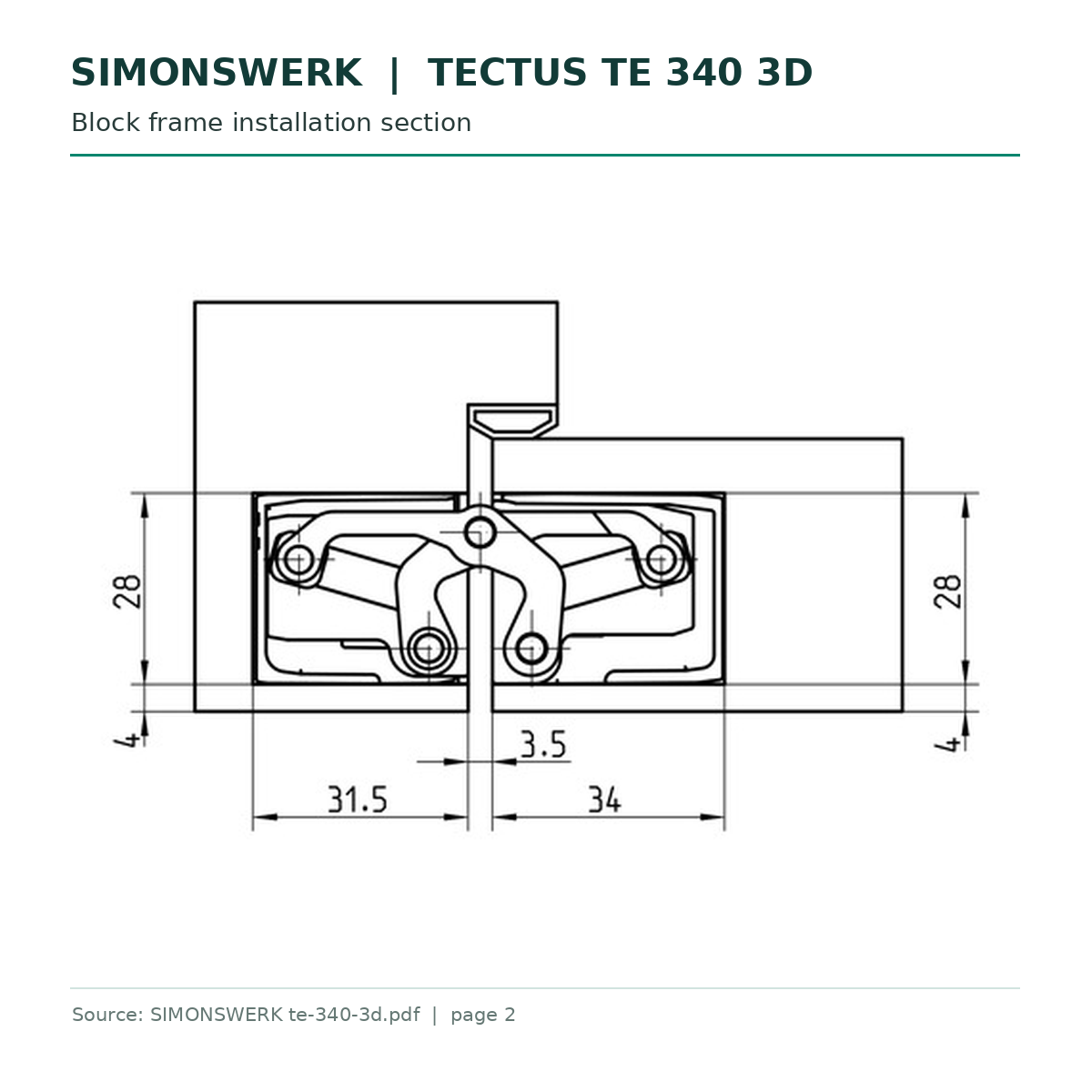

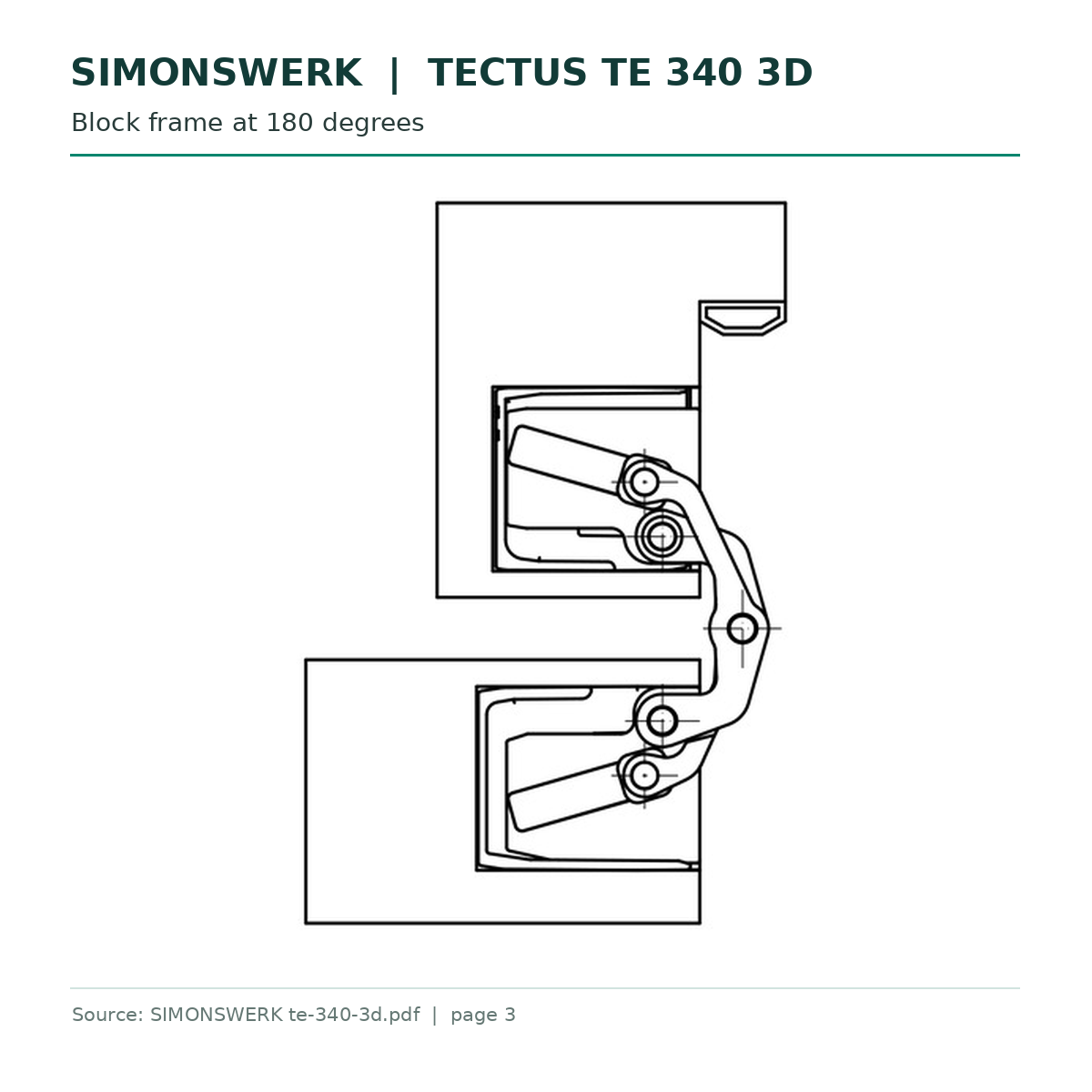

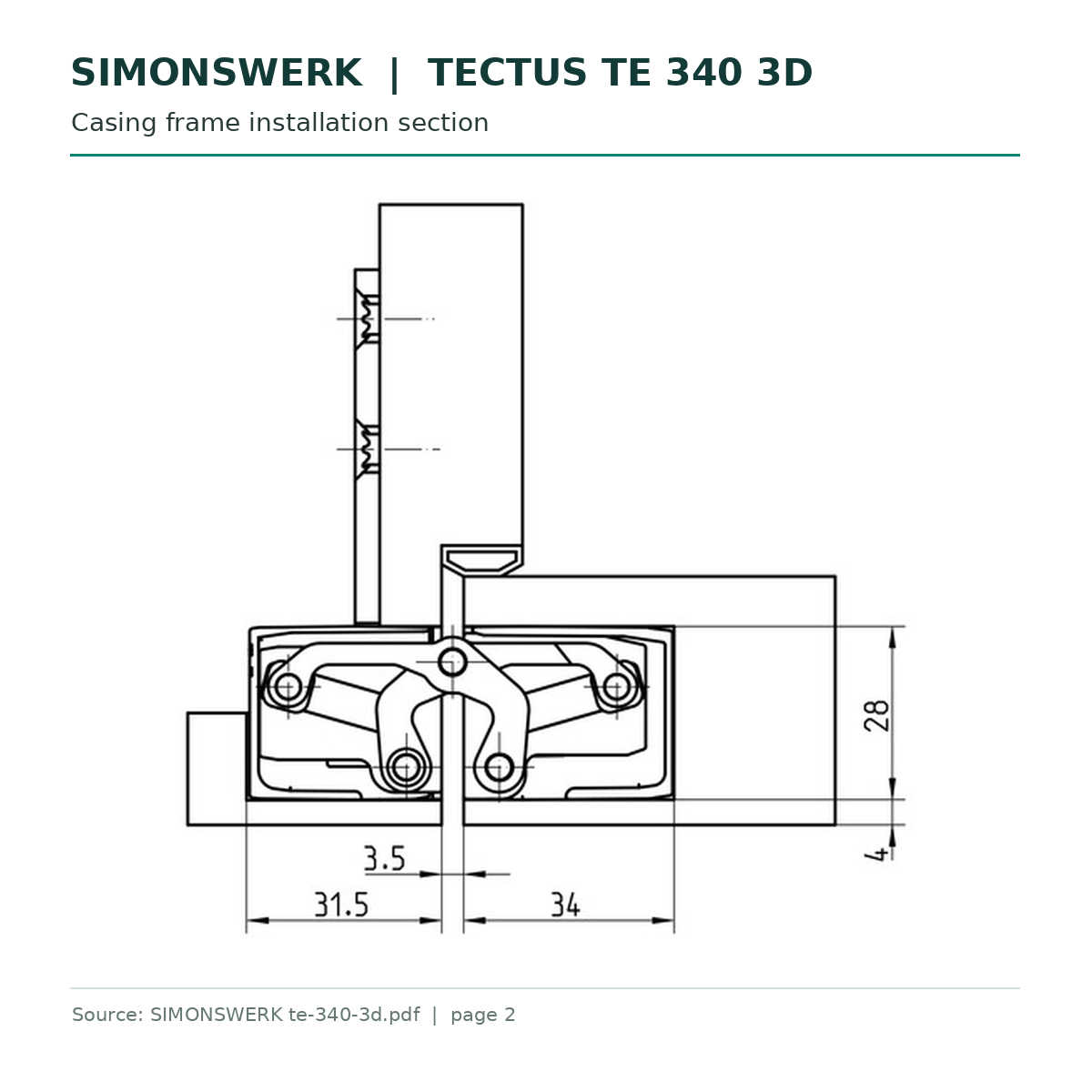

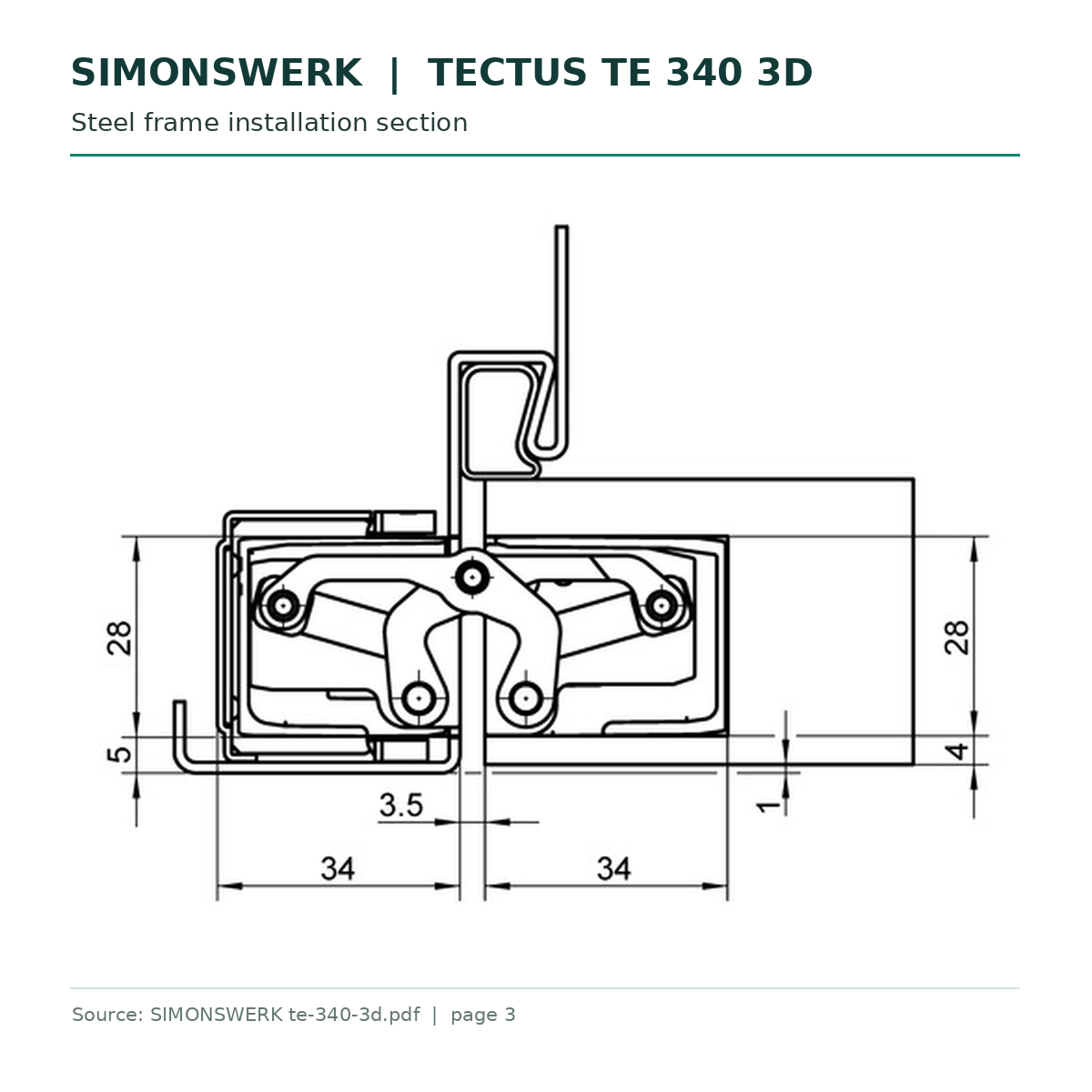

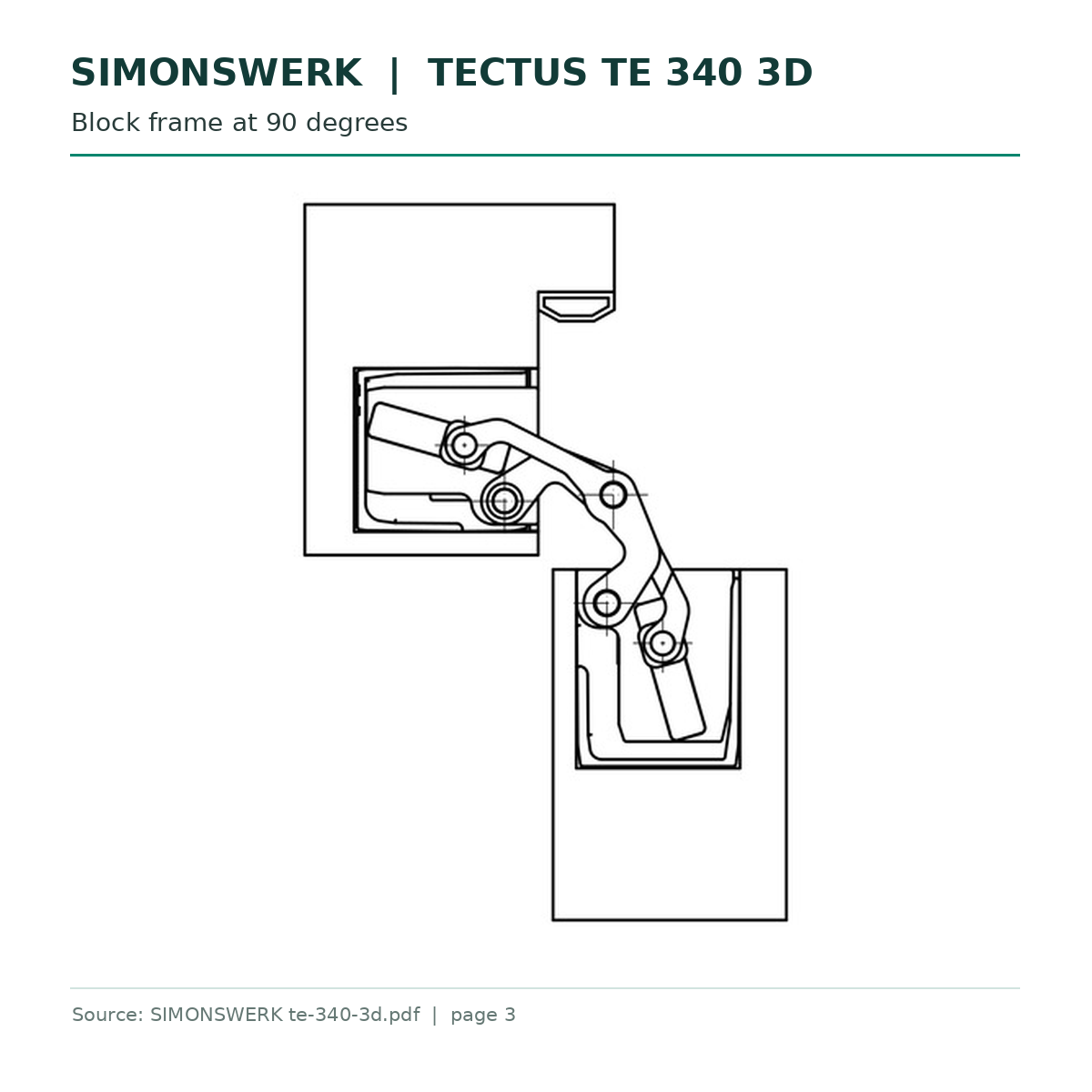

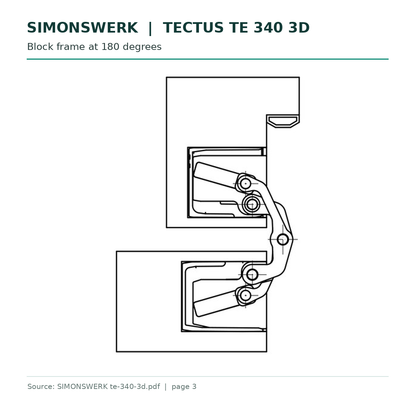

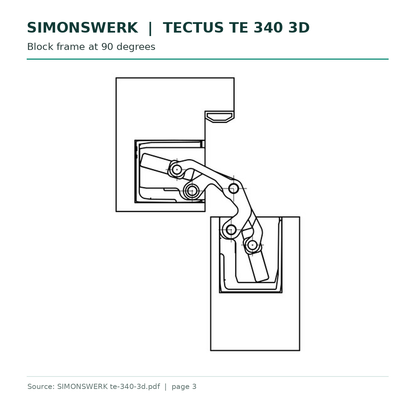

Installation guidance

Use the appropriate routing template and frame receiver or reinforcement for the door construction. Aluminium door panels require a minimum thickness of 38mm. For fire-rated doors, check with the door manufacturer regarding any additional reinforcement material and the suitability of the complete door assembly.

Product code: HI1299B2
